Winco Tdac-8w Paper Towel Dispenser User Manual

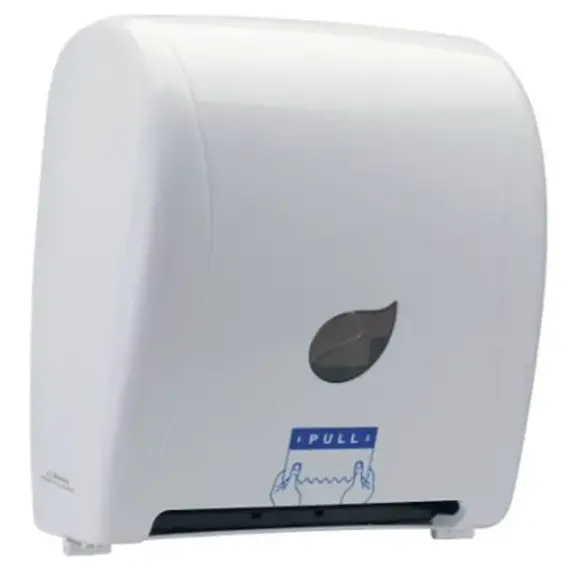

winco TDAC-8W Paper Towel Dispenser

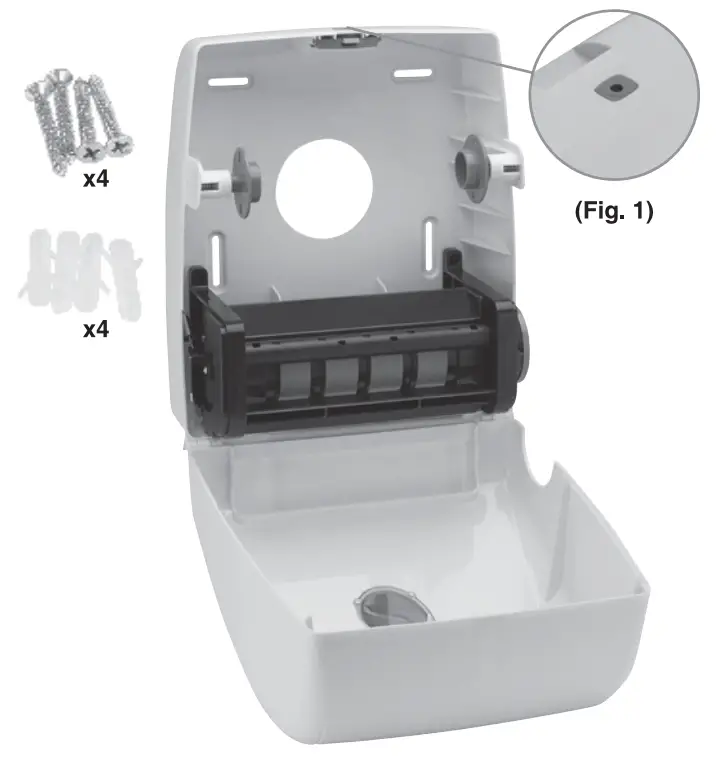

MOUNTING THE DISPENSER

1. Open the unit by pressing the button located at the top-rear of the dispenser (Fig.1 ).
2. Place the dispenser on desired wall location.
3. Mark and install wall anchors.
4. Mount using screws and washers.


LOCKING THE UNIT (OPTIONAL)

1. Close the dispenser.
2. Insert locking key (included) into the button located at the top-rear of the dispenser (Fig.2).
3. Turn key to lock unit.


FILLING THE DISPENSER

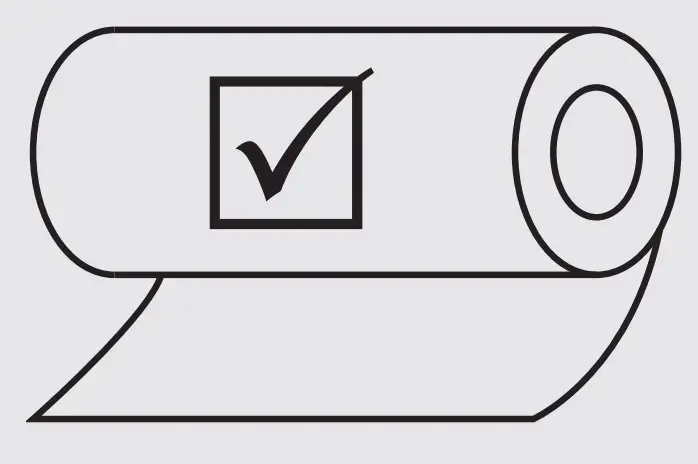

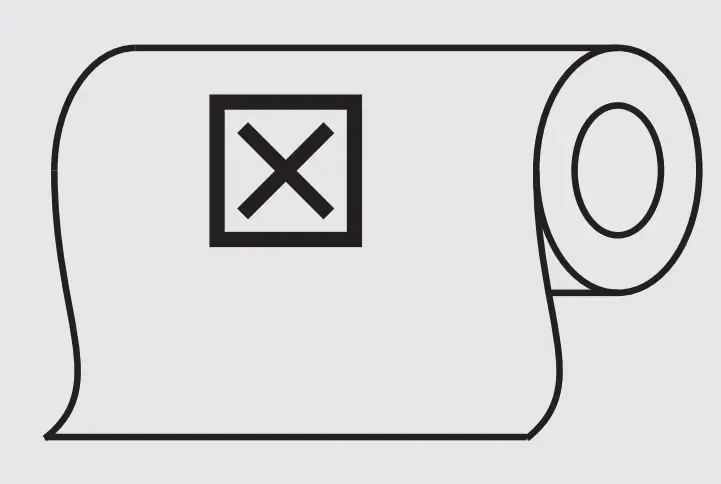

NOTE: PLEASE CHECK YOUR PAPER TO MAKE SURE IT IS IN THE CORRECT DIRECTION

CORRECT	INCORRECT

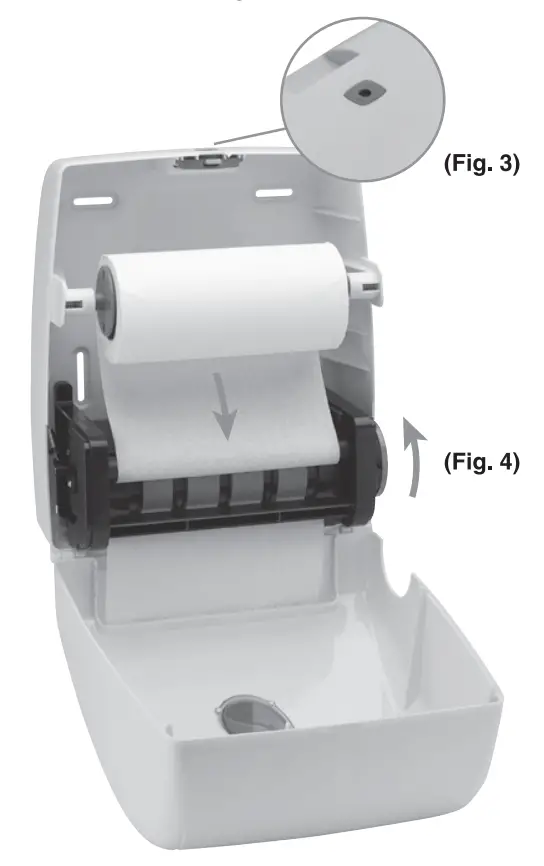

1. Open the unit by pressing the button located at the top-rear of the dispenser (Fig.3).
   NOTE: the key will be required if unit was locked with the key (Fig. 2).
2. Load the paper roll onto the spools and feed the paper through the roller by turning knob on side toward the back (Fig.4).
3. Close the unit.


Customer Support

1-888-946-2682 I
[email protected]
www.wincous.com
