Shenzhen Lean Kiosk Systems LKS8500SERIES Tigapo Cards Vending Machine User Manual
Shenzhen Lean Kiosk Systems LKS8500SERIES Tigapo Cards Vending Machine
| ShenZhen Lean Kiosk Systems Co.,Ltd Version/Edition | DOC NO. | LKS-SC-QWI-012 | |||
| Model | LKS8500 Series | Version/ Edition | A/3 | ||
| Date | 2021-12-11 | Tigapo Cards vending machine | page | 1/8 | |
| Specification for Tigapo Cards vending machine self-service terminal | |||||
This product is a multifunctional self-service terminal for self-service payment and self-service card. This paper expounds the specifications and instructions of this equipment in detail.

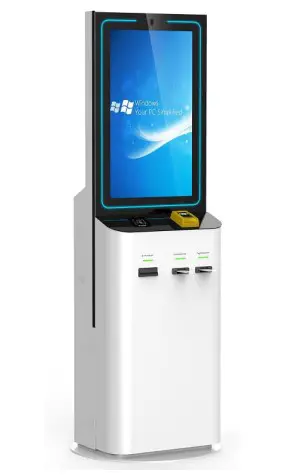

1. Product overview
1.1 Product Profile
This product is a self service payment and settlement multifunctional card issuing self service terminal, which is a new type of human computer interaction equipment with convenient use. The terminal equipment integrates the advantages of touch control, industrial computer, multimedia advertisement design, network, industrial design, structural innovation, etc. It can quickly complete information inquiry and video playing, and truly achieve simple human computer interaction.
1.2 Functional characteristics
A: The front user interface of 32 inch HD display screen, capacitive touch screen supports 10 point touch technology, 5 milliseconds fast response, accuracy and stability.
B: Support Android multimedia advertisement display on the same screen.
C: Multi system compatibility of products: Android operating system of industrial computer, touch display screen, code scanning payment, network information inquiry, receipt printing, face brushing payment, credit card and bank card payment, etc.
D: Brand new sheet metal structure design, corrosion resistant and oxidation resistant painting process, with good dustproof effect.
E: Each machine has been tested by aging, static electricity, vibration, touch and click, etc., to ensure more stable quality.
2. Technical parameters

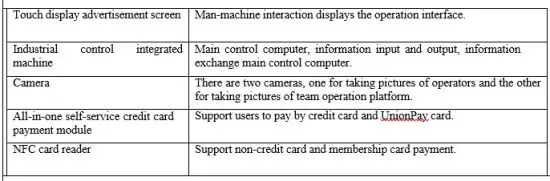

3. 2.1 System Design
| ShenZhen Lean Kiosk Systems Co.,Ltd Version/Edition | DOC NO. | LKS-SC-QWI-012 | |||||
| Model | LKS8500 Series | Version/ Edition | A/3 | ||||
| Date | 2021-12-11 | Tigapo Cards vending machine | page | 4/8 | |||
| Power supply module | AC110-240V DC 12V DC 24V Switching Power Supply Module. | ||||||
| Banknote receiving module | Support users to pay in cash. | ||||||
| Card issuing machine | Users handle consumption cards and membership cards by themselves. | ||||||
| Structural design | Humanized anti-corrosion sheet metal painting design of appearance structure. | ||||||
| 2.2 Parameters of product electrical module | |||||||
| 32-inch LCD panel module | Resolution: 1920*1080, 16: 9, operating temperature 0 ℃ ~ 60 ℃, wide viewing angle, low power consumption: 20W backlight MTBF: 100,000 hours. | ||||||
| 32-inch custom capacitive screen | 32 inches, surface hardness 6h, 500G steel ball 2m unbreakable, haze below 5%, transmittance above 90%. | ||||||
| Industrial control host | RK3399 quad-core, maximum frequency 1.8 GHz. Flash memory: PDDR4 4GB. Storage: 16GB EMMC NAND chip. LVDS and HDMI dual-screen display. Android 7.1 system. | ||||||
| Camera | C930C/camera can be fine-tuned up, down, left and right 20 degrees | ||||||
| All-in-one self-service credit card payment module | UnionPay payment card reader. | ||||||
| NFC card reader | RFID reader. | ||||||
| Power supply module | Ming Wei Switching Power Supply Module AC 100-240V DC12V DC24V | ||||||
| Banknote receiving module | Banknote recognizer, MEI SCNL 8328R (support US $, denominations 1.5. 10.20, 50, 100, 200,) | ||||||
| Card issuing machine | Creating spontaneous card device CRT-571 | ||||||
| Wireless communication | Wireless WIFI Bluetooth 4G communication (domain LTE module). | ||||||
| Mingwei switching power supply | AC220V, DC12V 24V. 3C certification. | ||||||
| 2.3 Electrical Performance | |||||||
| Input voltage | AC 100-240V 50/60 Hz 5A | ||||||
| 2.4 Working Environment | |||||||
| Operating temperature | -30 ℃-50 ℃ | ||||||
| ShenZhen Lean Kiosk Systems Co.,Ltd Version/Edition | DOC NO. | LKS-SC-QWI-012 | |||||
| Model | LKS8500 Series | Version/ Edition | A/3 | ||||
| Date | 2021-12-11 | Tigapo Cards vending machine | page | 5/8 | |||
| Working humidity | 0%-90% | ||||||
| Storage temperature | -10 ℃-60 ℃ | ||||||
| Storage humidity | 0%-65% | ||||||

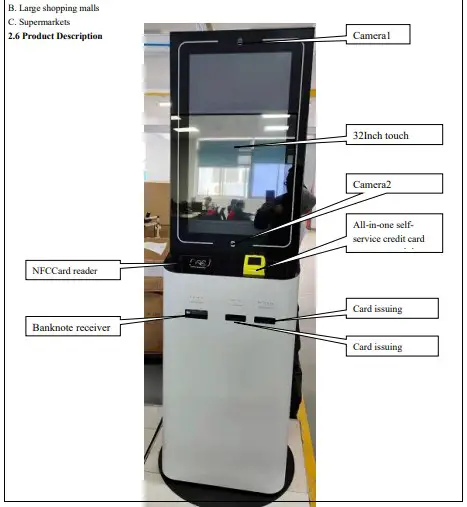

| 2.5 Usage Scenarios A. Playground B. Large shopping malls C. Supermarkets 2.6 Product Description
| |||||||

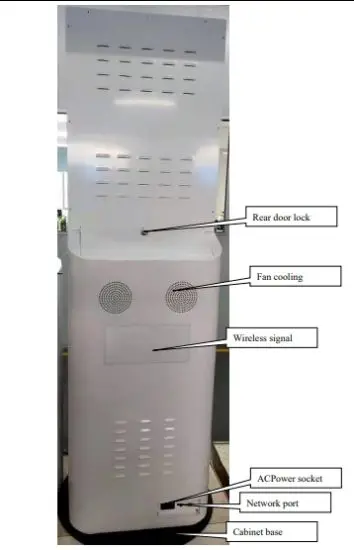

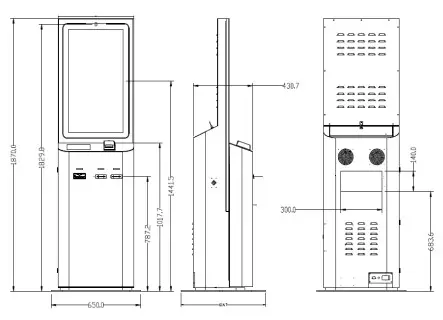

2.8 Dimension Line Drawing of the Whole Machine
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
· Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and receiver.
· Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
· Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
RF Exposure Information
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator and your body
