Eazyrc Eaz11805 Mini Crawler Instruction Manual

EAZ11805 Mini Crawler
Instruction Manual

Function

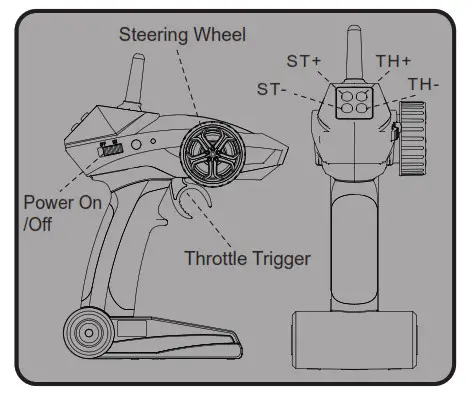

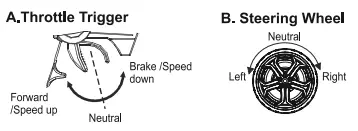

1. Push Me to trigger forward to slow down or break.
2. Pull the trigger back to accelerate.

Install the Batteries

1. Remove the battery compartment cover.
2. Replace the used batteries with new AA x3size batteries.

Please replace batteries when the power Indicator blinks or the buzzer beeps.

Keep the transmitter and receiver 40cm apart when operating.
Throttle trim: If the vehicle inches forward or backward without throttle input, adjust the trim to set the neutral throttle position.
Steering trim: If the vehicle veers left or right without any steering input, use the steering trim to adjust the steering servo until the vehicle tracks straight.
Operating procedure: Always turn the transmitter on before turning on the vehicle. Always disconnect the vehicle BEFORE turning off the transmitter.

This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
  The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.
  FCC ID: 2AUBX –TX01Z

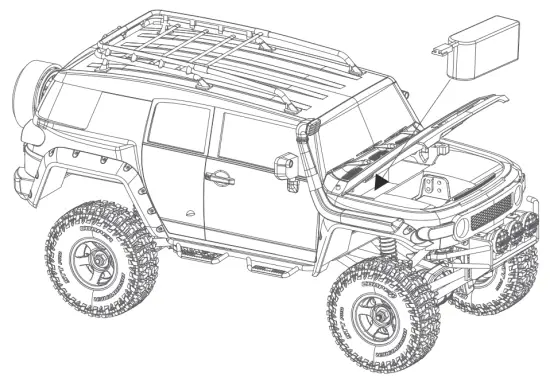

Introduction

• TRITON, EAZYRC’s new 1:18 scale masterpiece for summer 2021, is coming! Like a powerful sea breeze sweeping across the mountains, 1:18 TRITON is ready to take on the RC world with its fresh design and stylish looks.
• The feature-packed trail-proven EAZYRC second-generation chassis enables the TRITON to display excellent climbing ability while AWD allows for maximum axle articulation. High-torque and power simulations are delivered perfectly with ultra-grippy, super soft tires.
• Get ready to immerse yourself in the most realistic driving experience, with the TRITON’S super-scale hard shell appearance as your cross rough terrain or a smooth forest trail.
• From three front wipers, rear-view mirror, molded light buckets, to wheel fender kit; from the front impact searchlight, footrest to the luggage rack, etc., many exterior details are delicately molded to create an RC model that looks as good as a diecast static vehicle.
• Standard climbing features consist of a high-quality set of all-terrain tires, spring-based shock absorbers, fixed-chassis servo, 2.4g unlimited transmission system, and a standard 7.4V lithium-polymer battery providing up to 30 mins driving.
• Go and rock the world! 1:18 TRITON is coming your way!

Warnings

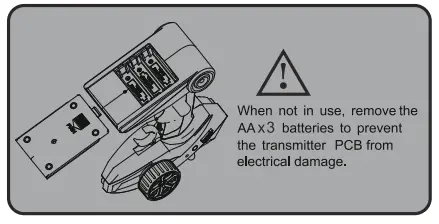

When not in use, must remove the battery of the remote control and vehicle.

• This vehicle is not intended for those under 14 years of age without proper adult supervision. It is not a toy! Failure to operate or maintain this vehicle in a safe manner can result in bodily harm.
• Replace damaged components with original factory parts. Pay special attention to the polarity of all vehicle wiring.
• This product is strictly forbidden to be used in water, please do not drive on water stains
• Only use approved 2 cell lithium polymer batteries. Do not over-charge or dis-charge the battery as doing so may cause the battery to become a fire hazard. If the battery should become hot during charging, discontinue charging immediately and disconnect the battery from the charger. Never leave the battery unattended while charging. If you are unsure of how to charge this battery, please seek the advice of experienced RC users. Never let children charge the battery without adult supervision.
• The motor will become hot during use. Allow 10-15 minutes between runs for the vehicle to cool down. Doing so will prolong the life of your vehicle.
• Use common sense when selecting the environment to operate your vehicle. Do not operate near power cables, cellular/radio towers, deep water, or unstable terrain. The operator is solely responsible for their actions.
• The product is composed of precision electrical components. It is critical to keep the product away from moisture and other contaminants. If exposed to a humid environment, make sure the electronics are fully dried prior to using them again.
• Always check the radio range of the vehicle prior to operation in order to prevent radio loss or interference.
• Operate this product within your ability. If the vehicle is dangerous to retrieve, it’s never worth the risk.
• Always turn on the transmitter before connecting the battery to the model. When turning off the model, always disconnect the battery first, and then turn off the model, always disconnect the battery first, and then turn off the transmitter. If this order is reversed, the model may become uncontrollable and cause serious damage.
• Never allow transmitter batteries to run low as it may cause loss of vehicle control.
• Plastics on the vehicle are susceptible to damage or deformation due to extreme heat and cold climate. Do not store the model near any source of heat such as an oven or heater. Store the model indoors, in a climate-controlled, room temperature environment.
• Never shorten the receiver antenna; this may affect the transmitting range of the radio system.

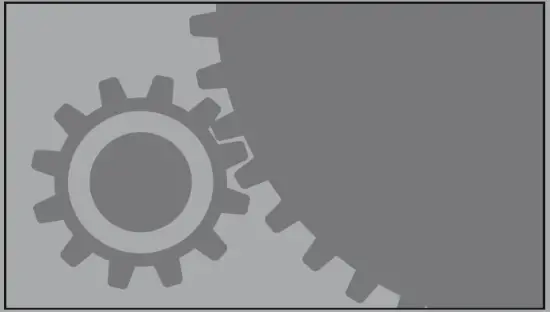

Setting the Gear Mesh

The gear mesh is the clearance between the pinion and spur gears in your vehicle. If the motor or gearing components are replaced, check that the gears are not meshing too tightly as this may cause premature wear

Charging the Battery

1. Connect the charger to a USB port then connect the battery to the charger.
2. When charging, the Green LED is flash, when charged, the Green LED is stable.
3. Do not let the battery charge unattended!
4. If the battery or charger is hot, disconnect the battery and charger immediately as this may be caused by an internal short-circuit.

Lithium Polymer (LiPo) Battery Warning

• Never charge a lithium polymer battery with a charger designed for Nicd, NIMH, or any other type of battery chemistry. Use ONLY charger designed for LiPo battery.
• Do not leave the LiPo battery unattended during charging.
• Do not overcharge the battery.
• Always charge LiPo batteries on non-flammable, heat-resistant surfaces.
• Always use a LiPo-safe bag or container while charging. Do not allow LiPo cells to overheat at any time. Cells that reach greater than 140 Fahrenheit(60°C) will usually become damaged and will catch fire.
• Do not charge the LiPo pack while it is still in the model. Never charge or store battery packs in a vehicle.
• Do not discharge LiPo; doing so will damage the battery.
• Do not expose LiPo cells to water or moisture at any time.
• Do not store battery near open flame or heater.
• Do not assemble LiPo cells or pre-assembled packs together with other LiPo cells or packs.
• Always store LiPo batteries in a secure location away from children.
• Always remove the LiPo battery if the model is involved in any kind of crash.
• Carefully inspect the battery and connectors for even the smallest damage.
• CAUTION: Cells may become hot after usage. Allow the pack to cool to room temperature prior to recharging.
• Do not allow the electrolyte to get into the eyes or on the skin. Wash affected areas immediately if they come into contact with electrolytes. Do not alter or modify connectors or wires of a LiPo battery pack.
• Always inspect the condition of the battery before charging and operating.
• Do not short circuit the LiPo battery.
• Do not have contact with a leaky/damaged battery directly.
• Do not charge the battery out of recommended temperature range(O°C-45°C).

NOTE

1. If it is not in use for a long time, unplug and take off the battery to prevent batery leakage.
2. Do not open, disassemble, or attempt to repair the battery.
3. Please disconnect the battery from the receiver before charging.

Spare parts list

Declaration of Conformity (DoC)
declare under our responsibility that the product:
Type of Equipment: Patriot Driving System & 2.4GHz Control System
Brand Name: EAZYRC
Equipment Model: 11805
to which this declaration relates is in conformity with the essential requirements and other relevant requirements of the RED Directive 2014/53/EU, EMC Directive  014/30/EU, FCC Identifier 2AUBX-TX01Z, and EU RoHS Directive 2011/65/EU.
The product is in conformity with the following standards and/or other normative documents:
