500409077 1:8 Adventure Crawler Pro F150
Instruction Manual
ASSEMBLY INSTRUCTIONS

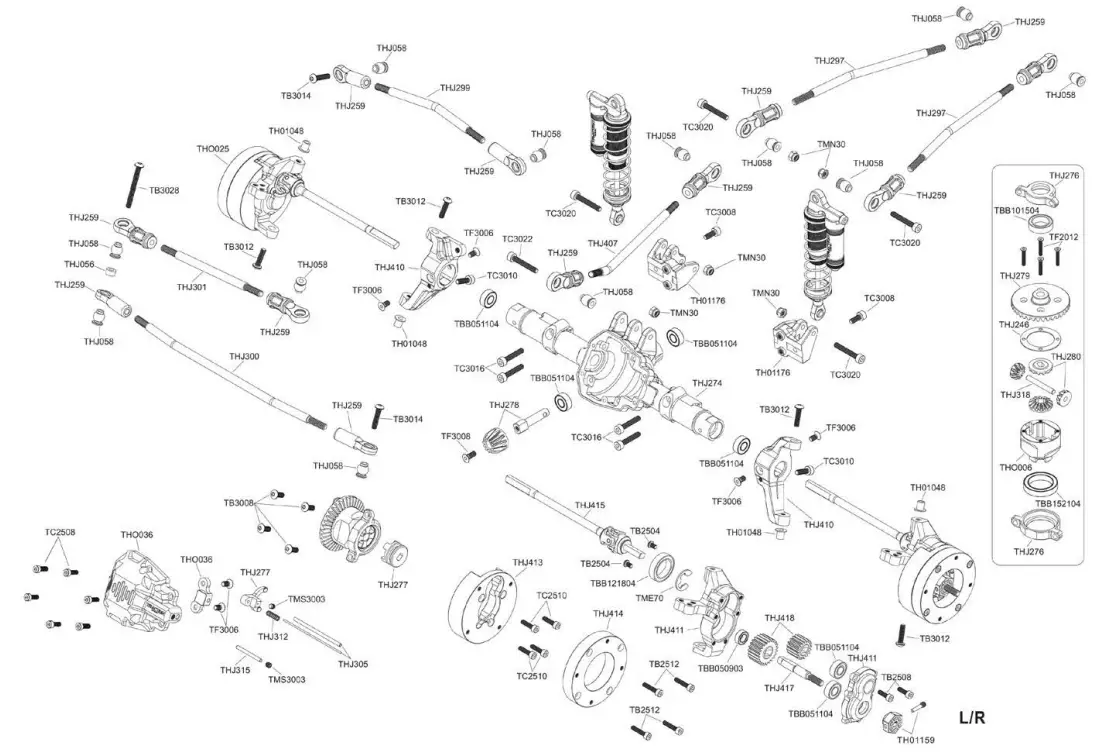

FRONT ASSEMBLY

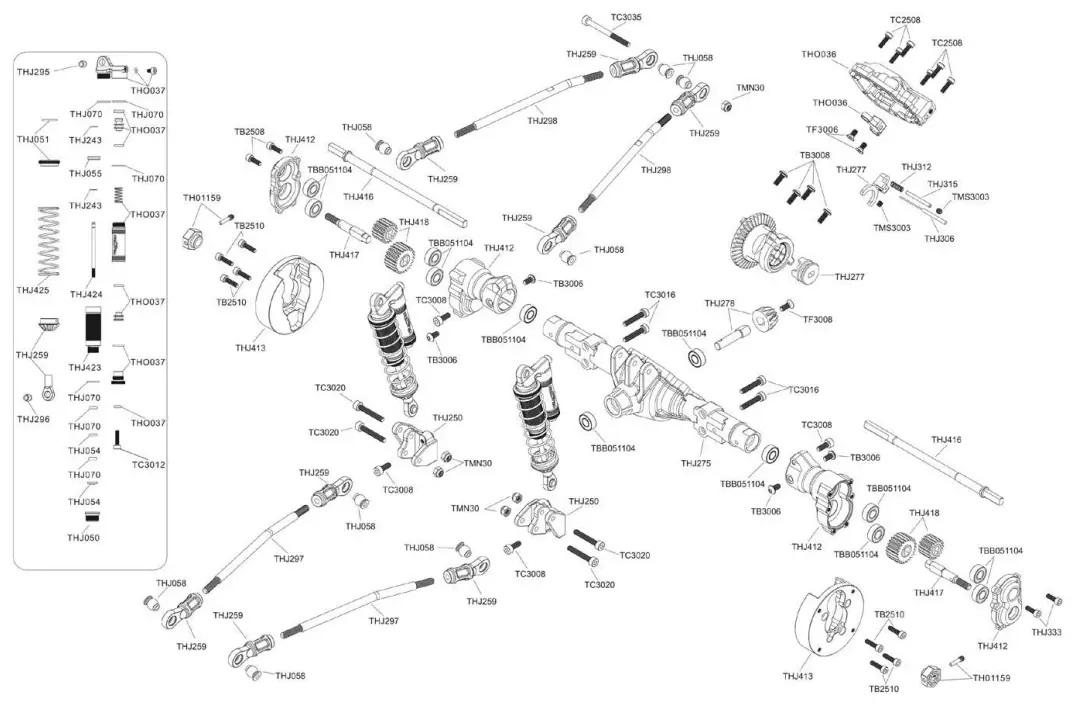

REAR ASSEMBLY

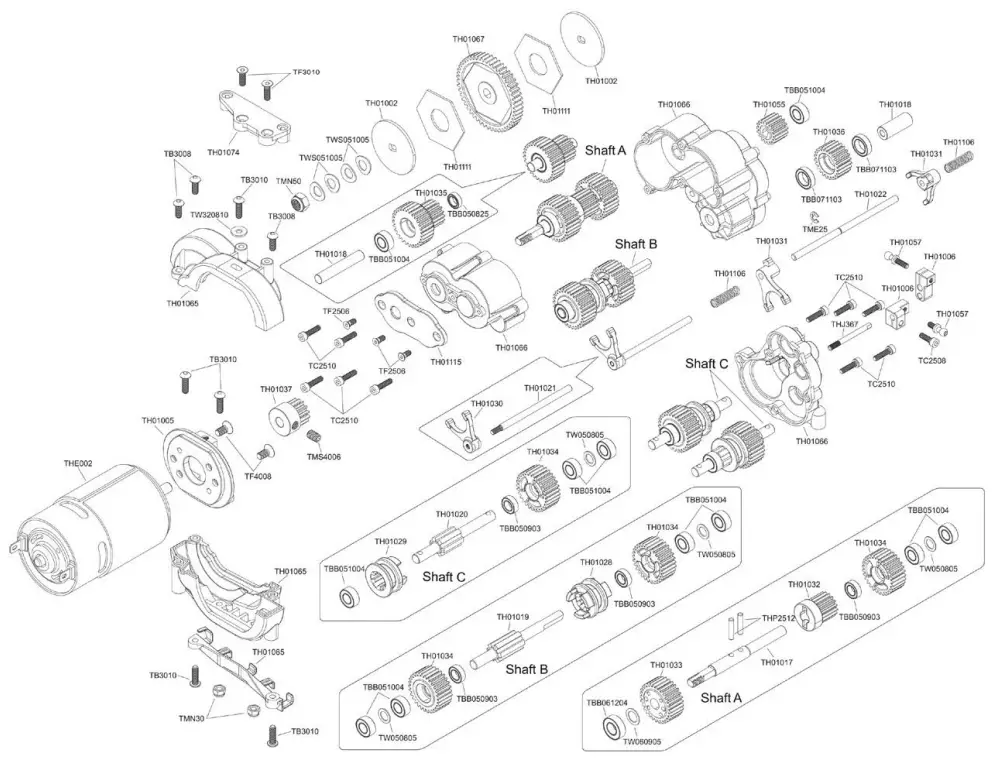

TRANSMISSION ASSEMBLY

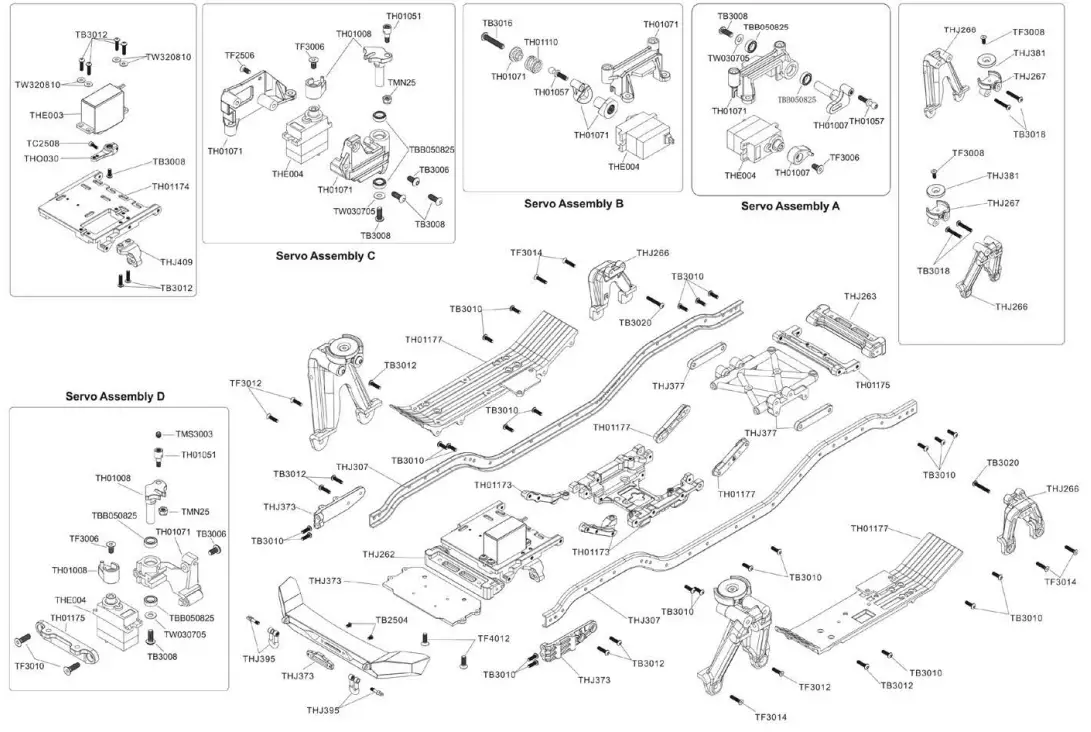

CHASSIS ASSEMBLY

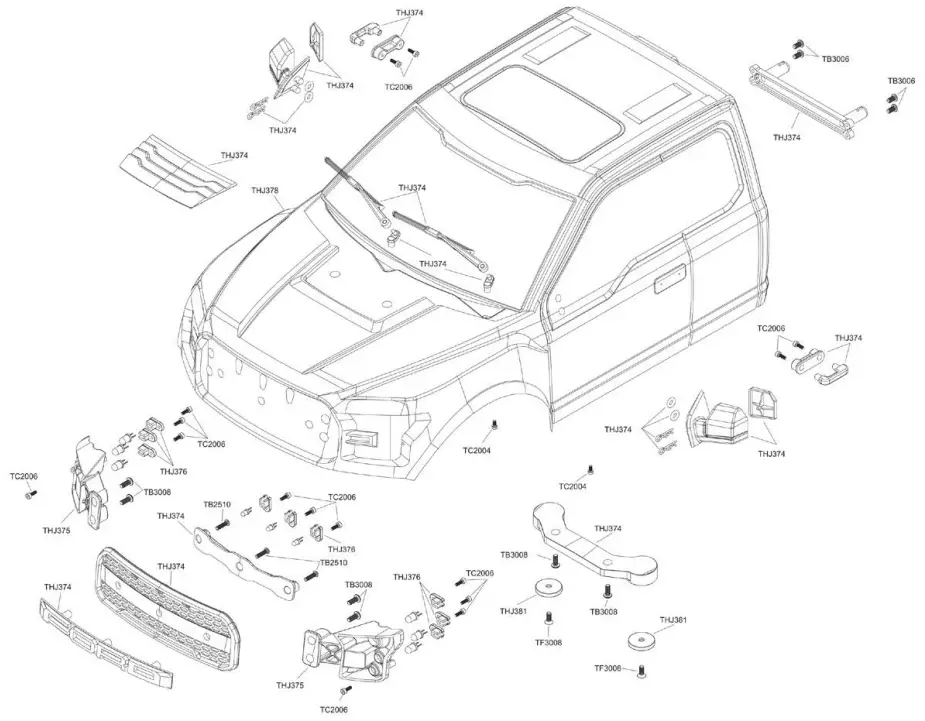

BODY ASSEMBLY

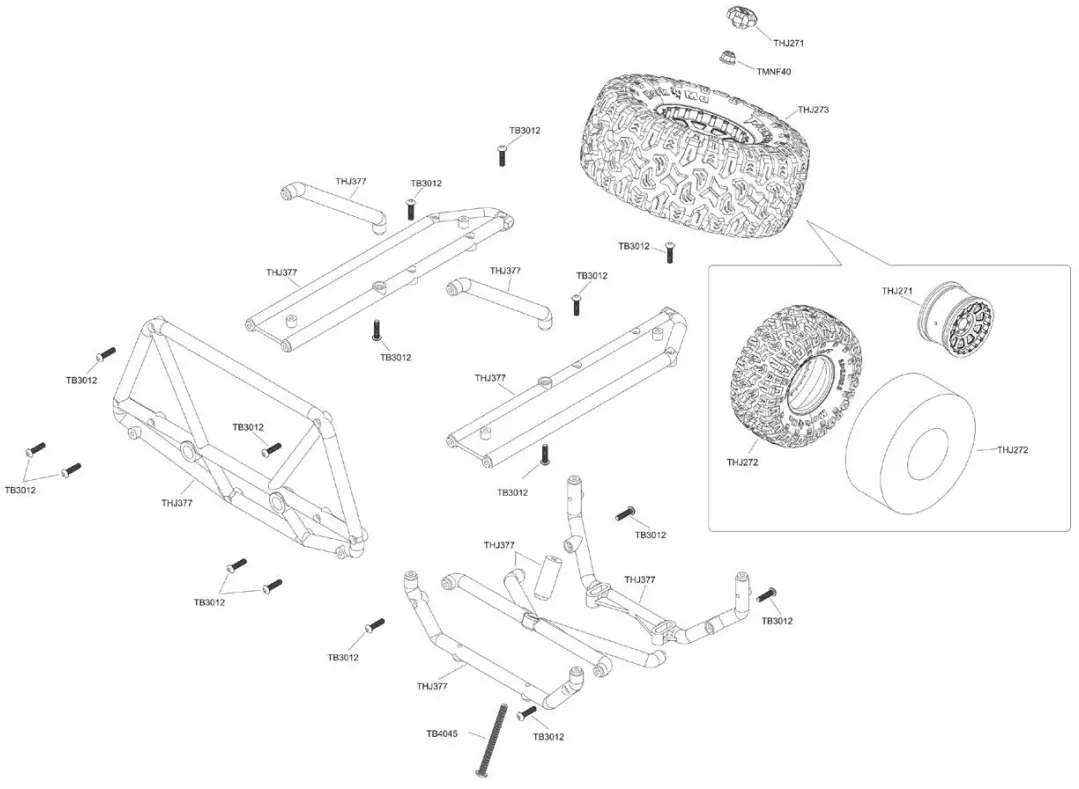

ROLL CAGE ASSEMBLY

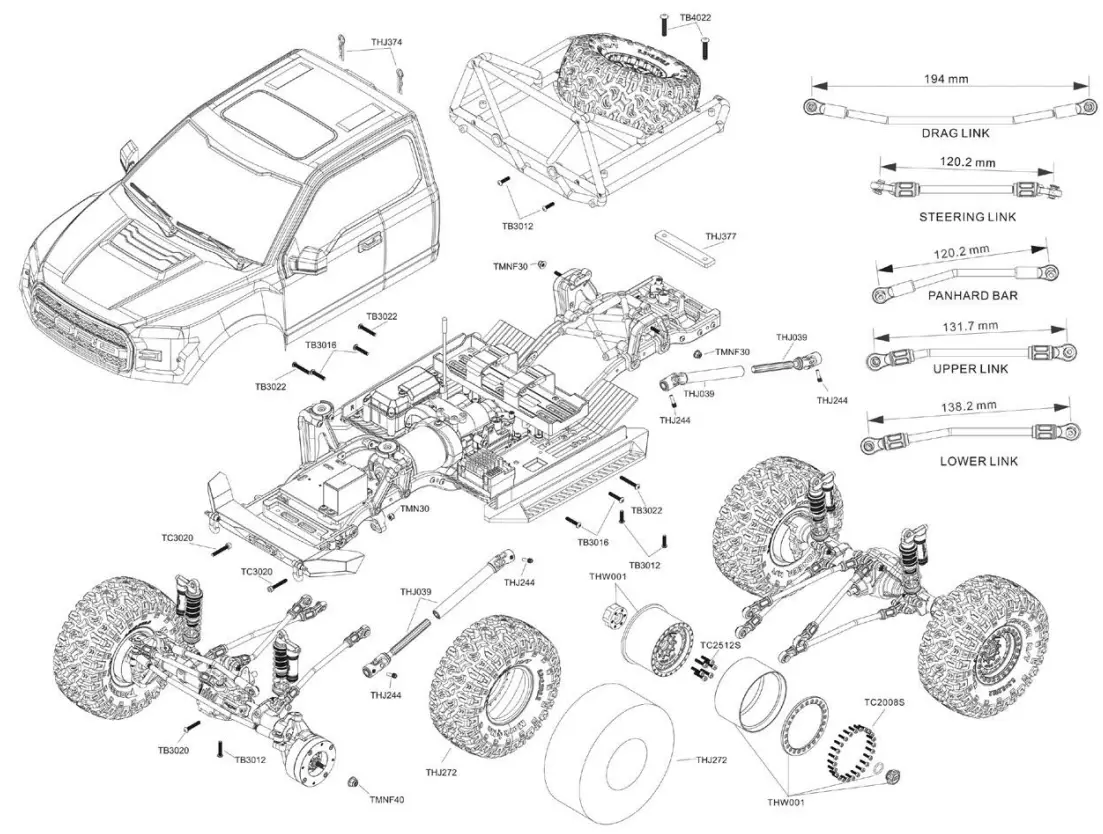

MODULAR ASSEMBLY
SPARE PARTS
| THO1173 | Skid Pilates |
| THO1174 | Steering servo mount |
| THO1175 | Rear brace set |
| THO1176 | Linkage mount |
| THO1177 | Floor pans |
| THO1002 | Steel disc |
| THO1005 | Transmission motor mount |
| THO1006 | Bait mount set |
| THO1007 | 2WD/4WD servo arm |
| THO1008 | Differential lock servo arm |
| THO1017 | Transmission first shaft |
| THO1018 | Transmission shaft set |
| THO1019 | Transmission 2-speed shaft |
| THO1020 | Transfer case shaft |
| THO1021 | 2-Speed tank |
| THO1022 | Transfer case link |
| THO1028 | 2-Speed synchronizer |
| THO1029 | Transfer case synchronizer |
| THO1030 | 2-Speed shift fork |
| THO1031 | Transfer case fork |
| THO1032 | Drive gear 17T |
| THO1033 | Drive gear 29T |
| THO1034 | Gear 29T |
| THO1035 | Gear 17-29T |
| THO1036 | Gear 23T |
| THO1037 | Pinion gear 14T |
| THO1115 | Transmission strengthen mount |
| THOO30 | Steering arm |
| THOO36 | Axle cover |
| THO1159 | Hex hub |
| THO10S7 | Ball 4mm |
| THO1065 | Transmission housing mount |
| THO1066 | Transmission housing |
| THO1067 | Spur gear 50T |
| THO1071 | Servo mount set |
| THO1074 | Box Battery tray |
| THO1106 | Spring 04.3%16mm |
| THO1110 | Servo saver spring |
| THJO78 | Brushed ESC 80A |
| THEOO2 | 775 Brushed motor |
| THEO04-HV | TH1623 HV servo |
| THEOOS | LED light system set |
| THEOO1 | TH-GTS5 transmitter |
| THO1111 | Slipper pad |
| THO1112 | Double side tapeSEVA kit |
| THJ273 | Wheel Set |
| THWO01 | 2.2° PRO COMP wheel |
| THJ307 | Chassis rail set |
| THJ274 | Solid axle set front |
| THJ275 | Solid axle set rear |
| THJ280 | Diff gear set |
| THJ295 | Ball 5.5mm |
| THJ057 | Ball end 5.8mm |
| THJO38 | King pin bushing |
| THJO39 | Drive shaft |
| THJ276 | Bearing seat |
| THJ423 | Shock absorber body |
| THJOSO | Shock cap nut |
| THJOS1 | Adjusting nut |
| THJ424 | Shock shaft |
| THJ070 | O-ring sel |
| THJOS4 | Shock spacer |
| THJOSS | Shock piston |
| THOO37 | Shock Reservoir |
| THJOS6 | Spacer |
| THJ280 | Diff gear set |
| THJ277 | Differential lock set |
| THJ308 | Magnet set |
| THJ279 | 36T Bevel gear |
| THJ321 | Self-lock device of diff lock |
| THOOOS | Aluminum differential housing |
| THJ409 | Toe Link mount |
| THJ410 | Knuckle carrier |
| THJ411 | Steering knuckles |
| THJ412 | Rear portal axle |
| THJ413 | Weight block 108g |
| THJ414 | Weight block 82g |
| THJ415 | Universal axle set |
| THJ416 | Straight axte Shaft |
| THJ417 | Portal axle output shaft |
| THJ418 | Gear set 17T-23T |
| THOO27 | Blade side frame |
| THJ373 | Front bumper |
| THJ395 | Metal hook |
| THJO6O | Linkage ball end 7mm |
| THJ266 | Shock hoops set |
| THJ267 | Body mount set |
| THJ259 | Linkage ball set |
| THJ259 | Linkage bail set |
| THJ302 | Gearbox turnbuckle set |
| THJ374 | Simulation body parts |
| THJ375 | Light cup |
| THJ376 | Lamp mount |
| THJ377 | Roll cage |
| THJ378 | Clear body |
| THJO73 | Shock absorber completed set |
| THJ297 | Down threaded stainless steel link( |
| THJ298 | Up threaded stainless steel link |
| THJ299 | Front threaded stainless steel link |
| THJ300 | Steering threaded Stainiess steel link |
| THJ305 | Front cable set |
| THJ306 | Rear cable set |
| THJ301 | Servo threaded Stainless steel link |
| THJ367 | Gearshift pin |
| THJ425 | spring 017x60mm |
| THJ407 | Front up threaded stainless steel link |
| THJ246 | Differential Pads |
| THJ314 | Pin 2.0™11mm |
| THJ316 | Pin 2.5x8mm |
| TBB0S0825 | Bearing 5*8*2.5 |
| TBB050903 | Bearing 5*9×3 |
| TBB051004 | Bearing 5*10*4 |
| TBBOS1104 | Bearing 5x11x4 |
| TBB061204 | Bearing 6*%12*4 |
| TBBO7 1103 | Bearing 7x11x3 |
| TBB101504 | Bearing 10x15x4 |
| TBB121804 | Bearing 12*18×4 |
| TBB152104 | Bearing 15×21=4 |
| TME25 | E-clip 2.5mm |
| TME70 | E-clip 7mm |
| TB2504 | M2.5*4 Button head screw |
| TB2506 | M2.5*6 Button head screw |
| TB2510 | M2.5*10 Button head screw |
| TB3006 | M36 Button head screw |
| TB3008 | M38 Button head screw |
| TB3010 | M310 Button head screw |
| TB3012 | M312 Button head screw |
| TB3014 | M314 Button head screw |
| TB3016 | M3*16 Button head screw |
| TB3018 | M318 Button head screw |
| 763020 | M320 Bulton head screw |
| T83022 | M322 Button head screw |
| TB3028 | M328 Bulton head screw |
| TB4022 | M422 Button head screw |
| TB4045 | M4~45 Bulton head screw |
| TC2004 | M2*4 Cap head screw |
| TC2006 | M26 Cap head screw |
| TC2008S | M28 Cap head screw(silver) |
| TC2508 | M2.5*8 Cap head screw |
| TC2510 | M2.5«10 Cap head screw |
| TC2512 | M2.5×12 Cap head screw |
| TC2512S | M2.5«12 Cap head screw(silver) |
| TC3008 | M38 Cap head screw |
| TC3010 | M310 Cap head screw |
| TC3012 | M3*12 Cap head screw |
| TC3016 | M316 Cap head screw |
| TC3020 | M320 Cap head screw |
| TC3022 | M322 Cap head screw |
| TC3035 | M335 Cap head screw |
| TF2012 | M212 Flat head screw |
| TF2506 | M2.5*6 Flat head screw |
| TF3006 | M36 Flat head screw |
| TF3008 | M3x8 Fiat head screw |
| TF3010 | M310 Flat head screw |
| TF3012 | M312 Flat head screw |
| TF3014 | M314 Flat head screw |
| TF4008 | M48 Fiat head screw |
| TF4012 | M412 Flat head screw |
| MTS2012 | M2«12 Set screw |
| TMS3003 | M3x3 Set screw |
| MTS3005 | M3*5 Set screw |
| MTS4006 | M4~6 Set screw |
| TMN25 | M2.5 Nylon nut |
| TMN30 | M3 Nylon nut |
| TMNF30 | M3 Flanged nylon nut |
| TMNF40 | M4 Flanged nylon nut |
| TMNSO | M5 Nylon nut |
| TWO030705 | Washer 3×7=0.5mm |
| TW320810 | Washer 3.2x8x1mm |
| TWO0S0805 | Washer §=8*0.5mm |
| TWO060905 | Washer 6=9×0.5mm |
| TW151702 | Washer 15*17*x0.2mm |
| TWS051005 | Spring washer §*10×0.5mm |
| THJO80 | Velcro strap 20x200mm |
| THJ319 | Antenna pipe set |
