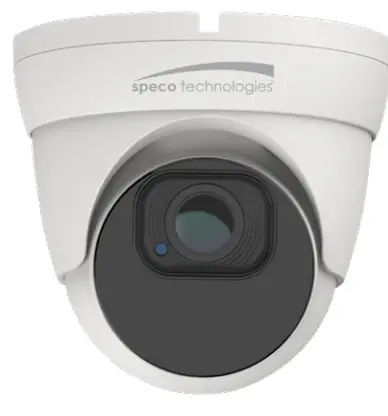

5MP IP Turret Camera with Advanced Analytics,
NDAA Compliant
O5T1MG
2.8-12mm motorized lens, white housing
Features
| •Captures up to 5MP @ 30fps | •ONVIF Profile T Compliant |
| •Up to 4x optical zoom | •Two-way audio ready |
| •Built-in standard PoE (IEEE 802.3af) | •IP66 weather resistance |
| •True Day/Night operation (IR cut filter) | •Human/Vehicle detection* |
| •IR range: 98’ (depending on scene reflection) | •Line Crossing/Intrusion Detection* |
| •True WDR operation | •2 year warranty |
| •Micro SD card slot (card not included) | •NDAA Compliant** |
Camera Specifications
| Image Sensor | Progressive scan 1/2.7” CMOS |
| Maximum Resolution | 2880 x 1620 |
| Field of View | Horizontal: 107-33.6°, Vertical: 54.7-18.9°, Diagonal: 133.7-37.6° |
| Minimum Illumination | Color 0.05lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON |
| White Balance | Auto, Indoor, Outdoor, Manual |
| Compensation | True WDR (120dB), BLC, HLC |
| Day/Night | IR cut filter with auto switch |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| DNR | 3D DNR |
Video Specifications
| Main Resolution | 30fps@5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA |
| Compression | H.265, H.264 |
| Bitrate Control | VBR, CBR (8Kbps ~ 8Mbps) |
| Multiple Streaming | 3 streams |
| Image Settings | Privacy masking, Flip/Mirror |
Audio Specifications
| Audio Codec | G.711 |
| Audio | 1ch input/1ch output |
Interfaces
| Ethernet | 10/100 Mbps |
| Power | DC jack |
| Audio | RCA Female in/RCA Female out |
| Card slot | MicroSD, up to 256GB (not included) |
| Alarm | No |
| Reset | Yes |
Network Specifications
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| DDNS support | Speco DDNS (free of charge) |
| Security | IP address filter; strong password requirement; Authenticated username and password |
| User Access | Max. 7 simultaneous users Actual number of users may vary depending on bandwidth |
Other Specifications
| PoE | Standard (IEEE 802.3af) |
| Analytics | Motion detection, Object abandoned/missing detection, intrusion detection (people/vehicle classification), line crossing detection (people /vehicle classification), people/vehicle counting, heat map, crowd density, and queue length. |
| Alarm Triggers | Analytics, SD card error |
| Alarm Events | FTP upload, email upload |
Client Specifications
| Web Browser Support | Chrome, Edge, Firefox, Safari, Internet Explorer 8 and up. |
| Mobile | Speco Gray |
Operating & Unit Specifications
| Power | PoE, 12VDC (power supply not included) |
| Power Consumption | 6.42W (max) |
| Operating Temperature | -22°F – 140°F |
| Operating Humidity | less than 95% (non-condensing) |
| Unit Dimensions | 5.29”Ø x 4.95”(H) |
| Unit Weight | 1.66 lb |
| Certifications | FCC, ONVIF Profile T |
*With compatible Speco Gray Recorder
**Products are in compliance with NDAA Section 889 Part B Guidelines

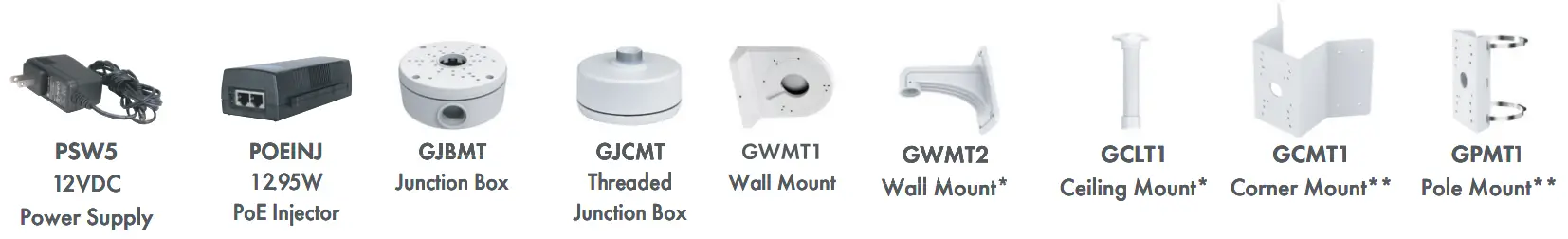

Optional Accessories

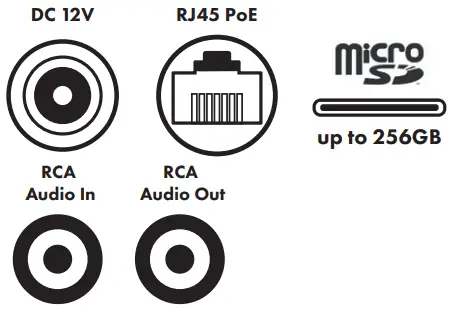

Camera Interfaces
ONVIF is a trademark of Onvif, Inc. Chrome and Firefox use Java which requires an initial internet connection. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Android, Google Play and the Google Play logo are trademarks of Google Inc. Amazon’s trademark is used under license from Amazon.com, Inc. or its affiliates. Speco Technologies is constantly developing and improving products. We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Spec Rev. 1/10/22
800-645-5516
Fax: 631-957-9142 or 631-957-3880
specotech.com
Made in China
*requires GJCMT
**requires GJBMT or GWMT2
