Sol-Ark 5K, 8K, 12K, 15K Pytes
Connect the cables
Connect the power cables between inverter and battery or the Busbars as mentioned.
Figure 2.1 Sol-Ark Battery Connector
As for the cable gauge that connects the busbar to the inverter, 4/0 gauge power cable is commended for Sol-Ark 15K model and 3/0 gauge power cable is commended for 8K/12K model.
A standard ethernet cable can be used for the communication since Sol-Ark inverter pin assignment is the same as Pytes E-BOX battery.
Figure 2.2 Sol-Ark Standard ethernet cable
Set the DIP Switch of every master battery as Figure 2.3 shown.
Figure 2.3 Sol-Ark inverter DIP Switch Setting

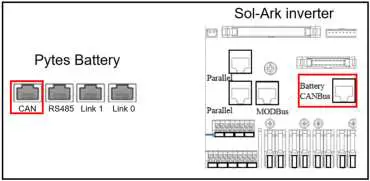

Plug in the battery end into the CAN port of the Pytes E-BOX battery and plug in the inverter end into Sol-Ark Battery CANBus Port as shown in the Figure 2.4.
Figure 2.4 Sol-Ark inverter comm cable connection
Program the inverter

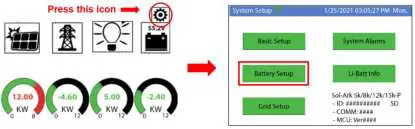

Press the gear icon on the top right of the screen and then press battery set up menu.
Figure 2.5 Sol-Ark Batt Setup
Set the battery parameters
- Batt Capacity: 100Ah per unit
- Max A Charge/Discharge: 185A is the max amps that Sol-Ark 8K/12K mode supports and the corresponding number is 275A for 15K mode. Fill in the max amps or (50A*unit numbers) which is lower. (For example, there are three Pytes E-BOX batteries and one 12K Sol-Ark inverter in a system. The max amps of 12K is 185A and three batteries can support 150A(50*3). So the number should fill in is 150A.)
- Select “Use Batt% Charged”.
- Enable “BMS Lithium Batt” and set its value to “00”.
- Turn on “Activate Battery”.
Note that enabling BMS Lithium Batt 00 will adjust some values and make other values adjustable (like the temperature coefficient above). Just ignore those values – the BMS is in control.

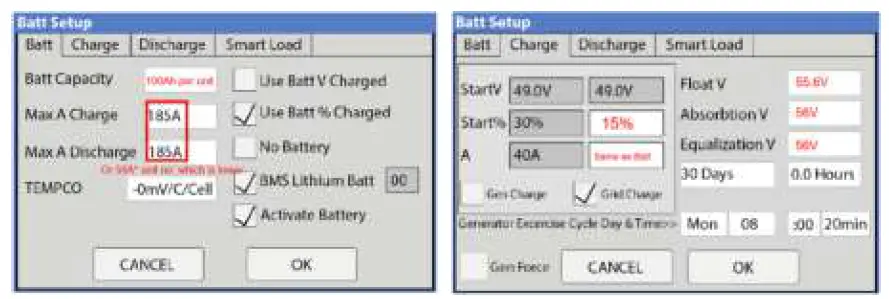

Figure 2.6 Batt Setup
Program the Charge tab in Batt Setup
See the right picture in Figure 2.6.
- Start%: 15%
- A: Same as the Max A Charge in Batt Seting
- Float V: 55.6V
- Absorption V: 56V
- Equalization V: 56V
Program the Discharge tab in Batt Setup
- Shutdown: 10%
- Low Batt: 20%
- Batt Empty: 47.5V
Figure 2.7 Batt Discharge Setup
Please refer to the Sol-Ark inverter manual for more setting such as Grid Setup, PV Setting, Time-of-Use, etc.
Confirm Inverter-Battery Communication
Figure 2.8 communication confirm
