Ilife Shinebot W100 Cordless Wet Dry Vacuum Cleaner User Manual

Cordless Wet Dry Vacuum Cleaner
User Manual

Thank you for choosing EASINE W100 Cordless Wet&Dry Vacuum Cleaner!
You’ve joined millions of people to get the cleaning done in high efficiency.
This manual helps you to keep your steam mop performing at its best. Please take a few moments to read through it.
You may also connect with us on Facebook and Instagram to enjoy exclusive benefits:
– Get model-specific customer support, including Q&A, 4 maintenance tips, demo videos, live chat, and more;
– Get the most recent product updates including new product launches, exclusive discounts, and special promotions.
You may find us on Facebook: facebook.com/Easine and Twitter: twitter.com/EASINE_Global
If you have any questions, please contact our customer service for assistance or visit www.easine.com for more information.
Enjoy the high-performance cleaning of EASINE W100
EASINE Innovation

Important Safety Instruction

Safety Warnings

1. Product disassembly is strictly prohibited;
2. Before cleaning or maintaining the Product, please unplug the power adapter and turn off the power source;
3. To prevent potential electric shock risk, plz don’t touch the plug, power adapter or machine monitor when your hand is attached with water;
4. Please only use the power adapter that comes with the product, if you use other power adapters, it may damage the machine;
5. If the power adapter is damaged, please stop using it immediately and contact the official after-sale team for replacement;
6. The Product is not suitable for people with physical, sensory, or mental disabilities or lack of common sense (including children), unless supervised or directed by others to ensure safe use;
7. During operation, in case of electric leakage of the machine or excessive temperature and abnormal noise of the motor, such as the body overheating, abnormal noise, odor, and other problems, please stop the machine immediately, and contact the Official After-sales Team for help;
8. Do not moisten the machine body; otherwise, it may cause fire and electric shock due to a short circuit;
9. Do not block the air inlet and outlet to avoid overheating the machine;
10. Do not soak the floor brush with water to avoid overburning of the machine;
11. Do not shake or collide the machine violently to avoid dirty water flowing into the motor;
12. When handling the machine, please keep it upright to avoid sewage flowing into the motor;
13. If the clean water tank and dirty water tank are not installed in place, do not use the machine;
14. Do not use the machine when the current temperature is below 10 °C or above 45°C;
15. The Product is only suitable for use in the household environment, not in the industrial environment or outdoor environment;
16. The Product is suitable for the hard floor in the household environment, such as marble floors, wood floors, tile floors, solid wood floors and composite floors;
17. To avoid fire, do not use the Product to clean cigarette butts, matches, and other unknown heat sources;
18. Do not use the Product to clean flammable, explosive, or highly volatile liquids, such as gasoline, kerosene, paint, and perfume, which may cause a short circuit or explosion of the Product;
19. Do not use the Product to clean the toner or color blender used in the laser printer and copier to avoid fire or explosion;
20. Do not use the Product to clean sharp objects, such as glass fragments, thumbtacks, nails, clips, stones, and other articles, so as to avoid damage to the Product;
21. Do not use the Product to clean pigment, paint, shoe polish, and other strongly dyeing stains;
22. Do not use the Product to clean foam liquid to avoid damage to the motor;
23. Keep the cleaning solution out of the reach of children;
24. Please follow the instructions to use the cleaning solution;
25. Do not add alcohol to the clean water containers.

Product Introduction

List of accessories

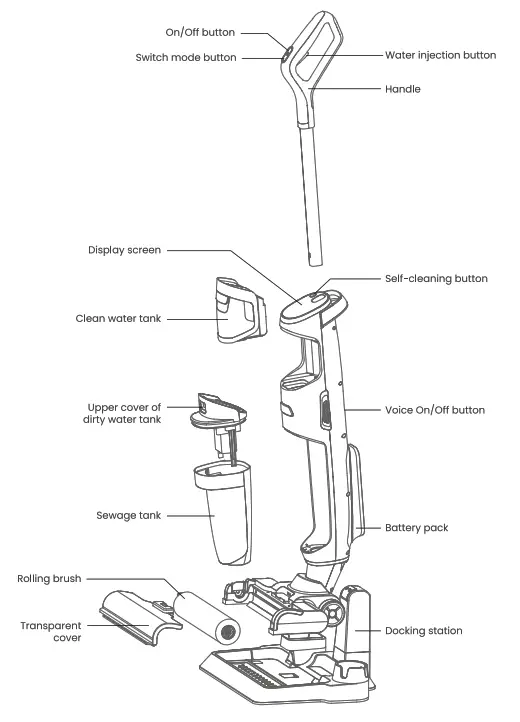

Product Description

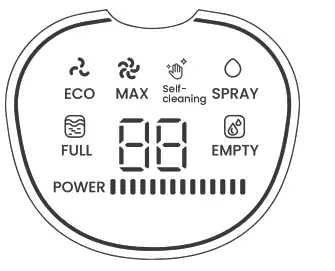

Indicator Screen Introduction

Assemble and Detach the Device

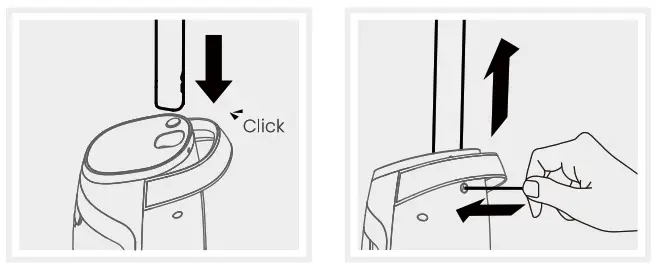

1. Disassembly and assembly of handle


   Assembly: Insert the connecting pipe of the handle into the machine body assembly port, and the “click” sound means the completion of assembly.	Disassembly: Use a screwdriver or other tool of the right size to insert the hole in the upper back of the machine body and press it while lifting the handle upward.

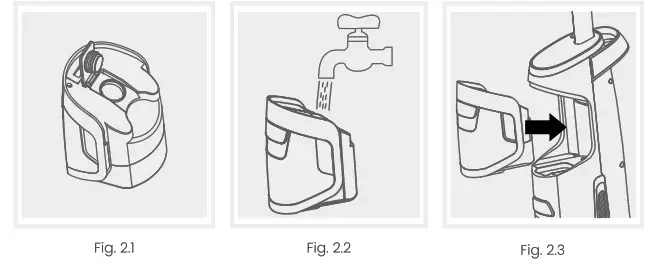

2. Assembly of clean water tank
   Open the cover of the clean water tank as shown in Fig 2.1 and fill it with clean water as shown in Fig. 22; install the clean water tank as shown in Fig. 2.3, and the ‘click’ sound means the completion of assembly.

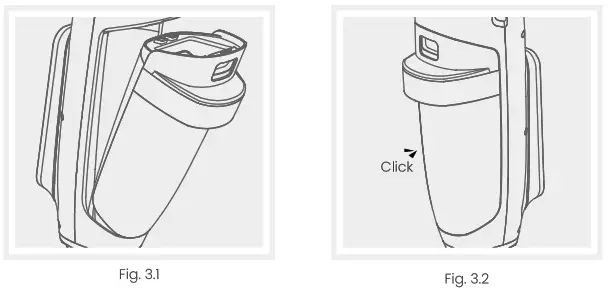

3. Assembly of dirty water tank
   As shown in Fig. 3.1, put the bottom of the dirty water tank at the opening of the machine body and gently push it inward, and the ‘click’ sound means the completion of assembly.

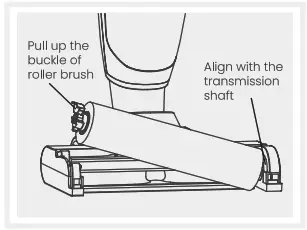

4. Assembly of roller brush As shown in the figure below, align the groove on the right side of the rolling brush with the transmission shaft, and then press down the left side of the rolling brush until it is assembled in place.

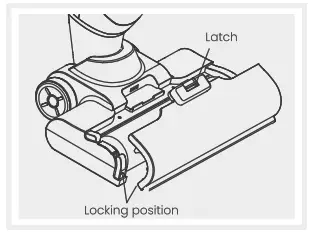

5. Assembly of the transparent window of the roller brush
   As shown in the figure below, lock the buckle under the transparent window cover of the rolling brush, then lock the latch to the ground brush, and the ‘click” sound means the completion of assembly.

Charging Dock

Plug the adapter charging port into the corresponding position of the docking station, and connect the adapter head to the household socket

How to use

• Charging
  As shown in the figure below, align the machine with the charging base; the charging will begin when the battery contact properly connects with the charging base contact.
• Self-cleaning When the machine is charging on the docking station, press the self-cleaning button to enter the self-cleaning mode. (Please make sure there is water in the clean water tank during operation).
• Operation
  Tilt the machine body to an appropriate angle and press the On/Off button to start the machine.

Note:

• During operation, in case of o lot of foam in the dirty water tank. please clean up the dirt in the tank in time to prevent water from entering the fan,
• Do not push and pull quickly during operation to prevent water from entering the fon.
• During operation, please observe the dirt in the dirty water tank to avoid blocking of the float with suspended matter and impact on the full water detection.
• Please turn off the power of the machine before charging.

Maintenance

Attention!
Remove the plug from the socket and turn on the power of tl before routine maintenance.
Fill and clean Dirty Water Tank

Clean the dirty water tank and upper cover immediately after use to avoid a stinky smell. Hold the notch of the clean water tank by hand, press the latch with your thumb and pull the sewage tank out gently.
Detach and clean Roller Brush

After cleaning, enter the self-cleaning mode of the machine. If the roller brush is too dirty, take out the roller brush according to the figure below and clean it by yourself.
Detach and clean HEPA Filter

Remove the HERA Filter of the dirty water tank according to the figure below, and place it at the vent to dry after cleaning.

Product Technical Parameter

Common Failure Analysis and Treatment

Fault Code List

Disposal Information

Disposal
The battery used with this device must not be disposed of in the household waste. The device and the battery must be disposed of properly. The housing of the battery must never be opened and must be disposed of as a whole.
This product is subject to the provisions of European Directive 2019/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union, This applies to the product and all accessories marked with this symbol.
Products identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances.
Packaging
when disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.
Distributor. Zhiyi (Zhongshan) Technology Co, Ltd
No. 39, Donghui Rood, Culheng New DIstriCt,528400 Zhongshan, Guangdong,
PEOPLE’S REPUBLIC OF CHINA

EASINE Customer Service
01-800-631-9676 (Toll-free for North America) Mon-Fri: 8:00 am – 7:00 pm CST
[email protected]
