EZ-W Smart Bluetooth Body Scale
Instruction Manual
Direction for use
The correct way to measure

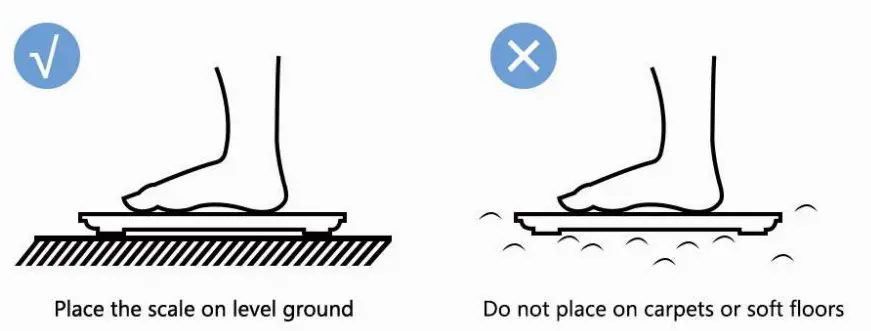

- Please put the product on the hard flat floor, do not put it on the carpet or other soft ground, or it will cause inaccurate measurement data
- Clear before each measurement
Reset method: After lightly stepping on the scale, the screen number will automatically return to 0.0KG or 0.00KG
The correct way to stand
App download and measure
Step 1: Install battery and APP download
APP Download
Scantheqrcodeonthe right to complete the download, or search for “scale up” in the app store to download. ( Chinese: 4)
IOS can be downloaded from the apple store Android can be downloaded on Google play
http://scaleup.vtio.cn/jump/Index.html

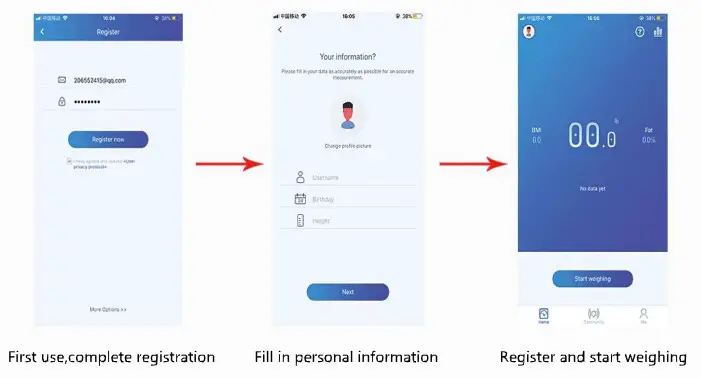

Step 2: How to sign up(Mobile phone, email, third party registration and login)

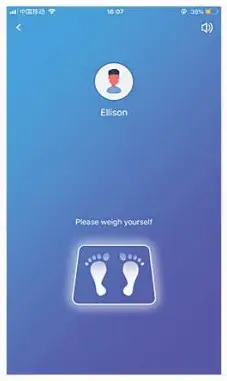

Step 3: proper usage
- Mobile phone on Bluetooth, enable location permissions( Scale-up APP Permissions need to allow location)
- Make sure the scale is placed on a flat, hard floor
- Step on the scale before the display of 0.0kg, and then measure
- Stand up straight with your bare feet on the scales and your feet aligned with the electrodes

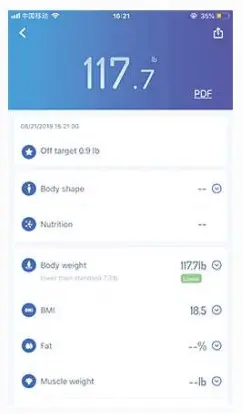

view data, Sharing system, historical data
- After the measurement is completed, the report can be directly clicked to view each data standard, and the PDF format report can be generated.
- Reports can be Shared to third-party software and community mobile phone.
- View historical data: click the upper right trend icon, and then click the historical data to view all measurement records

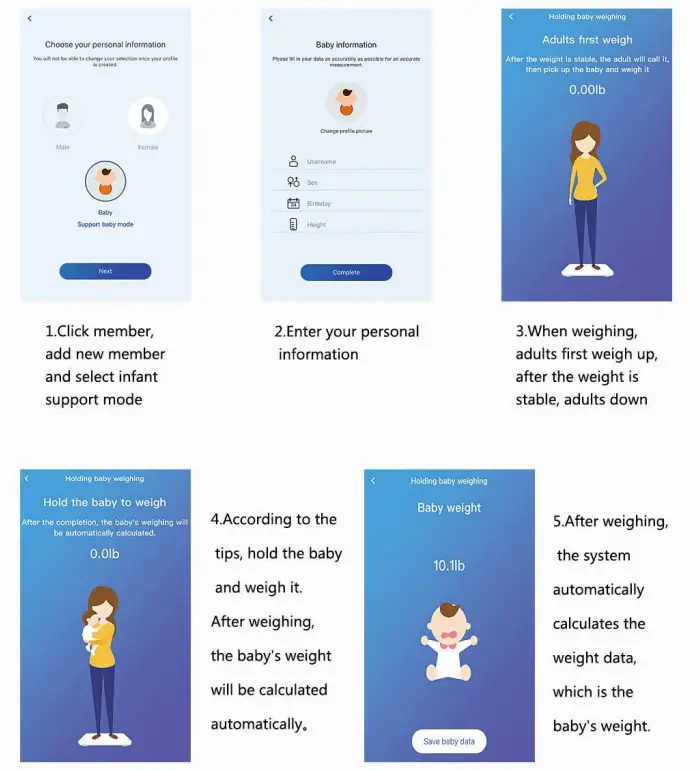

Support holding a baby to measure weight
SMART BLUETOOTH BODY FAT SCALE WARRANTY POLICY
- From the date of purchase, you can enjoy a year of replacement but not repair service.
- Within 15 days of purchase, the product quality problems (non-man-made damage), the merchants bear the back and forth freight, product quality for a year, within a year to provide new
| Name | |
| Cellphone number | |
| Purchasing date | |
| Business name | |
| Product model |
| Maintenance record | The fault phenomenon | |
| Repair content | ||
| The date of repair | ||
| Maintenance personnel |
Product certificate
Place of Origin: Guangdong, China
inspector:———————————–
The access time:—————————-
Guangdong Simad Industrial Co., Ltd
Address: No.50 jinxing street, xiao jinkou street office, hunching district, Huizhou
city, Guangdong province, China
service hotline: +86-0752-6142656
Product specification
| Size | 27cm*25cm*2.2cm 26cm*26cm*2.2cm 28cm*28cm*2.2cm 28cm*24cm*2.5cm 29cm*26cm*2.2cm 30cm*29cm*2.Scm 30cm*30cm*2.5cm 31.2cm*31.2cm*2.Scm |
| Weight | 1.1KG 1.2KG 1.3KG 1.5KG 1.7KG |
| Battery | 2*AAA battery, 3*AAA battery, USB |
| Division value | 0.1KG 0.01KG 0.05KG |
| Measurement Range | 0.2-180kg |
| Display | Highlight LCD or LED |
| Material | ABS, Safety tempered glass |
| PS: Specific information for each model, According to the outer packing | |
Display instruction
| 1. Lo ( low battery ) | 2. Err ( test error ) |
| 3. O-Ld ( Overweight prompt ) | 4. unable to boot or display ( replace the battery ) |
Safety precaution
Be sure to read safety precautions before use
This product should not be used by those equipped with pacemakers, artificial lungs, or wearing electrocardiographs.
When using this product to measure body fat percentage, there is a weak electricity Circulation through the body that may affect internal medical devices and Normal operations, leading to serious consequences.
Do not use this product on slippery surfaces.
If the scale slips, it may hurt you.
Instruction for use
- This product adopts a high-precision sensor. In order to ensure the accuracy of measurement, please try to measure at the same time and under the same conditions and avoid the following situations:
After strenuous exercise Have a cold and fever After drinking lots of water and wine After overeating After a bath or sauna - The recommended measurement time, keep at the same time and condition every day.
- The measurement needs to be barefoot, and keep the right and left feet respectively on the conductive plate, while the body is straight. Make sure the soles of your feet are clean when measuring. If you have dirt on the bottom of your feet or socks on your feet, it will not ensure the veracity of measurement data. As possible as a measure in underwear only.
- For children aged 0-6 years old, only weight and BMI data are provided. For teenagers aged 10-17 years old, the fat rates can be detected. Because the under 18 age group is in the rapid growth stage, other data are for reference only.
- Pregnant women, human dialysis patients, patients with swelling symptoms, and the elderly over 80 years old will have different body fat rates than the general population, so the measured values are recommended as a reference.
