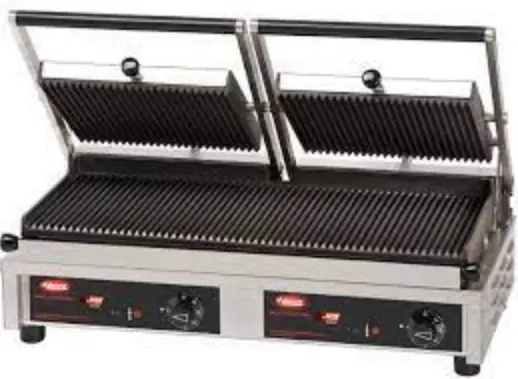

Hatco CORPORATION MCG Series Multi Contact Grill
Product Information
The product is a Multi-Contact Grill from the MCG Series manufactured by Hatco Corporation. It is available in different models, including MCG10G, MCG14G, and MCG20G. The product is designed with specific parts common to all models, as well as parts specific to each model. It is important to use the correct replacement parts to avoid damage to the unit and ensure warranty validity. The Specification Label, located on the bottom of the unit, provides important information about the model name and electrical specifications. This information is necessary when identifying the correct replacement parts.
Product Usage Instructions
- Locate the Specification Label on the bottom of the unit to determine the exact Model Name and electrical specifications.
- Refer to the exploded view illustration(s) in the user manual to find the location of the Specification Label.
- Ensure that you only use replacement parts supplied by Hatco Corporation. Using other replacement parts may result in damage to the unit or injury to personnel, and will void all warranties.
- If you need to replace any parts, refer to the Replacement Parts List provided in the user manual.
- Identify the specific part you need by referring to the Item Description and Part Number listed in the Replacement Parts List.
- Check the quantity required for each part.
- Follow the instructions in the user manual for proper installation and replacement of parts.
- If you have a specific model, such as MCG10G or MCG14G, refer to the Parts Specific to MCG10G Models or Parts Specific to MCG14G Models sections in the user manual for additional parts and their corresponding part numbers.
- Refer to the Wiring Diagram provided in the user manual for electrical connections.
- If you have any questions or need further assistance, contact Hatco Corporation for support.
Parts List
Hatco Multi Contact Grill MCG Series
Parts Common to All Models
| Item | Description | Part Number | Qty. |
| 1 | Conduit | X02.18.608.00 | 1 |
| 2 | Knob, Clamping | X05.04.834.00 | 4 |
| 3 | Nut | X05.04.942.00 | 6 |
| 4 | Shoulder Screw | X05.04.944.00 | 1 |
| 5 | Knob Assembly | X05.30.216.00 | 3 |
| 6 | Indicator Lamp Set (includes | ||
| red lamp and green lamp) | |||
| MCG10G and MCG14G | X02.30.173.00 | 1 | |
| MCG20G | X02.30.173.00 | 2 | |
| 7 | Thermostat | X02.01.398.00 | 1 |
| 8 | Knob, Thermostat | X05.30.215.00 | 1 |
| 9 | High Limit Switch, 320°F | X02.20.456.00 | 1 |
| (160°C) | |||
| 10 | Leg w/Screw | X05.30.224.00 | 4 |
| 11 | Screw, Bottom Cover | X05.04.943.00 | 16 |
| 12 | Terminal Block | X05.30.283.00 | 1 |
| 13 | Set Screw | X05.04.951.00 | 1 |
| Item | Description | Part Number | Qty. |
| 14 | Screw, Rear Cover | X05.04.949.00 | 2 |
| 15 | Hex Screw | X05.04.948.00 | 4 |
| 16 | Screw Cover | X05.30.278.00 | 4 |
| 17 | Lift Arm | X05.30.286.00 | 2 |
| 18 | Shoulder Screw | X05.04.945.00 | 2 |
| 19 | Cotter Pin | X05.30.279.00 | 2 |
| 20 | Lever Arm | ||
| Right Side | X05.30.284.00 | 1 | |
| Left Side (MCG20 Only) | X05.30.285.00 | 1 | |
| 21 | Power Cord | ||
| NEMA 5-15P | X02.18.901.00 | 1 | |
| NEMA 5-20P | X02.18.902.00 | 1 | |
| NEMA 6-15P | X02.18.903.00 | 1 | |
| NEMA 6-20P | X02.18.904.00 | 1 | |
| Scraper (not shown) | X04.56.691.00 | 1 |
Parts Specific to MCG10G Models
| Item | Description | Part Number | Qty. |
| 22 | Top Element, 120 V | X02.08.669.00 | 1 |
| 23 | Top Plate, Ribbed | X05.13.008.00 | 1 |
| 24 | Bottom Plate, Ribbed | X05.13.007.00 | 1 |
| 25 | Drip Tray w/Handles | X05.30.217.00 | 1 |
| 26 | Bottom Element, 120 V | X02.08.670.00 | 1 |
| 27 | Control Label | X07.01.386.00 | 1 |
| 28 | Bottom Cover | X05.30.273.00 | 1 |
| Item | Description | Part Number | Qty. |
| 29 | Top Plate, Smooth | X05.13.002.00 | 1 |
| 30 | Bottom Plate, Smooth | X05.13.001.00 | 1 |
| 31 | Rear Cover | X05.30.280.00 | 1 |
| 32 | Handle | X05.30.276.00 | 1 |
| 33 | Lifting Spring Set (Left and Right) | X05.08.039.00 | 1 |
| Wiring Diagram | 10-01-1122 |
Parts Specific to MCG14G Models
| Item | Description | Part Number | Qty. |
| 22 | Top Element 120 V, 880 W 240 V, 1200 W Top Plate, Ribbed Bottom Plate, Ribbed Drip Tray w/Handles Bottom Element 120 V, 1000 W 240 V, 1400 W | ||
| X02.08.671.00 | 1 | ||
| X02.08.673.00 | 1 | ||
| 23 | X05.13.011.00 | 1 | |
| 24 | X05.13.010.00 | 1 | |
| 25 | X05.30.218.00 | 1 | |
| 26 | |||
| X02.08.672.00 | 1 | ||
| X02.08.674.00 | 1 |
| Item | Description | Part Number | Qty. |
| 27 | Control Label | X07.01.385.00 | 1 |
| 28 | Bottom Cover | X05.30.274.00 | 1 |
| 29 | Top Plate, Smooth | X05.13.005.00 | 1 |
| 30 | Bottom Plate, Smooth | X05.13.004.00 | 1 |
| 31 | Rear Cover | X05.30.281.00 | 1 |
| 32 | Handle | X05.30.277.00 | 1 |
| 33 | Lifting Spring Set (Left and Right) | X05.08.040.00 | 1 |
| Wiring Diagram | 10-01-1122 |
Parts Specific to MCG20G Models
| Item | Description | Part Number | Qty. |
| 22 | Top Element, 240 V Top Plate, Ribbed Left Plate Right Plate Bottom Plate, Ribbed Drip Tray w/Handles Bottom Element, 240 V Control Label Bottom Cover | X02.08.675.00 | 2 |
| 23 | |||
| X05.13.009.00 | 1 | ||
| X05.13.008.00 | 1 | ||
| 24 | X05.13.012.00 | 1 | |
| 25 | X05.30.219.00 | 1 | |
| 26 | X02.08.676.00 | 2 | |
| 27 | X07.01.386.00 | 2 | |
| 28 | X05.30.275.00 | 1 |
| Item | Description | Part Number | Qty. |
| 29 | Top Plate, Smooth Left Plate Right Plate Bottom Plate, Smooth Rear Cover Handle Lifting Spring Set (Left and Right) Wiring Diagram | ||
| X05.13.003.00 | 1 | ||
| X05.13.002.00 | 1 | ||
| 30 | X05.13.006.00 | 1 | |
| 31 | X05.30.280.00 | 2 | |
| 32 | X05.30.276.00 | 2 | |
| 33 | X05.08.039.00 | 2 | |
| 10-01-1123 |
NOTE: The last four digits in a ten digit numerical serial number are the manufacturing date code.
Example: Serial number 9625061331 has a date code of “1331” which indicates the following:
- 1331
- Week Thirty-One
- Year 2013

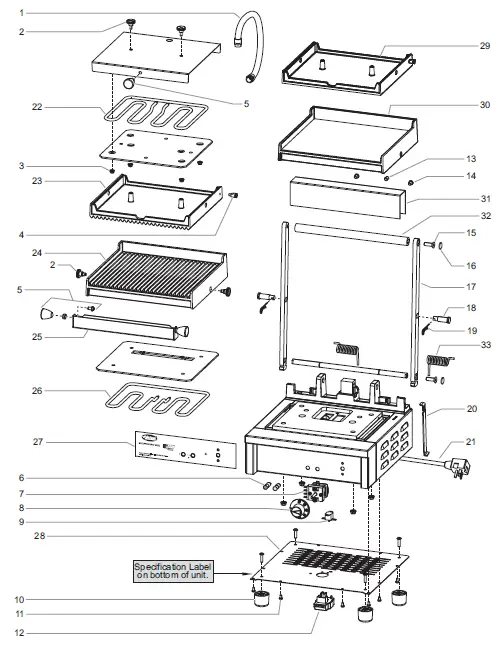

IMPORTANT NOTE: Locate the Specification Label on unit to determine exact Model Name and electrical specifications. This information is needed to identify the correctreplacement parts. See exploded view illustration(s) for Specification Label location.
CAUTION
Use of replacement parts other than those supplied by Hatco Corporation may result in damage to unit or injury to personnel and will void all warranties.
