Netatmo Valve Adaptor Pack
START HERE

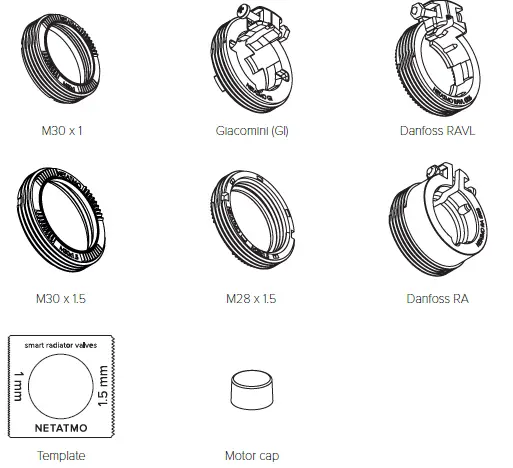

In the plastic bag
SECTION A:
Netatmo Smart Radiator Valves are only compatible with Netatmo Adaptors – included in the packaging or available at www.netatmo.com/adaptor.

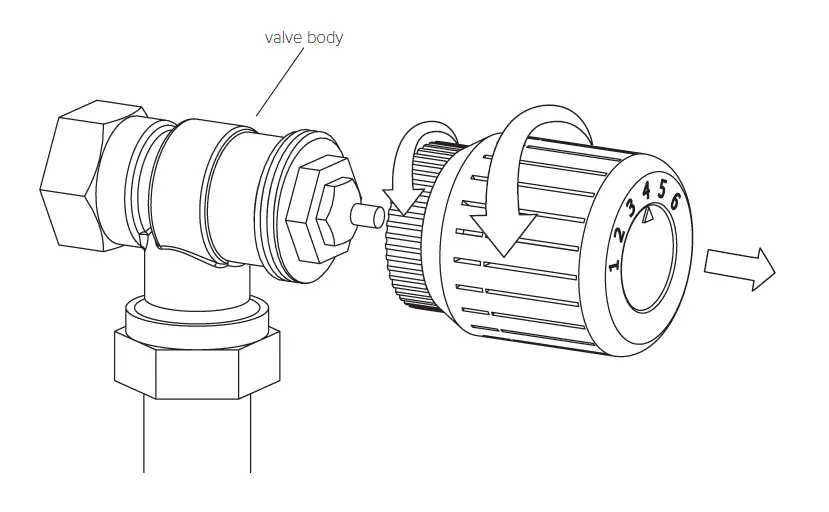

Remove the existing thermostatic valve from your radiator to access the valve body.

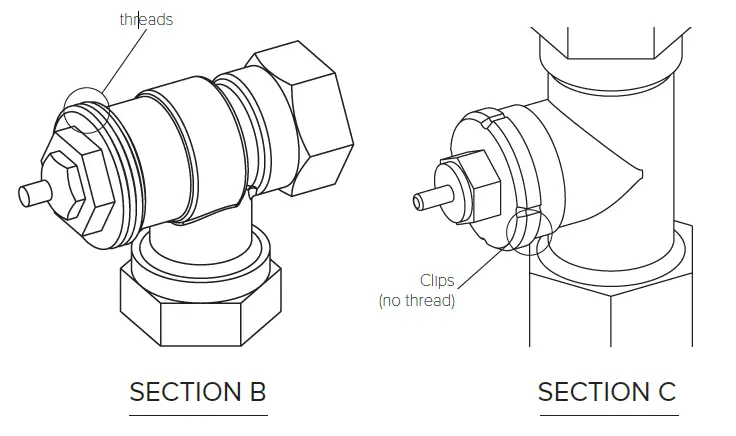

If your valve body has threads, go to Section B of this document.
If your valve body has clips, turn this document and go to Section C.

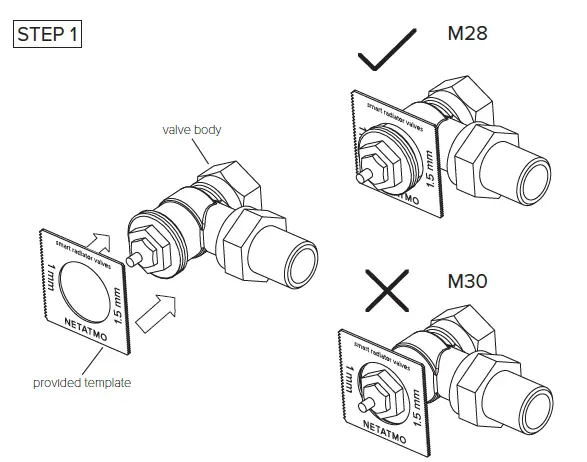

First step: determine the diameter of your valve body. If the valve body passes through the template, the diameter is M28, if not, the diameter is M30.

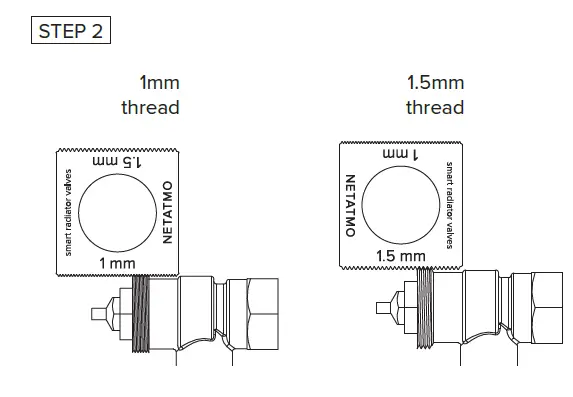

Second step: test both sides of the template to determine if your valve body threads are 1 or 1.5mm.

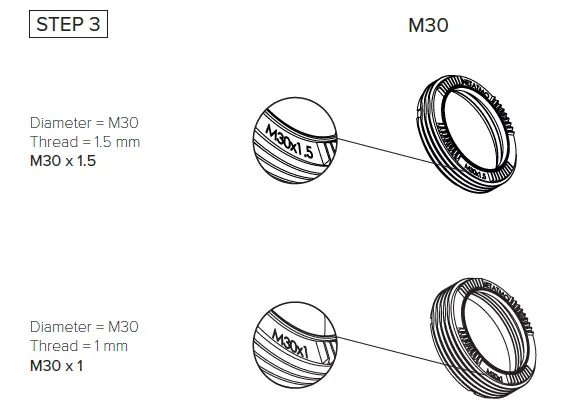

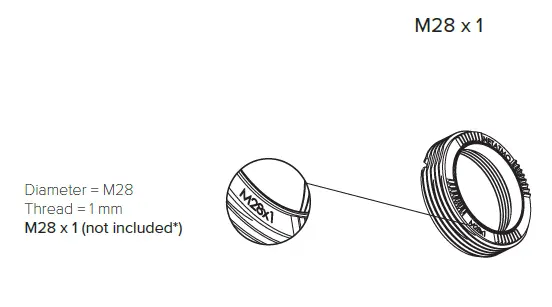

Third step: choose your Netatmo adaptor based on the diameter of the valve body and size of threads as identified in the previous steps.

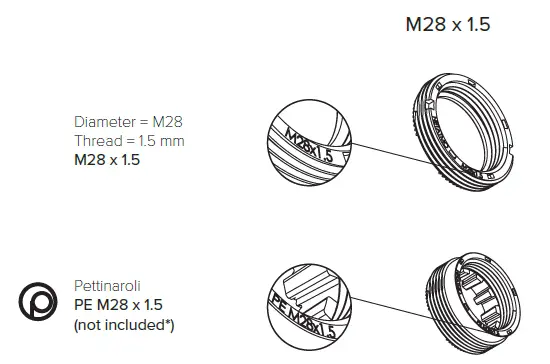

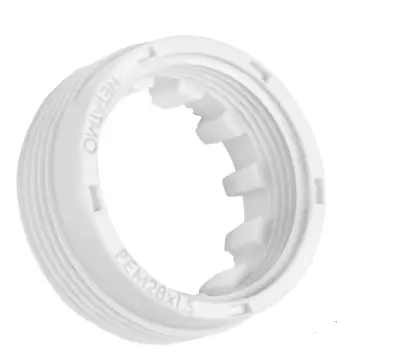

If you have selected an M28 x 1.5 adaptor and you cannot screw the Netatmo Smart Radiator Valve onto the adaptor, you probably have a Pettinaroli valve. This adaptor is not included
in the pack. You can order it online at www.netatmo.com/adaptor.
This adaptor is not included in the pack. You can order it online at www.netatmo.com/adaptor.

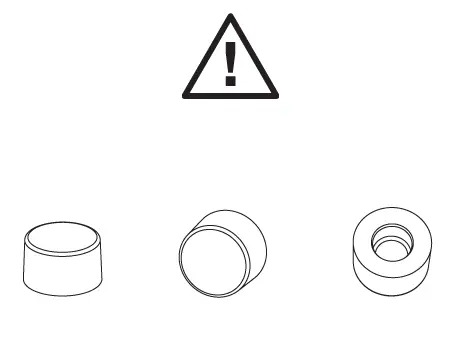

Keep the motor cap included in the packaging. The Netatmo Energy App may ask you to use it.
SECTION C: VALVE BODIES WITH CLIPS

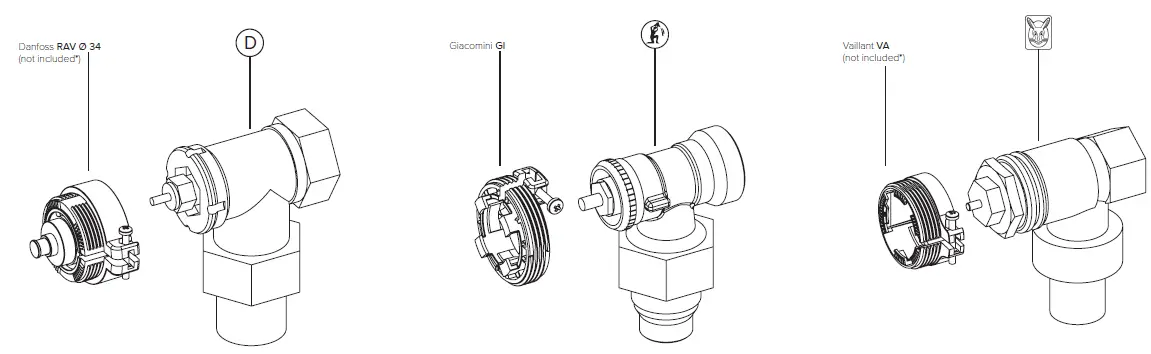

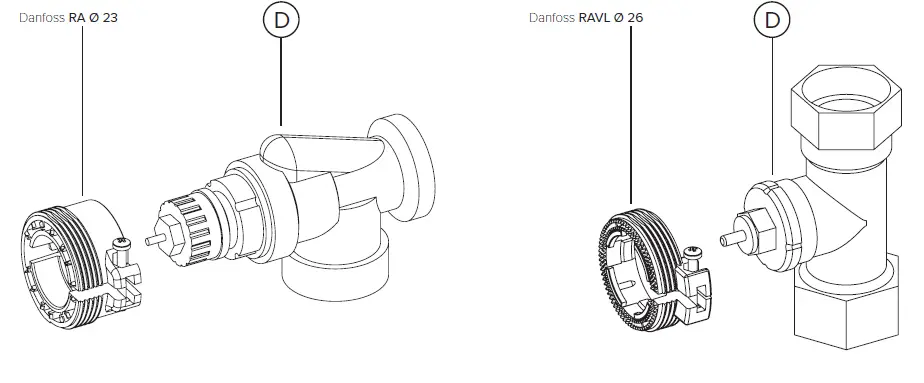

Choose the Netatmo adaptor that fits your valve body.
Check your old radiator valve for written information that might help you identify the correct adaptor.
*Not included
If none of the clip adaptors fi t, you can order additional adaptors online at www.netatmo.com/adaptor.
Check your radiator compatibility on check.netatmo.com
Copyright Netatmo © 2020 All rights reserved.
Reproduction and distribution prohibited without written authorization from Netatmo
