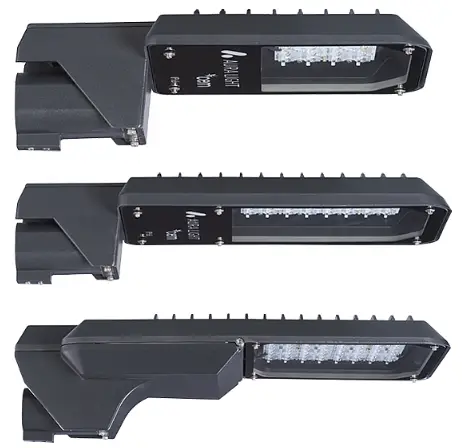

CL2025 Berzelia Traffic Area Lighting

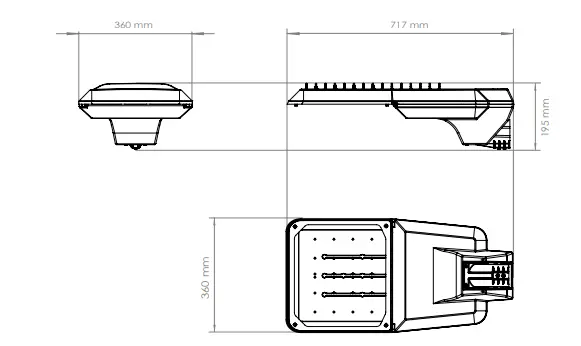

DIMENSION
| TECHNICAL FEATURES | |
| Voltage | 220-240V~ |
| Frequence | 50/60Hz |
| Insulation Class | Class I/Class II |
| Weight (kg) | 10,9 |
| ta | 50 °C |
| Power Factor | >0,95 |
| Projection Area | 0,25m2 |
| Glass | Tempered Glass |
| SERIES/MODEL | LED | P MAX (W) | SUPPLY CURRENT (A) | CLASS I | CLASS II |
|
Berzelia CL 2025 |
64 | 68 | 0,31 | X | X |
| 102 | 0,46 | X | X | ||
| 150 | 0,68 | X | X | ||
| 175 | 0,80 | X | X | ||
| 200 | 0,91 | X | X | ||
| 320 | 1,45 | X | X | ||
| 300 | 1,36 | X | _ |
- Suitable for use outdoors.
- If the external flexible cable or cord of this luminaire is damaged, it will be exclusively replaced by the manufacturer or his service agent avoid a hazard.
- Terminal block not included. Installation must be performed by a qualified person.
- The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similarly qualified person.

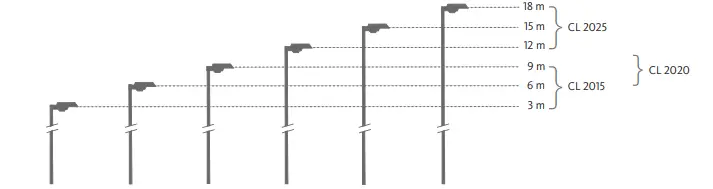

- Recommended pole height is between 4-8 meters due to the wattage and only to be installed outside arms reach.

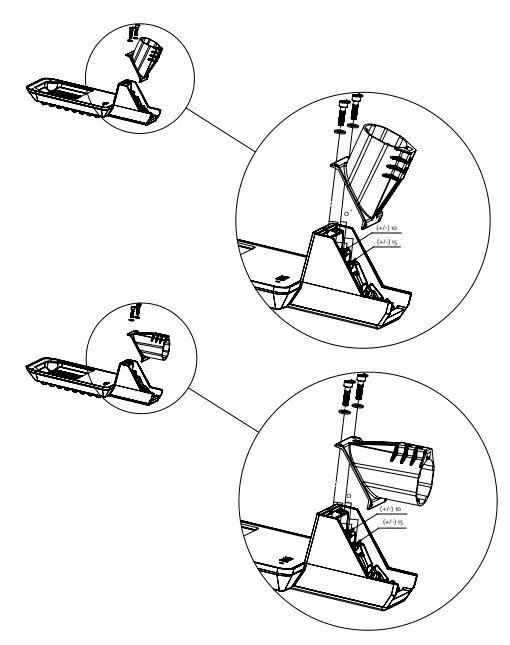

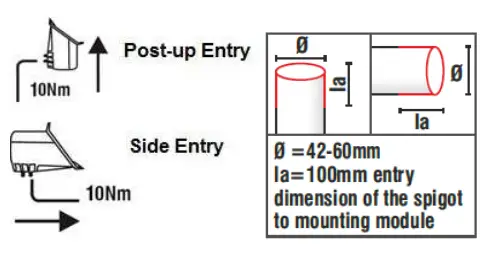

- With the help of an adjustable mounting module, the luminaire could be fixed both from side and postup entries with 16 different angles.

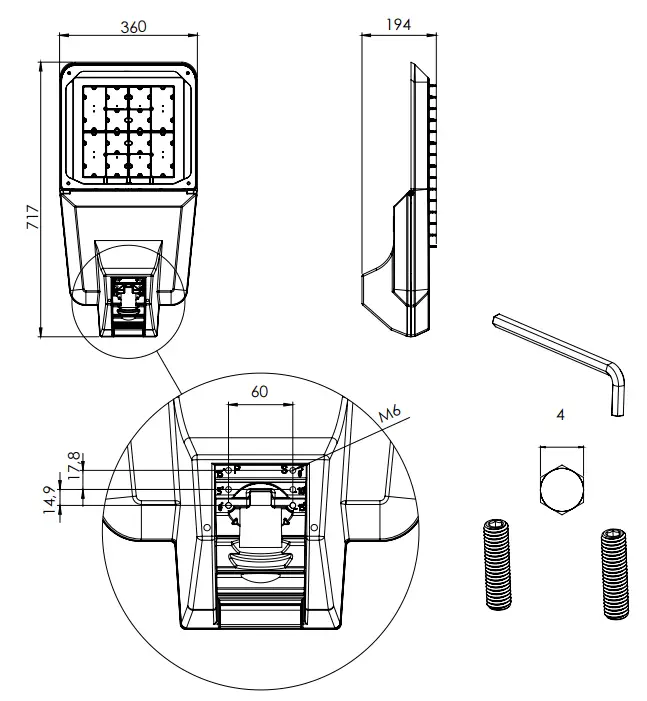

- 10 nm force should be applied to the bolt of the mounting module for closing. For pole mounting; two stainless steel Allen keys (4 sizes) or bolt keys (13 size) should be used.
- The luminaire should be fixed to the pole or console with a size 4 key.

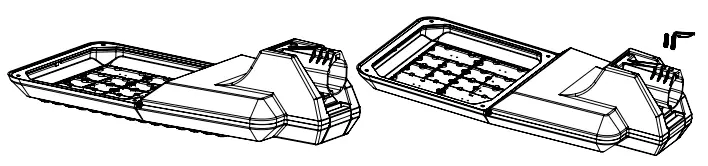

- Luminaire has easy connect system for the electricity connection.
| CLASS I | ||
| Brown | Blue | Green/Yellow |
| Line | Neutral | Earth |
| CLASS II | |
| Brown | Blue |
| Line | Neutral |

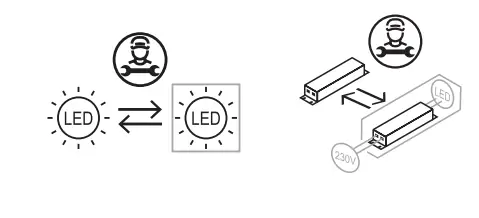

Replaceable LED light source by a professional or manufacturer.
Replaceable control gear by a professional.
INSTALLATION
Aura Light AB, Sweden
Phone customer service +46 (0)20 32 30 30
[email protected], www.auralight.com
