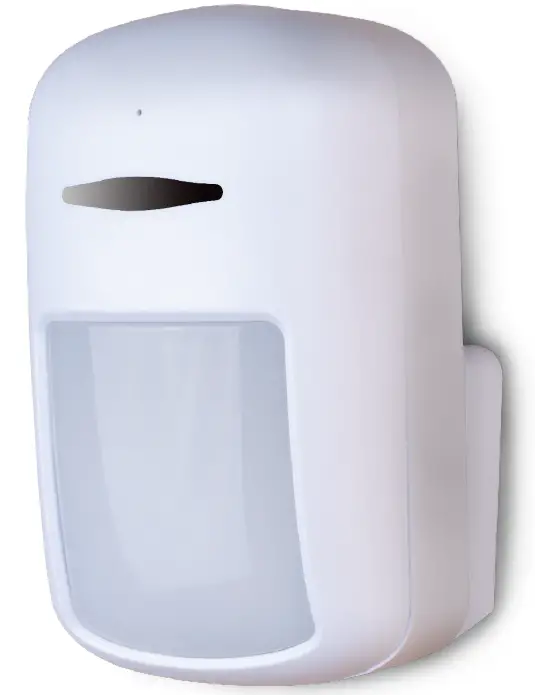

10M IR 5MP HIDDEN CAMERA IN DUMMY PIR HOUSING
This camera is the perfect combination of 5MP high resolution and low noticeability. It is the ideal solution when cameras are reqruied, but you want it to go unnoticed.
MAIN FEATURES
- 5MP
- Pro (Hidden) Series
- 2592×1944 Resolution
- 3.7mm Fixed Lens
- 3D-DNR
- 4 in 1 (Selectable AHD/TVI/CVI/CVBS)
- COC support
SPECIFICATIONS
| Image Sensor | 1/2.8” 5MP Sensor |
| Image Format | 5MP – 4:3. 4MP – 16:9 |
| Effective Pixels | 2608×1960 |
| Scanning System | Progressive |
| Resolution | 5MP: 2592×1944 AHD/TVI 4MP: 2560×1440 AHD/TVI/CVI CVBS: 700TVL |
| FPS | 25/30FPS |
| Min. Illumination | Color: 0.01lux @F1.2, AGC on B/W: 0lux with IR |
| D&N | True Day&Night-ICR |
| IR LED | 36Pcs (10m) |
| OSD Menu | Available via CoC only |
| CoC Support | Yes |
| Day & Night Mode | Ext/Auto/Day/Night |
| Backlight Compensation | BLC |
| S/N Ratio | ≥52dB (AGC off) |
| White Balance | Auto / Auto->Set |
| Noise Reduction | 3D-DNR |
| Video Output | 5MP / 4MP (Selected by OSD Menu) AHD/TVI/CVI/CVBS (Selectable) |
| Privacy Mask | No |
| D-Effect | Mirror + Flip |
| WDR | Digital |
| Lens (Field Of View) | 3.7mm Fixed Lens |
| Power | DC12V/300mA |
| Operation Temperature | -20°C ~ 50°C, 10% ~ 90% humidity |
| Protection Rate | – |
| Dimensions | 104*70.8*93.2mm |
| Net Weight | 275g |
| Junction Box | – |

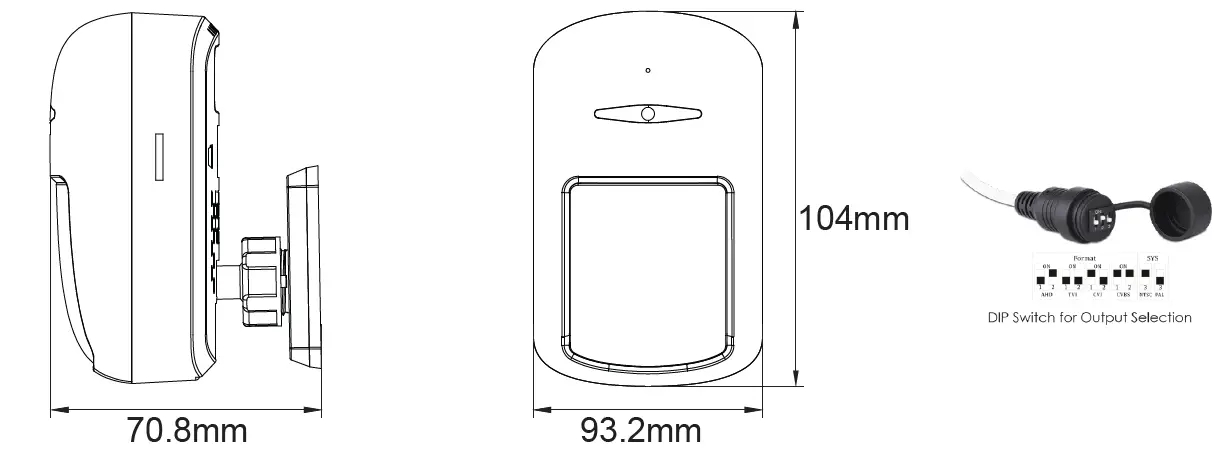

DIMENSIONS
