HIRSCHMANN MLN 200 Measuring Lead
INFORMATION
| Product | MLN 200/2,5 | ||||||||

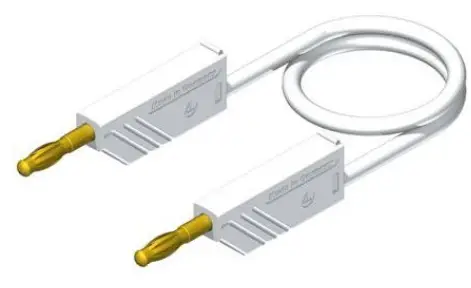

| description | Measuring lead, at either end 4 mm diameter plug with caged spring and 4 mm diameter socket for tower construction. Nickel-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, grip and lead shatter-proof. Built in colour indicator for easy identification of insulation damages. | ||||||||
| operating instruction | BA401 | ||||||||
| article-no. / *colour | 9340661xx
00 01 black red |
02 blue |
03 yellow |
04 green |
05 brown |
06 gray |
07 white |
09 violet |
yellow green
|

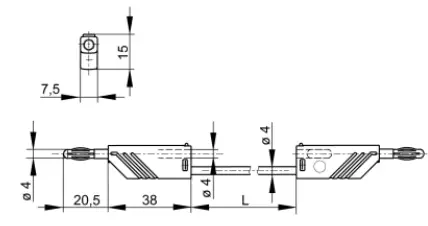

Drawing
 |
Technical data
| rated voltage | 30 VAC / 60 VDC |
| measurement cat. acc. to IEC 61010 | O (3) |
| rated current(1) (consider derating curve) | 32 A |
| material plug | brass, nickel plated |
| housing material | PA |
| temperature range acc. To IEC61010(2) | -15 °C to +70 °C |
| inflammability class acc. to UL 94 (only valid for basic material of housing) | V-2 |
| cable length | 200 cm |
| conductor size | 2,5 mm² |
| cable material | PVC |
- for normal environmental conditions 5°C to 40°C
- contact the manufacturer for applications at deviating temperature ranges
- without rated measurement category, for other circuits that are not directly connected to mains stand: 21.06.2022
