QUICK REFERENCE GUIDE > HPB4819-12_N
Insert Range Hood, 48″
Series 9 | Integrated Stainless Steel

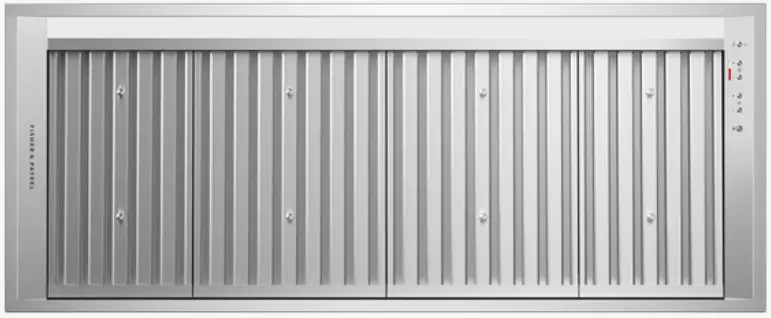

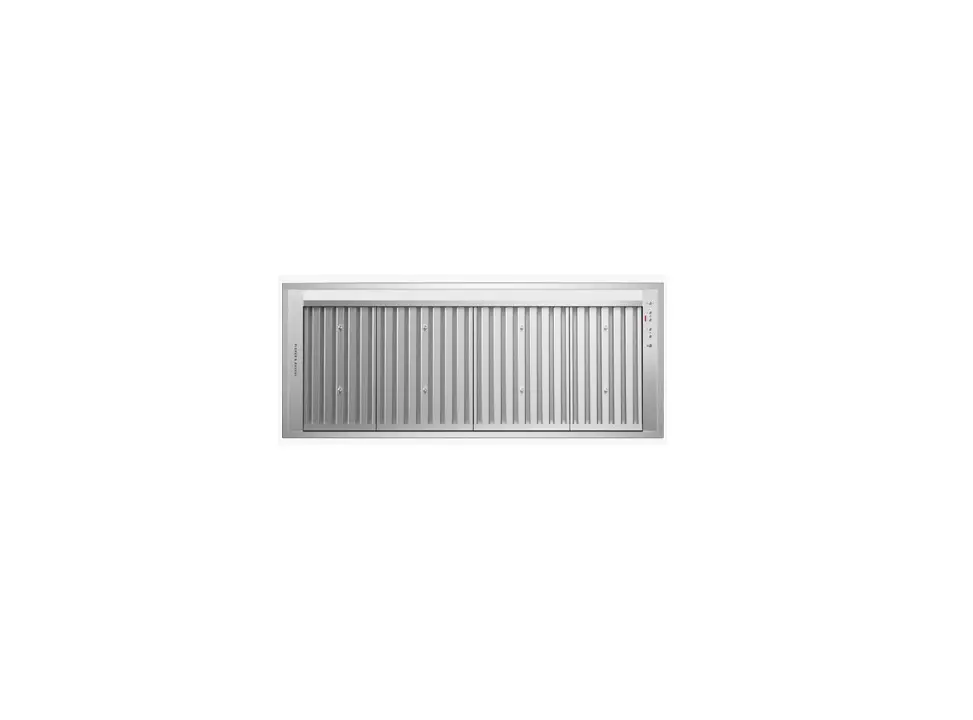

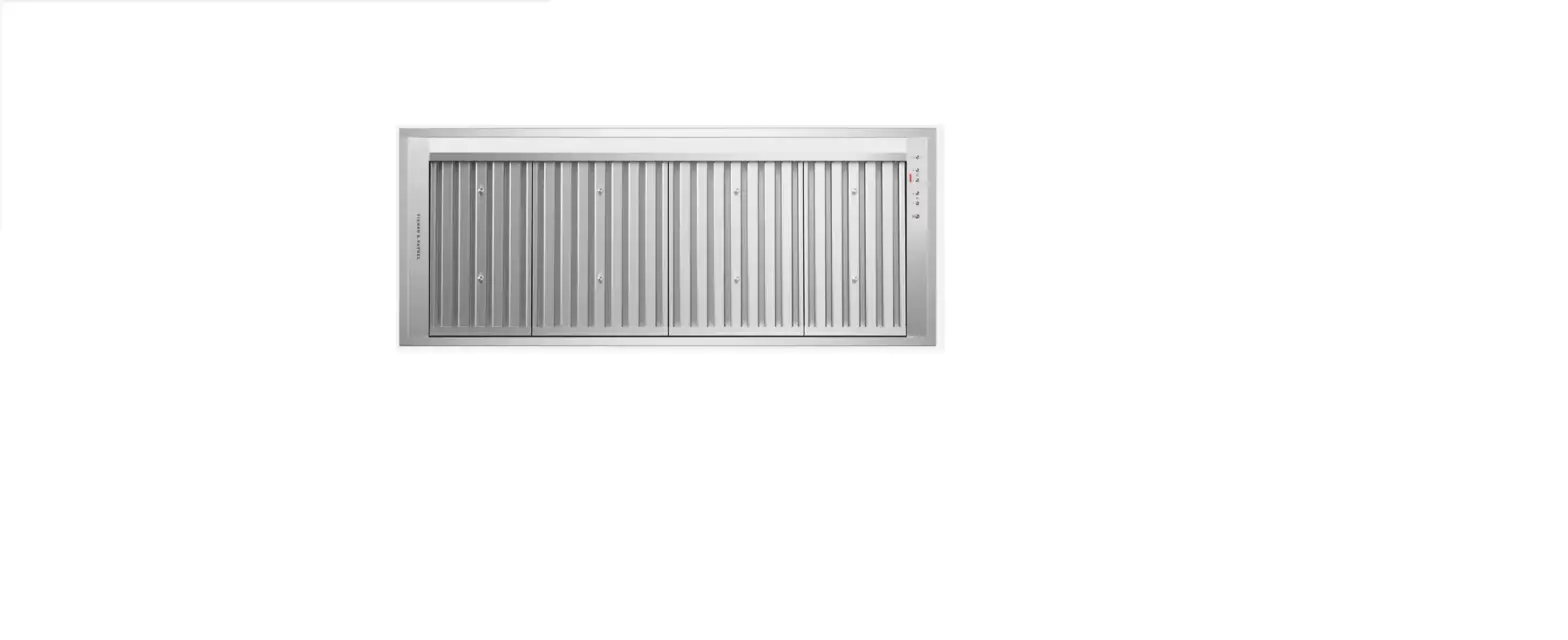

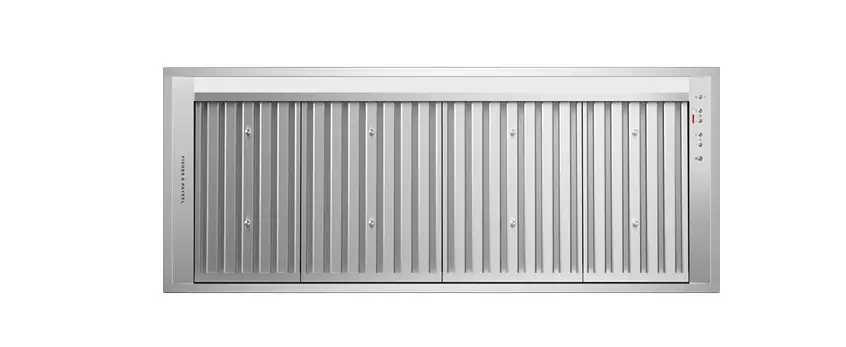

HPB4819-12_N Insert Range Hood 48 Icnh
With edge-to-edge extraction, this efficient, stylish range hood is perfectly hidden away in your cabinetry.
- With five fan speeds, select the perfect extraction rate for your cooking
- With dimmable LED strip lighting
- Powerful 1100CFM maximum airflow
- Dishwasher safe filters that are easy to remove and clean

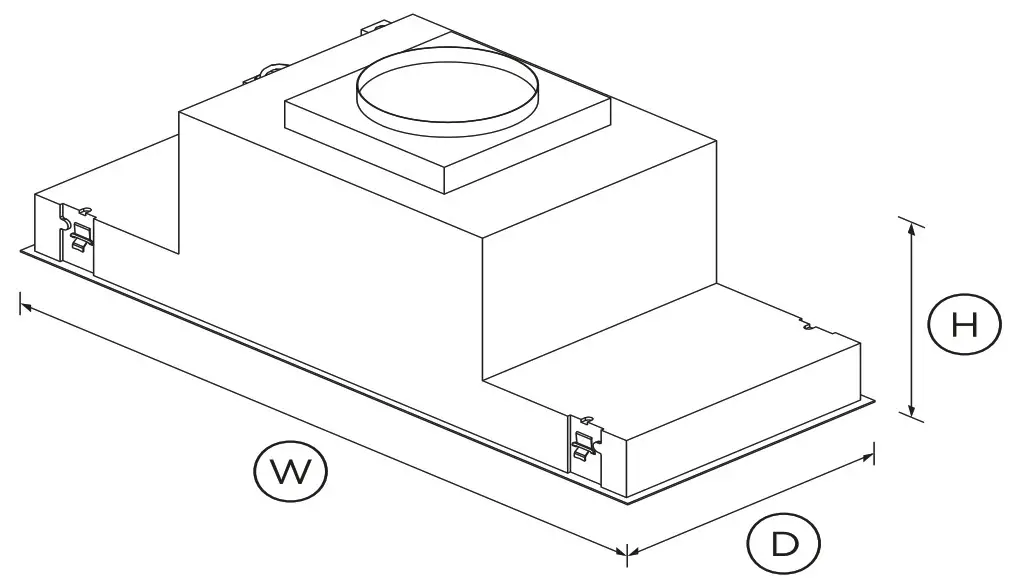

DIMENSIONS
| Height | 16 7/8″ |
| Width | 46 7/16″ |
| Depth | 18 7/8″ |
FEATURES & BENEFITS
Achieve the invisible
This high quality integrated range hood seamlessly blends behind cabinetry in a variety of kitchen layouts. Beautiful in its simplicity, this product has brushed finished surfaces with no visible screws.
Edge to edge extraction
Filters effectively reach edge to edge, which maximizes the amount of extraction area.
Full surface lighting
The even lighting provides full coverage of the cooktop, illuminating food in its true color, with no hot or dark spots and no glare or shadows. The dimmable lights have fade in and fade out features.
Easy to use
This easy to use range hood operates with fingertip control of LED-illuminated soft touch buttons. Selected models also come with a remote control.
Energy efficiency
Powered by a brushless DC motor, the Insert Range Hood operates more efficiently, more reliably and with less noise than units with AC motors. Plus, fewer moving parts mean less erosion and longer lifetime.
Effortless cleaning
The stainless steel filters are easy to remove and are dishwasher safe. A self-contained grease tray within the filters makes them very easy to clean.
Simple installation
The simple installation process is compatible with most precut cabinetry. The adjustable mounting system can be installed with ⅝” to 9/16” cabinetry board.
SPECIFICATIONS
| Accessories | |
| Remote control | Included |
| Fan ratings | |
| Maximum air movement | 1100CFM |
| Installation and cleaning | |
| Air outlet size | 10″ |
| Dishwasher safe filters | 4 |
| Ducted | Vertical only |
| Performance | |
| Extraction type | Surface |
| Fan speeds | 5 |
| Filter type | Stainless Steel Baffle |
| Power requirements | |
| Supply voltage | 120V |
| Product dimensions | |
| Depth | 18 7/8″ |
| Height | 16 7/8″ |
| Width | 46 7/16″ |
| Product information | |
| Control type | Electronic |
| Ventilation features | |
| Auto-off/Run-on timer | • |
| Dimmable lights | • |
| Filter cleaning alert | • |
| Light type | LED strip |
| Number of light settings | 5 |
| Over heat sensing | • |
| Warranty | |
| Parts and labour | 2 years |
| SKU | 50098 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
User Guide590256H_F&P_SERVWARRANTY_GLO.indd (fisherpaykel.com)Installation GuideInstallation Guide FRFP-DataSheet-HPB4819-12-N-InsertRangehood-0-CA-US-90002110A.pdf (fisherpaykel.com)
