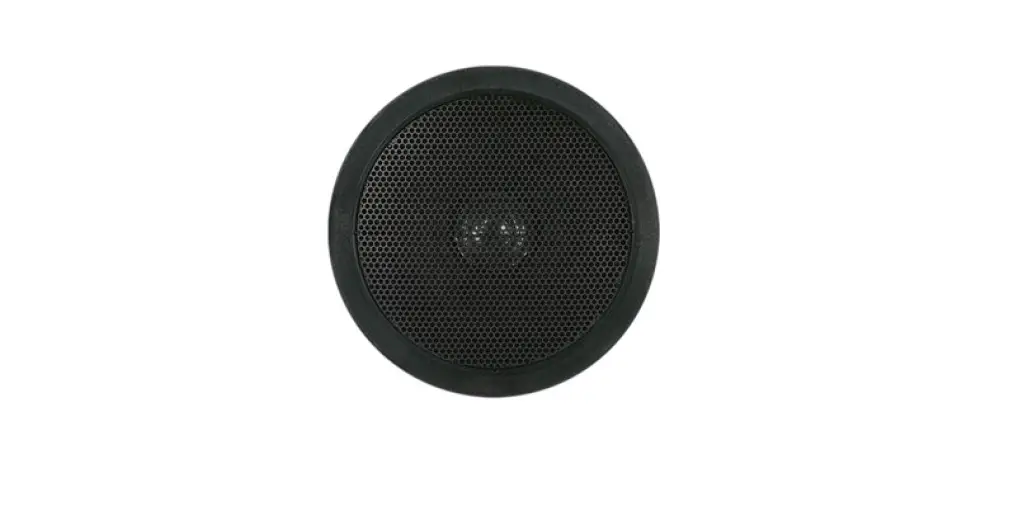

MDC401 MDC501 MDC620
MDC401 MDC501 MDC620
Dear Customer, congratulations on the purchase of your loudspeaker(s).
Please read these instructions carefully and keep them for future reference.
TROUBLESHOOTING
In case of problems, please contact your authorised dealer. You can also consult our website www.artsound.be.
WARRANTY CONDITIONS
2 year warranty from date of purchase. The warranty is limited to the repair of replacement of the defective material insofar as this defect is a result of normal use and the device has not been damaged. Artsound is not responsible for any other costs that ensue as a result of the defect (e.g. transport). For details, please consult our general terms and conditions of sale.
| TECHNICAL SPECIFICATIONS | MDC401 | MDC501 | MDC620 |
| system | 2-way coaxial | 2-way coaxial | 2-way coaxial |
| woofer | 4” polypropylene carbon | 5,25” polypropylene carbon | 6,5” polypropylene carbon |
| tweeter | 0,5” polycarbonate | 0,5” polycarbonate | 0,5” polycarbonate |
| amp power | 10 – 85W (recommended) | 10 – 100W (recommended) | 20 – 120W (recommended) |
| govelghaid | 86dB | 88dB | 90dB |
| Impandante | 8Ω | 8Ω | 8Ω |
| Parties together | 90Hz – 20kHz | 85Hz – 20kHz | 70Hz – 20kHz |
| dim. cut-out (Ø) | 135mm | 175mm | 205mm |
| dimensions (Ø x d) | 165 x 70mm | 212 x 70mm | 240 x 70mm |
| weight / piece | 0,75kg | 0,89kg | 1,2kg |
| ABS / metal grill |  | | |

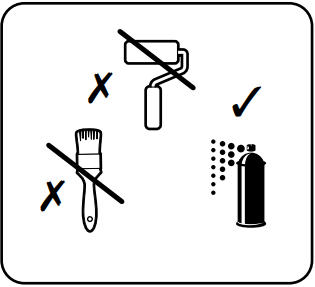

| paintable grill | | | |
This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE).This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment.For further information, please contact your local or regional authorities.
I, House Of Music NV, hereby declare that the type of radio equipment ARTSOUND complies with Directive 2014/53/EU. The full text of the EU Declaration of Conformity can be found at the following internet address: http://www.artsound.be > Support.
Disclaimer: All trademarks are the property of their respective owners. All specifications and information are subject to change without further notice. Slight variations and differences might appear between printed photos and actual product due to product enhancement. House Of Music NV – Schoonboeke 10 B-9600 Ronse – Belgium
