One Light 51010tr Adjustable Lamp Instruction Manual

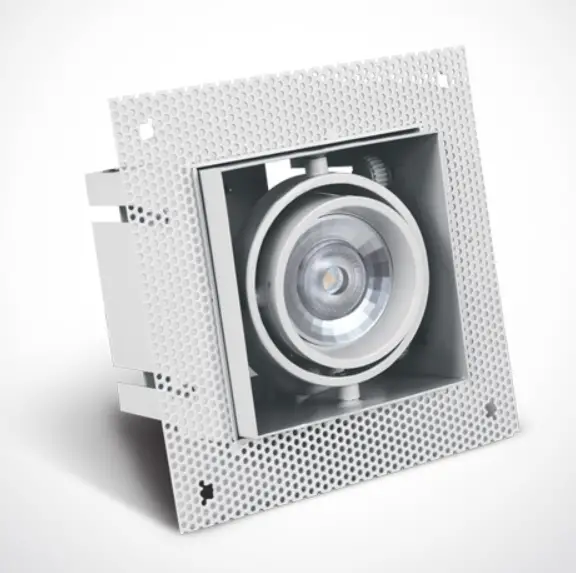

One LIGHT 51010TR Adjustable Lamp

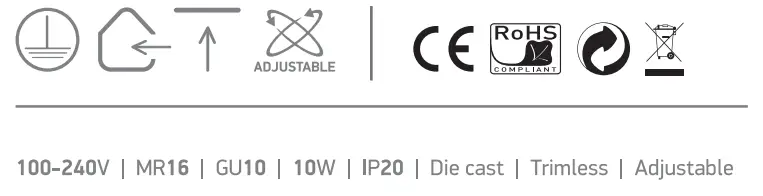

FEATURES

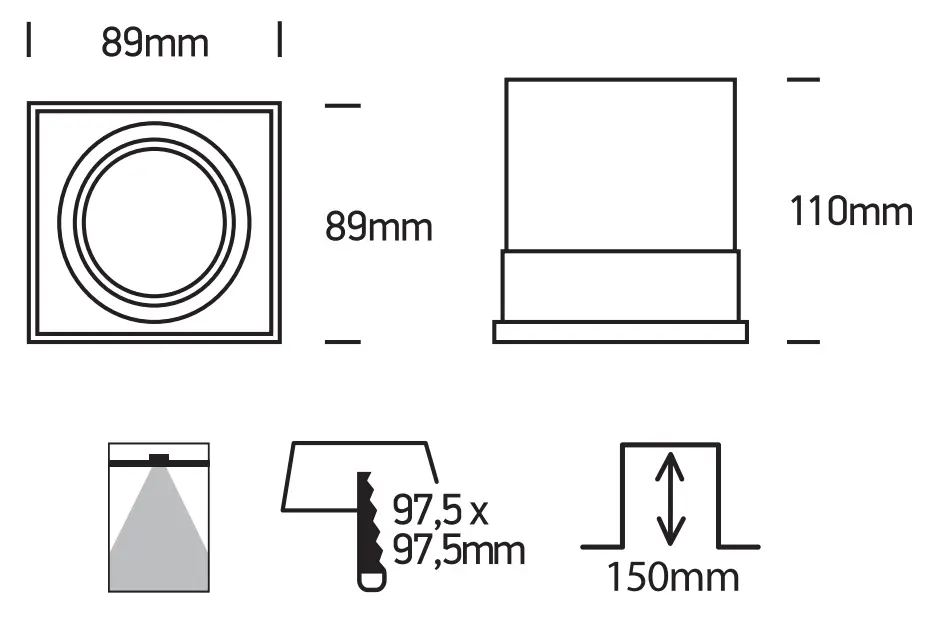

DIMENSIONS

INSTALLATION INSTRUCTIONS

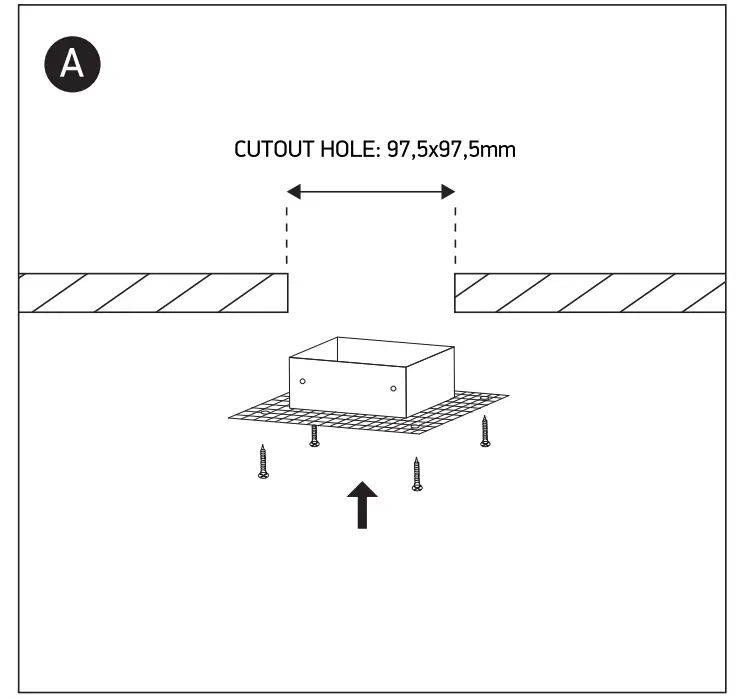

1. Mark up ceiling and cut a hole 97,5×97,5mm.
2. Insert the mounting base into the hole and secure with appropriate screws.

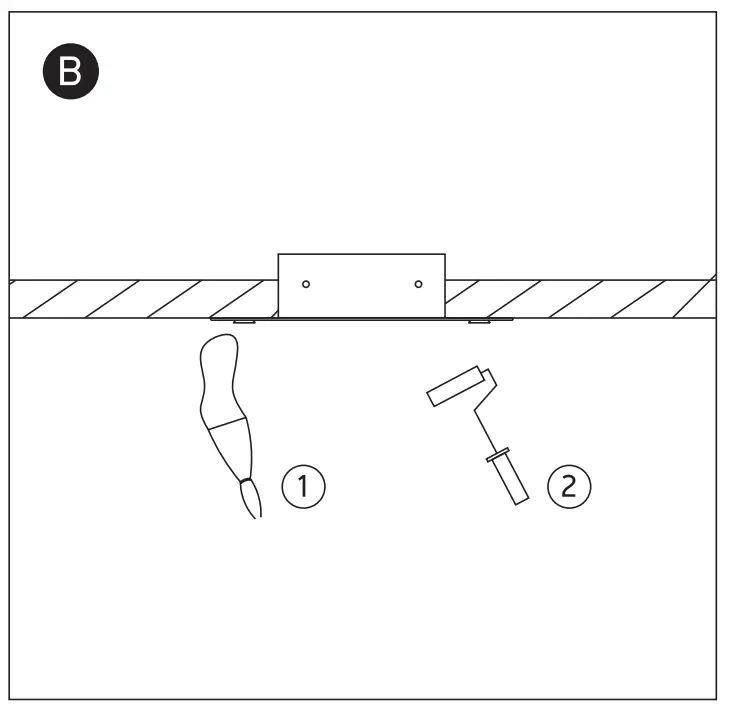

1. Cover the frame with plaster.
2. Paint the covered area.

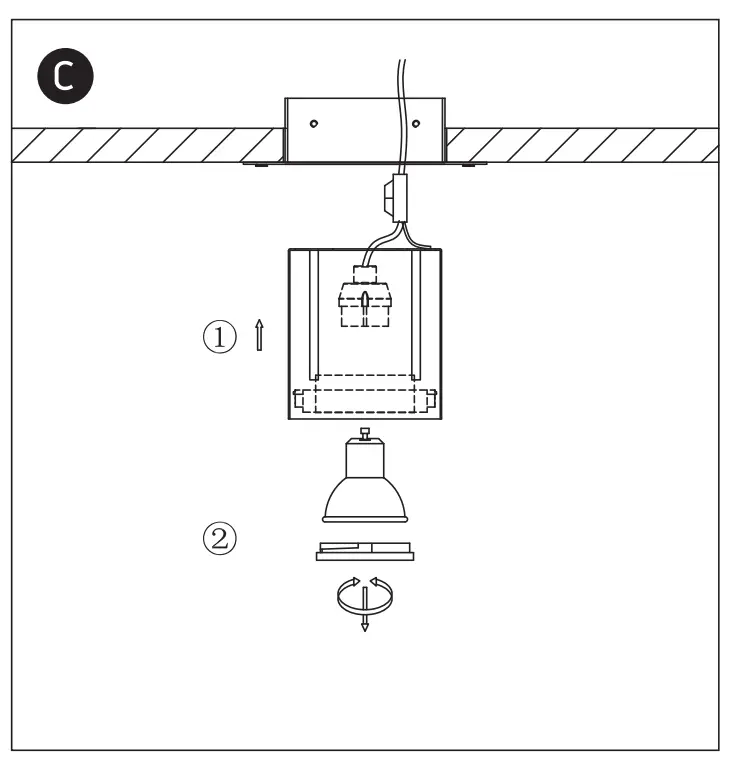

1. Insert the fixture into the mounting base and secure by hand using the screws
2. Remove the fixture ring and install the lamp.

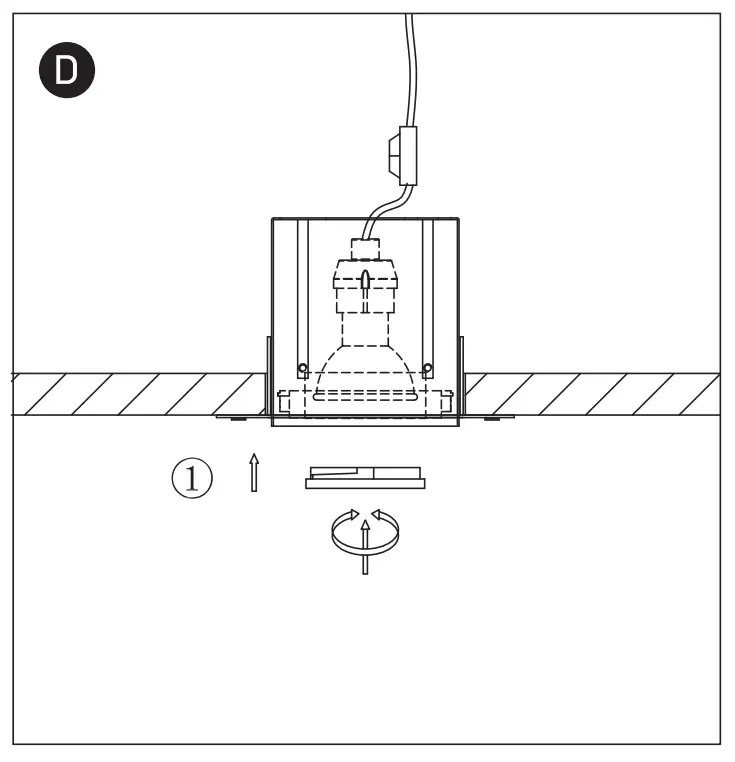

1. Place the fixture ring back into its place to hold the lamp in place.


Warnings

1. Make sure that the product is installed properly before connecting to electricity.
2. Do not cover the fitting.
3. Maintenance and installation should only be carried out by a professional electrician

 www.1-light.eu
