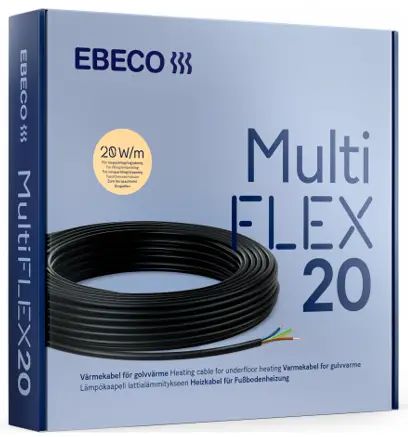

Multiflex 20 Heating Cable

Welcome
Thank you for choosing Ebeco. We hope that you will use and enjoy your underfloor heating system for many years to come. For the warranty to be valid, the product must be installed and handled as indicated in this manual. It is therefore important that you read the manual.

If you have any questions, please contact us at Ebeco.
Call +46 31-707 75 50 or send and
e-mail to [email protected].
Feel free to visit ebeco.com for more information.

Important
The underfloor heating system is a high voltage system and must thus be installed according to applicable regulations and of an authorised electrician. For the warranty to apply, the guarantee certificate must be correctly and completely filled in, and signed by an authorised electrician.

Heating cable for installation in concrete floors indoors or conservatories.
NOTE! Multiflex 20 must not be installed between timber joists. When packing on EPS concrete/cement, reinforcing mesh are required. When laying on the reinforcing mesh, the cable must be laid on the top of the mesh.

Specifications

Art. no.	Designation	Length	Indoors	Conservatory	Output	Resistance
E 89 607 00	Multiflex 20	10 m	2–3 m²	1–1.5 m²	200 W	260 Ω
E 89 607 02	Multiflex 20	14 m	3–4 m²	1.5–2 m²	270 W	200 Ω
E 89 607 04	Multiflex 20	17 m	4–5 m²	–2.5 m²	350 W	150 Ω
E 89 607 06	Multiflex 20	23 m	5–6 m²	2.5–3 m²	440 W	120 Ω
E 89 607 08	Multiflex 20	27 m	6–8 m²	3.5–4.5 m²	550 W	97 Ω
E 89 607 10	Multiflex 20	36 m	7–10 m²	4.5–6 m²	720 W	73 Ω
E 89 607 12	Multiflex 20	44 m	9–12 m²	6–7 m²	870 W	61 Ω
E 89 607 14	Multiflex 20	53 m	11–15 m²	7–8 m²	1090 W	49 Ω
E 89 607 16	Multiflex 20	64 m	13–18 m²	8–10 m²	1290 W	41 Ω
E 89 607 18	Multiflex 20	79 m	16–22 m²	10–12 m²	1560 W	33 Ω
E 89 607 20	Multiflex 20	93 m	18–26 m²	12–14 m²	1840 W	29 Ω
E 89 607 22	Multiflex 20	115 m	23–33 m²	14–19 m²	2350 W	23 Ω

All loops are supplied with 1x 2,5 m cold cable. Voltage 230 V.

Before you start

Check that the supplied material corresponds with the delivery note.
Measure the cable’s insulation value, minimum 10 Ω.
Measure the cable’s resistance, see the values in the table below, the value can vary with positive/negative 10%. Enter the values in the Warranty Certificate.

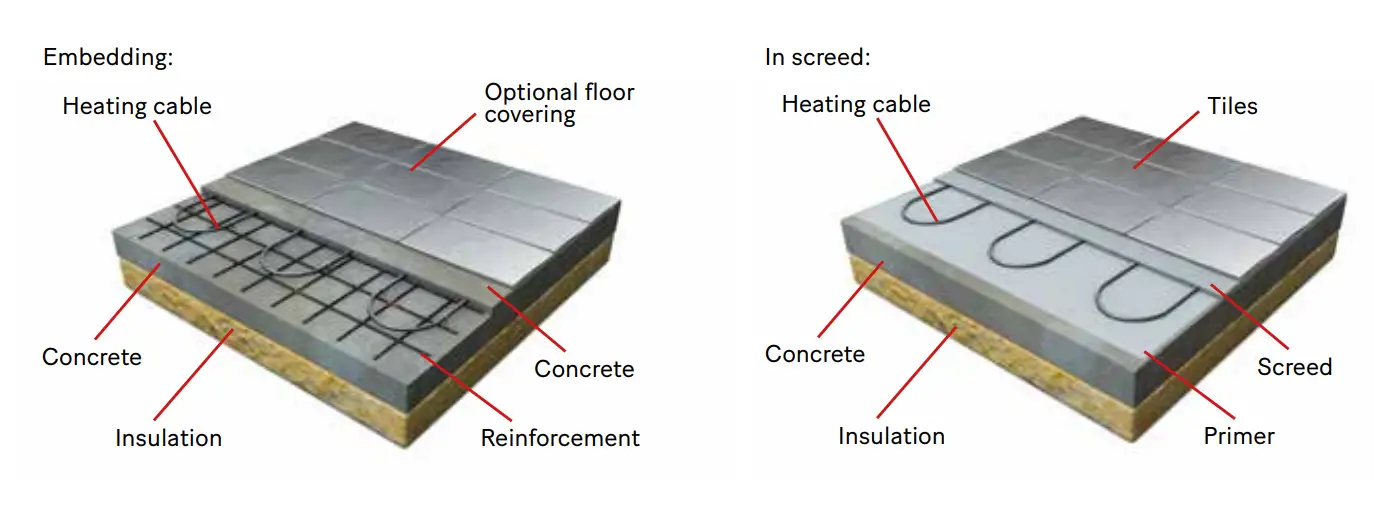

When embedding in concrete the c/c (centre-to-centre) spacing is normally 20-25 cm and the cable is cast about 50 mm under the completed floor surface. In conservatories the c/c spacing is usually 12-15 cm. Using this reduced c/c measurement (<15 cm) the cable can also be laid in a layer of screed with a minimum depth of 15 mm, if the substrate is concrete. In order to obtain more exact c/c spacing divide the installation area by the length of the cable.
If fixing strips are used, secure this square to the cable’s installation (c/c = 100 cm).
You must not shorten the heating cable. Only the cold cable may be shortened. The cable is manufactured with an integrated return, i.e. only one end (cold cable) needs to be connected to 230V.
Plan the layout so that the cold cable splice and the end termination do not end up in the shower area.

Installation

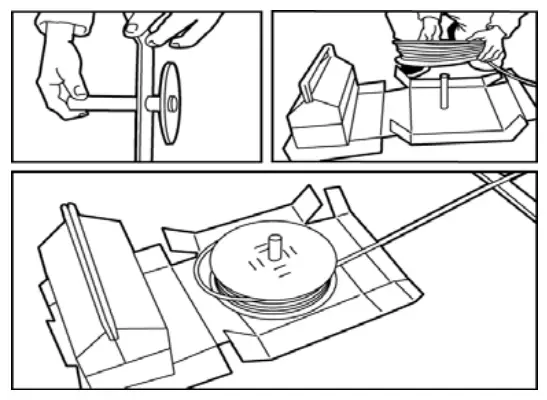

Drumholder
To make it easier to lay the cable, a plastic drumholder is supplied in the pack. Place the drumholder in the perforated hole under the bottom of the pack. Lift the drum on to the drum holder and place a heavy object on the lid of the packWhen you pull on the cable, the drum rotates.

Embedding in concrete slab

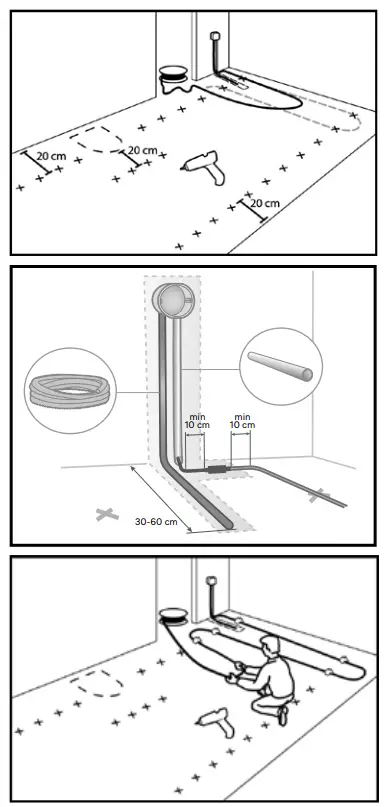

Roll out the cable; start by the connection box. The cable is fixed to the fixing strip (E 89 350 35) or secured to the reinforcement bar using cables ties or the like. By the outer wall or windows it may be beneficial to lay the cable in half the c/c spacing (c/c = 100 mm) to minimize any draught. Do not place the cable in the wall or in the pipe (see picture). The cable’s cold cable joint must be cast into the concrete. Use concrete that flows easily, so that there is good contact between the cable and the con crete and so that no air pockets are formed. Never lay the cable directly over insulation or combustible material.
One cable section must not lie over another section or be crossed. Minimum spacing 60 mm.
The heating cable must not cross expansion joints in the concrete.
The cable should be insulation and resistance measured once again both before and after it has been embedded. This is to ensure that the cable has not been damaged during laying. The values has to be entered in the Warranty Certificate.
After laying and testing, the cold end of the cable must be positioned so that water cannot penetrate into the cable.
The room temperature is controlled with one of Ebeco´s EB-Therm thermostat. The sensor should be placed inside a conduit pipe, which is then laid in the screed or concrete between two runs, at least 0.5 m from the wall. Tape over the end of the conduit.
Secure the supplied sign by the distribution box also include a sketch of the cable installation.
The cable must not be used for at least 4 weeks after the completed jointing work, or according to the manufacturer’s instructions.

Laying on existing concrete substrate
Pull out the first loop of the cable and fix it with glue about 15 cm from the bend. Hold the cable in the glue until the glue has hardened. The distance between the cable and the wall should be approx. half the c/c-distance. Do the same with the next loop. The same principle applies for laying with fixing strip or on reinforcement.

Test report (Multiflex 20)

	Before laying		After fixing		After covering floor
Product	Resistance value*	Insulation value	Resistance value*	Insulation value	Resistance value*	Insulation value
E no:
E no:

Min. insulation value 10 MΩ., min. 500 V *Tolerance -5 % to +10 %

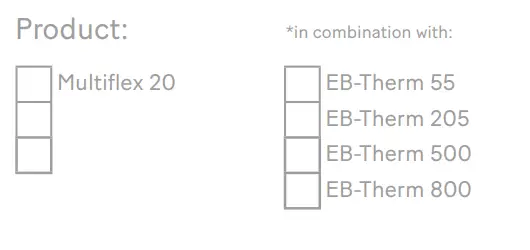

Products

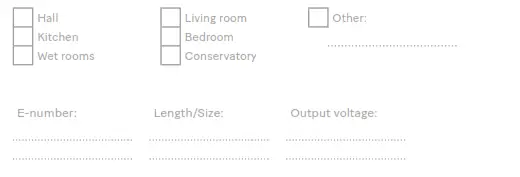

Installed in the following spaces:

Tip!

Extended 25 year guarantee and documenting made easier with Garantera
Do you want to avoid the bother of filling in and keeping track of these pages? Garantera is a service that makes things a little easier for authorised installation technicians. The service allows you to document measurement data, save installation photos and create a digital guarantee certificate to send to the customer. Read more about the service and get started at garantera.eboco.se.

Terms of Guarantee

Cable Kit, Cableflex, Thermoflex Kit, Thermoflex, Foil Kit, Foil 230 V and Multiflex 20

Ebeco AB provides a 12-year guarantee for material faults to heating cables/foil including supplied accessories and insulation board in Cable Kit, Thermoflex Kit, Thermoflex, Foil Kit, Foil 230 V and Multiflex 20-cable, hereafter referred to as the “Products”.
Should material faults occur to the Products during the period of the guarantee, Ebeco AB agrees to repair or replace the Products without cost to the purchaser. Ebeco AB also undertakes to restore the floor to its original condition after performed repair or replacement. To be able to rectify the fault, the purchaser must have saved or have access to 1 m² of the original flooring material.
Ebeco AB provides a 5-year product guarantee for the supplied thermostat.

The guarantee only applies under the condition that installation of the Products is performed by an authorised electrician in accordance with applicable regulations and the installation instructions issued by Ebeco. And that one of the following requirements is met:

A) The installation is performed using and documented in Ebeco’s service, Garantera. Or
B) This guarantee certificate including the test report is completed in full, and along with material specifications or an invoice, signed by the electrician who performed the installation. Furthermore, there must be photos that show the Products in their entirety after installation but before covering, or alternatively, a detailed drawing of the end connections and joints of the Products as well as the exact locations of floor sensors.

The guarantee does not apply to installations performed by non-authorised electricians or if a non-authorised electrician has made modifications or repairs. Furthermore, the guarantee does not apply to faults that have occurred as a result of use of improper materials and floor constructions, or as a result of incorrect installation. Damage caused by vandalism, fire, lightning or water, or damage caused by carelessness, abnormal use or as a result of accidents, is not covered either.

To make a guarantee claim, the following applies: Ebeco AB must be notified before any action is taken. Furthermore, a guarantee certificate with an accompanying invoice for installation or material specification and a completed and signed test report must be presented.

Extend the guarantee to 25 years with Garantera
Ebeco’s digital service, Garantera, documents all heating cable installations in a simple, safe and structured way.
An installation made using Garantera automatically gets an extended 25 year guarantee for material defects. The extended guarantee only applies if the product has been installed together with an applicable control system and by an authorised electrician.
A digital guarantee certificate is e-mailed from Garantera to the user, who is then responsible for saving it and being able to present it in the event of a guarantee claim.
A product guarantee of 5 years applies to the thermostat.

EBECO AB
Martin Larsson, CEO

Declaration of Conformity

Ebeco declares that the following products are in conformity with the Low Voltage Directive 2006/95/EC.

Type of equipment
Brand name or trade mark Ebco
Type designation
Manufacturer
Address

Heating cable, series-resistive
Multiflex, Twin Heating Cable (Cable Kit), Thermoflex, BHS
Ebeco AB
Lärjeågatan 11, S-415 02 Göteborg, Sweden

One or more of the following technical standards, which comply with good engineering practice in safety matters in force within the EEA, have been applied:

Standards: SS 424 24 11:1992, EN 60800:2009 IEC 1423-1, IEC 1423-2

Göteborg 2014-04-04
Ebeco AB

Martin Larsson
Managing Director
