KERBL 442386 Metal Box Mounting Kit
mounting set

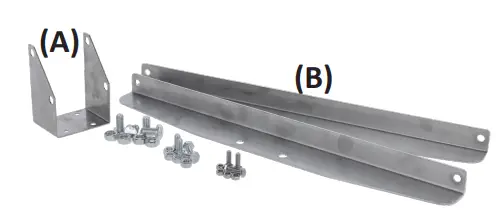

Scope of delivery
- 2 x stainless steel vertical rail (B)
- 1 x stainless steel U-bracket (A)
- 1 x screw set:
- M6x18 + M6 nut (4x)
- M8x16 + M8 nut (4x)
- M10x20 + M10 nut (4x)

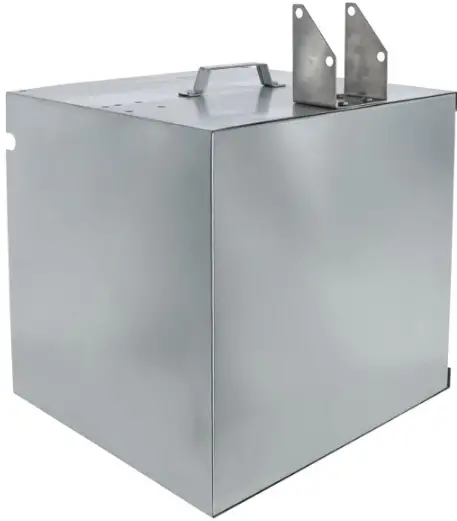

Fasten U-bracket (A) with M6x18mm and M6 nut on the metal box.

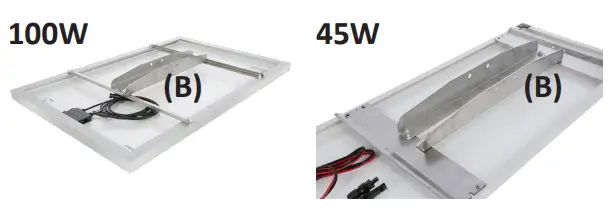

Fix the vertical rail (B) with M8x16 and M8 nut to the cross braces.
(ATTENTION: For 45W, the lower crossbar must be turned be rotated by 180°!)

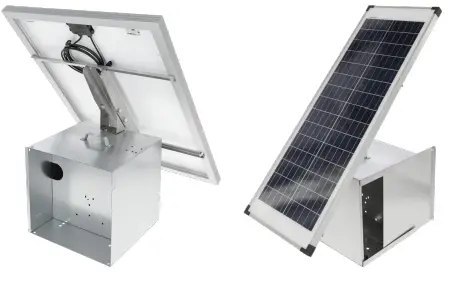

Solar module with M10x20 and M10 nut to the screwed U-bracket on the metal box fix it to the metal box.
