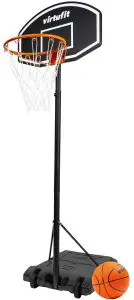

virtufit VF06041 Adjustable Basketball Post 173 – 213 cm User Manual
WARNING:
IMPROPER INSTALLATION OR SWINGING ON THE RIM MAY CAUSE SERIOUS INJURY OR DEATH
Notice to assemblers:
All the basketball systems, including those used for displays must be assembled and ballasted accooding to instructions. Failure to follow instructions could result in serious injury.
Please read allwarning and cautions before assembly. It is recommended to supervise children as they play with this product. This product is to be assembled by 2 adults only!
We appreciate your purchasing one of our many fine products. We are assured that you will be very satisfied with your selection.

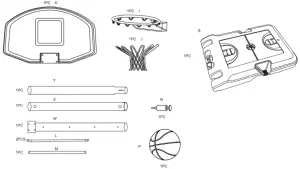

PART LIST
| Part No: | Name&Specification | Oty | Remarks |
| A | Plastic head knob | 1 | Fix Top Pole(W)On Moddie Pole(X) |
| B1、B2、B3 | Bolt,M6x20MM | 4 | Connect Rim(I),backboard(K)& Top Pole(W) |

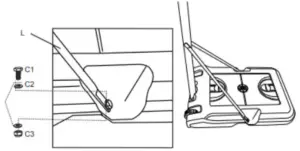

| C1、C2、C3 | Bolt,M8x17MM | 2 | Connect Base(S)&Brace Brace (L) |
| D1、D2、D3 | Bolt,M8x65MM | 1 | Connect Bottom Pole(Y)& Base Brace (L) |
| E1、E2 | Carriage Bolt,M8x55MM | 1 | Connect Top pole (W) & Middle Pole (X) |
| F | Bolt | 1 | |
| G | Wheel | 2 | |
| H | Water Cap | 1 | |
| I | Rim | 1 | |
| J | Net | 1 | |
| K | Backboard | 1 | |
| L | Brace Brace | 2 | |
| M | Wheel Shaft | 1 | |
| N | Pole Cap | 1 | |
| O | Wrench | 2 | |
| Q | Cross Wrench | 1 | |
| S | Base | 1 | |
| W | Top Pole | 1 | |
| X | Middle Pole | 1 | |
| Y | Bottom Pole | 1 |
Tools

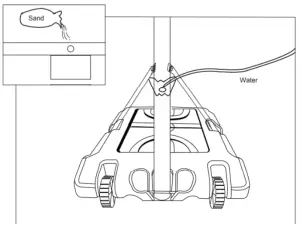

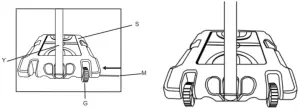

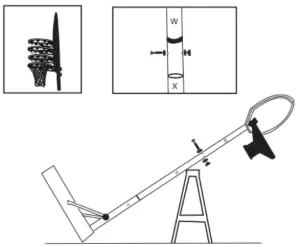

Assembly Instructions
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6
STEP 7
STEP 8
