nvent 4Z34 Multi-Function Clip

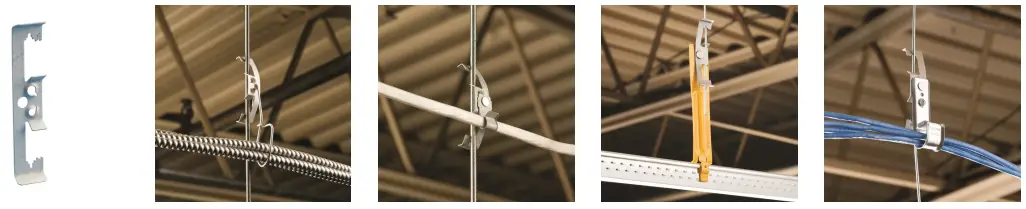

- Provides attachment of conduit and boxes
- Supports #10-24 and 1/4-20 threaded bridle rings
| Part Number | 4Z34 |
| Material | Spring Steel |
| Finish | nVent CADDY Armour |

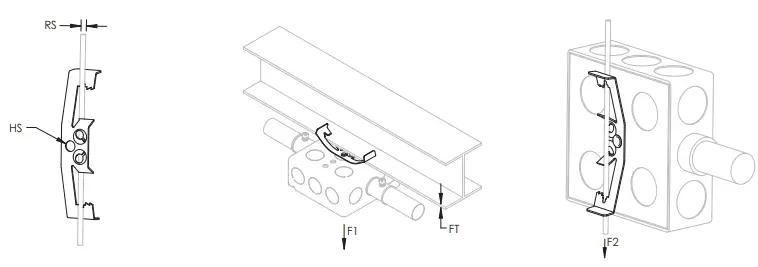

| Rod Size (RS) | 1/4″ |
| Wire Size | #12 – #8 |
| Flange Thickness (FT) | 1/8″ – 3/8″ |
| Hole Size (HS) | 1/4″ |
| Screw Included | No |
| Static Load 1 (F1) | 25 lb |
| Static Load 2 (F2) | 20 lb |
| Certifications | cULus ITB |
| Standard Packaging Quantity | 100 pc |
| UPC | 78285650500 |
| EAN-13 | 8711893706543 |
1/2″ and 5/8″ rod sizes are to be installed on threaded rod only.
NEC® 300.11 requires dedicated drop wire/rod and EC311.
NEC is a registered trademark of, and National Electrical Code (NEC) standard is a copyright of the National Fire Protection Association, Inc. UL, UR, cUL, cUR, cULus and cURus are registered certification marks of UL LLC.
WARNING
nVent products shall be installed and used only as indicated in nVent’s product instruction sheets and training materials. Instruction sheets are available at www.erico.com and from your nVent customer service representative. Improper installation, misuse, misapplication or other failure to completely follow nVent ‘s instructions and warnings may cause product malfunction, property damage, serious bodily injury and death and/or void your warranty.
© 2021 nVent All rights reserved nVent, nVent CADDY, nVent ERICO, nVent ERIFLEX and nVent LENTON are owned by nVent or its global affiliates.All other trademarks are the property of their respective owners. nVent reserves the right to change specifications without prior notice.
