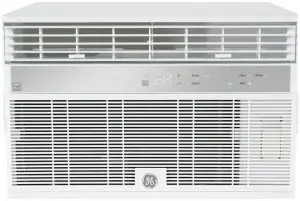

GE Appliances AHY08LZ GE 115 Volt Smart Room Air Conditioner User Manual
FEATURES
Airflow (cfm) Roomside (hi/low | 220/190 |
Chassis Type | Fixed |
| Delay Timer | 24-Hour On/Off Timer |
Fan Speed Selections | 3 Cooling; 3 Fan Only |
| Filter Type | One Touch Lift-Out |
Louver Style | 4-Way Adjustable |
| Mounting Type | EZ Mount |
Plug Type | Parallel/NEMA 5-15 |
| Remote Control | Yes |
Rotary Compressor | Yes |
| Thermostat Type | Electronic |
Unit Type | Cool Only |
| Vent/Air Exchange Exhaust | Top Air Discharge |
Refrigerant Type | R-32 |
| WiFi Connect | Built-In |
Area to Cool | 250-350 |
| Digital Time Temp Display | Yes |
LCDI / AFCI power cord | Yes |
| Power Cord Length | 72″ Minimum |
Product Type | Window |
| Room Air Conditioner Features | Electronic Control; Energy Saver; On/Off Timer; Remote Control |
- – 10,000 BTU, 11.4 CEER, 115 Volts
- – Electronic digital thermostat with remote
- – 3 cooling / 3 fan speeds
- – EZ Mount window kit with fixed chassis
- Energy Saver mode – Fan and compressor shut off temporarily when the room is cool enough, saving you time and money
- Filter reminder light – Prompts you when to clean the filter to ensure optimal performance
- – Power interruption restart
- – 24 hour on/off timer
- – ENERGY STAR® qualified
DIMENSIONS
APPROXIMATE DIMENSIONS (HxDxW)
- 12 5/8 in x 15 5/16 in x 18 9/16 in
CAPACITY
- Cooling BTUH (MAX) 8000.00 Btu
- Dehumidification (pts./hr.) 2.10
WARRANTY
- Parts Warranty – 1-Year Replacement, Repair or
Return; First 90 days, Return to vendor - Labor Warranty – 1-Year Replacement, Repair or
Return; First 90 days, Return to vendor - Warranty Notes – See written warranty for full details
Have more questions? Please contact 1-800-626-2005
