Sentinel HDi120 Basement/Crawlspace Dehumidifier
User Manual
Specifications
| Features | Sentinel HDi120 |
| cETL Certified. |  |
| Compressor Type | Rotary |
| More Thorough, And More Quick | |
| Ducting options | |
| Condensate Pump | |
| Easy handling | |
| Water Full protection | |
| Environmental R41 0A Refrigerant | |
| Automatic humidistat control | |
| Memory Starting | |
| Rare earth alloy Tube Evaporator | |
| Continuous Model | |
| HVAC Remote System | |
| Remote Control | |
| Low Temperature | |
| Specifications | Sentinel HDi120 |
| Power | 115v/60Hz |
| Capacity @AHAM (80°F, 60% RH) | 120 Pints/Day |
| Capacity @DOE Whole House | 93 Pints/Day |
| Current | 7.8A |
| COP | 2.7L/Kwh |
| Size For | Up to 3,300 sq.ft. |
| Filter | MERV-1 Filter & MERV-10 Filter |
| Airflow | 290 CFM |
| Sound Pressure Level | <60DBA |
| Refrigerant | R410A |
| Draining | Condensate Pump |
| Functioning Temperature Range | 33.8-104ºF |
| Functioning Humidity Range | 36-90% |
| Capacity115V(80°F-60%) | 120Pints/Day |
| Weight | 88 lbs (40KG) |
| Dim(LxWxH) | 23.8″14.7″x17.9″ |
Application
The condition of your crawl space has a major impact on comfort, home value and indoor air quality. Many of these issues have to do with crawl space moisture.
AlorAir Sentinel HDi120 Dehumidifier is Ideal for Dehumidifying your Whole Home and Basement or Sealed Crawl Space Removing up to 18.9 Gallons ( 120 Pints) of Water Per Day, cover 3,300 Sq.Ft. Compact and Light also Equipped with Quality Carrier Handles. Built-in Pump, DryingWork hard overnight or continuous for days at a time without you worrying about it.
For your convenience, it can be ducted to your HVAC system and designed with the remote monitoring function so it is easy to access in any location. It makes this unit an ideal choice for places where remote sensing and controlling is required, It is also a good choice for the sound insulation and saving space usage.
Installation flexibility makes the unit ideal for almost any application. Optional duct mounting flanges reduce the installation time when connecting to an existing/new ducting systems.No conventional dehumidifier can perform as efficiently and effectively in basements and crawl spaces as Sentinel HDi120.
REDUCES & CONTROLS BASEMENT & WHOLE HOME HUMIDITY to help prevent damp carpeting and furnishings, mold, mildew, and odors, and mold, termites, structural wood rot, and odors in a sealed crawl space.
To Give You Even More Peace of Mind, It’s Backed By a 5-Year Warranty, It has c-ETL Listed. Your 100% Satisfaction is Guaranteed with 5 Years Warranty and Great After-Sales-Service Team
Countrywide.

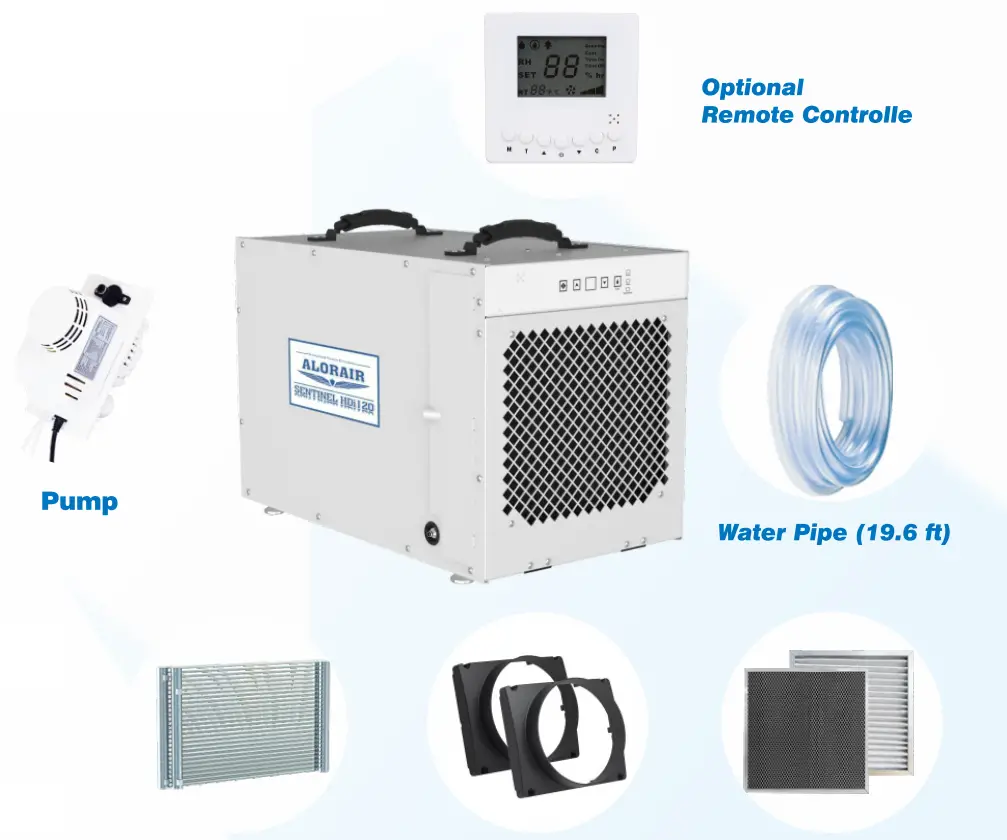

- Microchannel Condenser Technology
- Optional Duct Mounting Plate
- MERV.1, MERV-10 Filter
Key Design Features
- Supper COP
- 2.7L/Kwh
- Coated Coils with Stainless Side Plate
- Quick Access to Pump and Main Board
- HVAC Remote System
Additional Features
- Engineered for low temperature operation and the air flow issues that crawl spaces present
- Ducting options for divided spaces
- Remote Control equiped
- Heavy-Duty Condensate Pump
- Quick connector to Pump(the pump can be taken out freely just full out the quick connector)
EFFICIENET • LARGE CAPACITY • POWERFUL
Whole House Dehumidifier for Crawl Space & Basement>>
HDi120 Sentinel Dehumidifier
| Applications | Sentinel HDi120 |
| Crawlspace | |
| Shops/Bars | |
| Museums/Sports Halls | |
| Water Damage Restoration | |
| Computer Rooms | |
| Basements | |

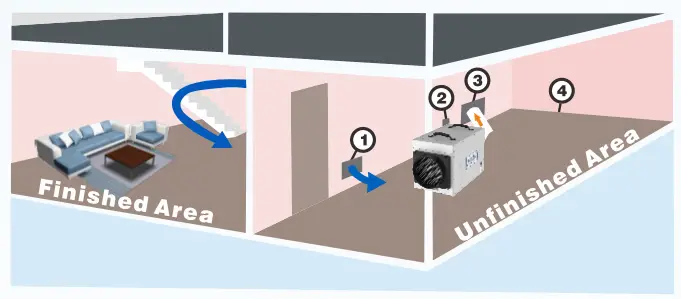

Installation of a Sentinel HDi120 with a Supply Kit only
- Passive Return Vent
- Remote Control( mounts on opposite Wall in Finished Area,Energize the senser on Remote Control)
- Supply Grill
- Supply/Discharge Duct Work
• Place the Sentinel HDi120 in unfinished area of the basement near a drain access (condensate will be drained out via Pump).
• Connecting the Duct Tube on Collar, supply the dry air from the dehumidifier to a large and open area in finished section of the basement.
• Place a return grill/ passive vent on the other side of the wall that separates the finished and unfinished areas. This will allow circular air flow go through the basement.
• The passive grill will prevent the unfinished room from being placed under a negative pressure and also allow the dehumidifier to focus on keeping the unfinished area dry as well.
• The Remote Control can be used For normal Retome function,to insulate the Noise of Unit,and Also can be used at the Senser Switch,you can choose the humidity senser between Unit and remote Control.
• Be sure to keep all doors open in the basement to help with proper a,r circulation ( Bedrooms,Bathrooms,etc.)
| Applications | Sentinel HDi120 |
| Hotel/Motel | |
| Offices | |
| Laboratories | |
| Museums | |
| Storage Areas | |
| Restaurants | |

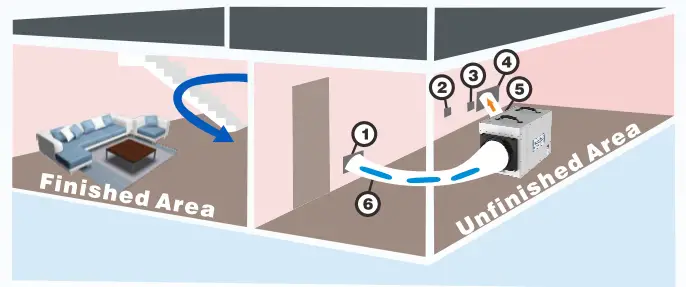

Installation of a Sentinel HDi120 with a Supply and Return Kit
- Return Grill
- Remote Control( mounts on opposite Wall in Finished Area,Energize the senser on Remote Control)
- Optional Wall Mount Dehumidistat(mounts on opposite wall in finished area)
- Supply Grill
- Supply/Discharge Duct Work
- Return/lntake Duct Work
• Place the Sentinel HDi120 in unfinished area of the basement near a drain access (condensate will be drained out via Pump).
• Connecting the Duct Tube on Collar, supply the dry air from the dehumidifier to a large and open area in finished section of the basement.
• Place a return grill/ passive vent on the other side of the wall that separates the finished and unfinished areas. This will allow circular air flow go through the basement.
• The passive grill will prevent the unfinished room from being placed under a negative pressure and also allow the dehumidifier to focus on keeping the unfinished area dry as well.
• The Remote Control can be used For normal Retome function,to insulate the Noise of Unit,and Also can be used at the Senser Switch,you can choose the humidity senser between Unit and remote Control.
• Be sure to keep all doors open in the basement to help with proper air circulation( Bedrooms,Bathrooms,etc.)
PROVEN PERFORMANCE
The Sentinel H Di 120 has cETL Approved.
Designed for the modern Home-For your full satisfaction, We designed this professional dehumidifier with the modern consumer in mind, All special features make it the best for whole house and crawl space or basement applications, Remote control system, Strong as the tank, Microchannel condenser technology, Merv-1, and Merv-10 filter, Low-Temperature operation, Built-in pump.
As the unique design compared with others, we have the humidity sensor in bypass air design which makes the short-cycling go away and have quick access to the pump and mainboard. Customers can do it by themselves and service become easy. Preassembly makes the installation process simple, thereby it reduces the overall installation and project cost.
Memory starting and turn on/off automatically: This crawl space dehumidifier Automatically turns on and off depending on the humidity levels, comes back after a power failure, no need to turn on manually. ductable and remote controlled, Both Inlet and outlet can be ducted.
SET IT AND FORGET IT control automatically starts dehumidification when humidity above target is sensed.
