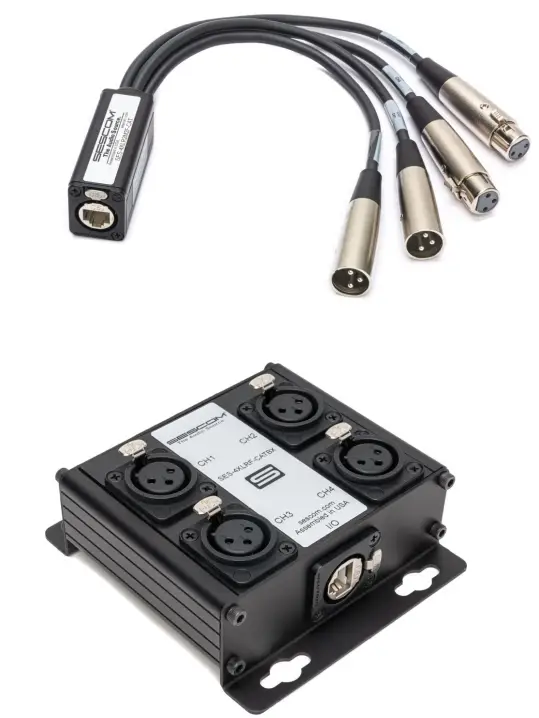

SES4XLR2F2MC 4 Channel Passive Balanced Audio Extender
User Guide
DESIGNED BY AUDIO ENGINEERS FOR AUDIO ENGINEERS
SES4XLR2F2MC 4 Channel Passive Balanced Audio Extender
USER GUIDE
4 Channel Passive Balanced Audio Extender
Specifications
- 12- Inch Fanouts

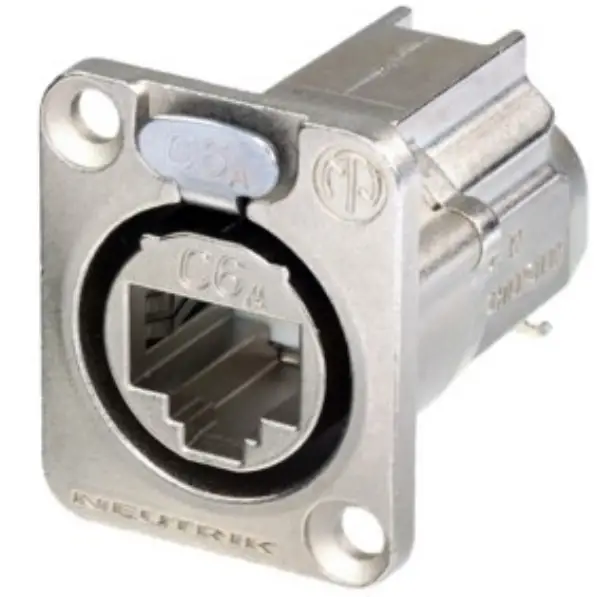

- Neutrik 3-Pin XLR & Locking RJ45 etherCON Connectors
- Digital Audio 48k 24bit AES/EBU Transmission Distance: 1000 feet
- Analog Balance Line Level Audio Transmission Distance: 2000 feet
- Mic Level Audio Transmission Distance: 2000 Feet
- AES72 Type 2O
Features:
- Send 4 Channels of Analog or Digital Audio, AES/EBU or DMX over Cat 5/6/7 Cable
- 3 Channel Versions Support Phantom Power – 48V
- 4 Channel Versions Support Phantom Power -48V –
REQUIRES Shielded Category cable - Replaces Bulky Multichannel Audio Snakes Allowing for Quick Setup
- Passive Design Requires No Power
- Compact & Lightweight – Easy to Store
- Rugged Road Ready Black Aluminum Enclosured
| Sescom Passive Balanced Audio Extenders Over CAT5/6/7 | Wired to the EINTIA 568B standard | ||
| 4-channel | |||
| ether CON NE8FDX-Y6 pin | Conductor color code | Channel | XLR Pin |
| 1 | white/orange stripe | CH2+ | PIN2 |
| 2 | orange solid | CH2- | PIN3 |
| 3 | white/green stripe | CH3+ | PIN2 |
| 4 | blue solid | CH1- | PIN3 |
| 5 | white/blue stripe | CH1+ | PIN2 |
| 6 | green solid | CH3- | PIN3 |
| 7 | white/brown stripe | CH4+ | PIN2 |
| 8 | brown solid | CH4- | PIN3 |
| ALL XLR PINS 1 TIE TO SHELL | |||
| 3-channel | |||
| etherCON NE8FDX-Y6 pin | Conductor color code | Channel | XLR Pin |
| 1 | white/orange stripe | CH2+ | PIN2 |
| 2 | orange solid | CH2- | PIN3 |
| 3 | white/green stripe | CH3+ | PIN2 |
| 4 | blue solid | CH1- | PIN3 |
| 5 | white/blue stripe | CH1+ | PIN2 |
| 6 | green solid | CH3- | PIN3 |
| 7 | white/brown stripe | ALL XLR PINS 1 | |
| 8 | brown solid | ALL XLR PINS 1 | |
