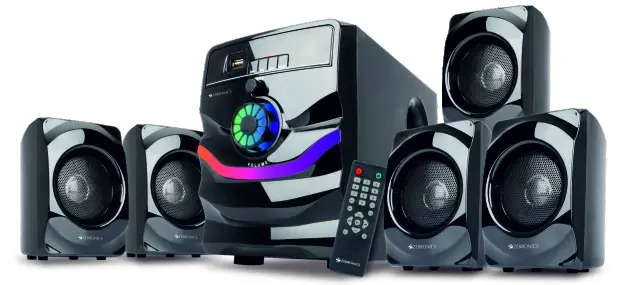

5.1 Speaker
ZEB RAINBOW 100
User Manual
www.zebronics.com
Thank you for purchasing Zebronics Speaker. Please read this user manual carefully before Operation & save it for future reference.
Note:
- Avoid the use of this speaker at a high-temperature and high-humidity environment.
- Avoid self-disassembly of speaker, or it will resultin the failure of warranty.
Features
Wireless BT/USB/FM/AUX
LED Display
10.16cm Subwoofer
Remote control
Volume & Bass adjustment
RGB Lights
Stylish design
Wall mountable
Specifications
| Output power (RMS) | |
| Subwoofer | : 30W |
| Satellite | : 10OWx5 |
| Total | : 80W |
| Driver size | |
| Subwoofer | : 10.16cm |
| Satellite | : 7.62cmx5 |
| Impedance | |
| Subwoofer | : 4Ω |
| Satellite | : 6Ω |
| Frequency response | : 40Hz – 20kHz |
| S/N Ratio | : ≥80dB |
| Separation | : ≤45dB |
| File format | |
| support (USB) | : MP3 |
| Line input | : 2ch RCA |
| Max. supported | |
| memory size (USB) | : 32GB |
| FM frequency range | : 87.5 MHz-108 MHz |
| BT name | : ZEB-RAINBOW 100 |
| BT version | : 5.0 |
| Product dimension (WxDxH) | |
| Subwoofer | : 150 x 285 x 210 mm |
| Satellite | : 100 x 85 x 142 mm |
| Net. weight | |
| Subwoofer | : 2.5Kg |
| Satellite | : >251gx5 |
| Total | : 3.75Kg |

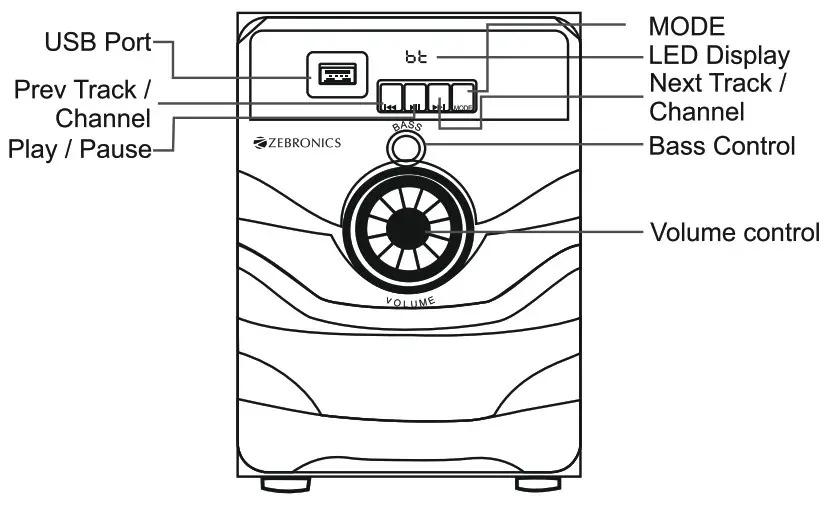

Control Descriptions

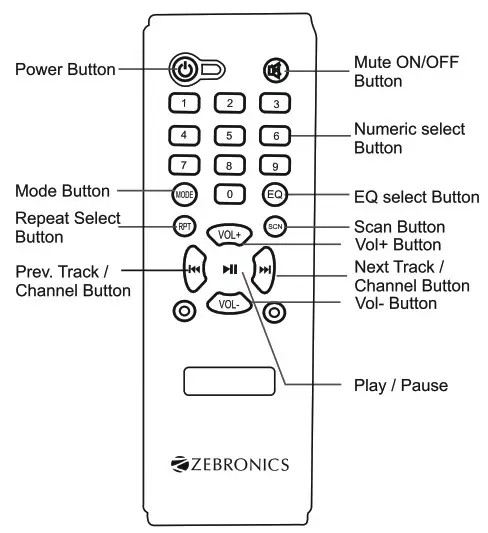

Remote Control
General instruction
Bluetooth connectivity
Switch the Speaker to BT mode,Scan for nearby BT devices in your mobile. Tap on “ZEB-RAINBOW” to connect.
USB mode
Insert the USB pen drive to the speaker. The speaker will detect the USB & audio from it will be played automatically.
FM Radio
Switch the speaker to FM mode. In FM Mode, Short press the Play / Pause key to scan the available FM channels. Once the scanning is done, the speaker will start playing the first scanned channel. The next and Prev. buttons can be used to change the FM channels.
AUX-IN
The speaker can be connected to an audio device using an RCA to 3.5mm cable. Connect the one end of the cable to the speaker & connect the other end of the cable to an audio source. The songs from the audio source can be heard through the speaker.
