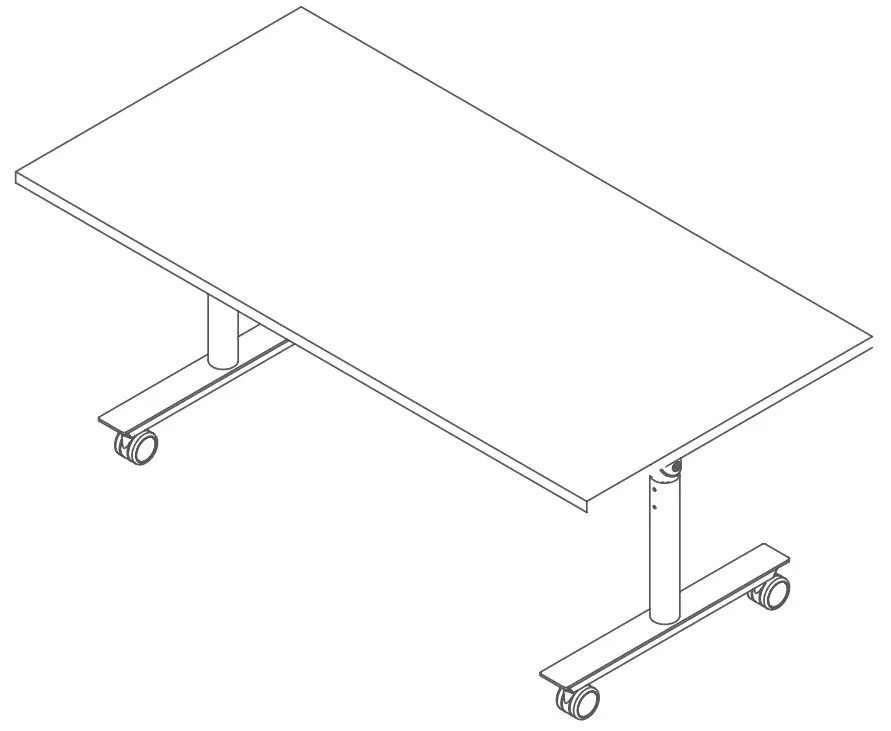

EPIC OFFICE furniture MODZA04 Ascend Tech Adjust Flip Table

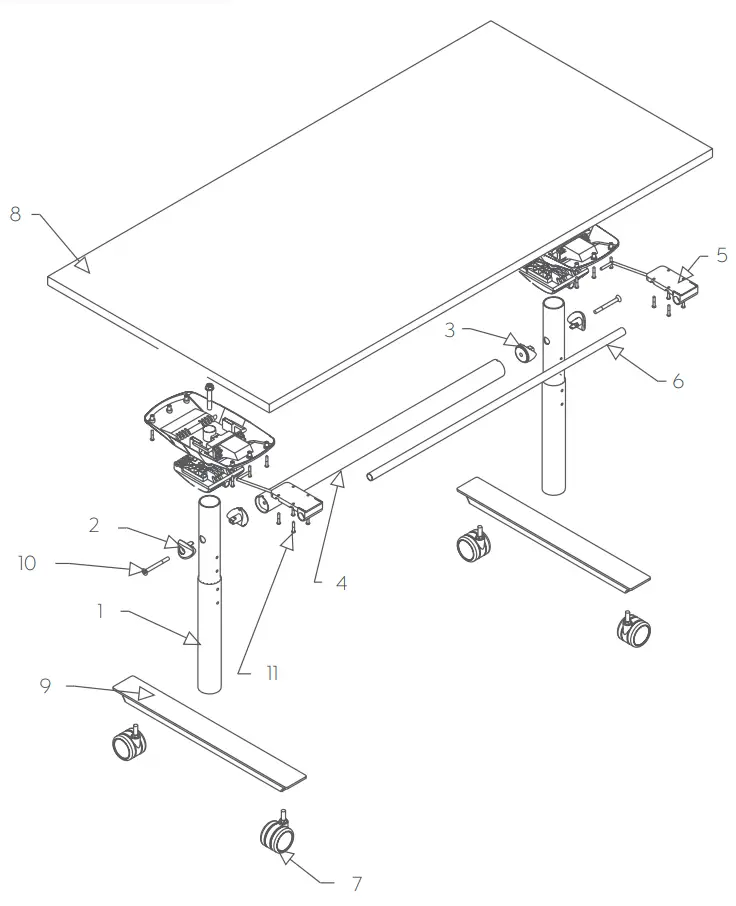

Components List
Recommended 2-person step
* To prevent possible scratches or damage, assemble the table upside down on a soft surface such as blanket, carpet or packaging.
* Attach Leg to the Top assembly by using Bolts, spring washer, flat washer. Tighten using the Allen Wrench provided.
| COMPONENTS: | QTY: | Part No. | |
| 1. | Modulus Flip Table Frame Leg | 2 | MODZA04 |
| 2 | Outside Connector | 2 | MODZA03 |
| 3 | Inside Connector | 2 | FWFLRAIL |
| 4 | Drop Rail Cross Tube | 1 | MODZA14 |
| 5 | Side Handle | 2 | |
| 6 | Pull bar | 1 | |
| 7 | Agile Flip Castor | 4 | |
| 8 | Worktop | 1 | |
| 9 | Agile Flip Foot | 2 | |
SCREWS:
| 1 | M8 x 80 Bolt | 2 |
| 2 | M5 x 30 Wood Screw | 20 |

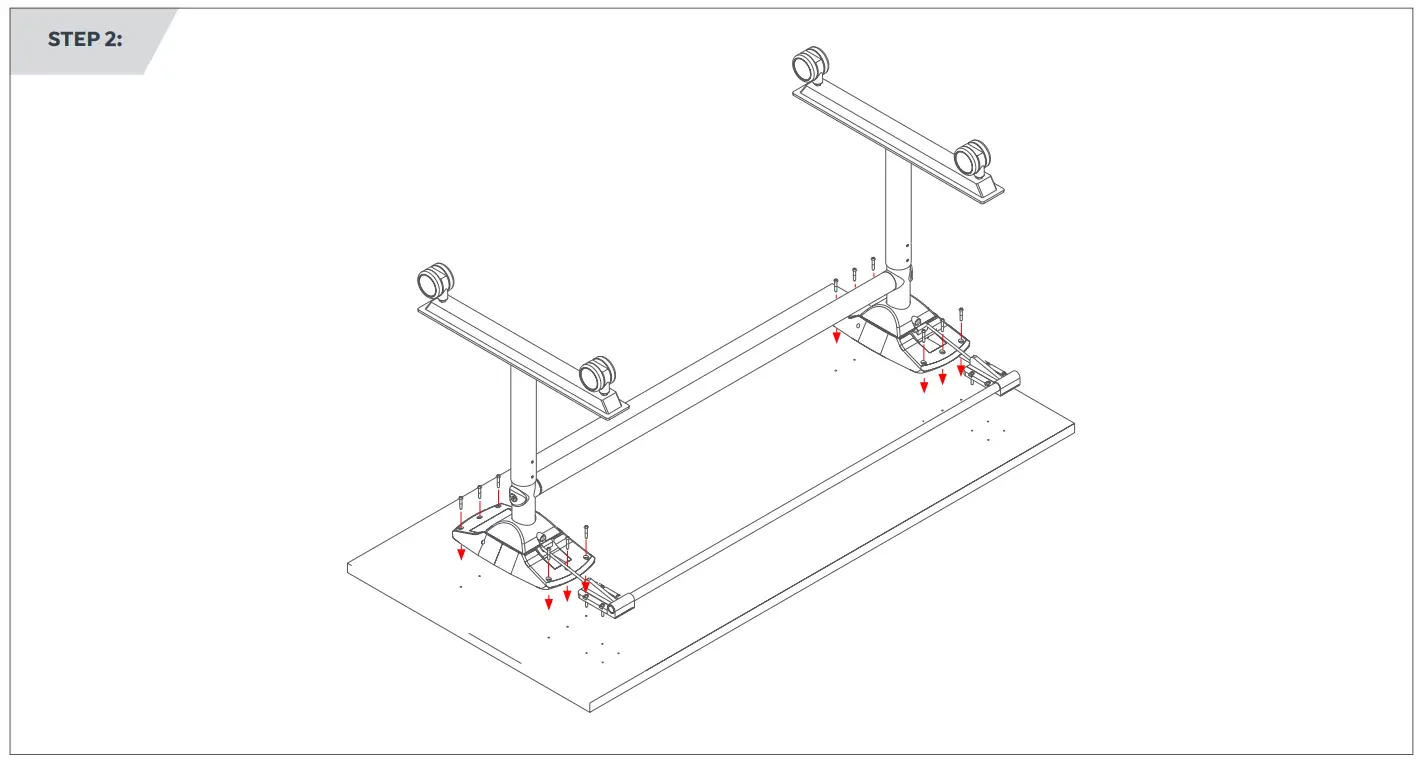

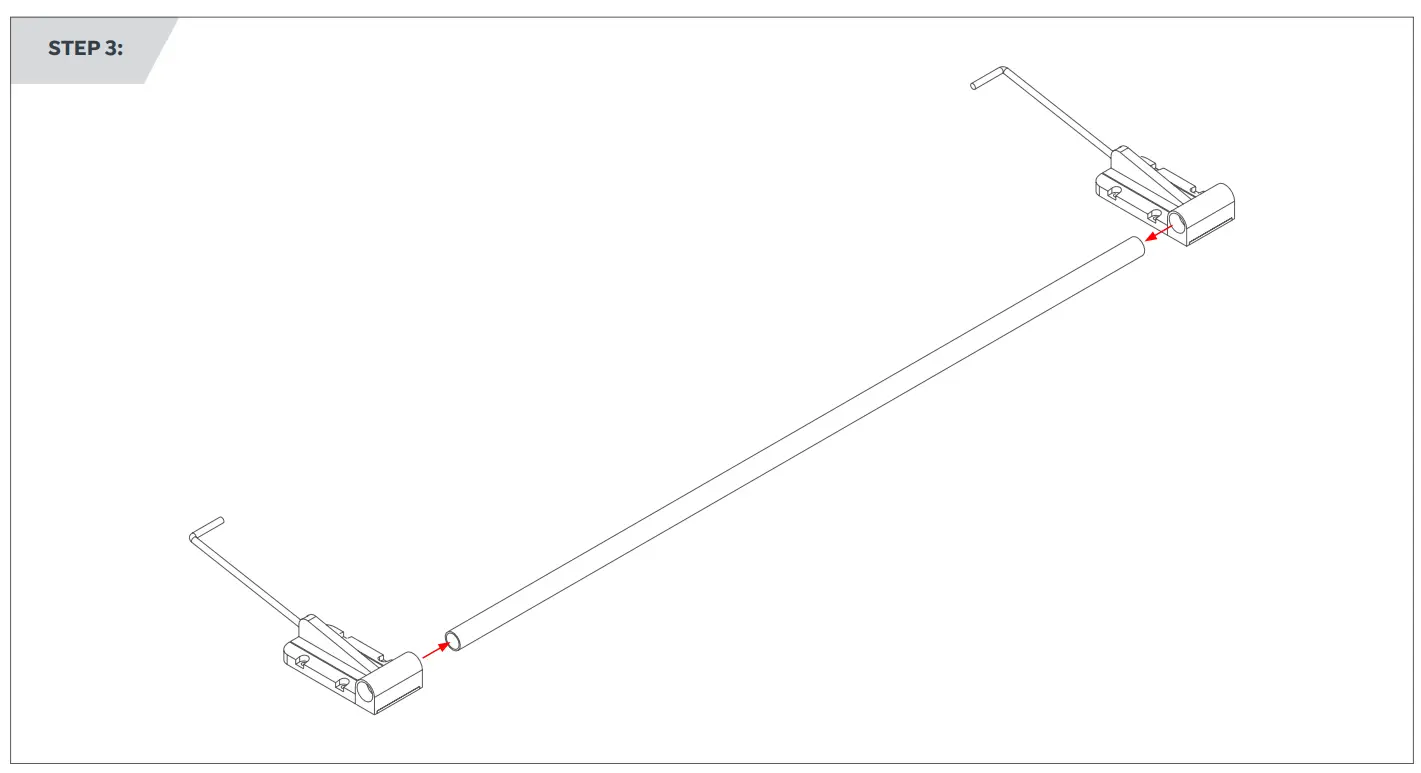

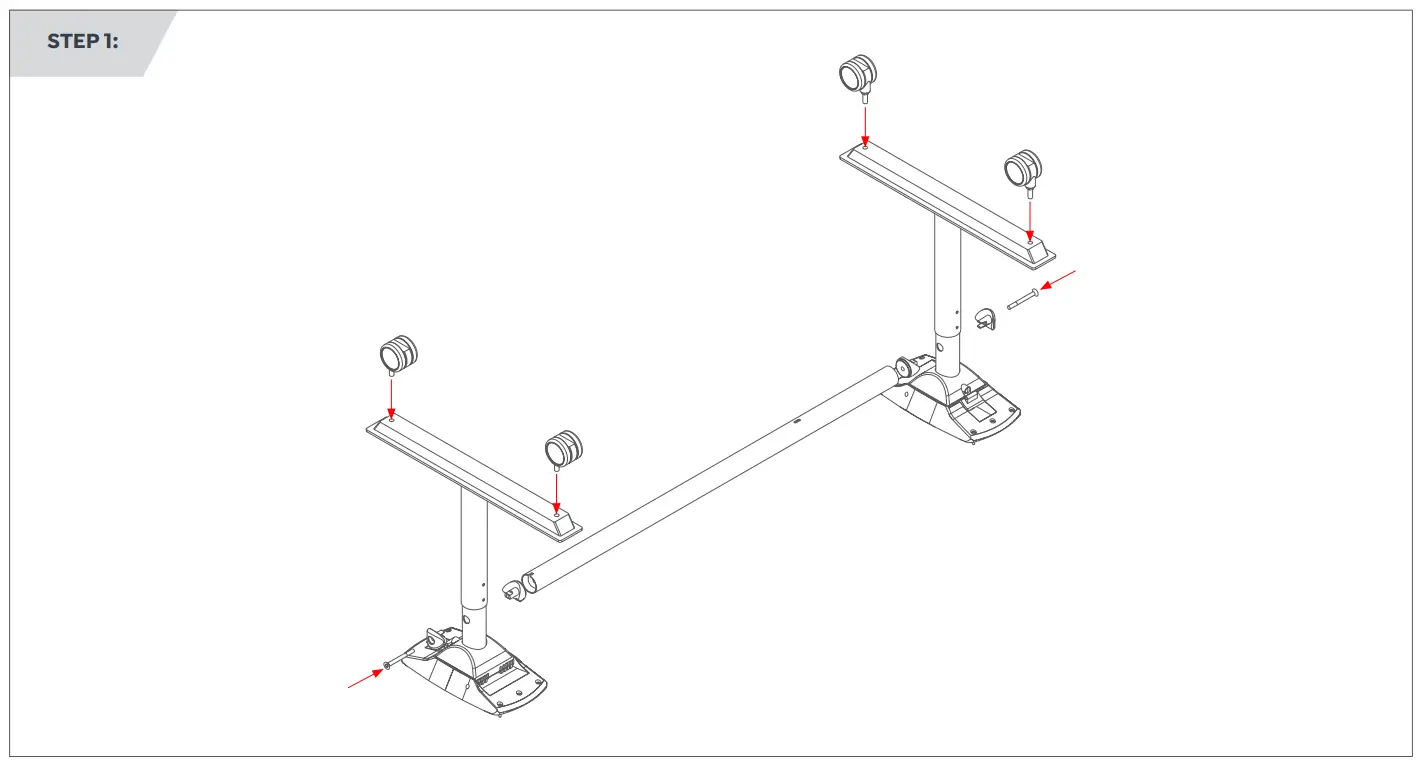

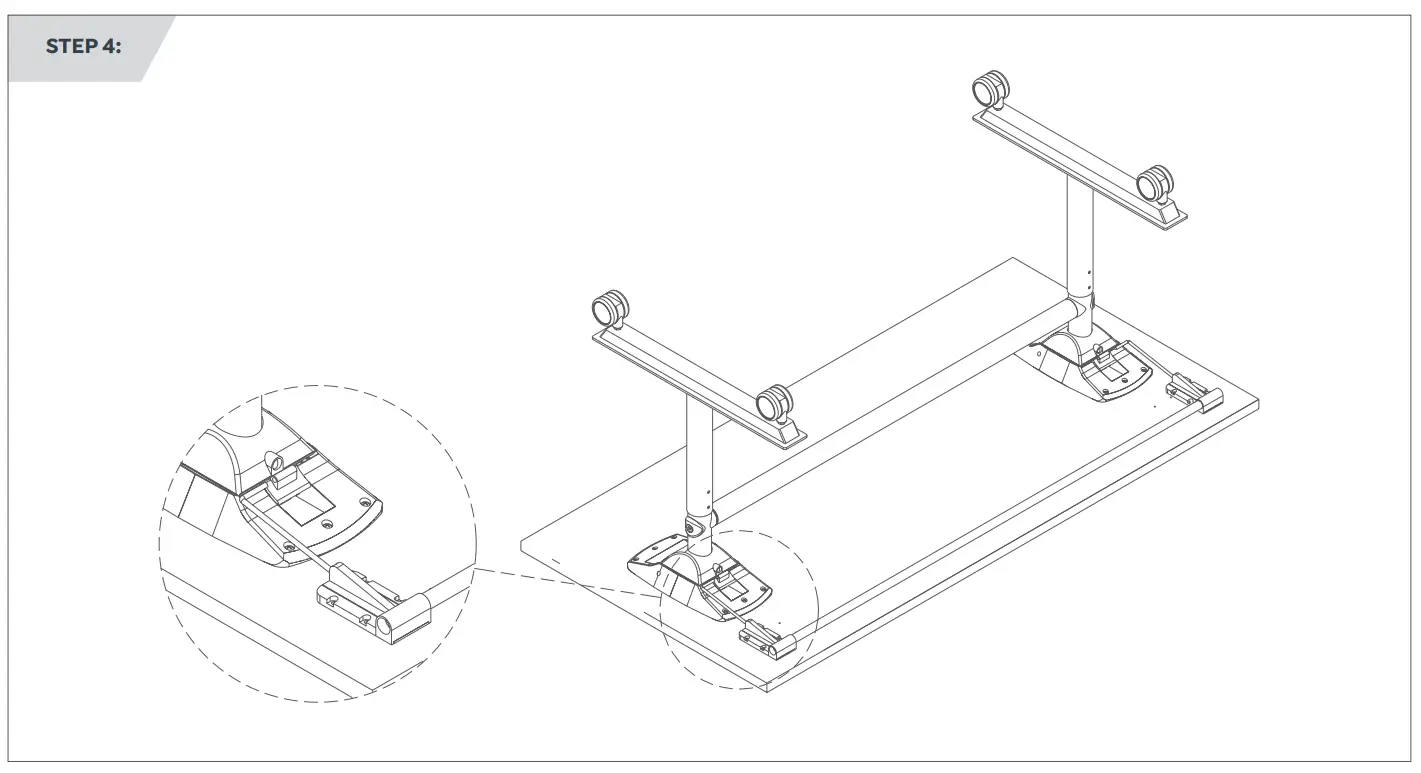

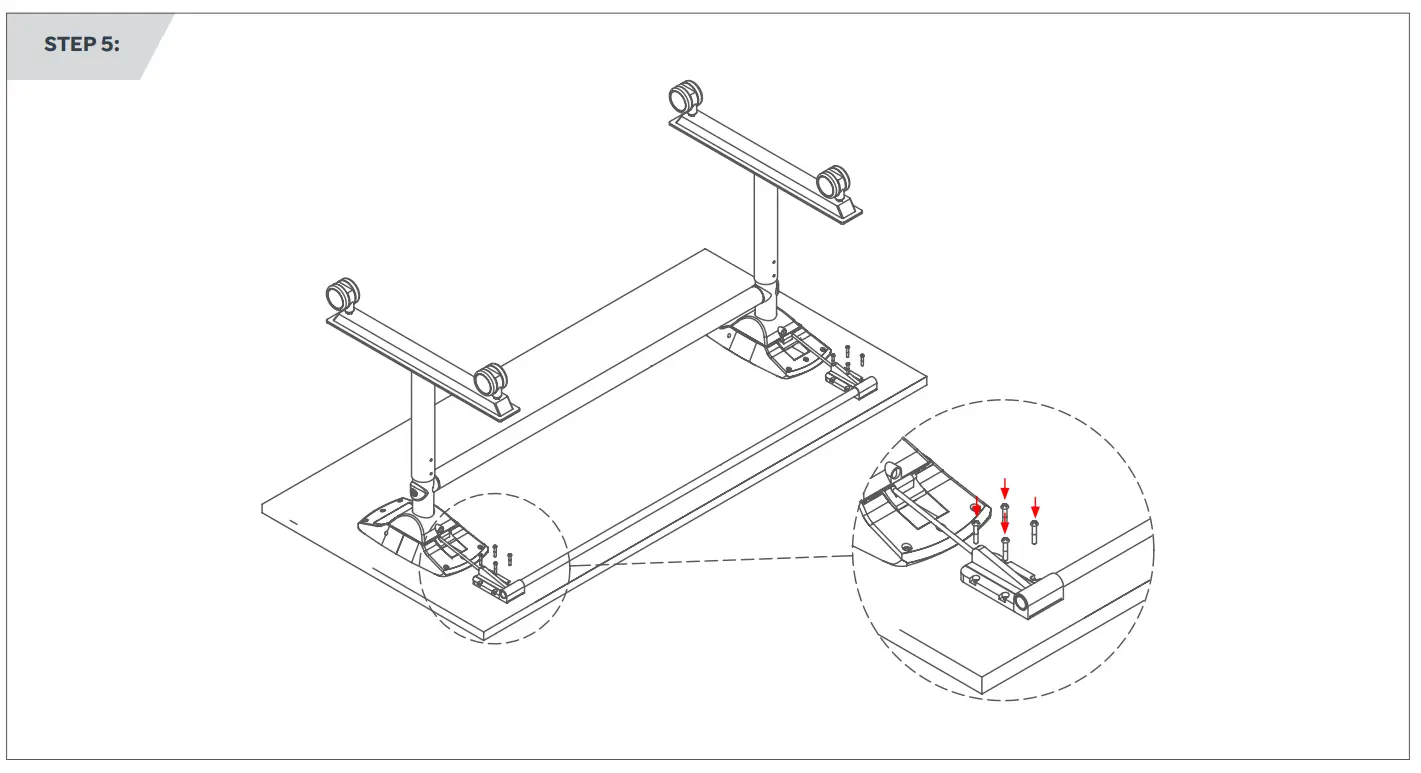

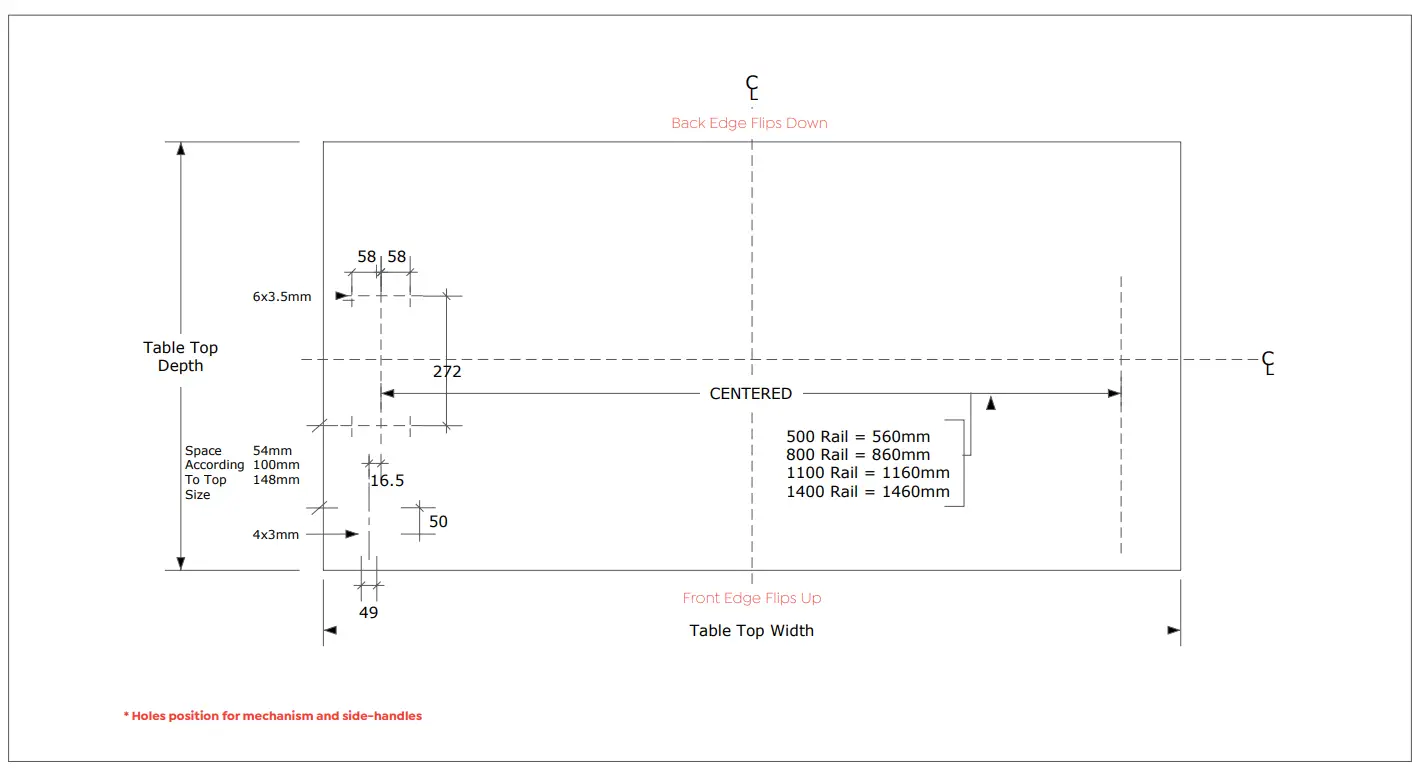

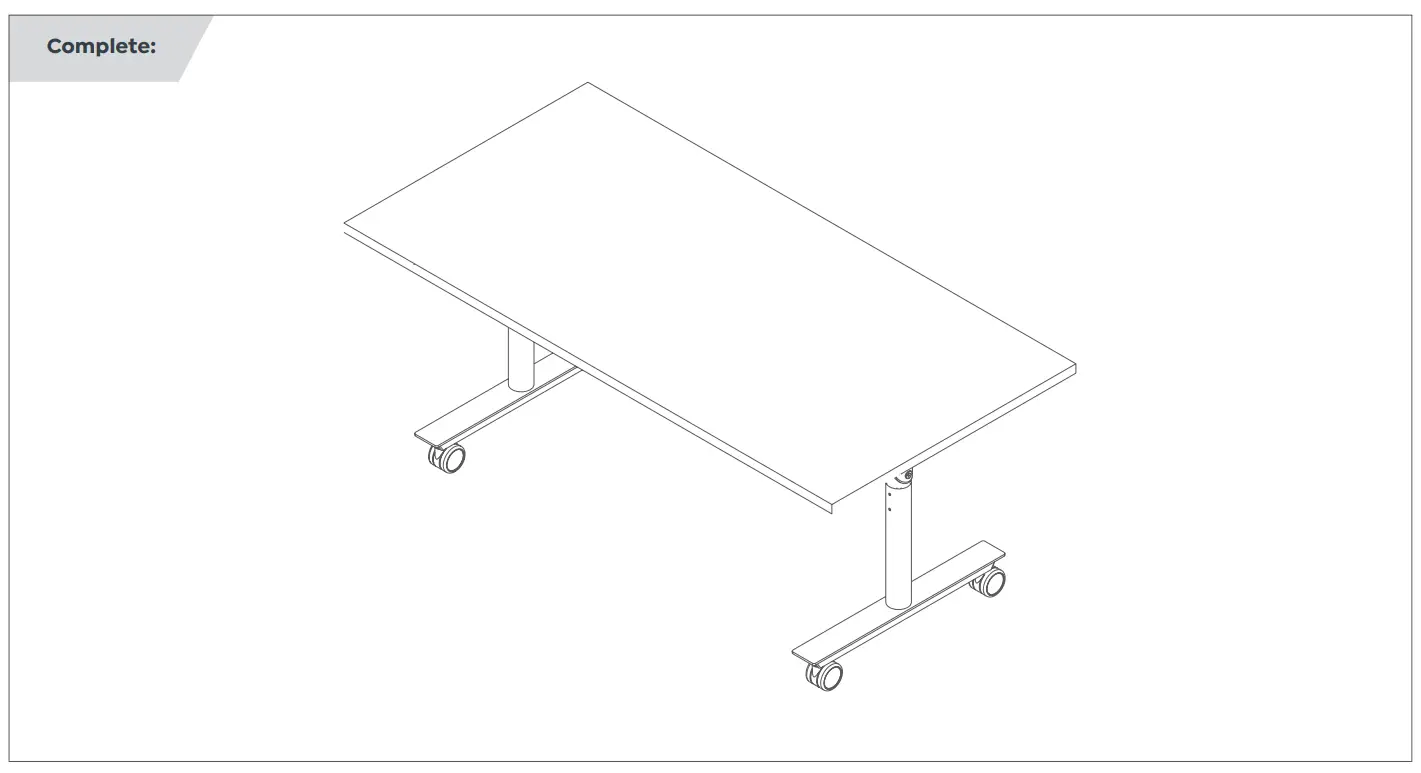

Assembly Instructions
