Thanks for purchasing the HOT SUMMER” – a fully handmade and very versatile overdrive pedal with two clipping options of COMPRESSION and NO COMPRES-SION by COMP/COMP CUT switch, plus the ingeniously configured TONE control, HOT SUMMER provides a fast tuning and wide range of overdrive tones that enhance the natural sound of your guitar and amp set to offer you more options of tones when playing and recording.
DESIGNED BY AMUMU IN CHINA

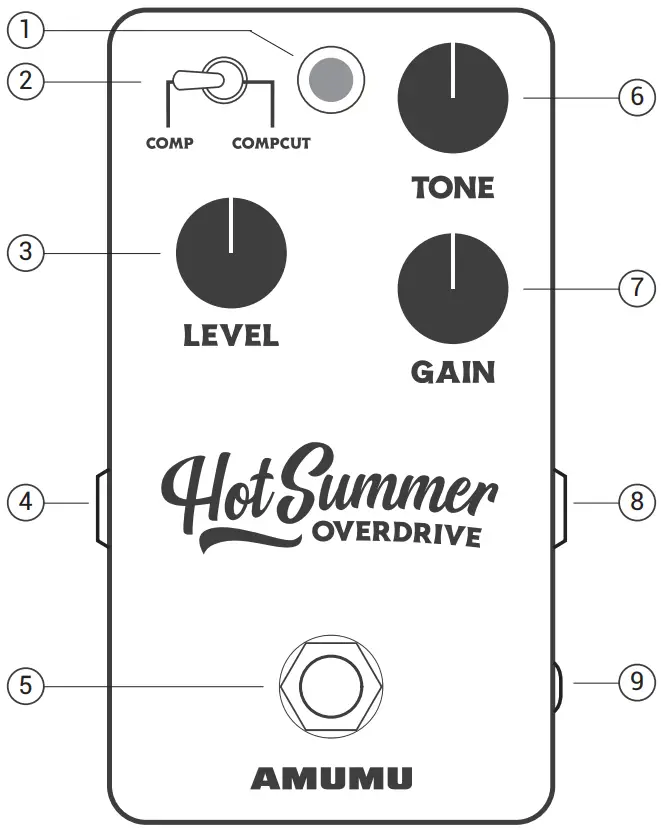

- LED Indicator
- Compression Switch
- Level
- Output
- Foot Switch(True-Bypass)
- Tone
- Gain
- Input(Power On)
- 9V DC Input
CONTROLS
GAIN: This knob adjusts overdrive intensity
LEVEL: This knob adjusts the overall volume of the effect
TUNE: Turn this knob clockwise for a more treble response
COMP/COMCUT: COMP for compressed overdrive tone, COMP CUT for non-compressed overdrive tone
FOOTSWITCH: This toggles effect on ( (red LED on) or bypass ( red LED off)
CONNECTIONS
INPUT: This is a high-impedance input suitable for electric guitar, bass, and acoustic guitars with pickup systems, keyboards, and other instruments.
OUTPUT: This is a low-impedance output jack that connects to the amp or to the next effect pedal in the signal chain.
SPECIFICATIONS
| Input impedance | 510 kid |
| output impedance | 10 kO |
| Current consumption during use | 10 mA |
| Standard working voltage | DC 9V |
| Max working voltage | DC 18V |
| Foot Switch Type | Hardwired True Bypass |
| Foot Switch Operating Life Cycle | 30,000 cycles |
| Foot Switch Manufacturer | Alpha |
| Dimensions | 4.37″ x 2.36″ x 1 93″ |
| Weight | 0.5Ibs (225g) |
Product specifications subject to change without notice

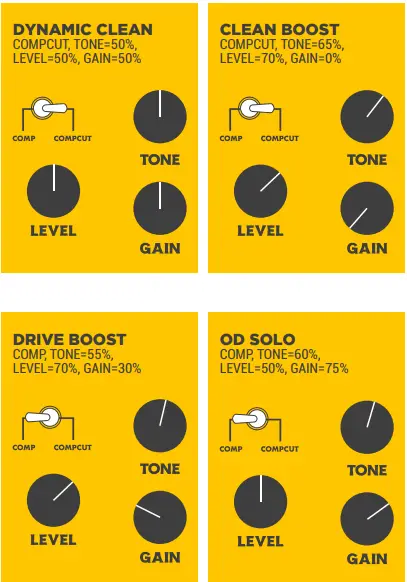

SAMPLE SETTINGS
PRECAUTIONS / WARNING
- To prevent malfunction and equipment failure, always turn down the VOLUME and turn off the power of your amplifier and other devices before making any connections.
- Once the connections have been completed, turn on the power to your various devices in the following order, otherwise, you risk causing malfunction and/or damage to speakers and other devices.
- When powering up: Turn on the power of the amplifier last.
- When powering down: Turn off the power of the amplifier first
- To prevent damage, fire, or shock hazard, do not expose the unit or its AC power to rain or moisture.
- Do not alter the AC plug of the connected power adapter.
- Do not drip or splash liquids on the unit.
- No user-serviceable parts inside, refer servicing to qualified personnel only.
- The unit must only be connected to a safety agency certified, regulated, power source (adapter), approved for use, and compliant with applicable local and national regulatory safety requirements.
- Unplug the AC power adapter before cleaning the unit exterior.
- Use only a damp cloth for cleaning and then wait until the unit is completely dry before reconnecting it to power.
- Amplifiers and loudspeaker systems, and ear/headphones (if equipped) are capable of producing very high sound pressure levels which may cause temporary or permanent hearing damage. Use care when setting and adjusting volume levels during use.
EAGLEVOX CORPORATION LIMITED
LEVEL 54, HOPEWELL CENTRE, 183 QUEEN’S ROAD
EAST, WAN CHAI, HONG KONG
WWW.AMUMU.ROCKS
[email protected]
Please kindly let us know if you have any questions, advice, or information. AMUMU is always hearing from you.
