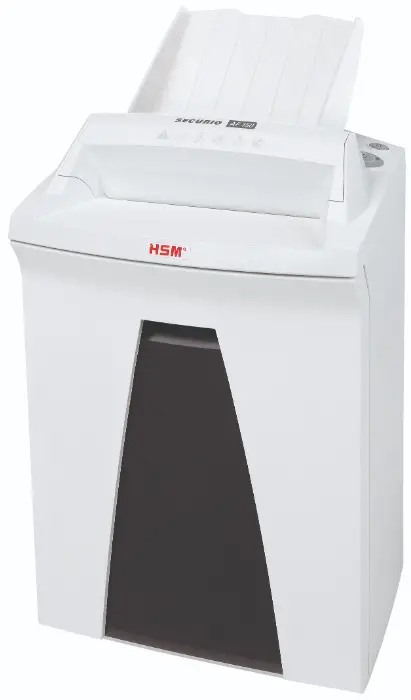

HSM Securio AF150 Document Shredder
Overview of Different HSM Securio Series Documents Shredders

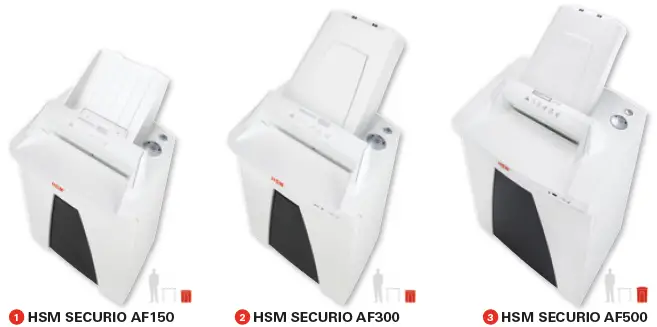

HSM SECURIO AF-series document shredders
Innovative, convenient, and time-saving. The shredders of the auto-feed series with Nano grip Technology combine functionality and operating convenience. For reliable and easy destruction of document stacks and single sheets in the workplace.
AF-series Special product features:
- Useful dual function: manual feed of paper during auto-feed stack processing.
- Light barrier for automatic start/stop.
- A powerful motor allows for continuous operation.
- Multifunction element for intuitive operation.
- Mobile on castors.
- Removable waste container for effortless emptying, HSM SECURIO AF150, and AF300.
- Convenient removal and emptying of the reusable collecting bag, HSM SECURIO AF500.
- Automatic return eliminates paper jams.
Lock-and-Go function protects against unauthorized access, HSM SECURIO AF300 and AF500.
A hinged magazine for paper stacks, HSM SECURIO AF300 and AF500.
AF-series Specifications
| Model | 1 | HSM SECURIO AF150 | 2 HSM SECURIO AF300 | 3 HSM SECURIO AF500 | 4 HSM SECURIO C14 | ||||
| Scope of application | Office (up to 5 persons) | Office (up to 5 persons) | Office (up to 5 persons) | Home / small office (1-3 persons) | |||||
| Cutting type | particle | particle | particle | strip | particle | ||||
| Cutting size in mm / Product number | 4.5 x 30 / 2083111
1.9 x 15 / 2082111 0.78 x 11 / 2085111 | 4.5 x 30 / 2093111
1.9 x 15 / 2092111 0.78 x 11 / 2095111 | 4.5 x 30 / 2103111
1.9 x 15 / 2102111 0.78 x 11 / 2105111 | 3.9 / 2250111 | 4 x 25 / 2253111 | ||||

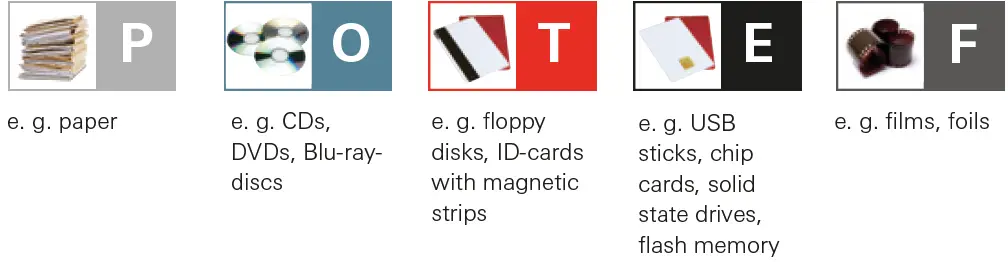

| Security level DIN 66399 | P-4 / O-3 / T-4 / E-3 / F-1 P-5 / T-5 / E-4 / F-2
P-6 / F-3 | P-4 / O-3 / T-4 / E-3 / F-1 P-5 / T-5 / E-4 / F-2
P-6 / F-3 | P-4 / O-3 / T-4 / E-3 / F-1 P-5 / T-5 / E-4 / F-2
P-6 / F-3 | P-2 / T-2 / E-2 | P-4 / T-4 / E-3 / F-1 | ||||
| Cutting capacity 80 g/m² in sheets DIN A4 | 8-10
6-7 5 | 12-14
8-10 6 | 14-16
9-11 6 | 10-12 | 5-6 | ||||
| Noise level | 56 dB | 56 dB | 56 dB | 55 dB | |||||
| Quantity of auto-feed unit | max. 150 sheets | max. 300 sheets | max. 500 sheets | – | |||||
| Intake width in mm | 240 | 240 | 240 | 225 | |||||
| Motor in Watt | 500 | 500 | 500 | 300 | |||||
| Size (W x D x H) in mm | 395 x 381 x 740 | 395 x 435 x 837 | 497 x 491 x 1002 | 366 x 258 x 405 | |||||
| Weight in kg | 18 / 18 / 19 | 19 | 29 / 29 / 30 | 4 | 5 | ||||
| Collection volume in l | 34 | 34 | 82 | 20 | |||||
| Shredder material: paper and |
|
|
|
|
|
|
|
| |
AF-series Voltage/frequency: 230 V / 50 Hz
All statements are without guarantee. Subject to technical and design changes.
- CDs CANNOT be destroyed in the following cutting sizes: HSM SECURIO AF150 / HSM SECURIO AF300 / HSM SECURIO AF500: 1.9 x 15 mm, 0.78 x 11 mm.
- Credit cards CANNOT be destroyed in the following cutting sizes: HSM SECURIO AF150 / HSM SECURIO AF300 / HSM SECURIO AF500: 0.78 x 11mm.
HSM SECURIO P-series document shredders – NEW!
Visionary technology for the office of tomorrow. In particular, the unique IntelligentDrive feature incorporates a new control panel and motor technology that gives up to 40 % increased performance, intelligent jam correction, and lower operating noise levels. Highly suitable for the destruction of documents for large working groups of up to 15 people.
P-series Special product features
- Intelligent paper jam correction. The machine recognizes very quickly if too much paper has been fed in and reacts autonomously.
- The stand-by and automatic switch-off features ensure a high degree of energy saving.
- A powerful motor allows for continuous operation.
- The device automatically switches off if pressure is applied to the safety element.
- Practical automatic start/stop.
- Mobile on castors.
- Convenient removal and emptying of the reusable collecting bag.
Intuitive operation and multi-language menu selection via the 4.3“ touch display.
With an integrated automatic oiler for particle cut models, for a consistently high cutting performance.

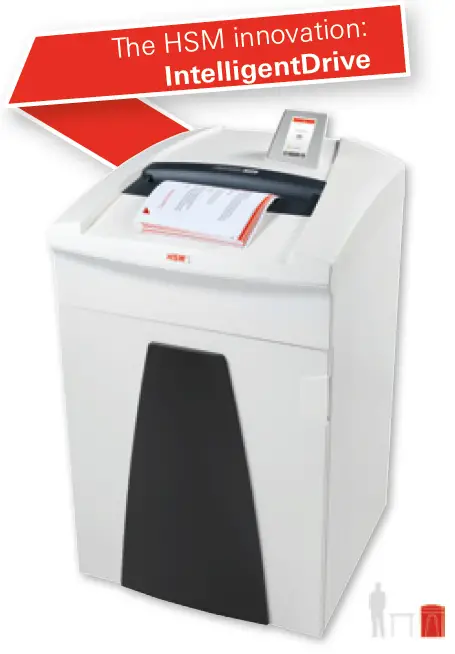

The innovative drive and operating concept IntelligentDrive offers the following operating modes:
- Silent for particularly quiet operations.
- Standard with an optimum throughput rate and low noise level.
- Performance for maximum cutting and throughput performance
P-series Specifications
| Model | 13 HSM SECURIO P36i | 14 HSM SECURIO P40i | 15 HSM SECURIO P44i | ||||||||
| Scope of application | Department (up to 15 persons) | Department (up to 15 persons) | Department (up to 15 persons) | ||||||||
| Cutting type | strip | particle | strip | particle | strip | particle | |||||
| Cutting size in mm / | 5.8 / 1851121 | 4.5 x 30 / 1853121 | 5.8 / 1881121 | 4.5 x 30 / 1883121 | 5.8 / 1871121 | 3.9 x 40 / 1873121 | |||||
| Product number | 3.9 / 1850121 | 1.9 x 15 / 1852121 | 3.9 / 1880121 | 1.9 x 15 / 1882121 | 3.9 / 1870121 | 1.9 x 15 / 1872121 | |||||
| 0.78 x 11 / 1855121 | 0.78 x 11 / 1885121 | 0.78 x 11 / 1875121 | |||||||||
| 1 x 5 / 1854121 | 1 x 5 / 1884121 | 1 x 5 / 1874121 | |||||||||
| Security level DIN 66399 | P-2 / O-2 / T-2 / E-2 P-2 / O-2 / T-2 / E-2 | P-4 / O-3 / T-4 / E-3 / F-1 P-5 / T-5 / E-4 / F-2
P-6 / F-3 P-7 / F-3 | P-2 / O-2 / T-2 / E-2 P-2 / O-2 / T-2 / E-2 | P-4 / O-3 / T-4 / E-3 / F-1 P-5 / O-4 / T-5 / E-4 / F-2 P-6 / F-3
P-7 / F-3 | P-2 / O-2 / T-2 / E-2 P-2 / O-2 / T-2 / E-2 | P-4 / O-3 / T-4 / E-3 / F-1 P-5 / O-4 / T-5 / E-4 / F-2 P-6 / F-3
P-7 / F-3 | |||||
| Cutting capacity 80 g/m² in sheets DIN A4 | 43-45
34-36 | 27-29
16-18 | 56-58
44-46 | 34-37
19-21 | 77-79
61-63 | 43-45
25-27 | |||||
| 11-13 | 13-15 | 17-19 | |||||||||
| 8 | 9 | 11 | |||||||||
| Noise level* | 55 dB | 55 dB | 55 dB | ||||||||
| Intake width in mm | 330 | 330 | 400 | ||||||||
| Motor in Watt | 1000 | 1300 | 1900 | ||||||||
| Size (W x D x H) in mm | 580 x 550 x 1020 | 580 x 550 x 1020 | 700 x 592 x 1105 | ||||||||
| Weight in kg | 64 | 68 | 67 | 72 | 105 | ||||||
| Collection volume in l | 145 | 145 | 205 | ||||||||
| Shredder material: |  | 4) 2) 1) |  | 4) | 2) | | 4) | 2) | |||
| paper and |  |  |
3) |  |
| ||||||
Options Product no. + letter
- D Metal detection
- C Separate CD
- cutting unit in
- cutting size
- 4 x 7 mm
- M Separate OMDD
- cutting unit in
- cutting size
- N Separate OMDD
- cutting unit +
- metal detection
P-series Voltage/frequency: 230 V / 50 Hz, * in standard operation mode
All statements are without guarantee. Subject to technical and design changes.
- CDs CANNOT be destroyed in the following cutting sizes: HSM SECURIO P36i: 1.9 x 15 mm, 0.78 x 11 mm, and 1 x 5 mm; HSM SECURIO P40i / HSM SECURIO P44i:
0.78 x 11 mm and 1 x 5 mm. - Credit cards CANNOT be destroyed in the following cutting sizes: HSM SECURIO P36i / HSM SECURIO P40i / HSM SECURIO P44i: 0,78 x 11 mm and 1 x 5 mm. 3) Disks CANNOT be destroyed in the following cutting sizes:
HSM SECURIO P40i: 1,9 x 15 mm, 0,78 x 11 mm, and 1 x 5 mm; HSM SECURIO P44i: 0,78 x 11 mm and 1 x 5 mm. - Paper clips CANNOT be destroyed in the following cutting sizes: generally at 1 x5 mm.
- USB sticks CANNOT be destroyed in the following cutting sizes: HSM SECURIO P44i: 0,78 x 11 mm and 1 x 5 mm.
HSM SECURIO document shredders
With the HSM SECURIO document shredders, you can expect the highest level of quality here. Regardless of whether you have chosen the AF-series with automatic paper feed, the C-series for the small office, the B-series for the workplace, or the P-series with IntelligentDrive for professional use: you are on the safe side with shredders from HSM!

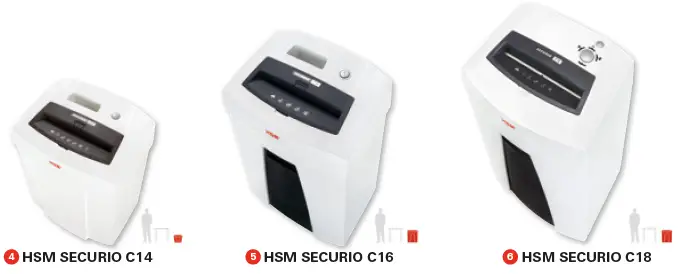

HSM SECURIO C-series document shredders
Small, attractive, and energy-saving. The C-series shredders are appealing due to their compact design and easy operation.
C-series Special product features:
- Quiet operation minimizes noise development in the workplace.
- Practical automatic start/stop.
- Level indicator through inspection window except for HSM SECURIO C14.
- The high degree of user safety.
Easy and convenient emptying.
C-series Specifications
| Model | 5 HSM SECURIO C16 | 6 HSM SECURIO C18 | 7 HSM SECURIO B22 | 8 HSM SECURIO B24 | |||||
| Scope of application | Home / small office (1-3 persons) | Home / small office (1-3 persons) | Office (up to 5 persons) | Office (up to 5 persons) | |||||
| Cutting type | strip | particle | strip | particle | strip | particle | strip | particle | |
| Cutting size in mm / | 5.8 / 1901111 | 4 x 25 / 1902111 | 5.8 / 1911121 | 3.9 x 30 / 1913121 | 5.8 / 1831121 | 3.9 x 30 / 1833121 | 5.8 / 1781111 | 4.5 x 30 / 1783111 | |
| Product number | 3.9 / 1900111 | 3.9 / 1910121 | 1.9 x 15 / 1912121 | 3.9 / 1830121 | 1.9 x 15 / 1832121 | 3.9 / 1780111 | 1.9 x 15 / 1782111 | ||
| 0.78 x 11 / 1835121 | 0.78 x 11 / 1785111 | ||||||||
| 1 x 5 / 1784111 | |||||||||
| Security level DIN 66399 | P-2 / T-2 / E-2 P-2 / T-2 / E-2 | P-4 / T-4 / E-3 / F-1 | P-2 / O-2 / T-2 / E-2 P-2 / T-2 / E-2 | P-4 / T-4 / E-3 / F-1 P-5 / T-5 / E-4 / F-2 | P-2 / O-2 / T-2 / E-2 P-2 / T-2 / E-2 | P-4 / T-4 / E-3 / F-1 P-5 / T-5 / E-4 / F-2 P-6 / F-3 | P-2 / O-2 / T-2 / E-2 P-2 / O-2 / T-2 / E-2 | P-4 / O-3 / T-4 / E-3 / F-1 P-5 / T-5 / E-4 / F-2
P-6 / F-3 P-7 / F-3 | |
| Cutting capacity 80 g/m² in sheets DIN A4 | 15-17
12-14 | 6-7 | 17-19
13-15 | 8-9
6-7 | 17-19
13-15 | 9-11
7-9 | 25-27
19-21 | 14-16
9-11 | |
| 4-5 | 6 | ||||||||
| 4 | |||||||||
| Noise level | 55 dB | 55 dB | 57 dB | 56 dB | |||||
| Intake width in mm | 225 | 230 | 240 | 240 | |||||
| Motor in Watt | 300 | 360 | 440 | 500 | |||||
| Size (W x D x H) in mm | 366 x 258 x 455 | 365 x 280 x 542 | 375 x 310 x 600 | 395 x 317 x 605 | |||||
| Weight in kg | 4 | 5 | 10 | 11 | 11 | 13 / 12 / 12 | 15 | 17 / 16 / 21 / 21 | |
| Collection volume in l | 25 | 25 | 33 | 34 | |||||
| Shredder material: paper and |  | |  | | |
|
|  | |
C-series Voltage/frequency: 230 V / 50 Hz
All statements are without guarantee. Subject to technical and design changes.
- CDs CANNOT be destroyed in the following cutting sizes: HSM SECURIO C18 / HSM SECURIO B22: 3,9 mm, 3,9 x 30 mm, HSM SECURIO B24: 1.9 x 15 mm, 0.78 x 11 mm, 1 x 5 mm.
- Credit cards CANNOT be destroyed in the following cutting sizes: HSM SECURIO B22: 0.78 x 11 mm, HSM SECURIO B24: 0.78 x 11, 1 x 5 mm.
- Paper clips CANNOT be destroyed in the following cutting sizes: generally at 1 x 5 mm.

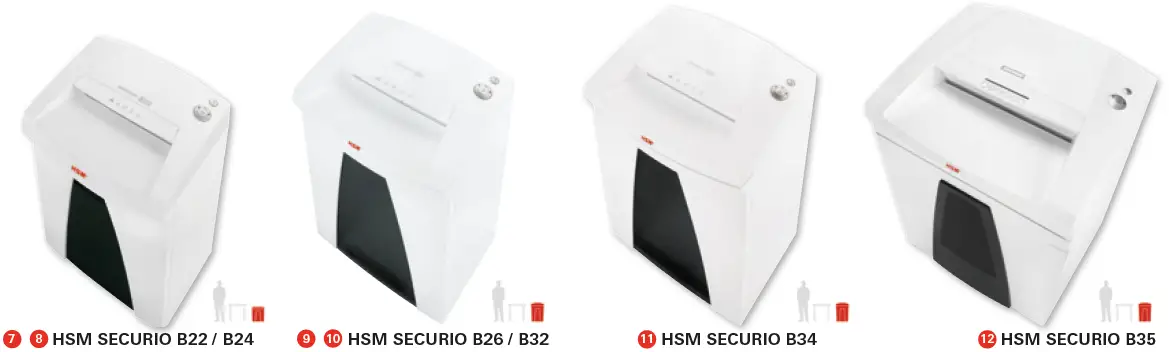

HSM SECURIO B-series document shredders
Energy-saving, reliable and versatile. The document shredders in the B-series are characterized by high performance and maximum functionality. This range of shredders is designed for the use of up to 8 people.
B-series Special product features:
- Light barrier for automatic start/stop.
- A powerful motor allows for continuous operation.
- Convenient removal and emptying of the removable reusable collecting bag.
- High-quality wooden floor cabinet with door.
- Safety element prevents unintentional entry.
- Mobile on castors (except B22).
A powerful motor allows for continuous operation.
B-series Specifications
| Model | 9 HSM SECURIO B26 | 10 HSM SECURIO B32 | 11 HSM SECURIO B34 | 12 HSM SECURIO B35 | ||||
| Scope of application | Office (up to 5 persons) | Office (up to 5 persons) | Large office (up to 8 persons) | Large office (up to 8 persons) | ||||
| Cutting type | strip | particle | strip | particle | strip | particle | strip | particle |
| Cutting size in mm / Product number | 5.8 / 1801111
3.9 / 1800111 | 4.5 x 30 / 1803111
1.9 x 15 / 1802111 0.78 x 11 / 1805111 1 x 5 / 1804111 | 5.8 / 1821111
3.9 / 1820111 | 4.5 x 30 / 1823111
1.9 x 15 / 1822111 0.78 x 11 / 1825111 1 x 5 / 1824111 | 5.8 / 1841111
3.9 / 1840111 | 4.5 x 30 / 1843111
1.9 x 15 / 1842111 0.78 x 11 / 1845111 1 x 5 / 1844111 | 5.8 / 1921111
3.9 / 1920111 | 4.5 x 30 / 1923111
1.9 x 15 / 1922111 0.78 x 11 / 1925111 1 x 5 / 1924111 |
| Security level DIN 66399 | P-2 / O-2 / T-2 / E-2 P-2 / O-2 / T-2 / E-2 | P-4 / O-3 / T-4 / E-3 / F-1 P-5 / T-5 / E-4 / F-2
P-6 / F-3 P-7 / F-3 | P-2 / O-2 / T-2 / E-2 P-2 / O-2 / T-2 / E-2 | P-4 / O-3 / T-4 / E-3 / F-1 P-5 / T-5 / E-4 / F-2
P-6 / F-3 P-7 / F-3 | P-2 / O-2 / T-2 / E-2 P-2 / O-2 / T-2 / E-2 | P-4 / O-3 / T-4 / E-3 / F-1 P-5 / T-5 / E-4 / F-2
P-6 / F-3 P-7 / F-3 | P-2 / O-2 / T-2 / E-2 P-2 / O-2 / T-2 / E-2 | P-4 / O-3 / T-4 / E-3 / F-1 P-5 / T-5 / E-4 / F-2
P-6 / F-3 P-7 / F-3 |
| Cutting capacity 80 g/m² in sheets DIN A4 | 25-27
19-21 | 14-16
9-11 6 4 | 25-27
19-21 | 14-16
9-11 6 4 | 30-32
25-27 | 19-21
12-13 8 5 | 35-37
26-28 | 21-22
14-15 9 5 |
| Noise level | 55 dB | 56 dB | 56 dB | 56 dB | ||||
| Intake width in mm | 280 | 310 | 310 | 400 | ||||
| Motor in Watt | 500 | 500 | 590 | 590 | ||||
| Size (W x D x H) in mm | 497 x 397 x 676 | 497 x 398 x 793 | 541 x 439 x 845 | 618 x 525 x 870 | ||||
| Weight in kg | 24 | 26 / 27 / 28 / 28 | 26 | 27 | 35 | 42 | 48 | 54 / 53 / 54 / 54 |
| Collection volume in l | 55 | 82 | 100 | 130 | ||||
| Shredder material: paper and |  | | | | | |  |  |
B-series Voltage/frequency: 230 V / 50 Hz
All statements are without guarantee. Subject to technical and design changes.
- CDs CAN NOT be destroyed in the following cutting sizes: HSM SECURIO B26 / HSM SECURIO B32 / HSM SECURIO B34 /HSM SECURIO B35: 1.9 x 15 mm, 0.78 x 11 mm, and 1 x 5 mm.
- Credit cards CAN NOT be destroyed in the following cutting sizes: HSM SECURIO B26 / HSM SECURIO B32 / HSM SECURIO B34 / HSM SECURIO B35: 0.78 x 11 mm and 1 x 5 mm.
- Paper clips CANNOT be destroyed in the following cutting sizes: generally at 1 x 5 mm.
