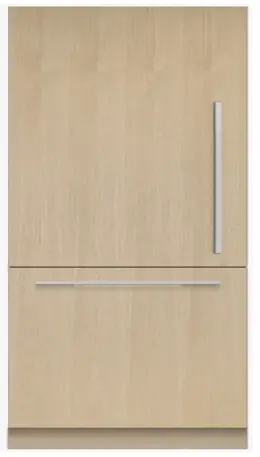

RS6121WLUK1 Integrated Refrigerator Freezer 61cm Ice and Water
User Guide
RS6121WLUK1 Integrated Refrigerator Freezer 61cm Ice and Water
QUICK REFERENCE GUIDE > RS6121WLUK1
Integrated Refrigerator Freezer, 61cm, Ice & Water
Series 11 | Integrated
Panel Ready | Left hingeA slim profile, perfect for compact kitchens, or pair it with other Integrated models for generous chilled and frozen storage.
- Keep food fresher for longer by constantly maintaining the ideal temperature with ActiveSmartTM technology
- Create the perfect climate for each type of food with Variable Temperature Zone: choice of four food modes, Pantry, Fridge, Soft Freeze or Freezer
- Convenient access to fresh, chilled water and ice with internal water dispenser and ice maker
- Customise with your own kitchen cabinetry or purchase our stainless steel door panel and handle accessories
DIMENSIONS
| Height | 2134mm |
| Width | 603mm |
| Depth | 610mm |
FEATURES & BENEFITS
Variable Temperature Zone
Create the perfect climate and store each type of food at optimal temperature and humidity with Variable Temperature Zone, reducing food waste due to spoiling. You have the choice of four food modes: Pantry, Fridge, Soft Freeze or Freezer. Use the Max cold feature for periods of high refrigerator or freezer use, or full grocery loads.
Pantry Mode
Not everything benefits from cold storage. Pantry Mode (11 to 13°C) is the perfect climate to store foods that benefit from a cool, dark place, including bread, many types of fruit, bananas, avocados, tomatoes, nuts, grains and cereals.
Soft Freeze Mode
Soft freeze is for food that requires a gentle freeze and quick thawing, perfect for items that will be consumed soon. It allows easy portioning and the ability to heat, cook or serve straight from the compartment, without waiting for it to thaw.
ActiveSmartTM Foodcare
ActiveSmartTM Foodcare learns how you live. It’s technology which understands how you use your refrigerator and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
Internal water dispenser and ice maker
Both the water dispenser and ice maker are located inside this Integrated model, leaving an uninterrupted exterior that blends in seamlessly with surrounding cabinetry. The slimline water dispenser is flush fit in order to maximise internal storage space, with a temperature-controlled flow and an angled water delivery to capture any drips and spills.
Complementary design
Both the 61cm and 76.2cm Integrated Refrigerator Freezers can be installed separately or paired with a Column Refrigerator, Freezer or Wine Column. Customise with your own kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options.
Design quality
The premium design and finish includes a steel interior lining as well as full extension metal shelf runners for easy access, robust glass shelving and quality hinges designed for daily use.
Clever energy
With a 3.5 star rating, your refrigerator adapts to daily use by cooling and defrosting only when needed. This means it uses the energy it needs without compromising on food care.
SPECIFICATIONS
| Accessories | |
| 1220mm Stainless steel toe | AKRS12210 |
| 1372mm Stainless steel toe kick | AKRS13710 |
| 1828mm Stainless steel toe kick | AKRS18310 |
| 1981mm Stainless steel toe kick | AKRS19810 |
| 610mm Stainless steel toe kick | AKRS06110 |
| Contemporary round handle | AHSRD6121W |
| Contemporary square handle | AHD3RD6121W |
| Hinge change (from left hinge | 848184P |
| Hinge change (from right hinge | 848183P |
| Joiner kit | AJ-RS21LR |
| Matching Replacement Water | FWC3 |
| Square fine aluminium handle | AHD5RD6121W |
| Square fine black handle kit | AHD5RD6121WB |
| Stainless steel door panel | RD6121WLD |
| Stainless steel door panel | RD6121WRD |
| Capacity | |
| Volume freezer | 115L |
| Volume refrigerator | 227L |
| Consumption | |
| Energy consumption | 340kWh |
| Energy rating | 2 ticks |
| Features | |
| Adjustable door shelves | 4 |
| Covered door shelves | 1 |
| Door alarm | • |
| Gallon door shelves | 1 |
| LED bin lighting | • |
| LED ceiling lighting | • |
| LED side lighting | • |
| SmartTouch interface at | • |
| Stackable bottle holders | 4 |
| Ultra slim water dispenser | • |
| Freezer Features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Door shelves | 1 |
| Freezer bins | 2 |
| Freezer trays | 1 |
| Ice Boost | • |
| LED bin lighting | • |
| LED ceiling lighting | • |
| LED lighting | • |
| LED side lighting | • |
| Slide Out Pastry Tray | • |
| SmartTouch interface at | • |
| Performance | |
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Dual evaporator | • |
| Frost free | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| Noise emissions | 42dBA |
| Noise emissions class | D |
| Sabbath mode | • |
| Variable temperature zones | 2 |
| Power requirements | |
| Rated current | 10A |
| Supply frequency | 50Hz |
| Supply voltage | 230V |
| Product dimensions | |
| Depth | 610mm |
| Height | 2134mm |
| Width | 603mm |
| Warranty | |
| Parts and labour | 2 years |
| Sealed system parts only | additional 3 years |
| SKU | 26058 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
