SCP6CW Cambro 6 oz Capacity Camwear Clear

Product Information

• Product Name: Ingredient Bins
• Types: Slant Top, Flat Top
• Capacities: 21, 27, 32, 34, 37, and 42.5 gallons

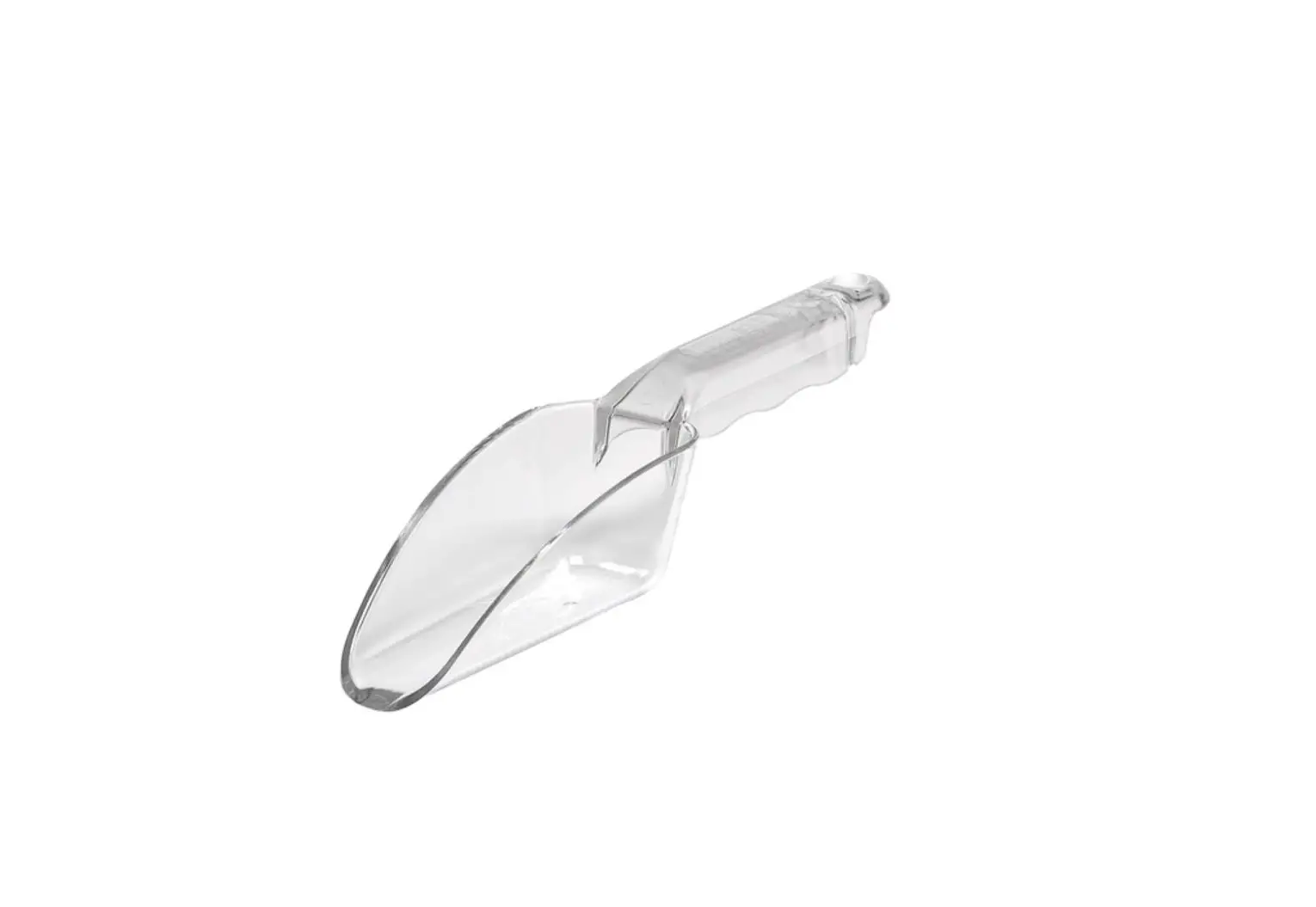

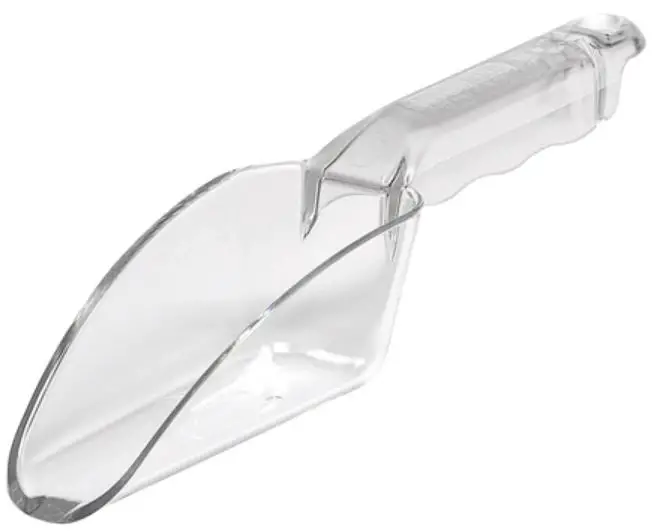

• Scoops: Available separately in 6 oz., 12 oz., 24 oz., and 64 oz. sizes
• Caster Maintenance: Grease swivel raceway using Lubriplate #930-AA, Keystone #84EPXLT multi-purpose grease or equivalent, and use WD-40 on the hub. Check for damage and test spin and swivel rotation before use.
• Cleaning Products: Recommended cleaning products include Solid Supra, Solid Power Guardian, Acclaim Solid Guardian Plus, Solid Super Impact, Solid Insure Diverpak Eclipse H2 Liqua-Safe Acclean HC 500 Poly-Brite, Glow MB-1 Lustre NC-25 Lustre Plus, Liqui-Ware 1, Liqui-Ware MC, D-Flex Sur-Met, Rinse Aid Solid Rinse Dry, Solid Brilliance Jet Dry Rinse Dry, and Destainer NuWare. Contact suppliers directly for questions on usage.

Product Usage Instructions

1. Choose the appropriate Ingredient Bin based on your storage needs and capacity requirements.
2. If using a Slant Top Bin, make sure to include the scoop holder and purchase the scoop separately if needed.
3. If caster maintenance is required, follow the instructions provided in the user manual each time the bin has been washed or steam cleaned.
4. When cleaning the Ingredient Bin and Lid, use the recommended cleaning products as directed by the supplier. Contact the supplier directly for questions on usage.
5. Store ingredients in the Ingredient Bin and use the appropriate scoop to dispense them.

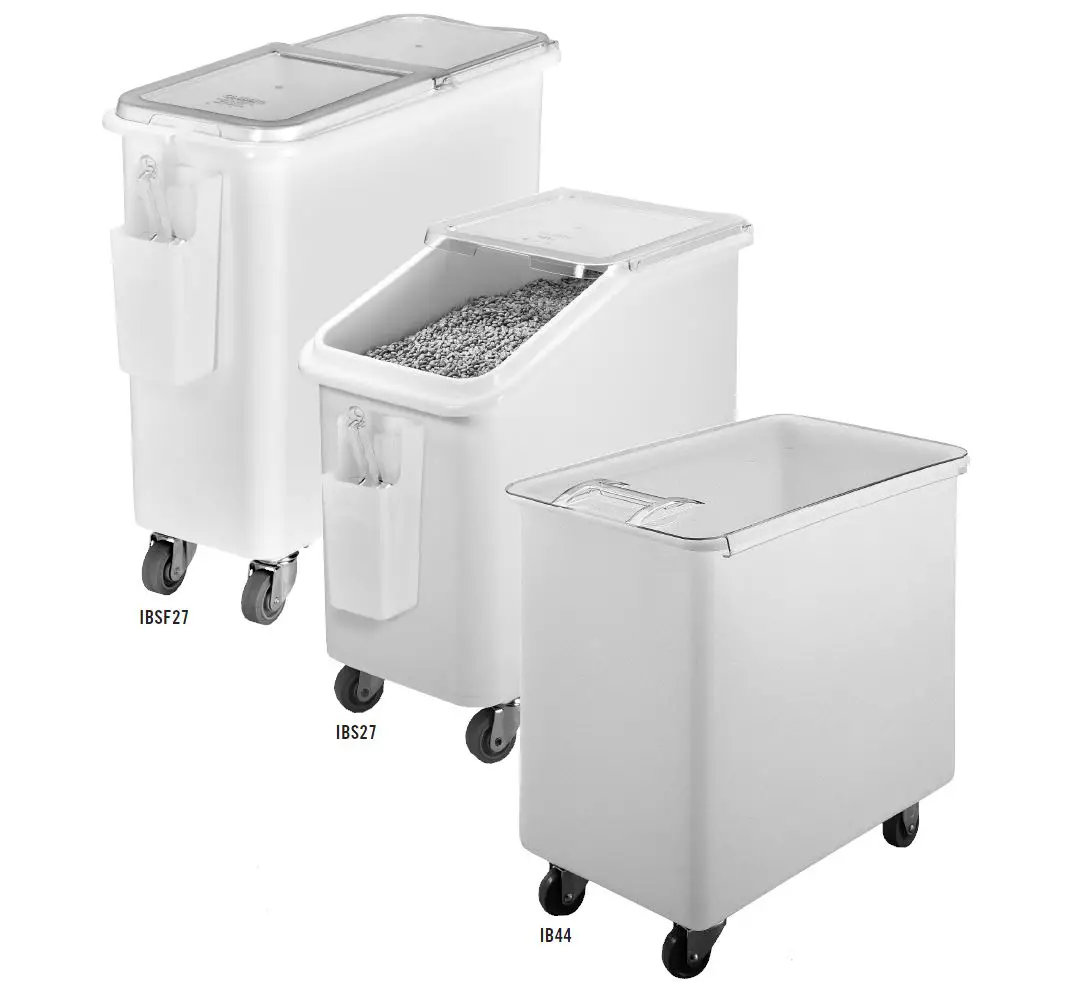

MODELS

FLAT TOP  IBSF27

• SLIDING LID 27 gallon (102 L)

SLANT TOP

• IBS20
  21 gallon (81 L)
• IBS27
  27 gallon (102 L)
• IBS37
  37 gallon (140 L)

FLAT TOP

• IB32
  32 gallon (121 L)
• IB36
  34 gallon (129 L)
• IB44
  42.5 gallon (161 L)

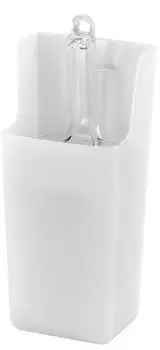

Scoop Holder comes with IBSF27, IBS27 and IBS20 Ingredient Bins. Scoop sold separately.

CASTER MAINTENANCE & CLEANING

Caster Maintenance
Perform caster maintenance each time your Ingredient Bin has been washed or steam cleaned.

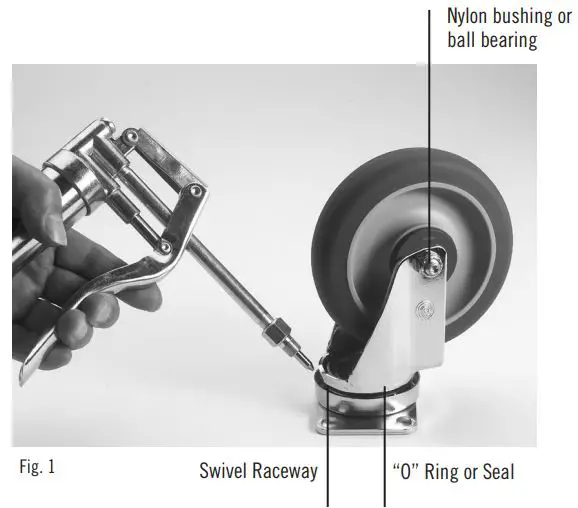

1. Grease swivel raceway of caster using a lubricant such as Lubriplate #930-AA, Keystone #84EPXLT multi-purpose grease or equivalent. Apply grease using a grease gun with a needle nose adapter or a tube-type applicator such as Sta-lube Moly-graph Assembly Lube (Fig. 1). These can be obtained at most auto parts stores.

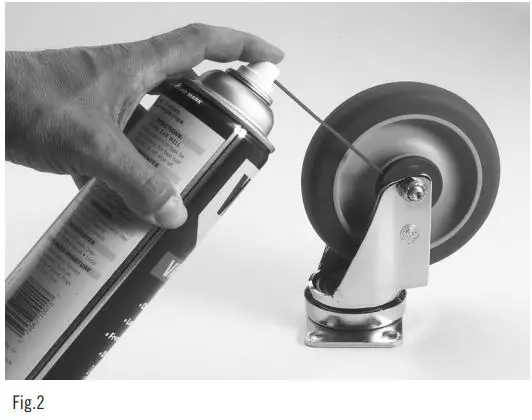

2. Use a light oil such as WD-40 on the hub (Fig. 2). Check caster for damage and test caster spin and swivel rotation before returning to service.

CAMWEAR® (POLYCARBONATE) LID CLEANING RECOMMENDATIONS

To ensure that you get the longest possible service from your Ingredient Bin Lids, we recommend the following cleaning products, when used as directed by the supplier. Please contact the supplier directly for questions on usage.

Telephone 714 848 1555 Toll Free 800 854 7631 Customer Service 800 833 3003
© Cambro Manufacturing Company 5801 Skylab Road, Huntington Beach, California 92647-2056
Printed in USA 10/21
