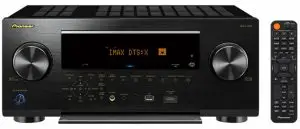

Pioneer VSX-LX505 Elite 9.2 Channel AV Receiver User Guide
Introduction
This document uses a 7.1 channel system as an example when describing use. Refer to the online instruction manual when using other than a 7.1 channel system. There are also descriptions for using the multi-zone feature and other detailed operating instructions.

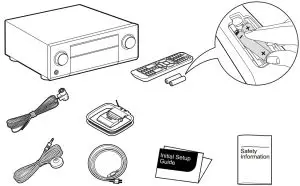

Product Components
Info

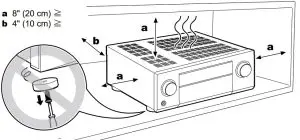

a 8″ (20 cm) ≧
b 4″ (10 cm) ≧
Opertional Instructions
STEP 1
This icon means the important setting. Make sure to confirm the setting at “Initial Setup” (STEP 3).

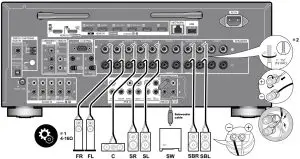

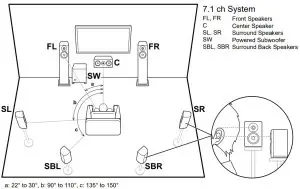

7.1 ch System
FL, FR: Front Speakers
C : Center Speaker
SL, SR: Surround Speakers
SW: Powered Subwoofer
SBL, SBR: Surround Back Speakers
＊1 & 2
Connect speakers with 4 Ω to 16 Ω impedance. Twist the ends of the speaker cable wires tightly.

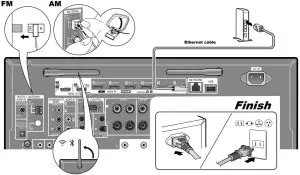

STEP 2
STEP 3

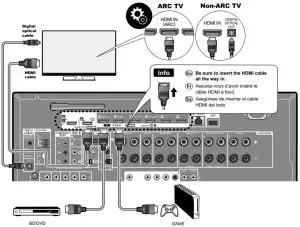

Switch the input on the TV to that assigned to the unit.
To redo the initial setup
Troubleshooting

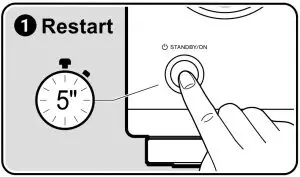

Try restarting the unit. Switch this unit to standby, then do 1. If the problem is not fixed, try the following:
- Unplugging the power cord and HDMI cables then replugging them in again

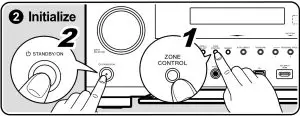

- Initializing the settings (do 2 while this unit is ON)
- Updating the firmware
