Ipower Glhtgh100bv1 Electric Heater Fan User Guide

iPower GLHTGH100BV1 Electric Heater Fan

INTRODUCTION

A greenhouse is a perfect example of a wet environment for the iPower Electric heater! It is completely watertight and has a stainless steel housing with an enclosed fan motor (IPX4 rated). The fan works continuously in heat mode for the best possible air circulation and heat distribution, which is another distinguishing characteristic of this heater. Other features include a built-in dial thermostat with a temperature range of -58 to +210.2 degrees Fahrenheit, fan-only operation, discharge safety screens, overheat protection, and a sturdy anti-tip over design. a 7-foot grounded power cord is included.

IMPORTANT INSTRUCTIONS

PLEASE READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons, including the following:

1. Read all instructions before using this heater.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet (0.9ml from the heater.
3. Extreme caution is necessary when any heater is used by or near children, pets or invalids and whenever the heater is left operating unattended. ·
4. If possible always unplug this appliance when not in use.
5. Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner.
6. Any repairs to this appliance should be carried out by a qualified service person.
7. Under no circumstances should this appliance be modified. Parts having to be removed for servicing must be replaced prior to operating this appliance again.
8. Do not use outdoors.
9. Never locate the heater where it may fall into a batlit1i1b, wash basins or other water container. Do not use near sinks, swimming pools.
10. Do not use this heater in elevated locations, such as on shelves, raised platforms, etc.
11. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not bet-ripped over.
12. To disconnect heater, first turn controls to off, then remove plug from outlet. Always unplug the heater when not in use.
13. Connect to a properly grounded outlet only.
14. This appliance, when installed, must be electrically grounded in accordance with local codes, with the current CSA C22.0 Canadian Electrical codes or for USA installations, follow local codes or for USA installations, follow local codes and the National Electric code ANSI/NFPA No. 70.
15. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electrical shock or fire, or damage the heater.
16. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
17. This appliance has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint or flammable liquids are used or stored. This appliance should not be used as a drying rack for clothing, nor should Christmas stockings or decorations be hung or near it.
18. Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
19. Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power strip.
20. Do not use this heater with missing, damaged, or broken legs.
    “SAVE THESE INSTRUCTIONS”

Always

• observe these safety precautions when operating your electric heater.
• Read all instructions before operating
• Locate your electric heater away from furniture or loose hanging drapes.
• Keep the rear grill away from walls or drapes so as not to block the air intake. (If applicable)
• Unplug electric heater when not in use.
• Leave a free space of 1.5 meters in your greenhouse in front of the output opening if possible
• Use on 110-120 volt 60Hz AC power supply
• Route the cord so it will not be walked on tripped over or pinched by furniture.
• Keep electrical cords, drapes and other furnishings away from your electric heater.
• Keep your electric heater clean and the filter free of dust. (If applicable)
• Use indoors only.

NEVER

• Place drapes, clothing or towels over electric heater to dry.
• Use in the presence of explosive or flammable vapors such as gas or paint.
• Plug another electrical appliance into the same circuit. Blown fuses, tripped circuits and fire hazards may result.
• Use water or liquids to clean your electric heater.
• Let bare skin touch hot surfaces as this may cause burns.
• Leave electric heater unattended.
• Leave electric heater when children or pets are present.
• Locate electric heater where it may fall into a bathtub or other water containers.
• Operate electric heater with a damaged cord, plug or after the heater malfunctions, or has been dropped or damaged in, any manner.
• Run cord under carpeting or cover with throw rugs or runners.Insert or allow foreign objects to enter any ventilation or exhaust openings, as this may cause an electrical shock fire or damage.

OPERATING INSTRUCTIONS

NOTE: When using the heater for the first time, you may notice a slight emission of smoke. This is normal and will stop after a short time. The heating element is made of steel and was coated with a layer of protective oil during production.

1. Position the fan heater so that it stands on a firm level surface (When used as portable) and at a safe distance from water container and flammable objects.
2. Connect the fan heater to the proper electrical power. See grounding instructions.

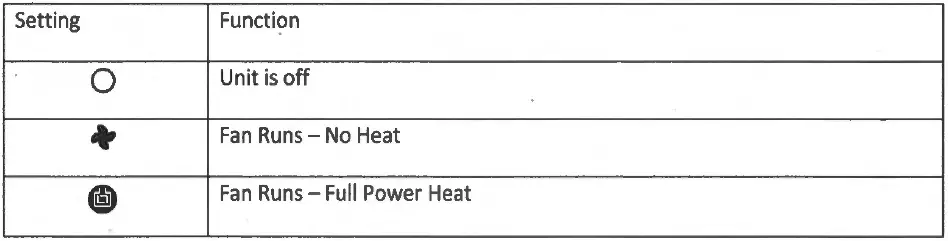

3. Set the power settings knob to fan or heating Position.
4. Set the thermostat dial to the maximum temperature.
5. Once the room reaches the desired temperature, turn the thermostat dial back until heating element turns off. The heater will cycle automatically around this present temperature. To increase temperature, turn the thermostat knob clockwise. To lower temperature, turn the-thermostat counterclockwise.

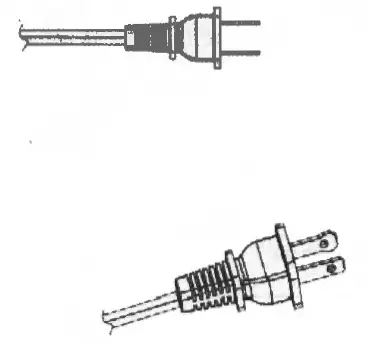

GROUNDING INSTRUCTIONS:

Make sure the heater is switched OFF before plugging the heater into the outlet. Connect to properly grounded outlets only. Note: The power cord has a polarized plug (with one blade wider than the other) that will only fit in a polarized outlet one way. If it does not insert easily try reversing the plug. If it still does not fit contact your electrician to replace your outlet.

DO NOT defeat the safety purpose of the polarized plug.

AUTOMATIC OVERHEATING SAFETY CONTROL

• This heater is equipped with an internal heat-limiting thermostat and overheats protection circuit. When a potential overheat temperature is reached, the system will automatically shut the heater off. Unplug heater allow to cool down for 10 minutes, and then restart.
• Any electrical repairs or rewiring of this unit should be carried out by a licensed electrician and accordance with national and local codes.
• Before cleaning the appliance, disconnect it from the power outlet and let it cool down for approximately 30 minutes before beginning cleaning.
• In order to protect the enclosure, never use a solvent like gasoline, isoamyl acetate, toluene, etc. to clean the heater. DO NOT open the heater or attempt to clean the inside of this appliance. Clean the casing with a damp cloth (not wet), vacuum cleaner or feather duster.

SPECIFICATIONS

TROUBLE SHOOTING

FAQs

What is the heat radius around it?

Very small. Less than 2 feet. Ours didn’t even melt any snow on the ground around it when it was on the highest heat setting. If you aren’t standing right next to the lamp, you can’t feel the heat at all.

How long is the cord?

The cord is 6 feet long but remember the cord runs from them lamp on top, and it stands near 6 feet tall. It can’t be placed more than a couple of feet from an outlet. Most likely you’ll need an extension cord.

How many BTUs is this heater?

I’m not sure its heat is based on BTU’s. It’s based on UV radiation. It doesn’t heat the surrounding area, just objects in line with the UVs.

Will this kill bedbugs in a semi-truck?

In the cabin possibly if it can maintain a temperature of 140 F inside for over 2 hours.

Can this be set to run continuously, such as with using a 3rd party switch to turn on/off based on temperature?

I used this last season with an inexpensive Inkbird temperature controller switch, no problems. Very happy with this little heater.

how long is the power cord?

Six feet.

How do I get the second heat coil to turn on???

Pulling down on the cord. Once for single, twice for double. Caution it will warm your home fairly quickly. I use two coils for 10 minutes or less, then drop it down to a single coil.

It’s it safe to run outside all night in a covered patio? Just need to protect plants when frosts come on at night. Live in Ca.

This would depend on how large the space is that you want to heat, whether the space is completely enclosed and what the outside temperatures will be. I use it on 25-35 degree (F) nights in an enclosed 10′ x 12′ greenhouse tent and it keeps the tent warmed to 40-46 degrees when cranked up to the max setting, varying due to drafts.

I would like to maintain a room 13’×15′ in 140°farenheit for about an hour, is it possibly with this heater?

Not with this heater alone. You will need 3 heaters and one or two very strong fans to place behind the heaters in one end of the room to push more air through the heater and around the room to raise the temperature to that level. I had the exact same purpose and ended up using three heaters for a room smaller than yours. Depending on insulation and outside temperature it took three heaters approximately 3 to 4 hours to get to 140 degrees.

How close to a wall can you use this heater ?

The rear heat shield On the back works well and the floor base will keep the actual heater from touching the wall.

I have drip irrigation setup inside the greenhouse, will it work even if water is sprayed on them?

Since it is electric, I wouldn’t spray or let any water get onto or into this heater you’ll end up shorting it out, blowing a fuse or tripping a breaker.

What is the BTU output?

probably not more than 100, that is not a typo. It’s worthless!

what is the wattage for this heater?

1500.

Can this heater be used with an outdoor extension cord?

All early spring here in Montana, I used an outdoor ext. cord that is rated for this wattage and had no problems.

The bulbs went out. Are there replacement bulbs for this heater??

I sure contact the dealership or manufacturer. I haven’t had any problems with my heater.
