acer Chromebook 512 User
Register your Acer product
Go to www.acer.com/register-product, and sign in or sign up your Acer ID to register your product. Once it is done, you can review it under “My Products” page.
- Model number: ________________________________
- Serial number: _________________________________
- Date of purchase: ______________________________
- Place of purchase: ______________________________
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries
GETTING STARTED
Turn on your Chromebook
On the Chromebook, press the power button. A “Welcome” screen will appear when the Chromebook first boots up.
Select your language settings
Use the “Language” drop-down list to choose your default language setting. If there is more than one way to type in your language, you may be prompted to select a keyboard input method as well.
Connect to a network
Select a network from the “Connect to network” list to connect to the Internet. If network access is protected, you will need an access password to connect to it.
Accept the Terms of Service
Once connected to a network, accept the Terms of Service. Your Chromebook will then download any available system updates, so you automatically get the latest Chrome OS features.
First-time sign-in
Create a new Google Account
You can create a new Google Account if you don’t already have one. Select Create a Google Account to set up a new account. A Google Account gives you access to useful web services developed by Google, such as Gmail, Google Drive, and Google Calendar.
Browse as a guest
You can also use the Chromebook without a Google Account by selecting Browse as a Guest
YOUR ACER CHROMEBOOK TOUR

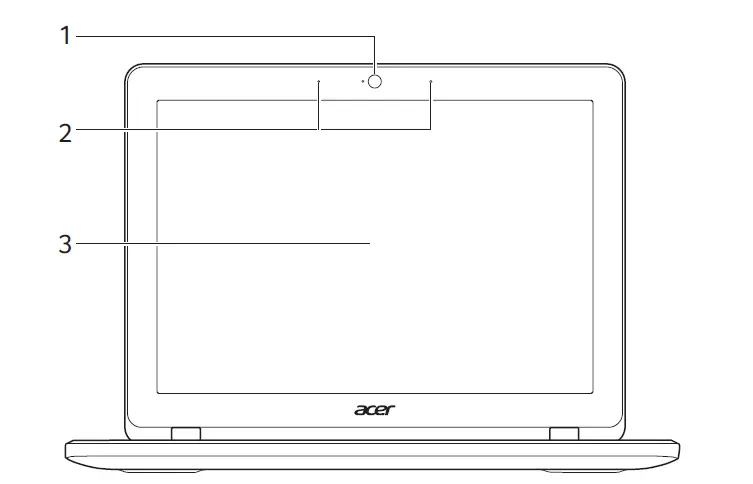

Front view
# Icon Item Description
- Webcam Web camera for video communication. A light next to the webcam indicates that the webcam is active.
- Microphones Internal microphones for sound recording
- Screen Displays computer output, supports touch or non-touch option.

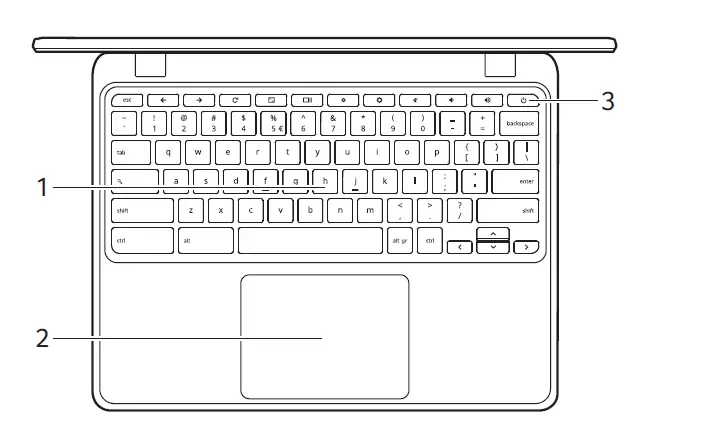

Keyboard view
Icon Item Description
- Keyboard For entering data into your computer
- Touchpad / click button Touch-sensitive pointing device which functions like a computer mouse. Pressing down anywhere on the pad functions like the left button of a mouse. Pressing down anywhere with two fingers functions like the right button of a mouse
Power button Turns the computer on and off
Power button Turns the computer on and offFunction keys
The Chromebook uses function keys or key combinations to access some hardware and software controls, such as screen brightness and volume. The dedicated function keys each have a specific function.
Icon Function Description
Previous Go to the previous page
Next Go to the next page
Reload Reload the current page
Full-screen Open the page in full-screen mode
Next window Switch to the next window
Brightness down Decreases the screen brightness
Brightness up Increases the screen brightness
Mute Turns off audio output
Volume down Decreases the volume
Volume up Increases the volume
Search Search from the Apps panel
Common keyboard shortcuts
You can use shortcuts to complete some tasks more quickly
Keyboard shortcuts Description
Ctrl +
Takes screenshot
Alt +
Toggles caps lock
Alt +
Projects your screen
Note: For a complete list of keyboard shortcuts, press Ctrl + Alt + /
Touchpad
The built-in touchpad is a pointing device that senses movement on its surface. This means the cursor responds as you move your fingers across the surface of the touchpad
Action Gesture
Click Press down on any part of the touchpad
Two-finger tap (or alt-click) Tapping the touchpad with two fingers or pressing (and holding) Alt on the keyboard and tapping the touchpad with one finger both equal a “right-click” on a computer mouse.
Two-finger swipe Place two fingers on the touchpad and move them up and down to scroll vertically, left and right to scroll horizontally
Drag and drop Select the item you want to move with one finger. With a second finger, move the item. Release both fingers to drop the item. (This gesture works for files, not windows or icons.)

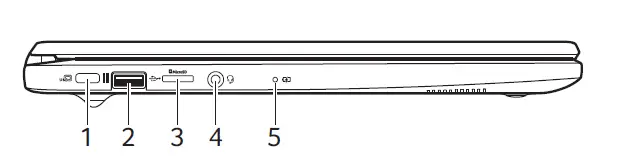

Left view
Icon Item Description
USB Type-C port with DC-in Connects to the provided USB Type-C power adapter and to USB devices with a USB Type-C connector. Supports DisplayPort™ over USB-C™
USB port Connects to USB devices
MicroSD card slot Insert a microSD card into this slot
Headset/speaker jack Connects to audio devices (e.g., speakers, headphones), or a headset with microphone.
Battery indicator Indicates the computer’s battery status. Charging: The light shows amber when the battery is charging. Fully charged: The light shows blue when in AC mode

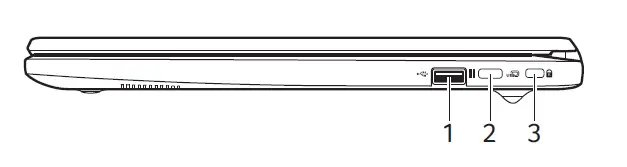

Right view
Icon Item Description
USB port Connects to USB devices
USB Type-C port with DC-in Connects to the provided USB Type-C power adapter and to USB devices with a USB Type-C connector. Supports DisplayPort™ over USB-C™
Kensington lock slot Connects to a Kensington-compatible security lock.
USB 3.2 Gen 1 information
- USB 3.2 Gen 1 compatible ports are blue.
- Compatible with USB 3.2 Gen 1 and earlier devices.
- For optimal performance, use USB 3.2 Gen 1-certified devices.
- Defined by the USB 3.2 Gen 1 specification (SuperSpeed USB).
USB Type-C information
- Supports DisplayPort™ audio/video output.
- Delivers up to 3 A at 5 V DC for USB charging.
- DC-in: requires power adapter or power source providing 45 W at 5~20 V.
For optimal performance, please use a certified Acer power adapter or USB Power Delivery device.

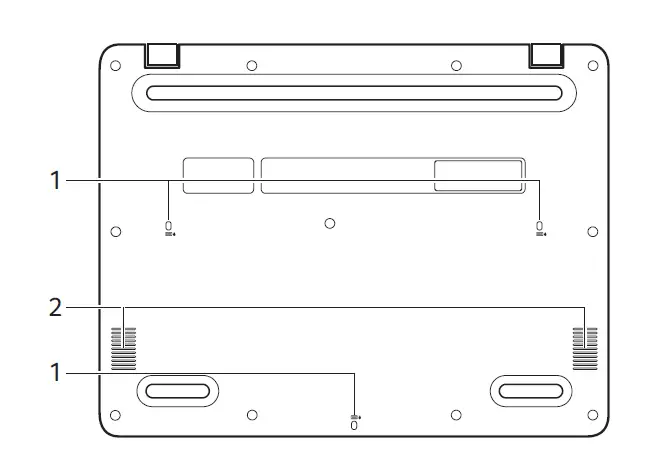

Bottom view
Icon Item Description
Drain holes Liquid spilled on the keyboard can drain out of the holes in the underside of the housing
Speakers Deliver stereo audio output
FREQUENTLY ASKED QUESTIONS
Question Answer
What software works on a Chromebook? Chromebooks use apps from the Google Play Store and on the web. There are apps to be productive, get creative, enjoy movies and shows, play games and more
How do I get more apps? You can get more apps from the Google Play Store
or the web.
Can I use Microsoft Office software? Chromebooks work with Microsoft® Office. Whether it’s Word, Excel® or PowerPoint®, you can easily find the apps on the web.
Where can I find my files? All your files are stored in the Files
app . Find the app by clicking the Launcher icon and searching “Files”.
How do I transfer my local files? Transfer your local files using a compatible storage device. Your Chromebook works with most external storage devices (e.g.: USB thumb drives, removable hard drives). You can also upload your files, photos, and videos to Google Drive. After setting up your Chromebook with your Google Account, you’ll be able to access your files on Drive.
Why does my Chromebook need my Google Account information? You’ll use your Google Account to sign in to your Chromebook. It is the same account you use for Google services such as Gmail and Drive. Your Chromebook uses your account information to automatically sign you into apps and services.
Question Answer
How do I set this up for my child? If you want to set up parental controls for your child, it’s important that you sign in using your child’s personal Google Account. If they don’t already have one, you can create one during the sign-in process on your Chromebook. You will be able to add your child’s school account after you complete device onboarding.
Get help or more information
For information on: Refer to
Chromebook Help Open the Explore app
on your Chromebook.
Chrome OS google.com/support/chromebook/
