Lenovo ThinkSystem DE6000F All Flash Storage Array

Product Guide

Lenovo ThinkSystem DE6000F is a scalable, all flash mid-range storage system that is designed to provide high performance, simplicity, capacity, security, and high availability for medium to large businesses. The ThinkSystem DE6000F delivers enterprise-class storage management capabilities in a performance-optimized system with a wide choice of host connectivity options and enhanced data management features. The ThinkSystem DE6000F is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, and other storage I/O-intensive applications.
ThinkSystem DE6000F models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) and include two controllers, each with 64 GB memory for a system total of 128 GB. Host interface cards provide 12 Gb SAS, 10/25 Gb iSCSI, 8/16/32 Gb FC or NVMe/FC, or 25/40/100 Gb NVMe/RoCE host connections.
The ThinkSystem DE6000F Storage Array scales up to 120 solid-state drives (SSDs) with the attachment of Lenovo ThinkSystem DE240S 2U24 SFF Expansion Enclosures.

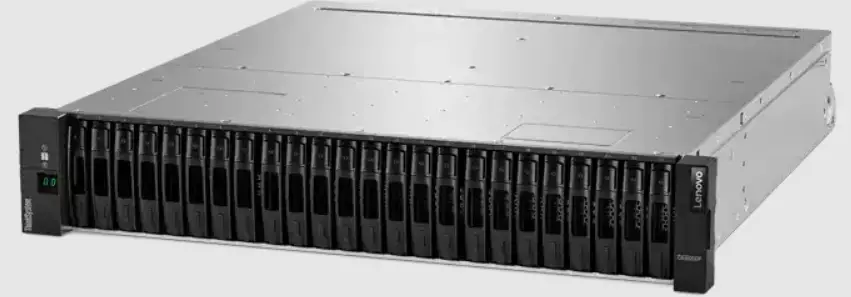

The Lenovo ThinkSystem DE6000F 2U24 SFF enclosure.Did you know?
The ThinkSystem DE6000F scales up to 1.84 PB of raw storage capacity.
The ThinkSystem DE6000F supports multiple storage connectivity protocols with a choice of SAS, iSCSI, Fibre Channel, NVMe over Fibre Channel, or NVMe over RoCE.
For the ThinkSystem DE6000F, customers can change the host port protocol from FC to iSCSI or from iSCSI to FC for the SFP+ host ports built into the controller (base host ports).

Key features

The ThinkSystem DE6000F offers the following key features and benefits:

• All-flash array capabilities and NVMe over Fabrics to meet the demand for higher speed storage and provide higher IOPs and bandwidth with lower power usage and total cost of ownership than hybrid or HDD-based solutions.
• Scalable, high performance mid-range storage with dual active/active controller configurations with 64 GB system memory per controller for high availability and performance.
• Improved performance and data protection with Dynamic Disk Pools (DDP) technology, as well as support for traditional RAID 0, 1, 3, 5, 6, and 10.
• Flexible storage protocols to match diverse client needs with support for 10 Gb iSCSI or 4/8/16 Gb FC and 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC host connectivity, or 8/16/32 Gb NVMe/FC host connectivity, or 25/40/100 Gb NVMe/RoCE host connectivity.
• 12 Gb SAS drive-side connectivity with support for up to 24x 2.5-inch small form factor (SFF) drives in the 2U24 SFF enclosures.
• Scalability to up to 120 SFF drives with the attachment of up to four ThinkSystem DE240S 2U24 SFF expansion enclosures to satisfy growing needs for storage capacity and performance.
• Full set of storage management functions comes with the system, including Dynamic Disk Pools, snapshots, volume copy, thin provisioning, synchronous mirroring, and asynchronous mirroring.
• Intuitive, web-based GUI for easy system setup and management.
• Designed for 99.9999% availability with redundant hot-swap components, including controllers and I/O modules, power supplies, proactive maintenance, and non disruptive firmware upgrades.

The following solid-state drives are supported in the 2U24 SFF enclosures:

• Capacity-optimized SSDs (1 drive write per day [DWD]): 3.84 TB, 7.68 TB, and 15.36 TB
• High performance SSDs (3 DWD): 800 GB, 1.6 TB
• High performance self-encrypting FIPS SSDs (3 DWD): 1.6 TB

All drives are dual-port and hot-swappable. Drives of the same form factor can be intermixed within the appropriate enclosure, which provides the flexibility to address performance and capacity needs within a single enclosure.
Up to four ThinkSystem DE240S 2U24 SFF expansion enclosures are supported by a single ThinkSystem DE6000F system. More drives and expansion enclosures are designed to be dynamically added with virtually no downtime, which helps to quickly and seamlessly respond to ever-growing capacity demands.
The ThinkSystem DE6000F offers high levels of system and data availability with the following technologies:

• Dual-active controller modules with automatic load balancing and failover
• Mirrored data cache with flash backup (battery-backed DE staging to flash)
• Dual-port SAS SSDs with automatic drive failure detection and rebuild with global hot spares
• Redundant, hot-swappable and customer replaceable hardware components, including SFP/SFP+ transceivers, controller and I/O modules, power supplies, and drives
• Automated path failover support for the data path between the host and the drives with multipathing software
• Non-disruptive controller and drive firmware upgrades

Components and connectors

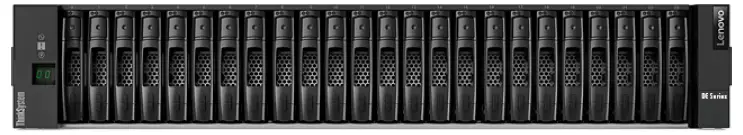

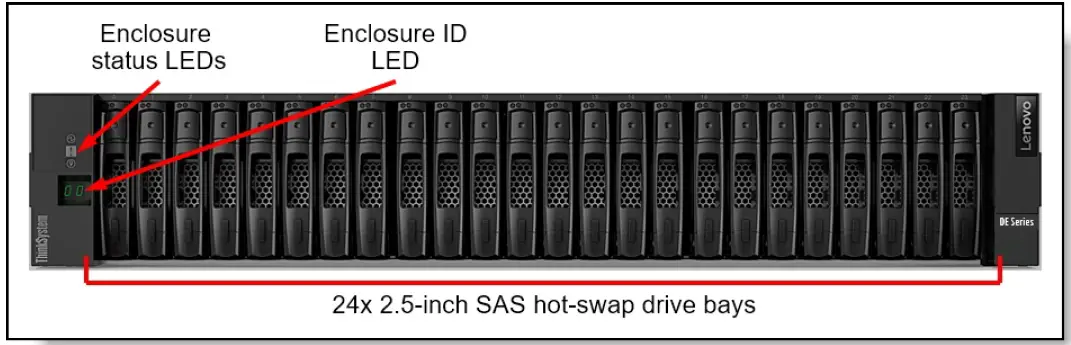

The front of the ThinkSystem DE6000F and DE240S 2U SFF enclosures.The front of the ThinkSystem DE6000F and DE240S 2U SFF enclosures includes the following components:

• 24 SFF hot-swap drive bays
• Enclosure status LEDs
• Enclosure ID LED

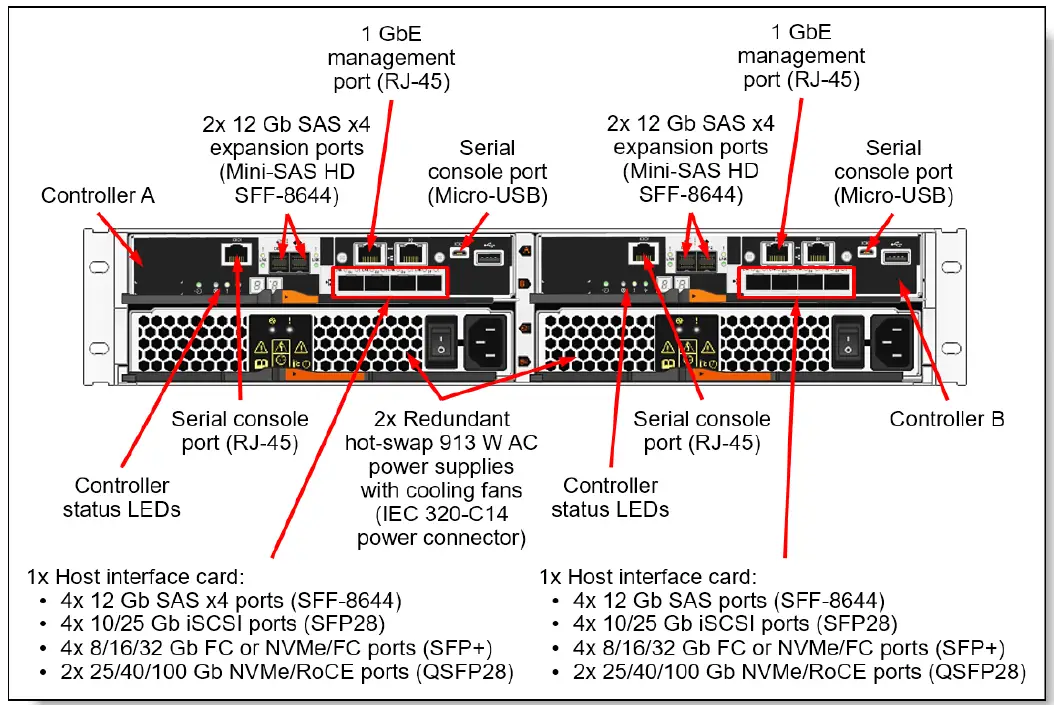

The rear of the ThinkSystem DE6000F 2U SFF controller enclosure.The rear of the ThinkSystem DE6000F 2U SFF controller enclosure includes the following components:

• Two redundant hot-swap controllers, each with the following ports:
  • One slot for the host interface card (a host interface card is required)
    Note: The DE6000F Gen2 controllers no longer offers base ports
  • Two 12 Gb SAS x4 expansion ports (Mini-SAS HD SFF-8644) for connections to the expansion enclosures.
  • One RJ-45 10/100/1000 Mb Ethernet port for out-of-band management.
    Note: The Ethernet port (P2) next to the GbE management port is not available for use.
  • Two serial console ports (RJ-45 and Micro-USB) for another means to configure the system.
  • One USB Type A port (reserved for factory use)
• Two redundant hot-swap 913 W AC (100 – 240 V) power supplies (IEC 320-C14 power connector) with integrated cooling fans.

The rear of the ThinkSystem DE240S 2U SFF expansion enclosure.The rear of the ThinkSystem DE240S 2U SFF expansion enclosure includes the following components:

• Two redundant hot-swap I/O Modules; each I/O Module provides four 12 Gb SAS x4 expansion ports (Mini-SAS HD SFF-8644) for connections to the controller enclosures and for connecting the expansion enclosures between each other.
• Two redundant hot-swap 913 W AC (100 – 240 V) power supplies (IEC 320-C14 power connector) with integrated cooling fans.

System specifications

The following table lists the ThinkSystem DE6000F storage system specifications.
Note: The supported hardware options, software features, and interoperability listed in this product guide are based on the software version 11.60. For details about specific software releases that introduced support for certain hardware options and software features, refer to the Release notes of the particular software release for the ThinkSystem DE6000F that can be found at:
http://datacentersupport.lenovo.com
ThinkSystem DE6000F system specifications

• Estimated performance based on internal measurements.
• For a detailed list of configuration limits and restrictions for a specific version of the software, refer to the Lenovo Data Center Support website:
  http://datacentersupport.lenovo.com

Controller enclosures

The following table lists the CTO base models for the ThinkSystem DE6000F.
ThinkSystem DE6000F CTO base models

The following table lists the preconfigured models with Gen 2 controllers, available by market.
Preconfigured models

Configuration notes:

• For preconfigured models, two DE6000 64GB controllers (feature code BQA1) are included in the model configuration.
• For CTO models, two DE6000 64GB controllers (feature code BQA1) are selected by default in the configurator, and the selection cannot be changed.

The models of the ThinkSystem DE6000F ship with the following items:

• One chassis with the following components:
  • Two controllers
  • Two power supplies
  • Two host interface cards
• Rack Mount Kit
• 2 m USB Cable (USB Type A to Micro-USB)
• Quick Installation Guide
• Electronic Publications Flyer
• Two power cables:
  • Relationship models listed in this section: 1.5 m, 10A/100-250V, C13 to IEC 320-C14 rack power cables
  • CTO models: Customer-configured power cables

Note: The preconfigured models of the ThinkSystem DE6000F ship without optical transceivers, DAC cables, or SAS cables; they should be purchased for the system (see Controllers for details).

Controllers

The ThinkSystem DE6000F controller enclosures ship with two DE6000 64GB controllers. A controller provides interfaces for host connectivity, management, and internal drives, and it runs storage management software. Each DE6000 controller ships with 64 GB memory for a system total of 128 GB.
Each controller has one expansion slot for a host interface card (HIC).
The following host interfaces can be added to the ThinkSystem DE6000F controller enclosures with HICs:

• 8x 12 Gb SAS x4 (Mini-SAS HD SFF-8644) ports (4 ports per HIC) for SAS connectivity.
• 8x 10/25 Gbe SFP28 ports (4 ports per HIC) for 10/25 Gb iSCSI connectivity (require optical transceivers or DAC cables that should be purchased for the HICs).
• 8x 8/16/32 Gb FC SFP+ ports (4 ports per HIC) for FC or NVMe/FC connectivity (require optical transceivers that should be purchased for the HICs).
• 4x 25/40/100 Gbe RoCE QSFP28 ports (2 ports per HIC) for NVMe/RoCE connectivity (require optical transceivers or DAC cables that should be purchased for the HIC).

Each DE6000 64GB controller also provide two 12 Gb SAS x4 expansion ports (Mini-SAS HD SFF-8644 connectors) for the attachment of the ThinkSystem DE Series expansion units.
Configuration notes:

• Two host interface cards are required for selection (one per controller).

The DE6000F controller and supported connectivity options.

Expansion enclosures

The ThinkSystem DE6000F supports attachment of up to four ThinkSystem DE240S 2U24 SFF expansion enclosures. The expansion enclosures can be added to the system non-disruptively.
The relationship models of the supported ThinkSystem DE240S expansion enclosures.

ThinkSystem DE240S Top Seller models: Brazil and Latin America

ThinkSystem DE240S CTO base models

Configuration notes:

• For Relationship models, two I/O expansion modules (feature code B4BS) are included in the model configuration.
• For CTO models, two I/O expansion modules (feature code B4BS) are selected by default in the configurator, and the selection cannot be changed.

The models of the ThinkSystem DE240S ship with the following items:

• One chassis with the following components:
  • Two I/O modules
  • Two power supplies
• Four 1 m MiniSAS HD 8644/MiniSAS HD 8644 cables (Relationship models listed in this section)
• Rack Mount Kit
• Quick Installation Guide
• Electronic Publications Flyer
• Two power cables:
  • Models listed in Tables 6 and 7: 1.5 m, 10A/100-250V, C13 to C14 rack power cables
  • CTO models: Customer-configured power cables

Note:

• The Relationship and Top Seller models of the ThinkSystem DE240S listed in this section ship with four 1 m SAS cables; additional SAS cables that are listed in this section can be purchased for the system, if needed.
• Each ThinkSystem DE Series expansion enclosure ships with two SAS I/O expansion modules. Each I/O expansion module provides four external 12 Gb SAS x4 ports (Mini-SAS HD SFF-8644 connectors labelled Port 1-4) that are used for connections to the ThinkSystem DE6000F and for daisy chaining the expansion enclosures between each other.
• Two expansion ports on the Controller A are connected to the Ports 1 and 2 on the I/O Module A in the first expansion enclosure in the chain, and the Ports 3 and 4 on the I/O Module A in the first expansion enclosure are connected to the Ports 1 and 2 on the I/O Module A in the adjacent expansion enclosure, and so on.
• Two expansion ports on the Controller B are connected to the Ports 1 and 2 on the I/O Module B in the last expansion enclosure in the chain, and the Ports 3 and 4 on the I/O Module B in the expansion enclosure are connected to the Ports 1 and 2 on the I/O Module B in the adjacent expansion enclosure, and so on.

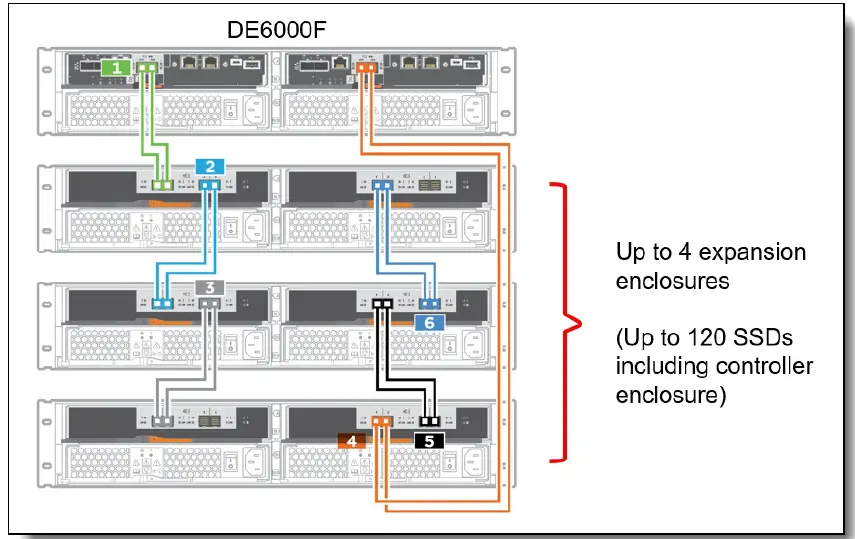

The connectivity topology for the DE Series expansion enclosures.

Expansion unit connectivity options

Configuration notes:

• The Relationship and Top Seller models of the ThinkSystem DE240S listed in this section ship with four 1 m SAS cables.
• Four SAS cables are needed per each expansion enclosure (two SAS cables per I/O Module) for connections to the controller enclosure and for daisy chaining of the expansion enclosures.

Drives

The ThinkSystem DE Series 2U24 SFF enclosures support up to 24 SFF hot-swap drives.
2U24 SFF drive optionsB4RZ

2U24 SFF drive pack options

Configuration notes:

• Intermix of FIPS drives and non-FIPS drives is supported within the system.
• FIPS drives are not available in the following countries:
  • Belarus
  • Kazakhstan
  • People’s Republic of China
  • Russia

Software

The following functions are included with every ThinkSystem DE6000F:

• RAID levels 0, 1, 3, 5, 6, and 10 : Provide the flexibility to choose the level of performance and data protection required.
• Dynamic Disk Pools (DDP) technology: Helps improve performance and availability with significantly faster rebuild time and reduced exposure to multiple drive failures by allowing data and built-in spare capacity to be distributed across all physical drives in the storage pool.
• All Flash Array (AFA) capability : Meets the demand for higher speed storage and provide higher IOPS and bandwidth with lower power usage and total cost of ownership than hybrid or HDD-based solutions.
• Thin provisioning: Optimizes efficiency of Dynamic Disk Pools by allocating storage space based on the minimum space required by each application at any given time, so that applications consume only the space they are actually using, not the total space that has been allocated to them, which allows customers to purchase storage they need today and add more as application requirements grow.
• Snapshots: Enables creation of copies of data for backup, parallel processing, testing, and development, and have the copies available almost immediately (up to 2048 snapshot targets per system).
• Encryption: Provides encryption for data at rest for enhanced data security with the optional FIPS 140-2 Level 2 drives and embedded key management (AES-256) or an external key management server.
• Automatic load balancing: Provides automated I/O workload balancing of I/O traffic from the hosts across both controllers.
• Data assurance: Ensures industry-standard T10-PI end-to-end data integrity in the storage system (from the host ports to the drives).
• Dynamic volume and capacity expansion: Allows the capacity of a volume to be expanded by adding new physical drives or making use of unused space on existing drives.
• Synchronous mirroring: Provides storage system-based online, real-time data replication between the storage systems containing primary (local) and secondary (remote) volumes by using synchronous data transfers over Fibre Channel communication links (both storage systems must have licenses for synchronous mirroring).
• Asynchronous mirroring: Provides storage system-based data replication between the storage systems containing primary (local) and secondary (remote) volumes by using asynchronous data transfers over iSCSI or Fibre Channel communication links at set intervals (both storage systems must have licenses for asynchronous mirroring).

Note: The synchronous and asynchronous mirroring features of the ThinkSystem DE6000F interoperate with other ThinkSystem DE Series storage arrays.
Software maintenance is included in the ThinkSystem DE6000F base warranty and optional warranty extensions, which provides 3-year software support with the option to extend it up to 5 years in 1-year or 2- year increments (see Warranty and support for details).

Management

The DE6000F supports the following management interfaces:

• ThinkSystem System Manager, a web-based interface via HTTPS for single-system management, that runs on the storage system itself and requires only a supported browser, so there is no need for a separate console or plug-in. For more information, see the System Manager Online Help.
• ThinkSystem SAN Manager, a host-installed GUI-based application, for centralized management of multiple storage systems. For more information, see the SAN Manager Online Help .
• ThinkSystem DE Series Storage Plugin for vCenter. For more information, see the DE Series venter Plugin Online Help.
• Command line interface (CLI) via SSH or through serial console. For more information, see the CLI Online Help.
• Syslog, SNMP, and e-mail notifications.
• Optional Lenovo XClarity Administrator support for discovery, inventory, and monitoring.

Power supplies and cables

The ThinkSystem DE Series 2U24 SFF enclosures ship with two redundant hot-swap 913 W (100 – 240 V) Platinum AC power supplies, each with an IEC 320-C14 connector. The Relationship models of the ThinkSystem DE6000F 2U24 SFF and DE240S 2U24 SFF enclosures listed in Controller enclosures and Expansion enclosures ship with two 1.5 m, 10A/100-250V, C13 to IEC 320-C14 rack power cables.
The CTO models require the selection of two power cables.
Power cables for DE Series 2U24 SFF enclosures

Rack installation

The individually shipped ThinkSystem DE Series 2U24 enclosures ship with the ThinkSystem Storage Rack Mount Kit 2U24/4U60 .

When the ThinkSystem DE Series enclosures are factory-integrated and shipped installed in a rack cabinet, the rack mount kits that support Ship-in-Rack (SIR) capabilities are derived by the configurator. The SIR- capable rack mount kits.

Rack mount kit features and specifications summary

• The majority of the enclosure components can be serviced from the front or rear of the enclosure, which does not require the removal of the enclosure from the rack cabinet.
• If a 0U PDU is used, the rack cabinet must be at least 1000 mm (39.37 in.) deep for 2U24 enclosures.
• Measured when mounted on the rack, from the front surface of the front mounting flange to the rear most point of the rail.

Physical specifications

The ThinkSystem DE Series 2U24 SFF enclosures have the following dimensions:

• Height: 85 mm (3.4 in.)
• Width: 449 mm (17.7 in.)
• Depth: 553 mm (21.8 in.)

Weight (fully configured):

• DE6000F 2U24 SFF controller enclosure (7Y79): 23.47 kg (51.7 lb)
• DE240S 2U24 SFF expansion enclosure (7Y68): 27.44 kg (60.5 lb)

Operating environment

The ThinkSystem DE Series 2U24 SFF enclosures are supported in the following environment:

• Air temperature:
  • Operating: 5 °C – 45 °C (41 °F – 113 °F)
  • Non-operating: -10 °C – +50 °C (14 °F – 122 °F)
  • Maximum altitude: 3050 m (10,000 ft)
• Relative humidity:
  • Operating: 8% – 90% (non-condensing)
  • Non-operating: 10% – 90% (non-condensing)
• Electrical power:
  • 100 to 127 V AC (nominal); 50 Hz / 60 Hz
  • 200 to 240 V AC (nominal); 50 Hz / 60 Hz
• Heat dissipation:
  • DE6000F 2U24 SFF: 1396 BTU/hour
  • DE240S 2U24 SFF: 1331 BTU/hour
• Acoustical noise emission:
  • DE6000F 2U24 SFF: 7.2 bels
  • DE240S 2U24 SFF: 6.6 bels

Enclosure power load, inlet current, and heat output

Warranty and support

The ThinkSystem DE Series enclosures have a three-year customer-replaceable unit (CRU) and onsite limited (for field-replaceable units [FRUs] only) warranty with standard call center support during normal business hours and 9×5 Next Business Day Parts Delivered.

Lenovo’s additional support services provide a sophisticated, unified support structure for a customer’s data center, with an experience consistently ranked number one in customer satisfaction worldwide.

The following Lenovo support services are available:

• Premier Support provides a Lenovo-owned customer experience and delivers direct access to technicians skilled in hardware, software, and advanced troubleshooting, in addition to the following capabilities:
  • Direct technician-to-technician access through a dedicated phone line.
  • 24x7x365 remote support.
  • Single point of contact service.
  • End to end case management.
  • 3rd Party collaborative software support.
  • Online case tools and live chat support.
  • On-demand remote system analysis.
• Warranty Upgrades (Preconfigured Support) are available to meet the on-site response time targets that match the criticality of customer’s systems:
  • 3, 4, or 5 years of service coverage.
  • 1-year or 2-year post-warranty extensions.
  • Foundation Service: 9×5 service coverage with next business day onsite response, with optional YourDrive YourData.
  • Essential Service: 24×7 service coverage with 4-hour onsite response or 24-hour committed repair (available only in select regions), with optional YourDrive YourData.
  • Advanced Service: 24×7 service coverage with 2-hour onsite response or 6-hour committed repair (available only in select regions), with optional YourDrive YourData.
• Managed Services
  • Lenovo Managed Services provide continuous 24×7 remote monitoring (plus 24×7 call center availability) and proactive management of a customer’s data center using state of the art tools, systems, and practices by a team of highly skilled and experienced Lenovo services professionals.
  • Quarterly reviews check error logs, verify firmware and operating system device driver levels, and software as needed. Lenovo will also maintain records of latest patches, critical updates, and firmware levels, to ensure customer’s systems are providing business value through optimized performance.
• Technical Account Management (TAM)
  A Lenovo Technical Account Manager helps customers optimize operations of their data centers based on a deep understanding of customer’s business. Customers gain direct access to a Lenovo TAM, who serves as their single point of contact to expedite service requests, provide status updates, and furnish reports to track incidents over time. Also, a TAM helps proactively make service recommendations and manage service relationship with Lenovo to make certain that customer’s needs are met.
• Your Drive Your Data
  Lenovo’s Your Drive Your Data service is a multi-drive retention offering that ensures that customer’s data is always under their control, regardless of the number of drives that are installed in their Lenovo system. In the unlikely event of a drive failure, customers retain possession of their drive while Lenovo replaces the failed drive part. Customer’s data stays safely on customer premises, in their hands. The Your Drive Your Data service can be purchased in convenient bundles with Foundation, Essential, or Advanced Service upgrades and extensions.
• Health Check
  • Having a trusted partner who can perform regular and detailed health checks is central to maintaining efficiency and ensuring that customer systems and business are always running at their best. Health Check supports Lenovo-branded server, storage, and networking devices, as well as select Lenovo- supported products from other vendors that are sold by Lenovo or a Lenovo-Authorized Reseller.
  • Some regions might have different warranty terms and conditions than the standard warranty. This is due to local business practices or laws in the specific region. Local service teams can assist in explaining region- specific terms when needed. Examples of region-specific warranty terms are second or longer business day parts delivery or parts-only base warranty.
  • If warranty terms and conditions include onsite labor for repair or replacement of parts, Lenovo will dispatch a service technician to the customer site to perform the replacement. Onsite labor under base warranty is limited to labor for replacement of parts that have been determined to be field-replaceable units (FRUs).

Parts that are determined to be customer-replaceable units (CRUs) do not include onsite labor under base warranty.
If warranty terms include parts-only base warranty, Lenovo is responsible for delivering only replacement parts that are under base warranty (including FRUs) that will be sent to a requested location for self-service. Parts-only service does not include a service technician being dispatched onsite. Parts must be changed at customer’s own cost and labor and defective parts must be returned following the instructions supplied with the spare parts.
Lenovo support services are region-specific. Not all support services are available in every region.
For information about Lenovo support services that are available in a specific region, refer to the following resources:

• Service part numbers in Data Center Solution Configurator (DCSC): http://dcsc.lenovo.com/#/services
• Lenovo Services Availability Locator https://lenovolocator.com/

For service definitions, region-specific details, and service limitations, refer to the following documents:

• Lenovo Statement of Limited Warranty for Infrastructure Solutions Group (ISG) Servers and System Storage
  http://pcsupport.lenovo.com/us/en/solutions/ht503310
• Lenovo Data Center Services Agreement http://support.lenovo.com/us/en/solutions/ht116628

Services

Lenovo Services is a dedicated partner to your success. Our goal is to reduce your capital outlays, mitigate your IT risks, and accelerate your time to productivity.
Note: Some service options may not be available in all markets or regions. For more information, go to https://www.lenovo.com/services. For information about Lenovo service upgrade offerings that are available in your region, contact your local Lenovo sales representative or business partner.
Here’s a more in-depth look at what we can do for you:

• Asset Recovery Services
  Asset Recovery Services (ARS) helps customers recover the maximum value from their end-of-life equipment in a cost-effective and secure way. On top of simplifying the transition from old to new equipment, ARS mitigates environmental and data security risks associated with data center equipment disposal. Lenovo ARS is a cash-back solution for equipment based on its remaining market value, yielding maximum value from aging assets and lowering total cost of ownership for your customers.
  For more information, see the ARS page, https://lenovopress.com/lp1266-reduce-e-waste-and-grow-your-bottom-line-with-lenovo-ars.
• Assessment Services
  An Assessment helps solve your IT challenges through an onsite, multi-day session with a Lenovo technology expert. We perform a tools-based assessment which provides a comprehensive and thorough review of a company’s environment and technology systems. In addition to the technology based functional requirements, the consultant also discusses and records the non-functional business requirements, challenges, and constraints. Assessments help organizations like yours, no matter how large or small, get a better return on your IT investment and overcome challenges in the ever-changing technology landscape.
• Design Services
  Professional Services consultants perform infrastructure design and implementation planning to support your strategy. The high-level architectures provided by the assessment service are turned into low level designs and wiring diagrams, which are reviewed and approved prior to implementation. The implementation plan will demonstrate an outcome-based proposal to provide business capabilities through infrastructure with a risk-mitigated project plan.
• Basic Hardware Installation
  Lenovo experts can seamlessly manage the physical installation of your server, storage, or networking hardware. Working at a time convenient for you (business hours or off shift), the technician will unpack and inspect the systems on your site, install options, mount in a rack cabinet, connect to power and network, check and update firmware to the latest levels, verify operation, and dispose of the packaging, allowing your team to focus on other priorities.
• Deployment Services
  When investing in new IT infrastructures, you need to ensure your business will see quick time to value with little to no disruption. Lenovo deployments are designed by development and engineering teams who know our Products & Solutions better than anyone else, and our technicians own the process from delivery to completion. Lenovo will conduct remote preparation and planning, configure & integrate systems, validate systems, verify and update appliance firmware, train on administrative tasks, and provide post-deployment documentation. Customer’s IT teams leverage our skills to enable IT staff to transform with higher level roles and tasks.
• Integration, Migration, and Expansion Services
  Move existing physical & virtual workloads easily, or determine technical requirements to support increased workloads while maximizing performance. Includes tuning, validation, and documenting ongoing run processes. Leverage migration assessment planning documents to perform necessary migrations.

Regulatory compliance

The ThinkSystem DE Series enclosures conform to the following regulations:

• United States: FCC Part 15, Class A; UL 60950-1 and 62368-1
• Canada: ICES-003, Class A; CAN/CSA-C22.2 60950-1 and 62368-1
• Argentina: IEC60950-1 Mexico NOM
• European Union: CE Mark (EN55032 Class A, EN55024, IEC/EN60950-1 and 62368-1); ROHS Directive 2011/65/EU
• Russia, Kazakhstan, Belarus: EAC
• China: CCC GB 4943.1, GB 17625.1, GB 9254 Class A; CELP; CECP
• India: BIS
• Japan: VCCI, Class A
• Taiwan: BSMI CNS 13438, Class A; CNS 14336-1
• Korea KN32/35, Class A
• Australia/New Zealand: AS/NZS CISPR 22 Class A

Interoperability

Lenovo provides end-to-end storage compatibility testing to deliver interoperability throughout the network. The ThinkSystem DE6000F All Flash Storage Array supports attachment to Lenovo ThinkSystem, System x, and Flex System hosts by using SAS, iSCSI, Fibre Channel, NVMe over Fibre Channel (NVMe/FC), or NVMe over RoCE (RDMA over Converged Ethernet) (NVMe/RoCE) storage connectivity protocols.
For end-to-end storage configuration support, refer to the Lenovo Storage Interoperation Center (LSIC): https://datacentersupport.lenovo.com/us/en/lsic
Use the LSIC to select the known components of your configuration and then get a list all other supported combinations, with details about supported hardware, firmware, operating systems, and drivers, plus any additional configuration notes. View results on screen or export them to Excel.

Fibre Channel SAN switches

Lenovo offers the ThinkSystem DB Series of Fibre Channel SAN switches for high-performance storage expansion. See the DB Series product guides for models and configuration options:
ThinkSystem DB Series SAN Switches: https://lenovopress.com/storage/switches/rack#rt=product-guide

Rack cabinets

The supported rack cabinets.

For specifications about these racks, see the Lenovo Rack Cabinet Reference, available from: https://lenovopress.com/lp1287-lenovo-rack-cabinet-reference
For more information, see the list of Product Guides in the Rack cabinets category: https://lenovopress.com/servers/options/racks

Power distribution units

The power distribution units (PDUs) that are offered by Lenovo.

For more information, see the Lenovo Press documents in the PDU category: https://lenovopress.com/servers/options/pdu

Uninterruptible power supply units

The uninterruptible power supply (UPS) units that are offered by Lenovo

Only available in China and the Asia Pacific market.
For more information, see the list of Product Guides in the UPS category: https://lenovopress.com/servers/options/ups

Lenovo Financial Services

• Lenovo Financial Services reinforces Lenovo’s commitment to deliver pioneering products and services that are recognized for their quality, excellence, and trustworthiness. Lenovo Financial Services offers financing solutions and services that complement your technology solution anywhere in the world.
• We are dedicated to delivering a positive finance experience for customers like you who want to maximize your purchase power by obtaining the technology you need today, protect against technology obsolescence, and preserve your capital for other uses.
• We work with businesses, non-profit organizations, governments and educational institutions to finance their entire technology solution. We focus on making it easy to do business with us. Our highly experienced team of finance professionals operates in a work culture that emphasizes the importance of providing outstanding customer service. Our systems, processes and flexible policies support our goal of providing customers with a positive experience.
• We finance your entire solution. Unlike others, we allow you to bundle everything you need from hardware and software to service contracts, installation costs, training fees, and sales tax. If you decide weeks or months later to add to your solution, we can consolidate everything into a single invoice.
• Our Premier Client services provide large accounts with special handling services to ensure these complex transactions are serviced properly. As a premier client, you have a dedicated finance specialist who manages your account through its life, from first invoice through asset return or purchase. This specialist develops an in-depth understanding of your invoice and payment requirements. For you, this dedication provides a high-quality, easy, and positive financing experience.

For your region-specific offers, please ask your Lenovo sales representative or your technology provider about the use of Lenovo Financial Services. For more information, see the following Lenovo website: https://www.lenovo.com/us/en/landingpage/lenovo-financial-services/

Related publications and links

For more information, see the following resources:

1. Lenovo SAN Storage product page
   https://www.lenovo.com/us/en/c/data-center/storage/storage-area-network
2. ThinkSystem DE All Flash Array interactive 3D Tour
   https://lenovopress.com/lp0956-thinksystem-de-all-flash-interactive-3d-tour
3. ThinkSystem DE All-Flash Array datasheet
   https://lenovopress.com/ds0051-lenovo-thinksystem-de-series-all-flash-array
4. Lenovo Data Center Solution Configurator
   http://dcsc.lenovo.com
5. Lenovo Data Center Support
   http://datacentersupport.lenovo.com

Related product families

Product families related to this document are the following:

• Lenovo Storage
• DE Series Storage
• External Storage

Notices

Lenovo may not offer the products, services, or features discussed in this document in all countries. Consult your local Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any Lenovo intellectual property right may be used instead. However, it is the user’s responsibility to evaluate and verify the operation of any other product, program, or service. Lenovo may have patents or pending patent applications covering subject matter described in this document. The furnishing of this document does not give you any license to these patents.
You can send license inquiries, in writing, to:
Lenovo (United States), Inc. 8001 Development Drive
Morrisville, NC 27560 U.S.A.
Attention: Lenovo Director of Licensing
LENOVO PROVIDES THIS PUBLICATION ”AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT,
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.
This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. Lenovo may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice.
The products described in this document are not intended for use in implantation or other life support applications where malfunction may result in injury or death to persons. The information contained in this document does not affect or change Lenovo product specifications or warranties. Nothing in this document shall operate as an express or implied license or indemnity under the intellectual property rights of Lenovo or third parties. All information contained in this document was obtained in specific environments and is presented as an illustration. The result obtained in other operating environments may vary. Lenovo may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you.
Any references in this publication to non-Lenovo Web sites are provided for convenience only and do not in any manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at your own risk. Any performance data contained herein was determined in a controlled environment. Therefore, the result obtained in other operating environments may vary significantly. Some measurements may have been made on development-level systems and there is no guarantee that these measurements will be the same on generally available systems. Furthermore, some measurements may have been estimated through extrapolation. Actual results may vary. Users of this document should verify the applicable data for their specific environment

This document, LP0910, was created or updated on October 18, 2022. Send us your comments in one of the following ways:

Use the online Contact us review form found at: https://lenovopress.lenovo.com/LP0910
Send your comments in an e-mail to: [email protected]
This document is available online at https://lenovopress.lenovo.com/LP0910.

Trademarks

Lenovo and the Lenovo logo are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. A current list of Lenovo trademarks is available on the Web at https://www.lenovo.com/us/en/legal/copytrade/.

The following terms are trademarks of Lenovo in the United States, other countries, or both:

• Lenovo®
• Flex System
• Lenovo Services
• System x®
• ThinkSystem®
• Top Seller
• XClarity®

The following terms are trademarks of other companies:
Linux® is the trademark of Linus Torvalds in the U.S. and other countries.
Excel®, Microsoft®, Windows Server®, and Windows® are trademarks of Microsoft Corporation in the United States, other countries, or both.
Other company, product, or service names may be trademarks or service marks of others

References

• Home - Data Center Support - Lenovo Support US
• DCSC - Data Center Solution Configurator
• DCSC - Data Center Solution Configurator
• Lenovo Statement of Limited Warranty for Data Center Group (DCG) Servers, System Storage and Networking - Lenovo Support US
• Lenovo Data Center Services Agreement - Lenovo Support US
• Lenovo Storage Interoperation Center (LSIC) - Lenovo Support US
• Services Availability Locator
• ThinkSystem DE Series All-Flash Array Datasheet > Lenovo Press
• 3D Tour: Lenovo ThinkSystem DE Series All Flash Storage Array Interactive 3D Tour > Lenovo Press
• Reduce E-Waste and Grow Your Bottom Line with Lenovo Asset Recovery Services (ARS) > Lenovo Press
• Reduce E-Waste and Grow Your Bottom Line with Lenovo Asset Recovery Services (ARS) > Lenovo Press
• Lenovo Rack Cabinet Reference > Lenovo Press
• Power Distribution Units > Lenovo Press
• Rack Cabinets > Lenovo Press
• Uninterruptible Power Supplies > Lenovo Press
• Rack SAN Switches > Lenovo Press
• lenovopress.lenovo.com/assets/images/LP0910/DE-2U-EXP-rear.png
• lenovopress.lenovo.com/assets/images/LP0910/DE-2U-SFF-front-2.png
• lenovopress.lenovo.com/assets/images/LP0910/DE6000-2U-rear-5.png
• lenovopress.lenovo.com/assets/images/LP0910/DE6000F-overview-2.png
• Lenovo ThinkSystem DE6000F All Flash Storage Array Product Guide > Lenovo Press
• External Storage > Lenovo Press
• Lenovo Storage > Lenovo Press
• DE Series Storage > Lenovo Press
• ThinkSystem SAN Manager and System Manager
• ThinkSystem Storage vCenter Plugin
• Embedded command line interface
• Lenovo Official US Site | Laptops, PCs, Tablets & Data Center | Lenovo US
• Storage Area Network | Enterprise SAN Systems & Products | Lenovo US
• Lenovo Financial Services | Lenovo US
• Copyright and Trademark Information | Lenovo US | Lenovo US
