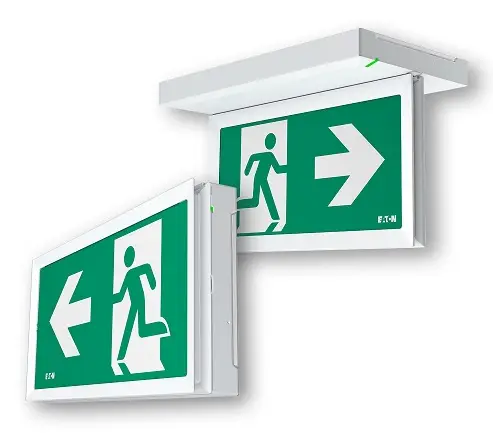

EATON FlexiTech Safety Escape AT LED

OVERVIEW

Installation

Intended used

Disconnect the battery, wait for 10 seconds, and reconnect it if you decide to change the configuration (steps 2-3).

If the battery duration is insufficient, replace the battery. When the lifetime of the light source is over, replace the luminaire WEEE: Contact your local dealerEaton.com/recycling

ZNO2047300 A- 05/2021 Eaton is a registered trademark. All trademarks are the property of their respective owners.

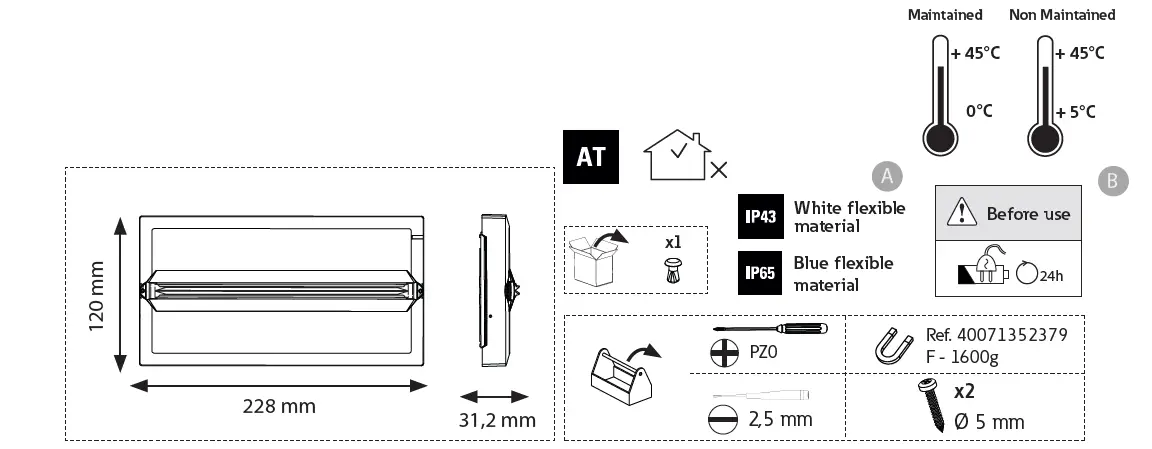

•  White flexible material
•  Blue flexible material

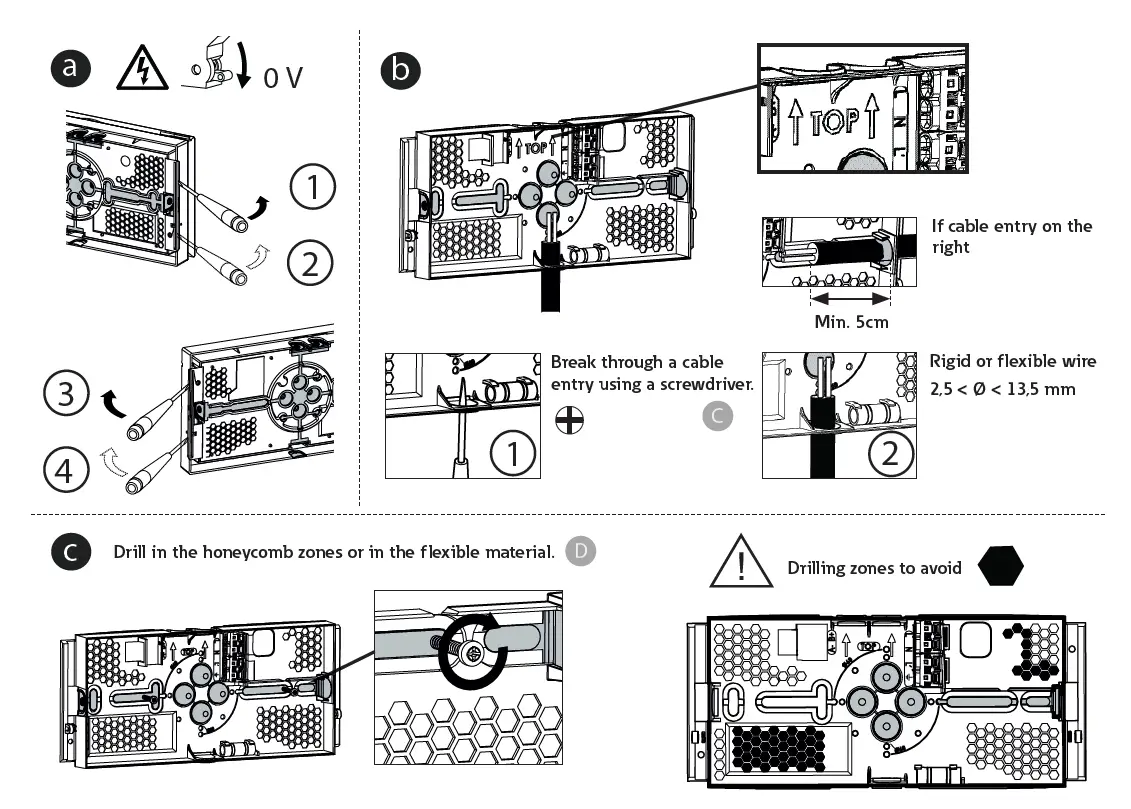

•  Break through a cable entry using a screwdriver.
•  Rigid or flexible wire
•  If cable entry on the right
•  Drill in the honeycomb zones (IP43) or in the flexible material (IP65/IP43).
•  Drilling zones to avoid

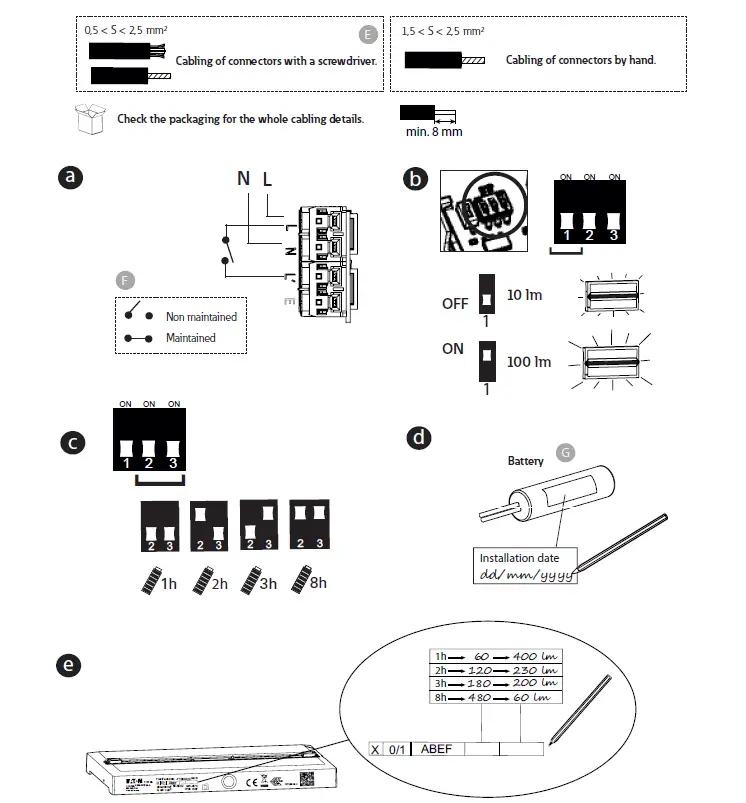

•  Cabling of connectors with a screwdriver.
•  Cabling of connectors by hand.
•  Check the packaging for the whole cabling details.
•  Non-maintained
•  Maintained

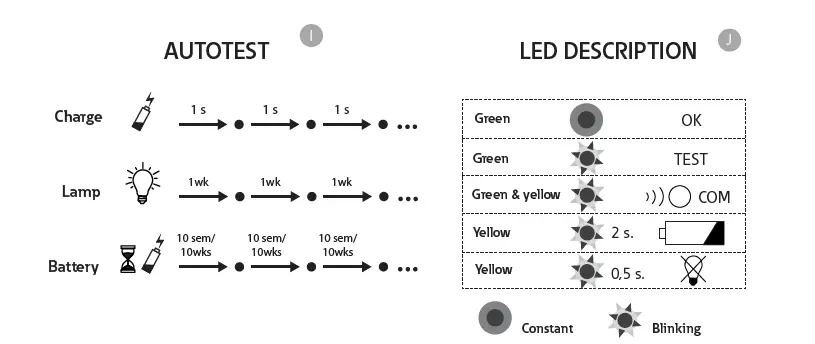

•  Autotest
•  Charge / Lamp / Battery
•  1wk / 26wks
•  LED Description
•  Green / Yellow
•  Constant / Blinking
•  Disconnect the battery, wait for 10 seconds, and reconnect it if you decide to change the configuration (steps 2-3).

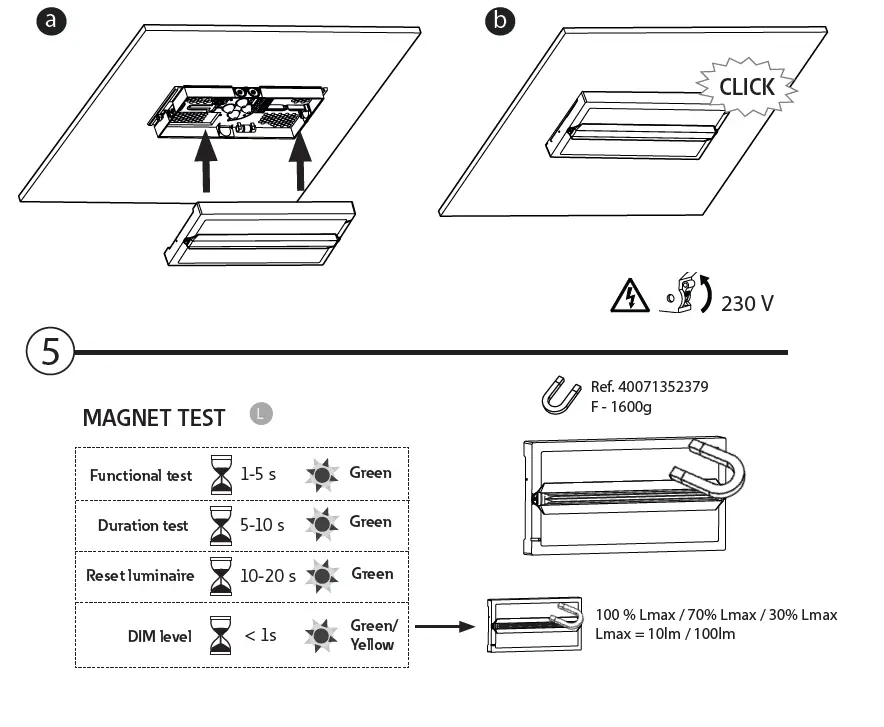

•  Magnet Test
•  Functional Test

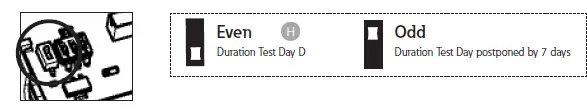

•  Duration Test
•  Reset luminaire
•  DIM level
•  Green / Yellow
•  Replaceable
•  Not replaceable
•  Battery pack, Order code
•  If the battery duration is insufficient, replace the battery.
