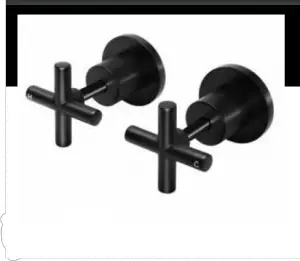

MW08
WALL TOP ASSEMBLY
AVAILABLE
FINISHES
FEATURES
- 10 Year warranty
- Jumper-valve spindle
- Solid brass construction
- Box Weight 1Kg
CARE
- Do not install tapware using any form of acetone silicones.
- Do not apply physical items (such as tools) directly to product.
- Never use house-hold or commercial detergents, citrus based cleaners, or abrasive cleaners.
- Clean using a mild washing soap solution rinsed, and dry with a soft cloth.
- Check for any product defects before installation.
- Refer to the installation manual for correct installation.
SPECIFICATIONS

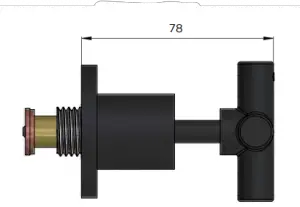

Closed position

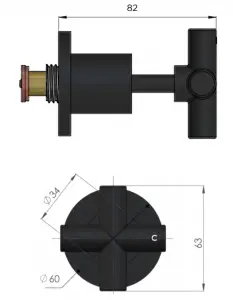

Open position

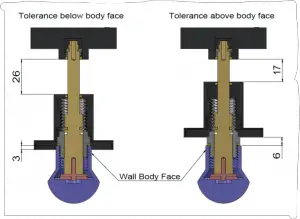

TOLERANCES

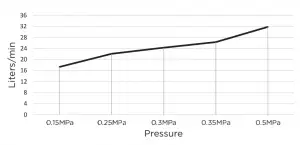

FLOW RATE GRAPH
CREDENTIALS
- Watermark AS/NZS 3718 WMKA25013

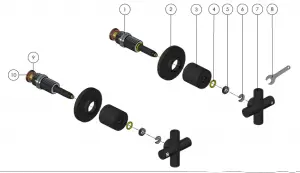

EXPLODED VIEW
| NO. | Part- Name |
| 1 | Spindle |
| 2 | Back plate |
| 3 | Body |
| 4 | 0-ring |
| 5 | Nut |
| 6 | Washer |
| 7 | Handle |
| 8 | Installation tool |
| 9 | jumper valve |
| 10 | fiber washer |
