AiKUN BT831 Rechargeable Wireless Mouse
SPECIFICATION
| MODEL NO. | BT831 | TYPE | BT5.1+2.4G | |
| MP DATE | 2021-03-25 | REVISION DATE | 2021-12-20 | |
|

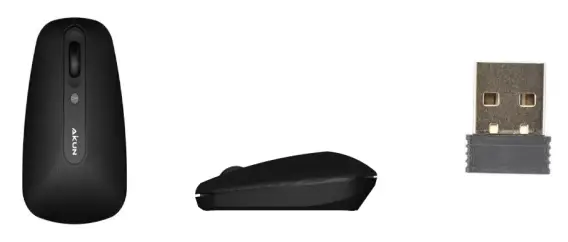

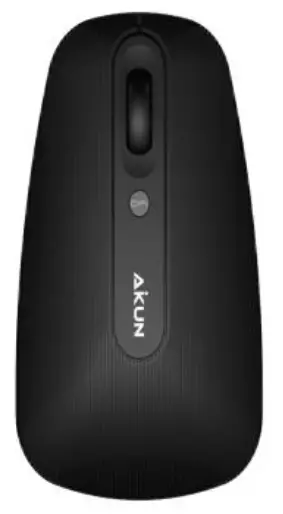

Products Photo |
| |||
| Class ify | Item | Specification/Parameter | Item | Specification/Parameter |
|
specifi cation | Mouse Type | BT5.1+2.4G | Number Of Keys | 3D 4Keys |
| Battery Type | Li-ion 800mAh | Mouse Size(L*W*H) | 103*68.5*34mm | |
| Operate Mode | Optical（Red） | Mouse MW | 55±10g | |
| DPI Button | Yes | USB Receiver NW | 2±0.5g | |
| Default DPI | 1200 | USB Receiver IC | SE8RS02 | |
| DPI Switch | 1000-1200-1600 | Sensor Max Acceleration | 10G | |
| Data rate of return | 125HZ | Sensor Movement Speed | 30 Inches Per Second | |
| Key life | 3 million | Working Distance | 8-10M | |
|
Master IC Mode |
HS6620B+3205 |
System Compatibility | 2.4G:WinXP/Win7/Win8/W10/w 11,Android 4.4 or above.IOS 13 or above,Mac OS X 10.5 or above,LINUX,Chrome OS
BT:Win8/W10,Android 5.0 or above.IOS 13 or above,Mac OS X 10.1 or above | |
| Mouse Operating Voltage | DC3.0-4.2V | USB Receiver Operating Voltage | USB 4.5V to 5.25VDC | |
| Operating Current | ≤20mA | USB Receiver Operating Current | ≤50mA | |
| Operating temperature | 0～45℃ | Storage temperature | -20～+60℃ | |
| Operating humidity | 20～90% | Storage humidity | ≤93% (40℃) | |
| Operating temperature | 0～45℃ | Storage temperature | -20～+60℃ | |
| Operating humidity | 20～90% | Storage humidity | ≤93% (40℃) |
FCC Caution
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.
