Colletta Ninna
IMPORTANT: KEEP FOR FUTURE REFERENCE
READ CAREFULLY

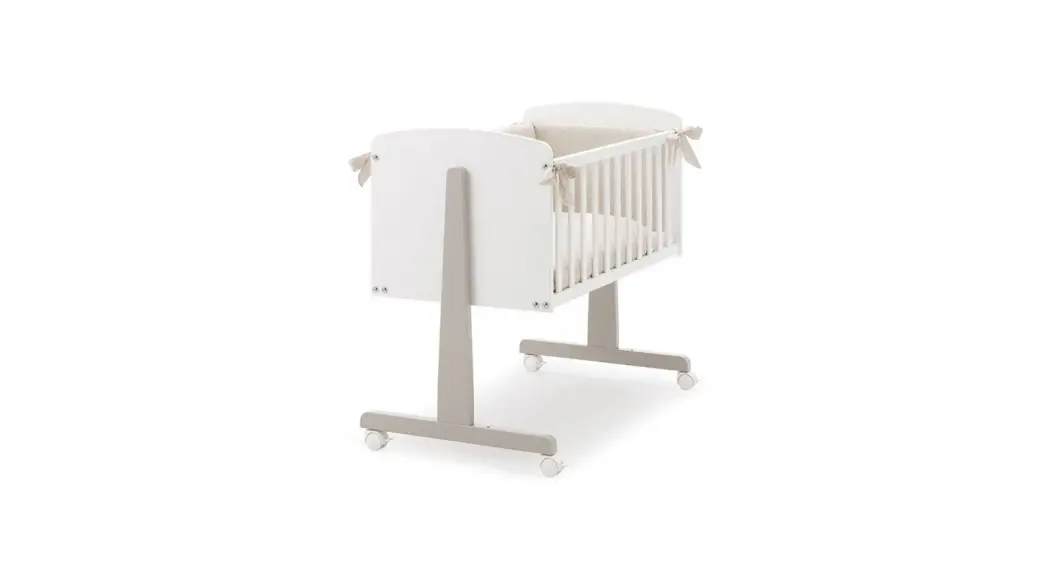

8050612381 Culletta Ninna with Textile Cover
WE SUGGEST CONTROLLING CAREFULLY ALL ELEMENTS BEFORE THE ASSEMBLING AND TO FOLLOW CAREFULLY INSTRUCTIONS.
THE COMPANY WILL NOT SUBSTITUTE FOR FREE ITEMS ASSEMBLED EVEN IF ELEMENTS WERE FOUND BROKEN, OR IF THE DAMAGE IS CAUSED BY WRONG ASSEMBLING OR WRONG USE OF THE ITEM
Past List
Grade parts

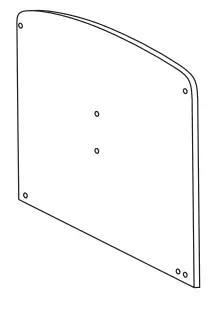

 | 2xA Headboard/Footboard |

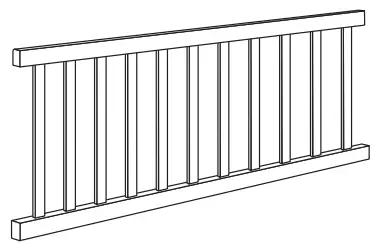

 | 2xB Sides rails |

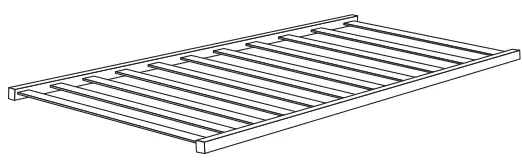

 | 1xC Mattress base |
 | 2xD Legs |

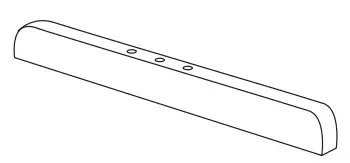

 | 2xE Feet |

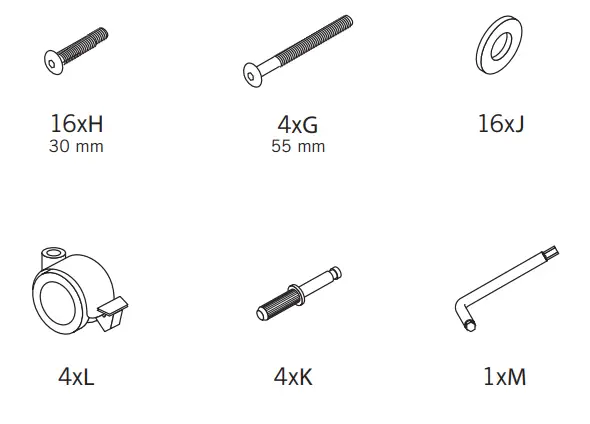

Hardware parts

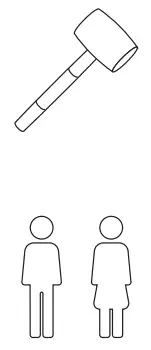

Tools needed

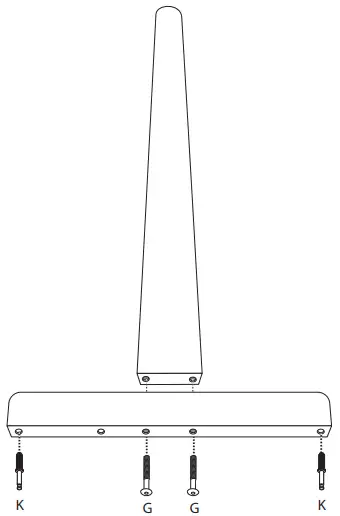

Step 1
Assemble leg on feet centrals holes

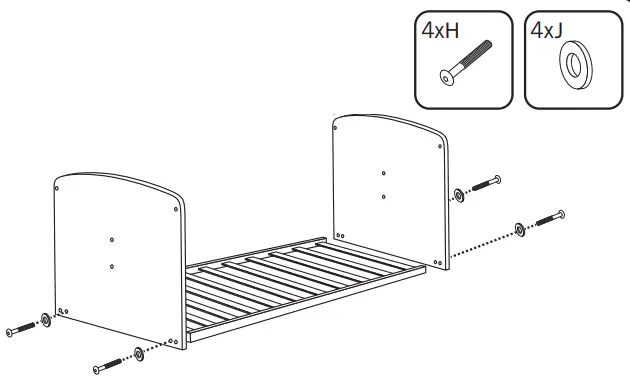

Step 2a
Cradle Structure assembly: head and footboard assemble to spring
Step 2b

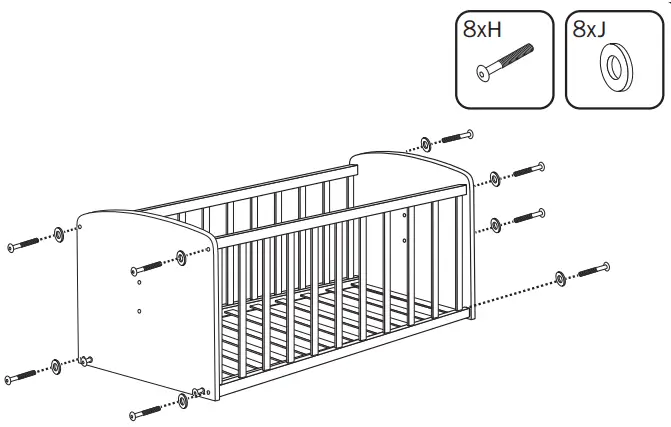

Side rails assembly
Step 3a

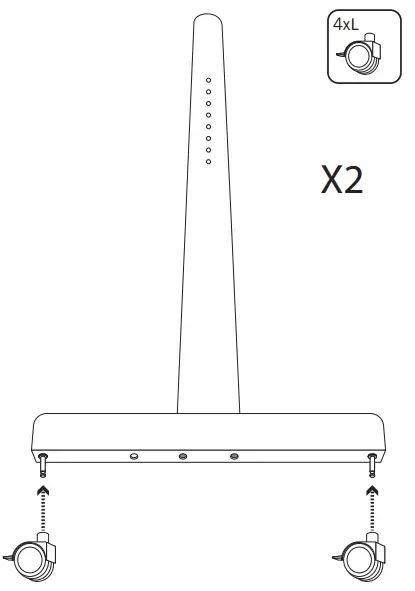

Insert wheels with brake
Step 3b

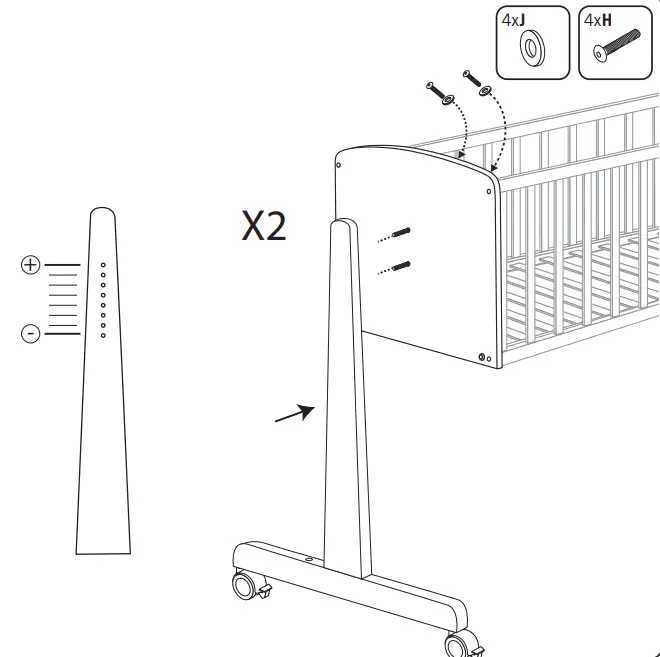

Assemble the cradle structure to the legs choosing the needed position Attention: Use only the short screws H
Step 4

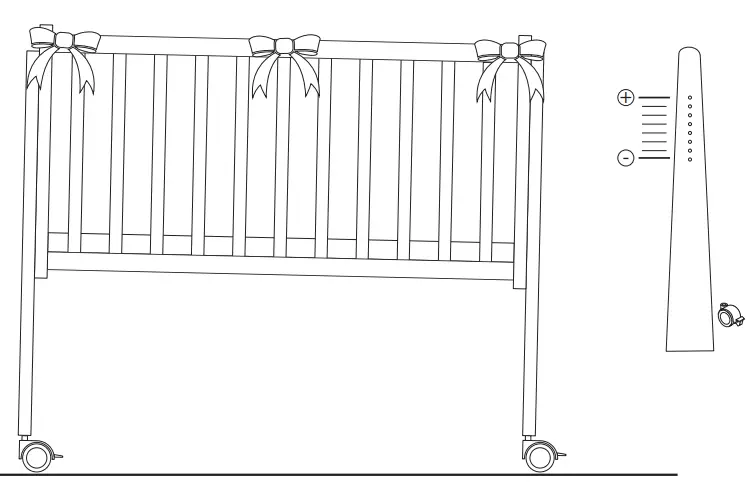

To assemble to an anti-reflux position choose the right height with one position difference between two legs.
Parts list description
| Part | Quantity | Description | Parts composition |
| A | 1+1 | Headboard/Footboard | Particleboard paper/wood coated |
| B | 2 | Sides | Solid beechwood |
| C | 1 | Mathes base | Solid beechwood |
| D | 2 | Legs | Solid beechwood |
| E | 2 | Foots | Solid beechwood |
| G | 4 | Screws 55 mm | Metal |
| H | 16 | Screws 30 mm | Metal |
| J | 16 | Washers | Plastic |
| K | 4 | Caster Metal pins | Metal |
| L | 4 | Casters with brake | Plastic |
| M | 1 | Allen wrench | Metal |
