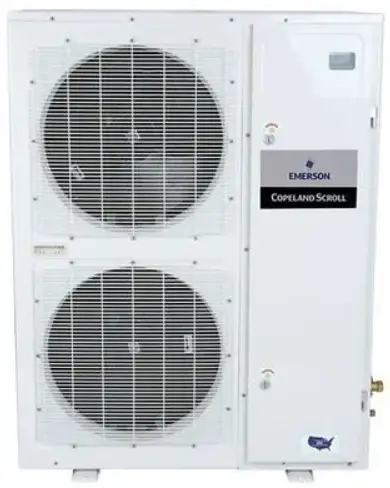

Copeland™ ZX Outdoor Refrigeration Units for A2L Refrigerants
The Copeland ZX outdoor refrigeration units for A2L refrigerants offer additional benefits for wholesalers, installers and operators. With this new range of Copeland ZX outdoor refrigeration units, Emerson offers a low GWP solution for refrigeration applications with space and noise constraints which responds to the increasing demand for energy-efficient and future-proof refrigeration solutions. Copeland ZX units feature the most complete and unique equipment. The modified design, the innovative control logic and a selection of dedicated components enable legal compliance for applications with A2L refrigerants. The advanced electronic controller enables precise parameter control and displays the system status. Electronic protection functions, oil separator and suction accumulator guarantee optimum system safety. The range is completed by models with stepless digital capacity modulation which are well established in applications with multiple evaporators and precise temperature control.
The new Copeland series of outdoor refrigeration units are specifically designed to cater for a wide range of refrigeration applications which request a low GWP and future-proof solution:
- Convenience stores
- Cold rooms
- Fast food chains and restaurants
- Bakeries and butchers

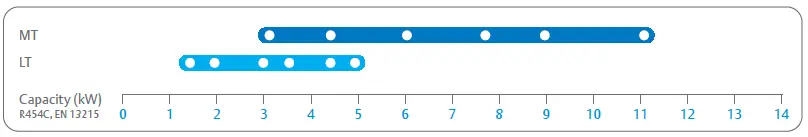

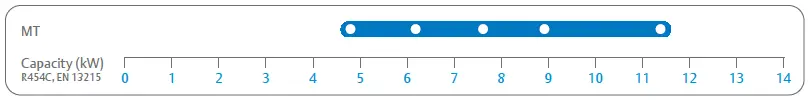

Capacity Line-up
ZX
ZX Digital
Technical Overview
|
Model | Displacement | Receiver (l) | Number | Total Fan Power (W) | Suction Line (inch) | Liquid Line (inch) | Width/ Depth/ Height (mm) | Net Weight (kg) | Motor Version/ Code | Maximum Operating Current (A) | Locked Rotor Current (A) | Sound Pressure |
| 3 Ph* | 3 Ph* | 3 Ph* | @10m – d(BA)** | |||||||||
| Medium Temperature Models | ||||||||||||
| ZXMY-020E | 5.8 | 4.1 | 1 | 115 | 3/4 | 1/2 | 446/1035/840 | 76 | TFM | 4.2 | 26.0 | 37 |
| ZXMY-030E | 8.0 | 4.1 | 1 | 115 | 3/4 | 1/2 | 446/1035/840 | 79 | TFM | 5.5 | 32.0 | 38 |
| ZXMY-040E | 11.4 | 4.1 | 1 | 115 | 3/4 | 1/2 | 446/1035/840 | 91 | TFM | 7.8 | 50.0 | 38 |
| ZXMY-050E | 14.3 | 5.9 | 2 | 230 | 7/8 | 1/2 | 446/1035/1244 | 108 | TFM | 10.1 | 64.0 | 41 |
| ZXMY-060E | 16.7 | 5.9 | 2 | 230 | 7/8 | 1/2 | 446/1035/1244 | 112 | TFM | 11.8 | 74.0 | 41 |
| ZXMY-075E | 21.4 | 5.9 | 2 | 230 | 7/8 | 1/2 | 446/1035/1244 | 118 | TFM | 15.9 | 102.0 | 41 |
| Digital Medium Temperature Models | ||||||||||||
| ZXDY-030E | 8.8 | 4.1 | 1 | 115 | 3/4 | 1/2 | 446/1035/840 | 79 | TFM | 6.7 | 40.0 | 39 |
| ZXDY-040E | 11.4 | 5.9 | 2 | 230 | 7/8 | 1/2 | 446/1035/1244 | 106 | TFM | 10.0 | 48.0 | 42 |
| ZXDY-050E | 14.4 | 5.9 | 2 | 230 | 7/8 | 1/2 | 446/1035/1244 | 108 | TFM | 11.3 | 64.0 | 42 |
| ZXDY-060E | 17.1 | 5.9 | 2 | 230 | 7/8 | 1/2 | 446/1035/1244 | 112 | TFM | 12.3 | 74.0 | 43 |
| ZXDY-075E | 21.4 | 5.9 | 2 | 230 | 7/8 | 1/2 | 446/1035/1244 | 118 | TFM | 15.9 | 102.0 | 43 |
| Low Temperature Models | ||||||||||||
| ZXLY-020E | 5.9 | 4.1 | 1 | 115 | 3/4 | 1/2 | 446/1035/840 | 74 | TFD | 6.5 | 24.5 | 37 |
| ZXLY-030E | 8.0 | 4.1 | 1 | 115 | 3/4 | 1/2 | 446/1035/840 | 81 | TFD | 7.6 | 36.0 | 37 |
| ZXLY-040E | 11.8 | 4.1 | 1 | 115 | 3/4 | 1/2 | 446/1035/840 | 87 | TFD | 9.8 | 46.5 | 38 |
| ZXLY-050E | 14.4 | 5.9 | 2 | 230 | 7/8 | 1/2 | 446/1035/1244 | 113 | TFD | 11.5 | 58.0 | 41 |
| ZXLY-060E | 17.1 | 5.9 | 2 | 230 | 7/8 | 1/2 | 446/1035/1244 | 115 | TFD | 15.3 | 67.0 | 41 |
| ZXLY-075E | 21.4 | 5.9 | 2 | 230 | 7/8 | 1/2 | 446/1035/1244 | 121 | TFD | 19.1 | 92.0 | 42 |
- 3ph : 380-420V/ 50Hz
- 10m: sound pressure level at 10m distance from the compressor, free field condition
Features and Benefits
Standard equipment
- Copeland™ scroll compressor, crankcase heater, liquid receiver, service valves, filter drier & sight glass
- Dedicated hermetic A2L design with sealed E-box and fresh air intake control logic
- External main power switch
- Fan speed control
- Oil separator (Digital and LT version)
- Suction accumulator (LT version only)
Wide choice of low GWP refrigerants
- Multiple A2L refrigerants approved: R454A, R454C, R455A, R1234yf
- Compatible with A1 refrigerants: R404A, R407A, R407F, R448A, R449A, R134a, R450A, R513A
- Enabling F-Gas compliance
- Enabling Eco-design compliance
Quiet operation
- Copeland scroll compressor
- New fans with improved sound level
- Fan speed control
Minimized operating costs
- High efficiency Copeland scroll compressor
- Digital capacity modulation (ZX Digital)
- Speed-modulating high-efficiency fan
- Intelligent protection and diagnostics
Reduced service costs
- Easy access to all components
- Scroll liquid handling capability for higher reliability than reciprocating technology
- Wider operating envelope of scroll than reciprocating technology
Designed for time and space-saving installations
- Plug & Play installation/commissioning
- Hinged door for better access
- Easy handling through compact & light weight design
- Perfect for wall mount or roof mount applications
For more details, see climate.emerson.com/en-gb
