Liteboxer Technologies LB-TABLET01 Liteboxer Tablet

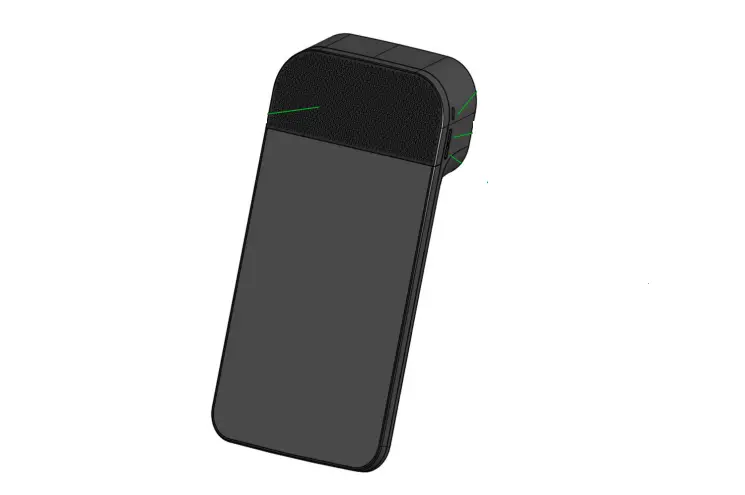

Features

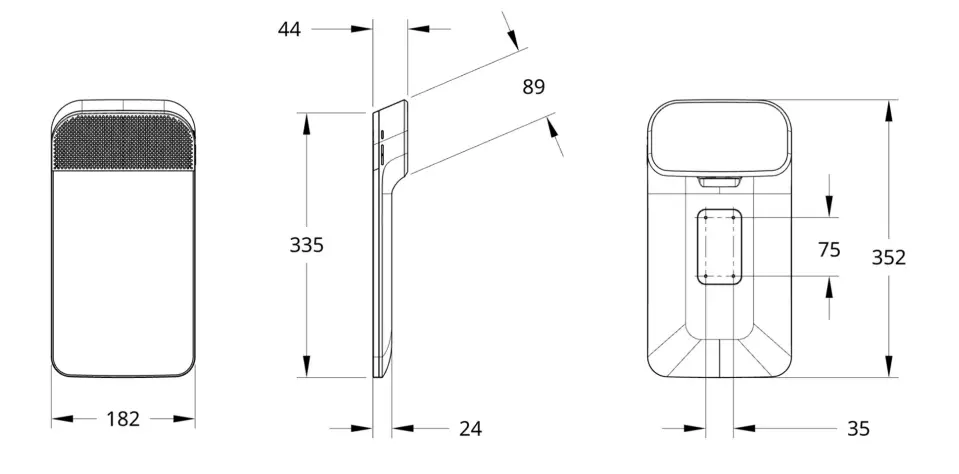

Preliminary Dimensions
Specifications
| LCD Display | ||
| Dimension | 10.1” (256mm) or similar | 16:10 ratio |
| Resolution | 1280×800 | |
| Viewing Angle | 89/89/89/89 | |
| Brightness | 400 nits | |
| Contrast Ratio | 800 | |
| Speakers | ||
| Drivers | 2x; 50mm; 10 Watt * | |
| Passive Radiators | 2x * | |
| Tuning | For immersive music with bass * |
| Main Processor | Mediatek i350 4 core processor | Must run Liteboxer app smoothly |
| Memory | ||
| RAM | 2GB | |
| Flash | 32GB | |
| OS | Android 11 | |
| Wireless Capabilities | ||
| Wifi | 11 a/b/g/n/ac, MIMO | |
| Bluetooth | BLE 5.0 | |
| ANT+ | Supported | |
| Physical Buttons | Sleep/Wake, Vol Up, Vol Down |

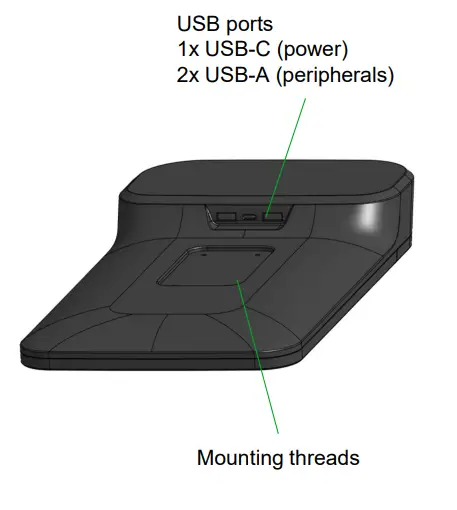

| Connectors | ||
| Power | USB-C, 12V DC | Or as required by tablet |
| Peripherals | 2x USB-A, 5V 2A | For Liteboxer device power/data and debugging |
| Power | ||
| Supply | External 12V adapter with USB-C connector | |
| Battery | None | |
| Mechanical | ||
| Housing | Plastic, Glass (custom touchscreen) | |
| Mounting | VESA standard 35mm x 75mm (M4x0.7mm, 8mm depth) |
Federal Communication Commission Interference Statement
15.19
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
15.105
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
15.21
Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
- For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible
- FCC RF Radiation Exposure Statement:
This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an
population/uncontrolled environment can be satisfied.
- Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate this equipment.
- USERS MANUAL OF THE END PRODUCT:
- In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate this equipment.
- If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual:
- This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
