Abuytwo A3102 Wireless Speaker User Manual

INFI Essential
(User Manual)

What’s in the Box

• Abuytwo Speaker
• USB-C Charging Cable
• User Manual
• Lanyard

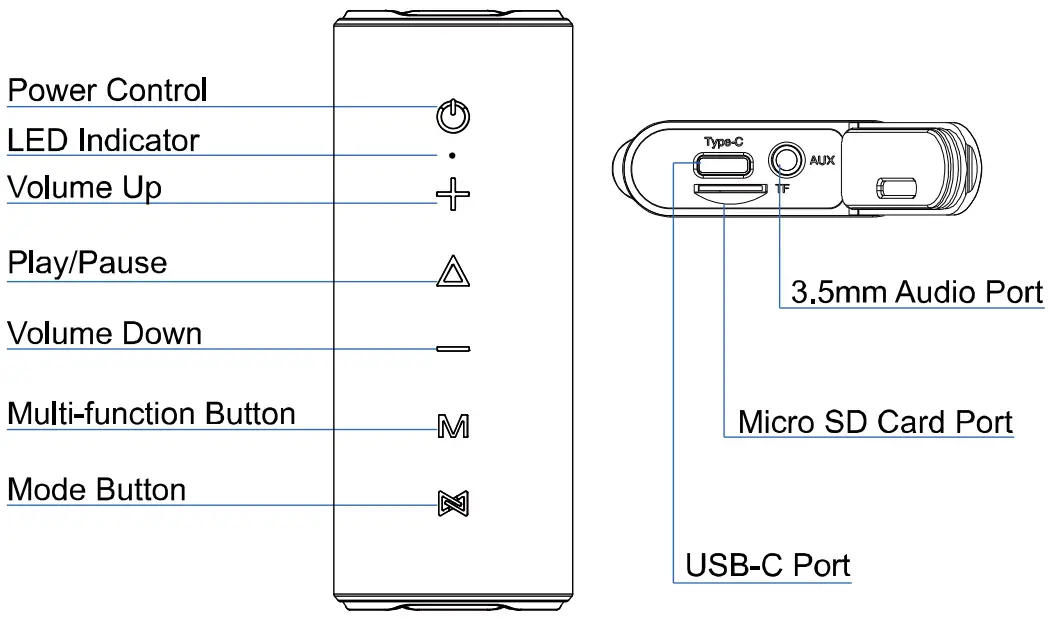

At a Glance

Charging

Fully charge before first use to prolong the lifespan of the built-in battery

	Low battery	Flashing red
	Charging	Steady red
	Fully charged	Light off

Quick Start Guide

When first turned on, the Abuytwo speaker will enter Bluetooth mode.

Each time power on speaker, it will automatically connect to the last connected device. If not or pair a different device, press the M Button to enter Bluetooth pairing mode.

Button Controls

	Power on/off	Press and hold for 2seconds
	Cange RG8 lights	Press

	Adjust volume	Press
	change track	Press and hold for 2seconds

	Play/Pause	Press
	Answer End a call	Press
	Redial the last call	Press twice
	Decline an incoming call	Press and hold for 2seconds
	Activate Quit voice assistant	Press and hold for 2seconds
	Reset	Press and hold for 6seconds

If the Abytwo speaker is out of control. Press ad hold for 6 seconds to shut down the speaker compulsorily
M Enter Bluetooth mode Press
Press and hold for6 seconds list Press and hold for6 seconds

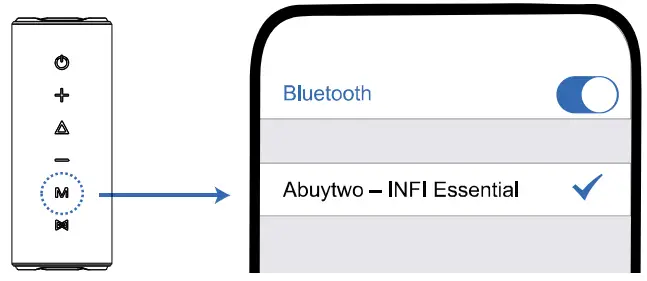

When a device cannot connect to the Abuyfw0speaker
When device cannot connect to the Abuytwo speaker

• Power on the speaker, press and hold the M 1 button for 6 seconds until hear the indication voice, and then release the button;
• Find and delete the name (Abuytwo — INFI Essential) that has been paired in the Bluetooth settings on your phone;
• Turn on the speaker and reconnect.

Enter/Exit TWS pairing mode Press
Change Bluetooth/Micro Press and hold
SD Card/Aux-In mode  for 2 seconds

• Two identical Abuytwo speakers can pair up with each other so that both play the same audio (one as L channel and the other as R channel).
• Both speakers press button to enter TWS pairing mode. Once successfully connected, the LED indicator of L channel will become steady blue and R channel become steady white.
• Only the L channel has a call function.

Micro SD Card and AUX In

• Plugin Micro SD card (not included) or an audio cable will automatically switch to Micro SD Card mode or AUX mode.
• Micro SD card supports WAV/FLAC/APE/MP3 format, with a capacity smaller than 64GB.
• When AUX mode, control audio playback via the connected device.

Product Specifications

Audio output power	2*15 W
Battery type	Li-ion polymer 13.32 Wh (3.7 V / 3600 mAh)
Battery charge time	4 hours (5 V1 A)
Music playtime	up to 30 hours (dependent on volume level and audio content)
Bluetooth version	5.0
Bluetooth range	20 m/66 ft
Waterproof level	IPX7
Dimensions	186 x 74 x 74 mm / 7.32 x 2.91 x 2.91 inches
Weight	520 g / 1.15 lbs

FCC Conditions

This devioe 0omphies with part 15 of the FCC Rules Operation is subject to the following two conditions

1. this device may not cause harmful interference
2. This device must accept any interference received, including interference that may cause undesired operation

Caution
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.

EU Conformity Statement
This product and-if applicable-the supplied accessories too are marked with ‘Cr and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2004/108/EC, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info.

Product Model A3102
Wireless Speaker INFI Essential
V0.1211123
