FANATEC ClubSporrt Steering Wheel Formula

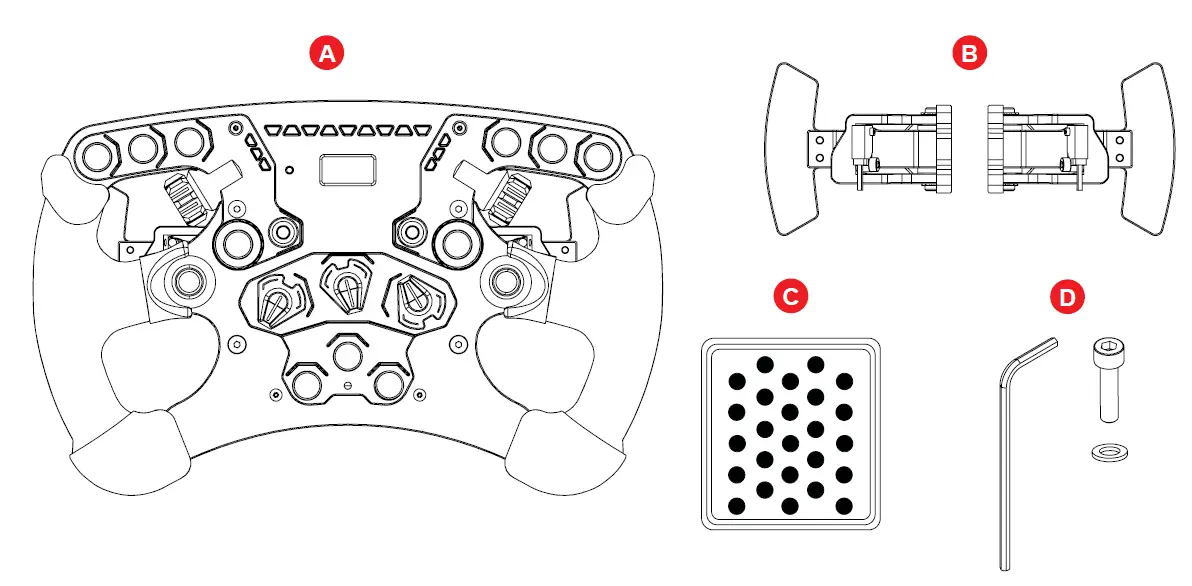

PACKAGE CONTENTS
A. 1x ClubSport Steering Wheel Formula V2.5 X
B. 1x ClubSport Magnetic Paddle Module (pre-installed)
C. 1x Racing Style Button Caps
D. 1x Allen Key 4mm, 4x Bolts, 4x Washers (for attaching a wheel-side quick release adapter)
QUICK RELEASE ADAPTER ATTACHMENT
NOTE: Separately sold wheel-side quick release adapter required.
NOTE: A separately sold wheel-side quick release adapter must be installed on this steering wheel to enable a mechanical connection with a FANATEC® wheel base. Read your wheel-side quick release adapter quick guide for detailed instructions.

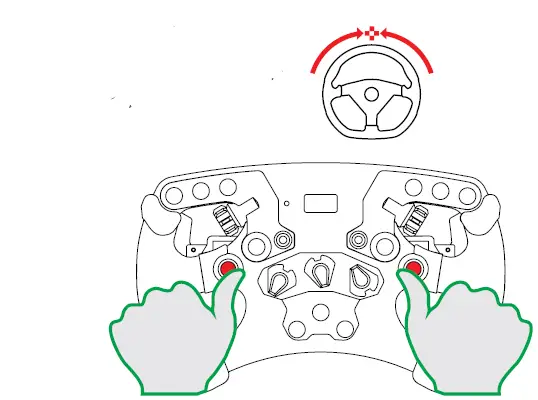

CENTRE CALIBRATION
- Press Tuning button
- Turn to centre position
- Press at the same time to calibrate steering wheel centre.
Press the Tuning button in order to enter the Tuning Menu. Press the highlighted buttons simultaneously in order to calibrate the steering wheel centre.

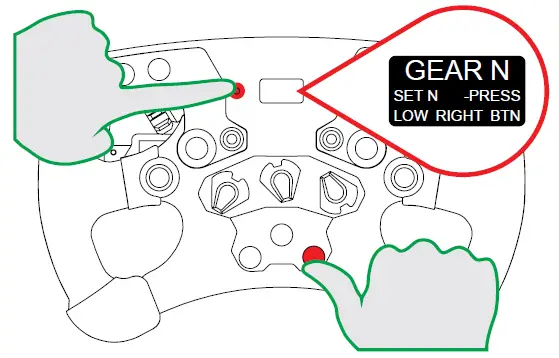

SHIFTER CALIBRATION
NOTE: Optional. External H-pattern shifter required.
Press the Tuning button and the highlighted button at the same time. Follow the instructions on the OLED display.
Simultaneously press the Tuning button and the highlighted button. Follow the instructions on the OLED display.

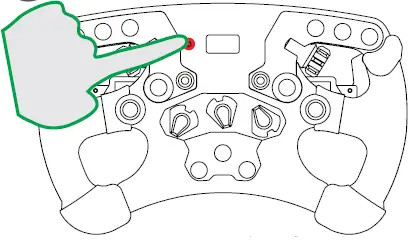

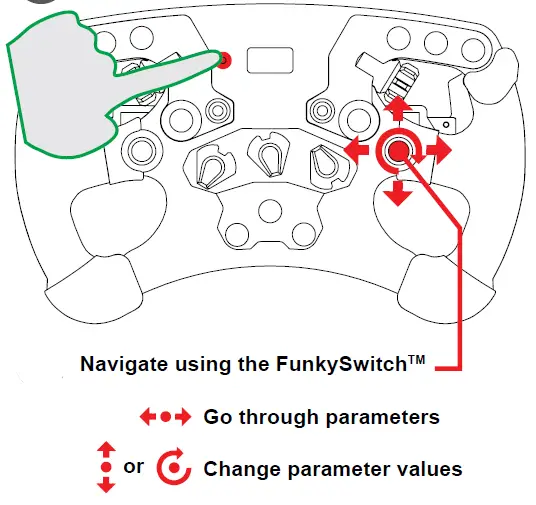

TUNING OPTIONS
- Press Tuning button
- Press Tuning button to close Tuning Menu.

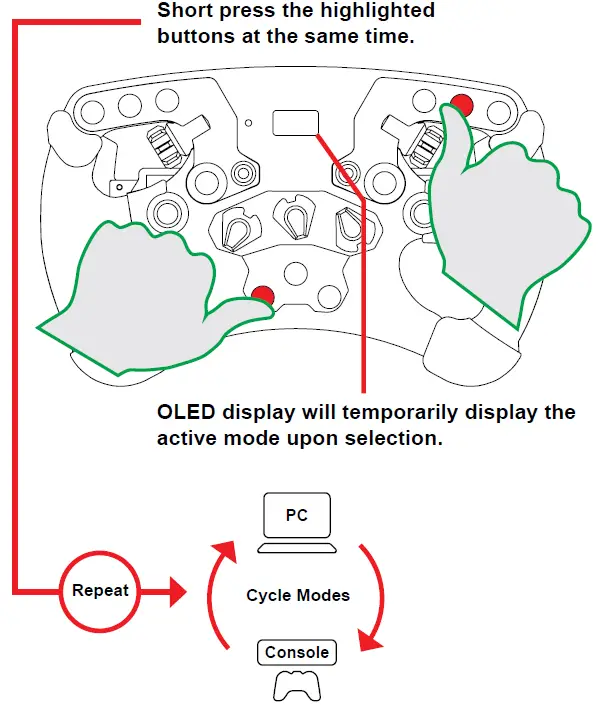

MODES
Simultaneously short press the highlighted buttons. The steering wheel OLED display will temporarily display the active mode upon selection.

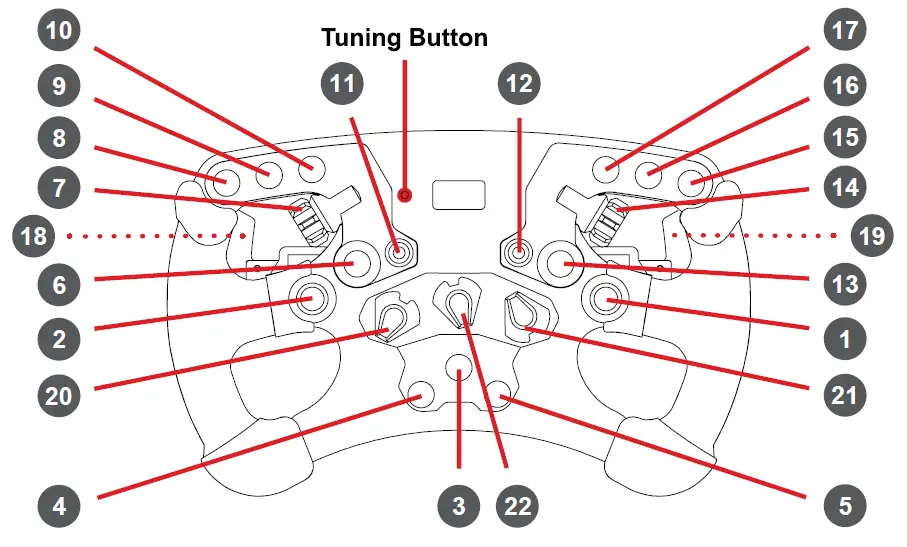

| # | PC | Xbox | PlayStation® |
| 1 FunkySwitchTM | Up, Down, Left, Right, Press – 25 Rotate Left – 23 / Right – 24 | Up, Down, Left, Right, Press – A Rotate Left – / Right – | Up, Down, Left, Right, Press – *GSB 1 Rotate Left – *GSB 2 / Right – *GSB 3 |
| 2 | Joystick | Joystick | Joystick |
| 26 (Press) | HORN | GSB 4* | |
| 3 | 22 | GUIDE | PS |
| 4 | 9 | VIEW | SHARE / CREATE |
| 5 | 10 | MENU | OPTIONS |
| 6 | 11 | RSB | R3 |
| 7 | 27 (Rotate – CW) | – | GSB 5* |
| 21 (Rotate – CCW) | – | GSB 6* | |
| 8 | 8 | LT | L2 |
| 9 | 12 | LSB | L3 |
| 10 | 7 | RT | R2 |
| 11 | 34 (Up) / 32 (Down) | LT / RT | GSB 7* / GSB 8* |
| 12 | 33 (Up) / 31 (Down) | LT / RT | GSB 9* / GSB 10* |
| 13 | 2 | A | Cross |
| 14 | 36 (Rotate – CW) | – | GSB 11* |
| 35 (Rotate – CCW) | – | GSB 12* | |
| 15 | 3 | B | Circle |
| 16 | 4 | Y | Triangle |
| 17 | 1 | X | Square |
| 18 | 6 | LB | L1 |
| 19 | 5 | RB | R1 |
| 20 | ENC: 37 / 38, MPS Pulse / Constant: 37 – 48 | – | GSB 13 / 14* GSB 13 – 24* |
| 21 | ENC: 49 / 50, MPS Pulse / Constant: 49 – 60 | – | GSB 25 / 26* GSB 25 – 36* |
| 22 | No output to game | No output to game | No output to game |
