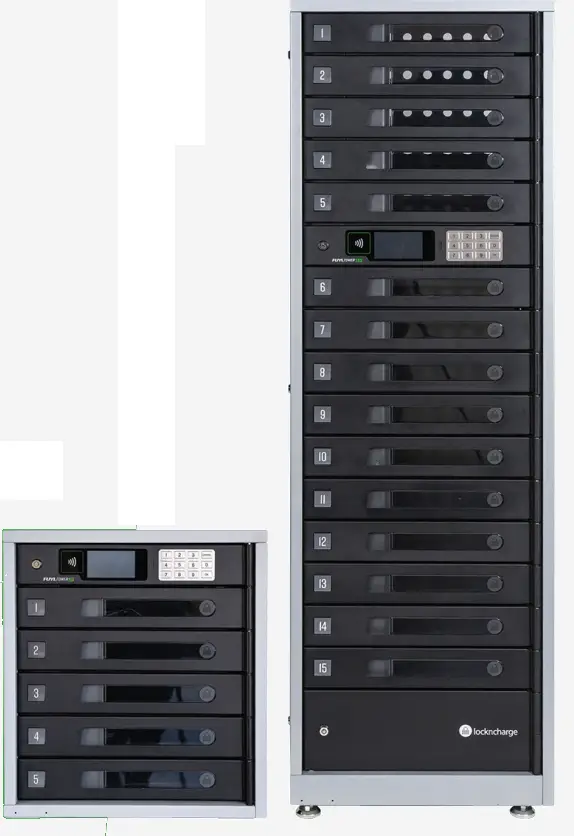

Lockncharge Lnc10224 Fuyl Tower 15mk2 Network Kit User Guide (+ PDF)

QUICK START
FUYL Products

VIDEO INSTRUCTIONS:
https://vimeo.com/288109115
Visit our website for detailed instructions.
www.lockncharge.com/support (International)
www.pclocs.com.au/support (AUS and NZ)

Contents hide

1 What’s required?

2 FULL TOWER 15: INSTALL TOWER FEET

3 CONNECT TO POWER

4 CONNECTING TO THE CLOUD

5 RETRIEVE LOCALHOST ADDRESS

6 ONBOARD TOWER TO YOUR ACCOUNT

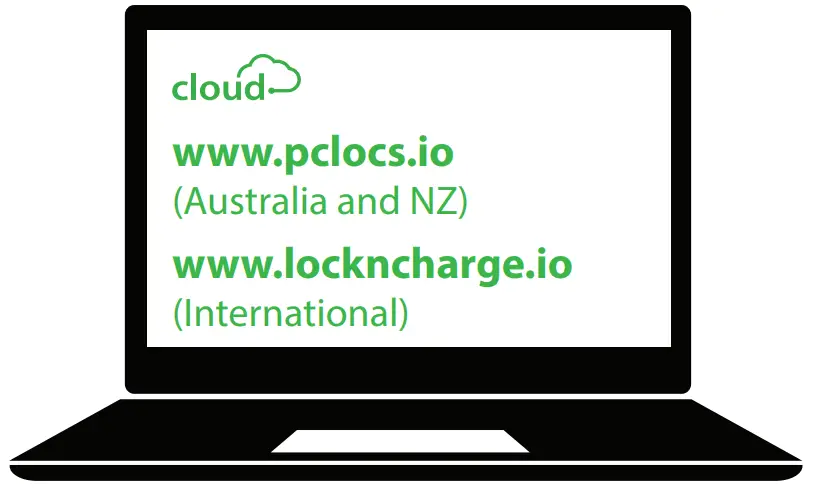

7 LOGIN TO THE CLOUD PORTAL WITH YOUR ACCOUNT

8 Documents / Resources

8.1 References

9 Related Posts

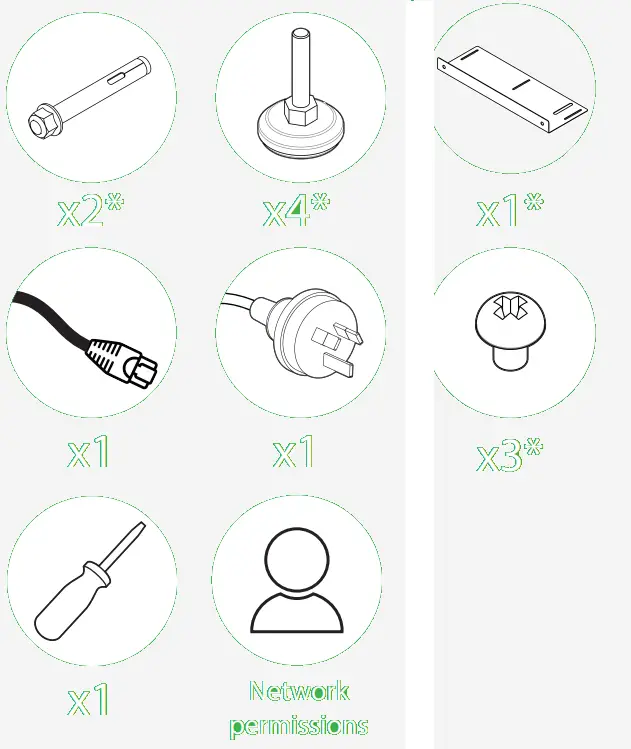

What’s required?

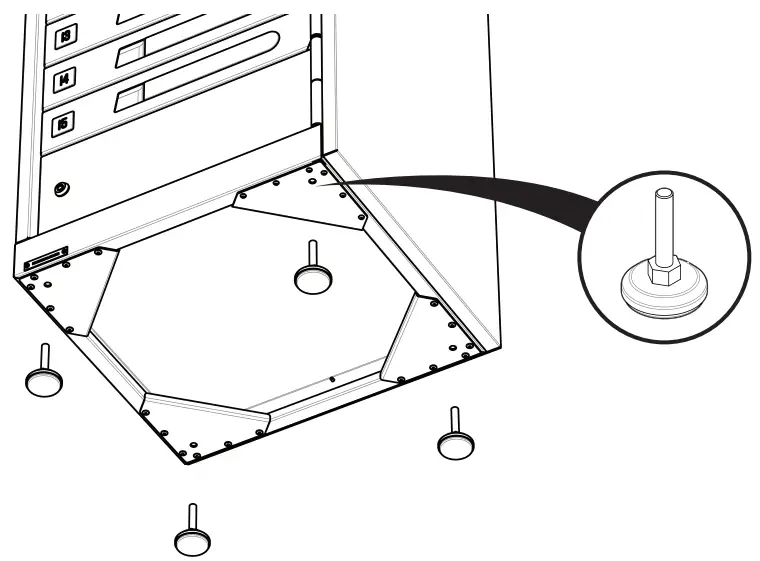

FULL TOWER 15: INSTALL TOWER FEET

CAUTION
Heavy product. Requires two or more people to set up.

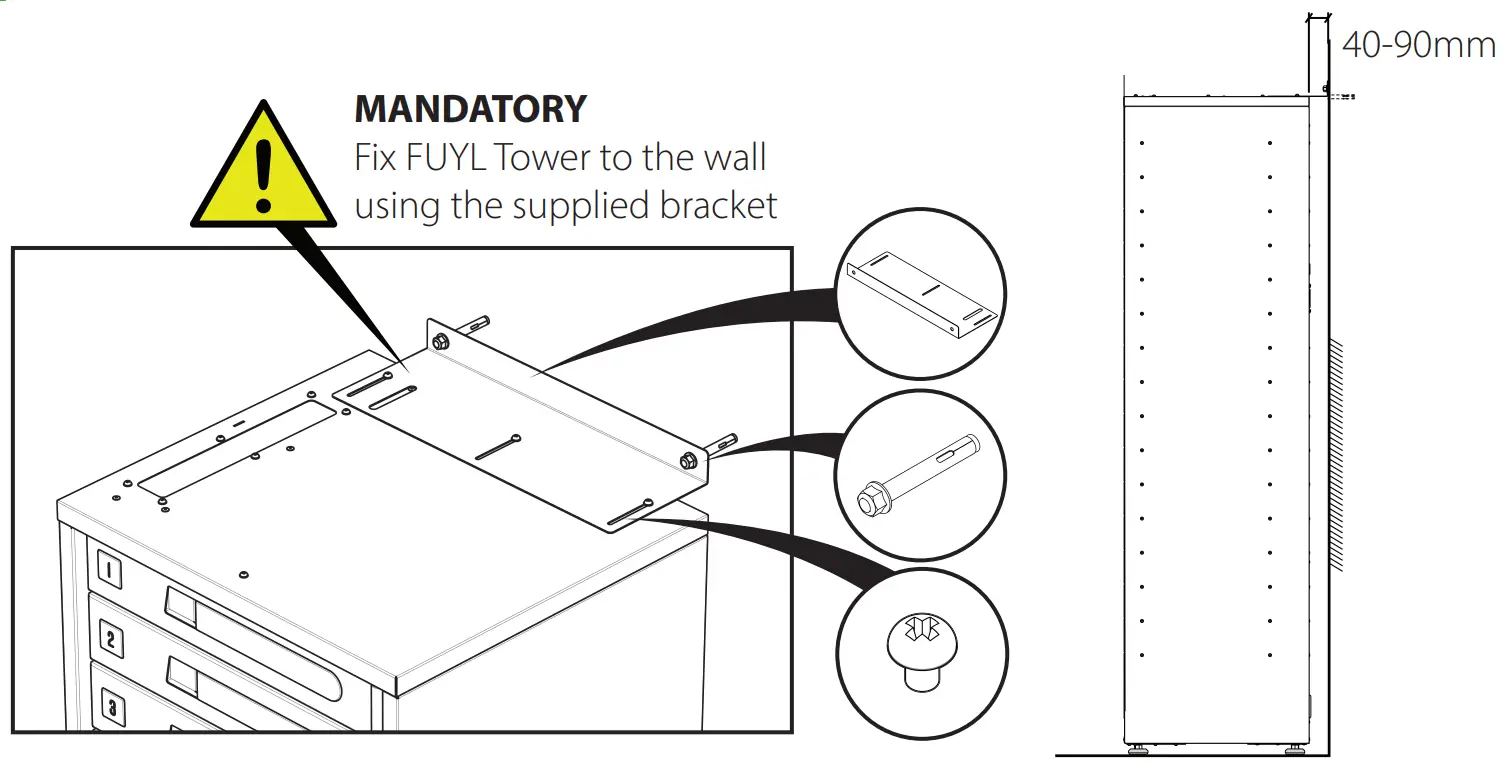

FULL TOWER 15: AFFIX TOWER TO THE WALL

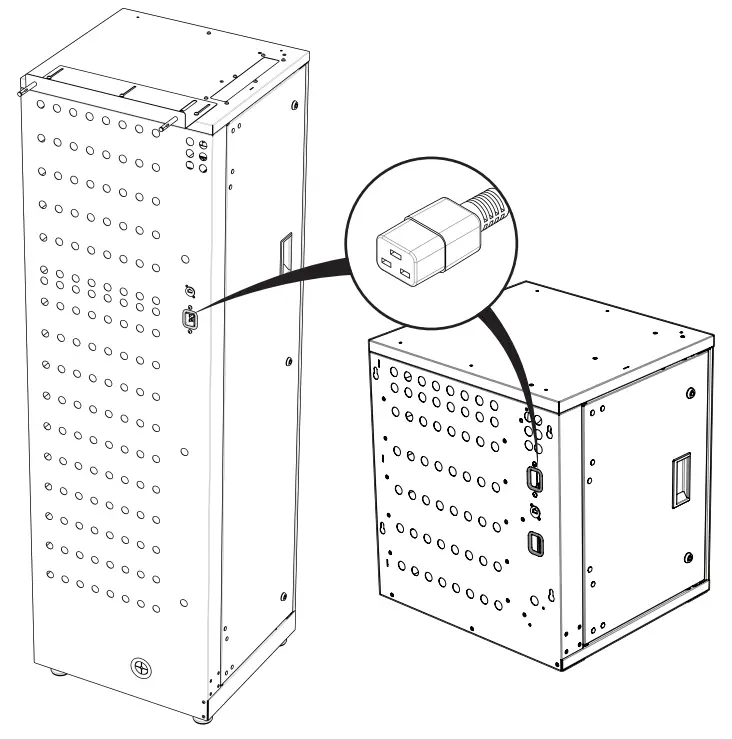

CONNECT TO POWER

NOTE
It will take approximately 2 minutes for the FUYL Tower to boot up.

CONNECTING TO THE CLOUD

NOTE: Step 4 onwards is not required if you have decided to not connect your Tower to the Cloud
IMPORTANT
Connecting a FUYL Tower to the Cloud Platform requires technical knowledge of your organization’s network configuration. Please only proceed if you are experienced with network configuration and have the permission of your network administrator.
Firewall and Proxy whitelisting
When onboarding a FUYL Tower, it will attempt to create an outgoing network connection to contact the Cloud Platform. These addresses may need to be whitelisted if your firewall restricts outgoing connections to unknown addresses.

Address	Port	Protocol
pilots-firmware-updates-869893548898.s3.us-west-2.amazonaws.com	TCP 433	HTTP
registry.pclocs.io	TCP 443	HTTP
a136cfwl 7adicb-atslot.us-west-2.amazonaws.com	TCP 8883	MQTT
timel.google.com, time2.google.com, time3.google.com, time4.google.com	UDP 123	NTP

For more details, follow the links below:
Australia and NZ: https://pclocs.io/docs/fuyl/networking
The US and the rest of the world: https://lockncharge.io/docs/fuyl/networking

RETRIEVE LOCALHOST ADDRESS

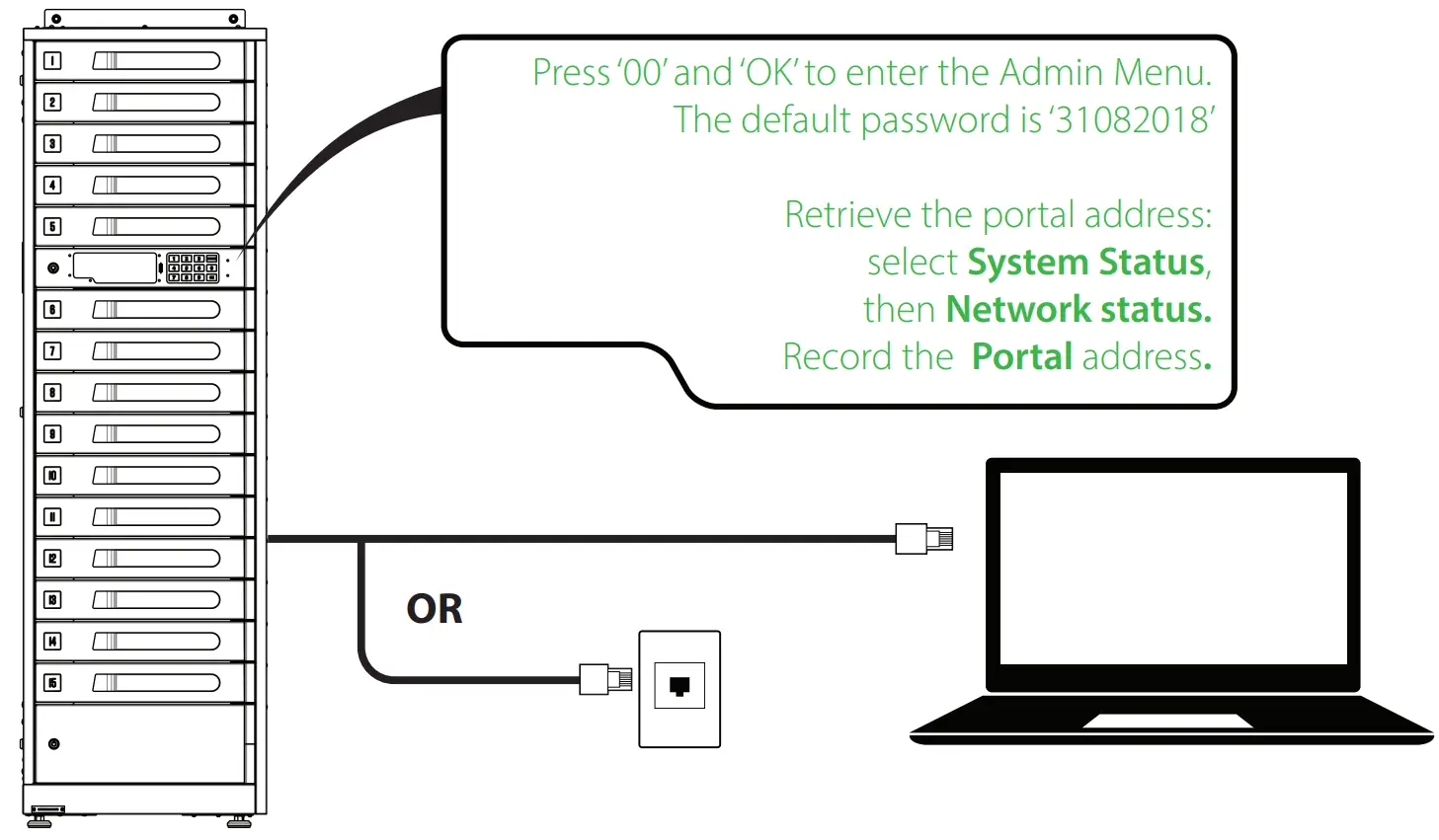

Connect the ethernet cable to your laptop or port and enter the admin menu on the Tower’s LCD screen.

ONBOARD TOWER TO YOUR ACCOUNT

Open the browser and type the Portal address (the localhost you recorded in step 5) to navigate to the onboarding wizard.
NOTE: Some browsers will report security warnings. The security warnings appear because the FUYL Tower has generated a self-signed certificate to secure your connection. It should be safe to proceed because it is a temporary connection to the localhost on the FUYL Tower.
Default login credentials
Username: admin
Password: 31082018
Follow the onboarding wizard to connect your Tower to your Cloud Account.
In addition to the networking requirements highlighted in step 4, you will also need to have your Account Code available which would have been emailed to you on sign up.
For more details on networking requirements, follow the links below:
Australia and NZ: https://pclocs.io/docs/fuyl/networking
US and the rest of the world: https://lockncharge.io/docs/fuyl/networking
