Ki Mobility 5Ti TiresCatalyst 5Ti Tires

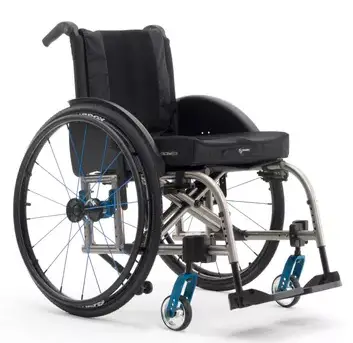

Ki-Mobility-5Ti-Tires-Catalytic-5Ti-Tires-PRODUCT

Product Information

The Catalyst 5Ti Tires are a type of pneumatic tire that comes with an airless insert kit. The product is available in four different sizes, including 20 x 1 3/8, 22 x 1 3/8, 24 x 1 3/8, and 26 x 1 3/8. The tires come with tab-mounted handrails that must be installed prior to the tire being installed. The product is made up of two main components: the tire and the airless insert. The tires are available in either a full-profile poly or low-profile poly design. The airless insert is available infour different sizes, corresponding to the tire sizes. The product is compatible with several different types of wheels, including Ki Spoke, Superlight, 5-Spoke X Core, Spinergy Spox, Spinergy LX, and MAXX Spoke. The product is also compatible with several different types of inner rim tube strips.

Product Usage Instructions

Before installing the tires, ensure that the tab-mounted handrims are installed.
Select the appropriate size of tire and airless insert kit based on the wheel size.
Remove the old tire from the wheel if necessary.
Insert the airless insert into the tire.
Fit the tire onto the wheel, ensuring that it is properly aligned and centered.
Inflate the tire to the recommended pressure level.

Note: For best results, refer to the product manual or contact a product expert for further assistance.

OVERVIEW

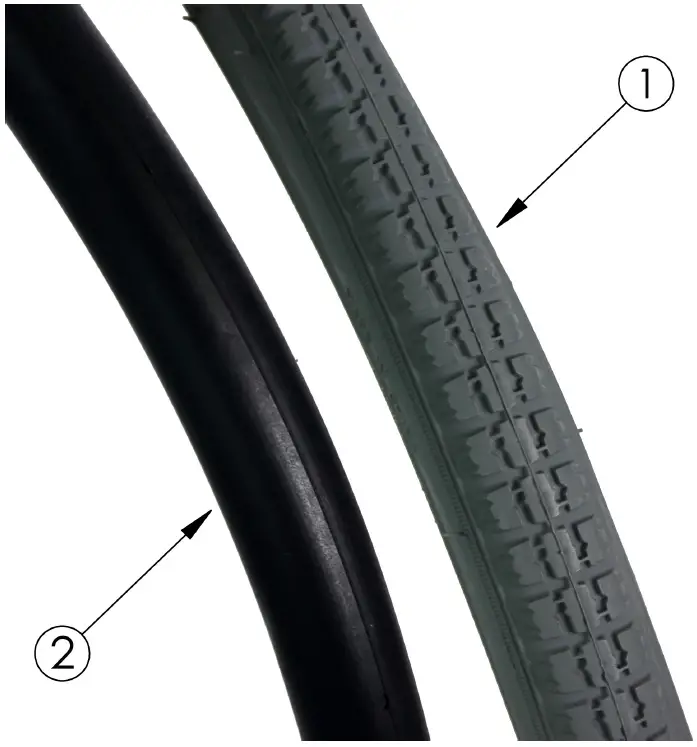

Ki-Mobility-5Ti-Tires-Catalytic-5Ti-Tires-FIG-1

Description

Item Number 1a, 2a	Part Number 110021	Description Tire 20″ x 1 3/8″ Pneumatic and Airless Insert Kit	Quantity 1	Retail $81.63
1b, 2b	110022	Tire 22″ x 1 3/8″ Pneumatic and Airless Insert Kit	1	$76.11
1c, 2c	110023	Tire 24″ x 1 3/8″ Pneumatic and Airless Insert Kit	1	$77.22
1d, 2d	110024	Tire 26″ x 1 3/8″ Pneumatic and Airless Insert Kit	1	$77.22
1a	100911	Tire 20″ x 1 3/8″ Pneumatic	1	$26.47
1b	100634	Tire 22″ x 1 3/8″ Pneumatic	1	$26.47
1c	111818	Tire 24″ x 1 3/8″ Pneumatic (K103) Replacement for part number 100635	1	$26.27
1d	100636	Tire 26″ x 1 3/8″ Pneumatic	1	$28.69
2a	100913	Airless Insert 20″	1	$55.16
2b	100503	Airless Insert 22″	1	$49.64
2c	100504	Airless Insert 24″	1	$49.64
2d	100505	Airless Insert 26″	1	$49.64

Diameter

Wheel & Tire Outside Diameter Measurement Reference

Size Tire Description		Outside Diameter
18”	Street Pneumatic 1-3/8”	18.9
18”	Full Profile Poly 1-3/8”	18.5
18”	Pneumatic w/Airless Insert 1-3/8”	18.8
18”	Low Profile Poly 1”	17.7
20”	Street Pneumatic 1-3/8”	20.7
20”	Full Profile Poly 1-3/8”	20.2
20”	Pneumatic w/Airless Insert 1-3/8”	20.5
20”	Low Profile Poly 1”	19.3
20”	Sentinel Solid 1”	19.6
20”	High Pressure 1”	20.3
20”	SHOX	19.6
22”	Street Pneumatic 1-3/8”	22.5
22”	Full Profile Poly 1-3/8”	22.3
22”	Pneumatic w/Airless Insert 1-3/8”	22.4
22”	Low Profile Poly 1”	21.4
22”	Sentinel Solid 1”	21.9
22”	High Pressure 1”	22.3
22”	SHOX	22
22”	Mountain 2”	24.1
24”	Street Pneumatic 1-3/8”	24
24”	Full Profile Poly 1-3/8”	23.6
24”	Pneumatic w/Airless Insert 1-3/8”	23.9
24”	Schwalbe HS-127 1-3/8”	24
24”	Euro Trek Knobby 1-3/8”	24.1
24”	Low Profile Poly 1”	22.8
24”	Sentinel Solid 1”	23.3
24”	High Pressure 1”	23.6
24”	Schwalbe One 1”	23.8
24”	Schwalbe Marathon Plus EVO 1”	24
24”	SHOX	23.3
24”	Schwalbe Downtown 1”	23.6
24”	Mountain 2”	25.6
25”	Sentinel Solid 1”	24
25”	High Pressure 1”	24.3
25”	Schwalbe One 1”	24.3
25”	Schwalbe Marathon Plus EVO 1	24.4
25”	SHOX	24.1
25”	Mountain 2”	26
26”	Street Pneumatic 1-3/8”	26
26”	Full Profile Poly 1-3/8”	25.8
26”	Pneumatic w/Airless Insert 1-3/8”	25.8
26”	Sentinel Solid 1”	25.1
26”	High Pressure 1”	25.5
26”	Schwalbe Marathon Plus EVO 1”	25.9
26”	SHOX	25.3

Tire Component Chart

Wheel		1 3/8″ Street Pneumatic			1″ High Pressure			1 3/8″ Euro Trek Knobby			1″ Schwalbe				1 3/8″ Schwalbe HS‐127			2″ Mountain
Wheel	Wheel Part No.	Tire	Inner Tube	Rim Strip	Tire	Inner Tube	Rim Strip	Tire	Inner Tube	Rim Strip	Mara‐ thon Tire	One Tire	Inner Tube	Rim Strip	Tire	Inner Tube	Rim Strip	Tire	Inner Tube	Rim Strip
18″ Ki Spoke¹	200529	101587	101588	101137
20″ Ki Spoke¹	200530	100911	100912	101137	102957	102844	101137
22″ Ki Spoke¹	200531	100634	100588	101908	102961	100609	101908											101475	100588	101908
24″ Ki Spoke¹	200532	111818	100589	100596	102958	100580	100596	102982	100589	100596	100864	103176	100580	100596	102920	100589	100596	101476	101188	100596
25″ Ki Spoke¹	200533				102959	101457	101452				101357	103177	101457	101452				100166	100208	101452
26″ Ki Spoke¹	200534	100636	100590	100608	102960	100582	100597				100865		100582	100597

24″ Superlight	101159	111818	100589	100596	102958	100580	100596	102982	100589	100596	100864	103176	100580	100596	102920	100589	100596
25″ Superlight	101158				102959	101457	101452				101357	103177	101457	101452

20″ 5‐Spoke X Core	101961	100911	100912	101137
22″ 5‐Spoke X Core	101962	100634	100588	101908
24″ 5‐Spoke X Core	100960	111818	100589	100596				102982	100589	100596					102920	100589	100596

20″ Spinergy Spox	See	100911	100912	101137	102957	102844	101137
22″ Spinergy Spox	See	100634	100588	101908	102961	100609	101908											101475	100588	101908
24″ Spinergy Spox	Spinergy Spox	111818	100589	100596	102958	100580	100596	102982	100589	100596	100864	103176	100580	100596	102920	100589	100596	101476	101188	100596
25″ Spinergy Spox	Page				102959	101457	101452				101357	103177	101457	101452				100166	100208	101452
26″ Spinergy Spox	Page	100636	100590	100608	102960	100582	100597				100865		100582	100597

22″ Spinergy LX		100634	100588	101908	102961	100609	101908											101475	100588	101908
24″ Spinergy LX	See Spinergy	111818	100589	100596	102958	100580	100596	102982	100589	100596	100864	103176	100580	100596	102920	100589	100596	101476	101188	100596
25″ Spinergy LX	LX Page				102959	101457	101452				101357	103177	101457	101452				100166	100208	101452
26″ Spinergy LX	LX Page	100636	100590	100608	102960	100582	100597				100865		100582	100597

18″ MAXX Spoke	109285	101587	101588	101137
20″ MAXX Spoke	108244	100911	100912	101137	102957	102844	101137
22″ MAXX Spoke	105135	100634	100588	101908	102961	100609	101908											101475	100588	101908
24″ MAXX Spoke	105136	111818	100589	100596	102958	100580	100596	102982	100589	100596	100864	103176	100580	100596	102920	100589	100596	101476	101188	100596
25″ MAXX Spoke	107436				102959	101457	101452				101357	103177	101457	101452				100166	100208	101452
26″ MAXX Spoke	107437	100636	100590	100608	102960	100582	100597				100865		100582	100597

Tire Compatibility Chart

Wheel		Tire
Wheel	Wheel Part Number	1 3/8″ Street Pneumatic	1 3/8″ Full Profile Poly	1″ Low Profile Poly	1 3/8″ Pneumatic w/ Airless Insert (Tire / Insert)	1″ Solid Sentinel	1″ Solid Shox	1″ High Pressure	1 3/8″ Euro Trek Knobby	1″ Schwalbe Marathon	1″ Schwalbe One	1 3/8″ Schwalbe HS‐ 127	2″ Mountain
18″ Ki Spoke²	200529	101587	101992	100918	101587 / 101092
20″ Ki Spoke²	200530	100911	100917	102085	100911 / 100913	102974	102717	102957
22″ Ki Spoke²	200531	100634	100621	100632	100634 / 100503	103165	102718	102961					101475
24″ Ki Spoke²	200532	111818	100622	100633	111818 / 100504	102976	100640	102958	102982	100864	103176	102920	101476
25″ Ki Spoke²	200533					102977	101453	102959		101357	103177		100166
26″ Ki Spoke²	200534	100636			100636 / 100505	102978	100884	102960		100865

24″ Superlight	101159	111818					100894	102958	102982	100864	103176	102920
25″ Superlight	101158						101146	102959		101357	103177

12″ Mag (non‐drum brake)¹	N/A	001424	001426		001425
16″ Mag (non‐drum brake)¹	N/A	001159	001161	003453	001160
20″ 5‐Spoke X Core (Black)	101961	100911	100917		100911 / 100913		102717
22″ 5‐Spoke X Core (Black)	101962	100634	100621		100634 / 100503		102718
24″ 5‐Spoke X Core (Black)	100960	111818	100622		111818 / 100504		100640		102982			102920

20″ Spinergy Spox	See	100911	100917	102085	100911 / 100913	102974		102957
22″ Spinergy Spox	See	100634	100621	100632	100634 / 100503	103165		102961					101475
24″ Spinergy Spox	Spinergy Spox Page	111818	100622	100633	111818 / 100504	102976	100894	102958	102982	100864	103176	102920	101476
25″ Spinergy Spox						102977	101146	102959		101357	103177		100166
26″ Spinergy Spox		100636			100636 / 100505	102978	100895	102960		100865
22″ Spinergy LX	See Spinergy	100634	100621	100632	100634 / 100503			102961					101475
24″ Spinergy LX	See Spinergy	111818	100622	100633	111818 / 100504	102976	100894	102958	102982	100864	103176	102920	101476
25″ Spinergy LX	LX Page					102977	101146	102959		101357	103177		100166
26″ Spinergy LX	LX Page	100636			100636 / 100505	102978	100895	102960		100865

18″ MAXX Spoke	109285	101587	101992	100918	101587 / 101092
20″ MAXX Spoke	108244	100911	100917	102085	100911 / 100913	102974	102717	102957
22″ MAXX Spoke	105135	100634	100621	100632	100634 / 100503	103165	102718	102961					101475
24″ MAXX Spoke	105136	111818	100622	100633	111818 / 100504	102976	100640	102958	102982	100864	103176	102920	101476
25″ MAXX Spoke	107436					102977	101453	102959		101357	103177		100166
26″ MAXX Spoke	107437	100636			100636 / 100505	102978	100884	102960		100865
