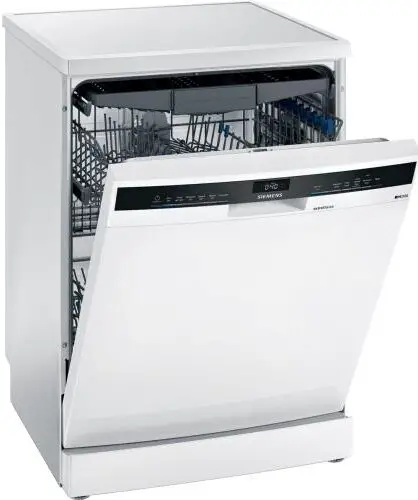

SIEMENS SE23HW64CG Full Size 14 Place Settings Dishwasher

en Before using for the first time, read the operating instructions.

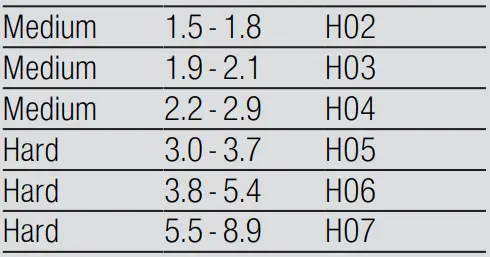

Overview of water hardness settings

You can find an overview of the water hardness values that can be selected here.
A table of country-specific units can be found in the instruction manual.

Setting the water softening system

1. Press .
2. To open the basic settings, press
   Setup 3 sec. for 3 seconds.
   The display shows Hxx.
   The display shows set
3. Press Start repeatedly until the right water hardness has been set.
4. To save the settings, press Setup 3 sec. for 3 seconds.

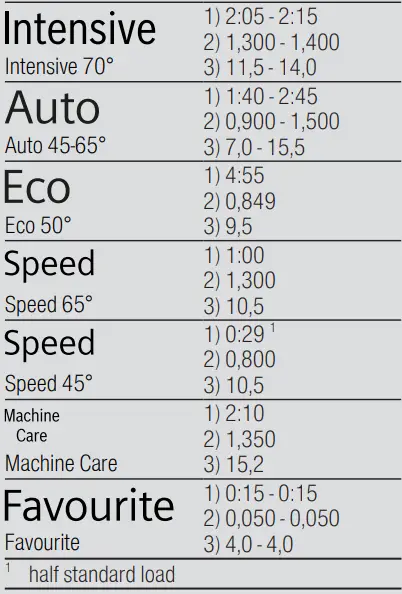

Programmes

• The programme data has been measured in the laboratory according to European standard EN 60436.
• The consumption figures depend on the programme and additional func-tion selected.
• The runtime will change if the rinse aid system is switched off or rinse aid needs to be added.



Adding special salt

To avoid damage to the appliance, only add special salt to the dispenser for special salt just before the programme starts.

1. Unscrew the lid of the dispenser for special salt and remove.
2. On initial start-up: Fill the dispenser right up with water.

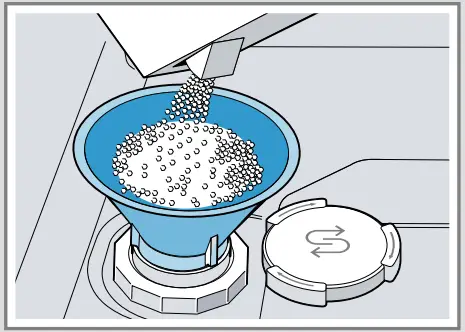

3. Add the special salt to the dispenser. The water in the dispenser is displaced and forced out. Never add detergent.
4. Place the lid back on the dispenser and turn to close.

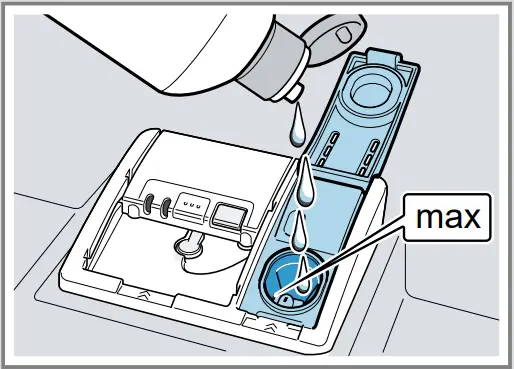

Adding rinse aid

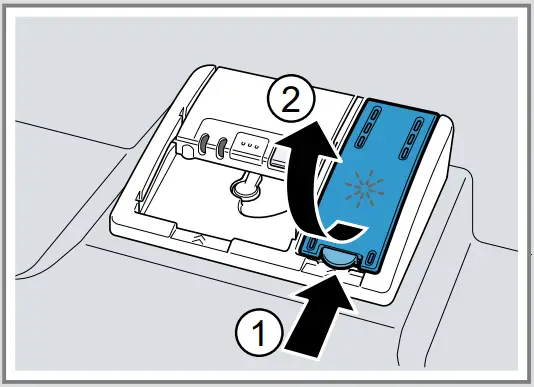

1. Press the catch on the lid of the dispenser for rinse aid and lift ⁠.



2. Add rinse aid up to the max mark.



3. Close the lid of the dispenser for rinse aid. aThe lid clicks into position.

Adding detergent

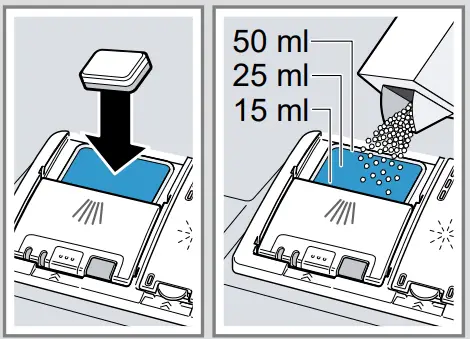

1.  Add the detergent to the dry detergent dispenser.

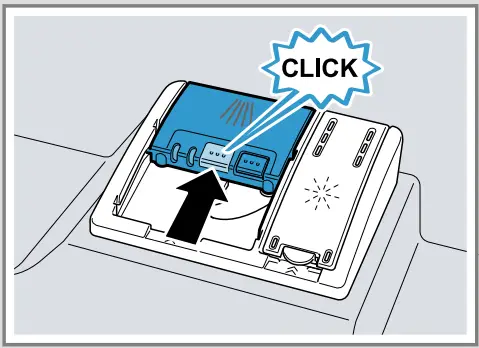

2. Close the lid of the detergent dispenser. a The lid clicks into position.



Cleaning filters

1. After each wash check the filters for residue.

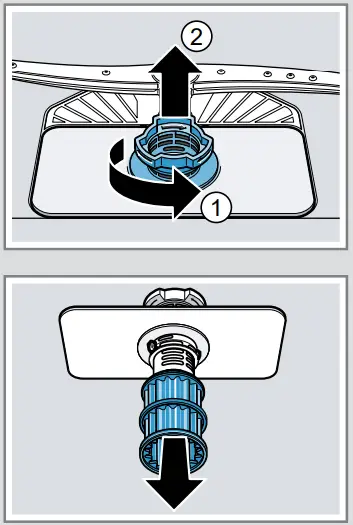

2. Turn the coarse filter anticlockwise and re-move the filter system ⁠.
3. Pull down the micro filter to re-move.



4. Press the locking catches together and lift the coarse filter out ⁠.



Cleaning spray arms

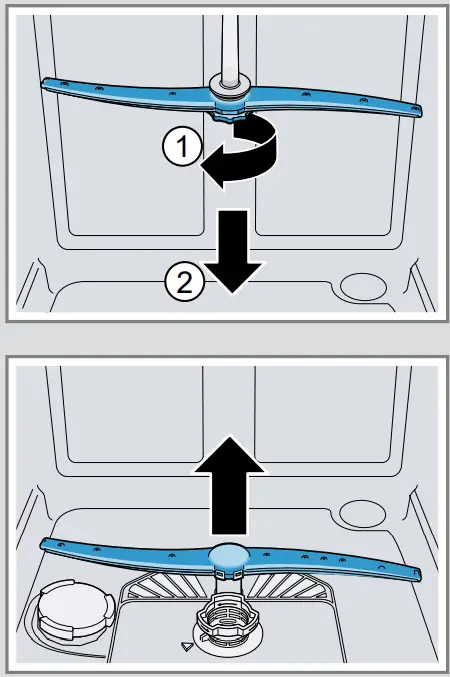

1. Unscrew the upper spray arm and pull down to remove ⁠.
2. 2. Pull up the lower spray arm to remove.



3. Check the outlet nozzles on the spray arms for blockages un-der running water and remove any foreign bodies.
4. Insert the lower spray arm.
   The spray arm clicks into position.
5. Insert the upper spray arm and screw it firmly in place.

Clean wastewater pump

1. Disconnect the appliance from the power supply.
2. Remove the filter system.
3. Scoop out any water.

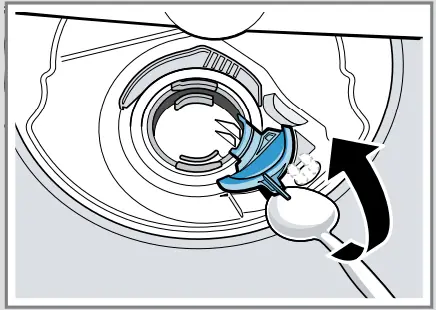

4. Prise off the pump cover using  spoon and grip it by the crosspiece.



5. Lift the pump cover inwards at an angle and remove.
6. Remove any remnants of food and foreign bodies in the area of the impeller.

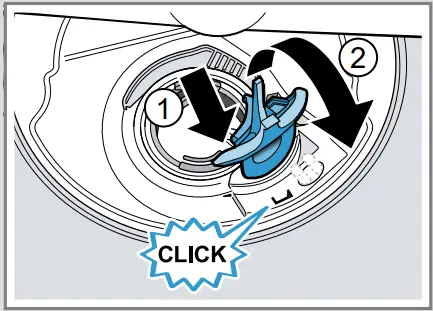

7. Insert the pump cover and press down ⁠
   The pump cover clicks into position.



8. Install the filter system.

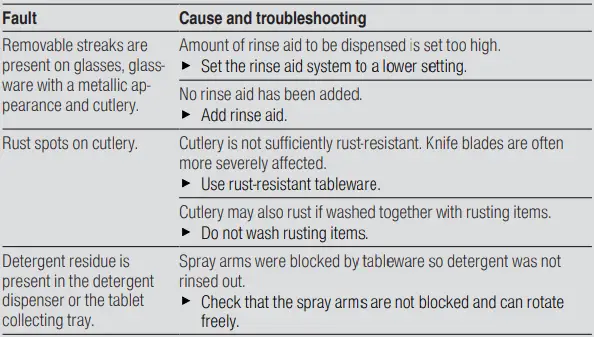

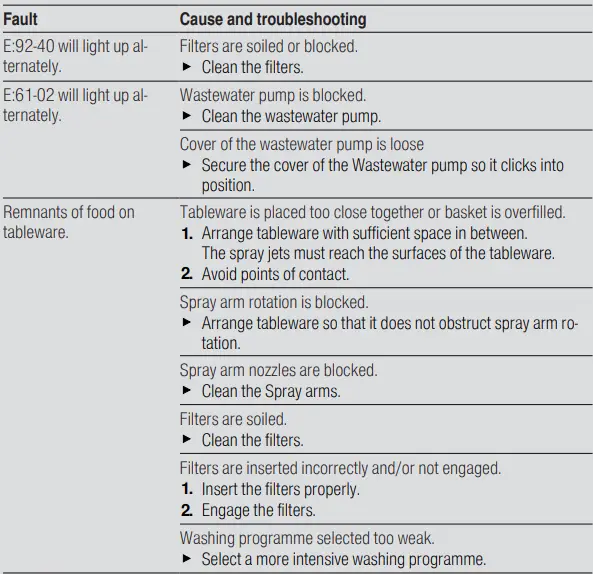

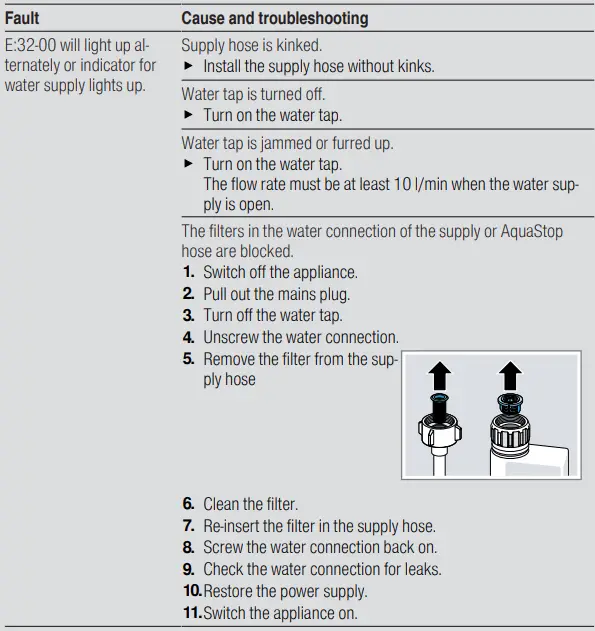

Troubleshooting
