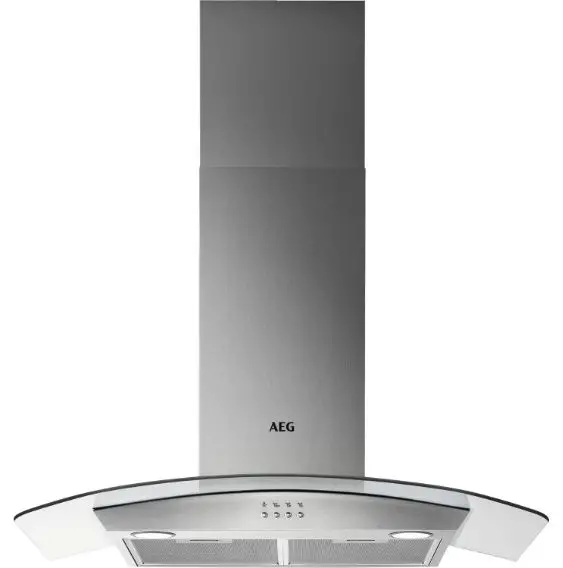

AEG DTB Series Cooker Hood
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information: www.aeg.com/support
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
SAFETY INFORMATION AND INSTALLATION
WARNING!
Refer to the separate Installation Instructions booklet for Safety Information and Installation. Read carefully the Safety chapters before any use or maintenance of the appliance.
PRODUCT DESCRIPTION

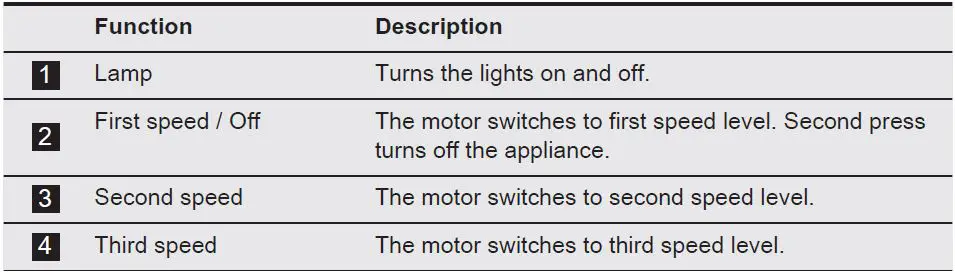

Control panel overview
DAILY USE
Using the hood

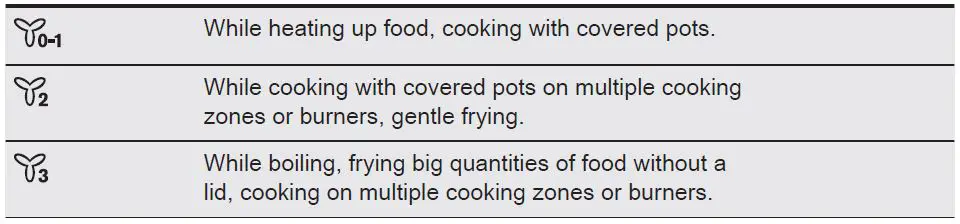

Check the recommended speed according to the table below.
It is recommended to leave the hood operating for approximately 15 minutes after cooking.
To operate the hood:
- Press the first speed button
to switch on the appliance. - If needed, press the light button
to illuminate the cooking surface. - If needed, change the speed by pressing the desired button.
To turn off the appliance press the first speed button again. - www.aeg.com
to switch on the appliance.
to illuminate the cooking surface.CARE AND CLEANING

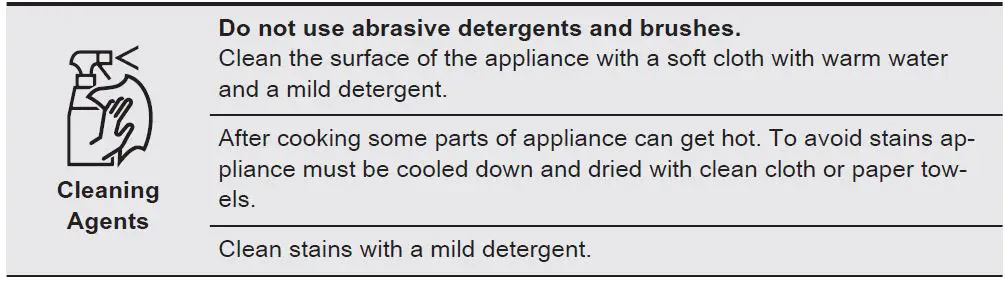

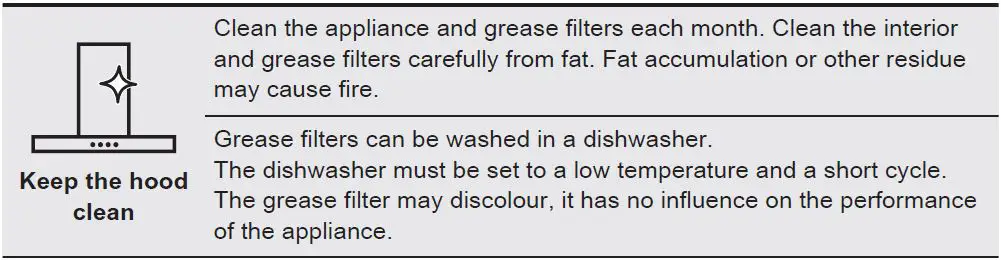

Notes on cleaning
Cleaning the grease filter
Filters are mounted with the use of clips and pins on the opposite side.
To clean the filter:

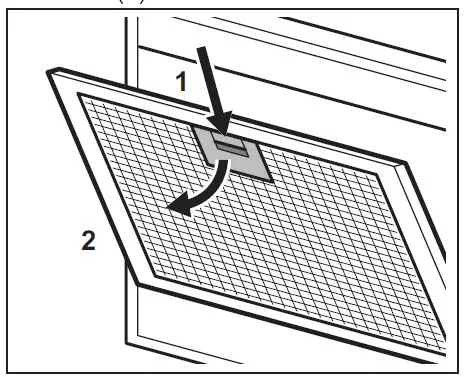

- Press the handle of the mounting clip on the filter panel underneath the hood (1).
- Slightly tilt the front of the filter downwards (2), then pull. Repeat the first two steps for all filters.
- Clean the filters using a sponge with non abrasive detergents or in a dishwasher.
The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance. - To mount the filters back follow the first two steps in reverse order. Repeat the steps for all filters if applicable.

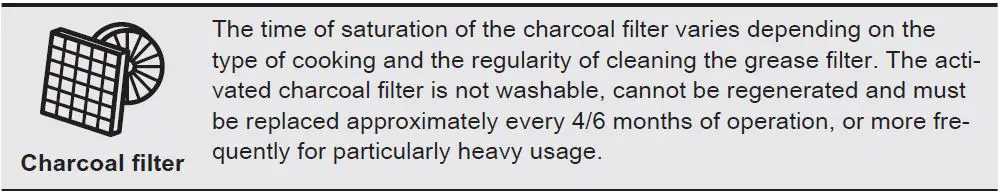

Replacing the charcoal filter
WARNING!
The charcoal filter is non-washable!
To replace the filter:
- Remove the grease filters from the appliance. Refer to “Cleaning the grease filter” in this chapter.

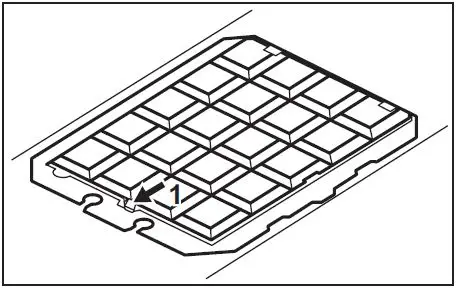

- Press tab (1) and slightly tilt the front of the filter.
- To install a new filter, perform the same steps in reverse order.
In any case, it is necessary to replace the filters at least every four months.
Replacing the lamp
This appliance is supplied with a LED lamp and separate control gear (LED driver). These parts can be replaced by a technician only. In case of any malfunction refer to “Service” in the “Safety Instructions” chapter.
ENVIRONMENTAL CONCERNS
Recycle materials with the symbol
. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol
household waste. Return the product to your local recycling facility or contact your municipal office.
