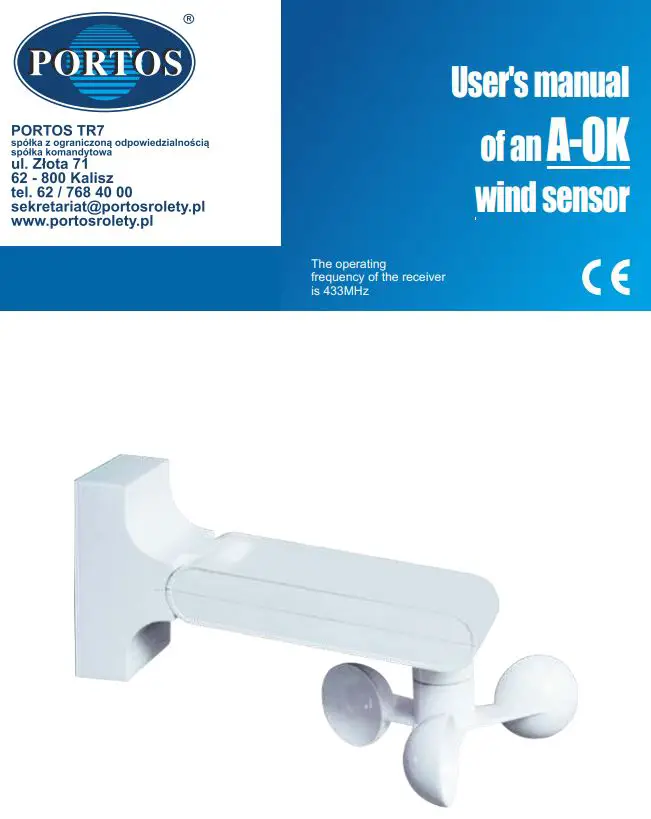

PORTOS A-OK Wind Sensor User Manual
1. Programming a wind sensor for proper receiver configuration:
- On the already programmed remote control, choose the channel assigned to the receiver that is to be configured.
- Press and hold the ‘stop’ button for 5 seconds on the remote control – the UP/DOWN motor movement will confirm successful performance of the operation.
- Press the ‘join’ button on the wind sensor – the UP/DOWN motor movement will confirm successful performance of the operation.
2. Setting up the sensor sensitivity levels:
- On the already programmed remote control, choose the channel assigned to the receiver that is to be configured.
- Press and hold the ‘stop’ button for 5 seconds on the remote control – the UP/DOWN motor movement will confirm successful performance of the operation.
- Press the ‘join’ button on the wind sensor – the UP/DOWN motor movement will confirm successful performance of the operation.
- Pressing buttons with wind or sun symbols will change the settings of a given sensor by one level
- 0 Level means that a given sensor is on

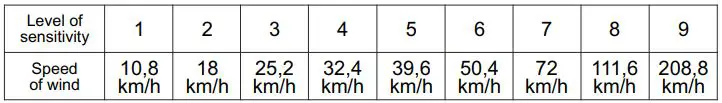

Table of levels and speed of wind
3. Test mode:
- On the sensor, press and hold simultaneously for 3 seconds a button with the wind symbol and the SET button, a number will be blinking on the display screen. This number will represent the current wind level.
- If the test mode is on, time needed for the activation of sensors is shortened.
- To go back from the test mode, press and hold for 3 seconds the wind and the SET buttons again or wait for 3 minutes – the test mode will switch off automatically.

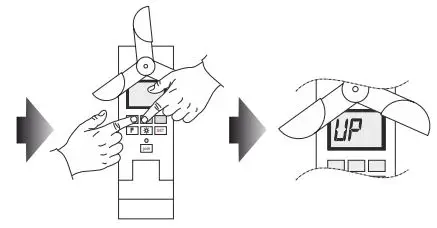

4. Reversing the operating directions:
- Press the wind and sun symbol button simultaneously. The screen will display UP or DN message.
WARNING – FOR THE SAFETY OF PEOPLE, IT IS IMPORTANT TO FOLLOW THESE USER’S INTRUCTIONS.
KEEP THESE USER’S MANUAL AT ALL TIMES.
