ECUsells LTD
ZB02 Universal Smart Remote
Instructions
LTD ZB02 Universal Smart Remote

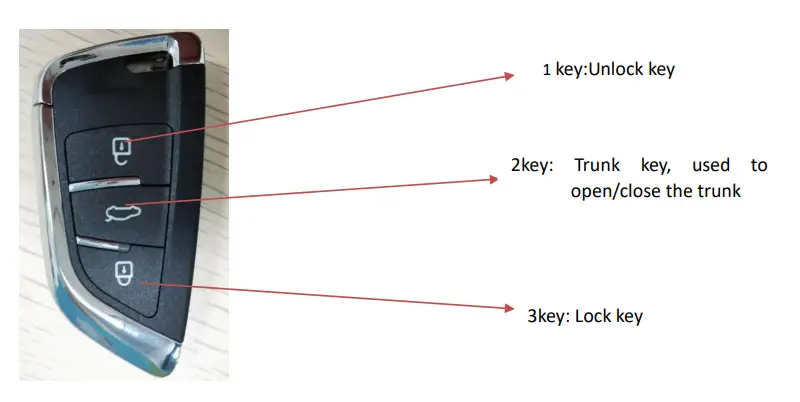

- After matching the key to the car, press 1 the unlock key for 2 seconds to open the door and press 3 the lock key for 2 seconds to close the door.
- Press 2key for 3 seconds to open the trunk. Product parameters
| Rated voltage | DC 3V |
| Working current | <5mA |
| Operating voltage | 1.8V~3.6V |
| Transmit power | >-20dbm |
| Key operation force | 200±50g |
| Operating temperature | -5° C +45° C |
| Stand-by current | 5uA |
| transmitting frequency | 433.95MHz ± 75KHz |
| Modulation | ASK |
| Battery | CR2032 |
| Key durability | More than 100,000 times |
FCC COMPLIANCE STATEMENT:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
IC WARNING
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science, and Economic Development Canada’s license-exempt RSS(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device
ADVERTENCIA IC
Radiation Exposure Statement
The device has been evaluated to meet general RF exposure requirements.
The device can be used in portable exposure conditions without restriction.
