ENFORCER SSW-113H Water Sensor
Product Information
- The product consists of 2 units.
- The product requires a power source.
- The product has buttons labeled “+”, “-“, “+/-“, “C”, and “=”.
- The product also has a display screen for showing numbers and mathematical symbols.
Product Usage Instructions
- Connect the product to a power source.
- Press the “+”, “-“, “*”, or “/” buttons to input numbers and mathematical symbols into the display screen.
- Use the “+/-” button to switch between positive and negative numbers.
- Use the “C” button to clear the display screen.
- Press the “=” button to calculate the result of the mathematical expression displayed on the screen.
- To turn off the product, disconnect it from the power source.
Ensure that you carefully read and follow all instructions provided in the user manual before using the product. If you encounter any issues or have any questions regarding product usage, refer to the user manual or contact our customer support team for assistance.
Features
- Install anywhere water damage may occur
- Detects conductive, non-flammable liquids
- For open loop circuits
- Automatic reset
Parts List
- 2x Water Sensor
- 1x Manual
- 4x Screws
Specifications
| Loop type | Open loop | ||
| Electrical configuration | N.O. | ||
| Operating voltage | 5~24 VDC | ||
| Current draw (max.) | 12VDC | 30mA | |
| 24VDC | 50mA | ||
| Wire | 6ft (1.8m) 2C (22AWG) | ||
| Case | Color | White | |
| Material | ABS | ||
| Operating temperature | 32°~140° F (0°~60° C) | ||
| Dimensions | 21/2″x1/2″x1/2″ (64x13x13 mm) | ||
| Weight | 1.6-oz (44g) | ||

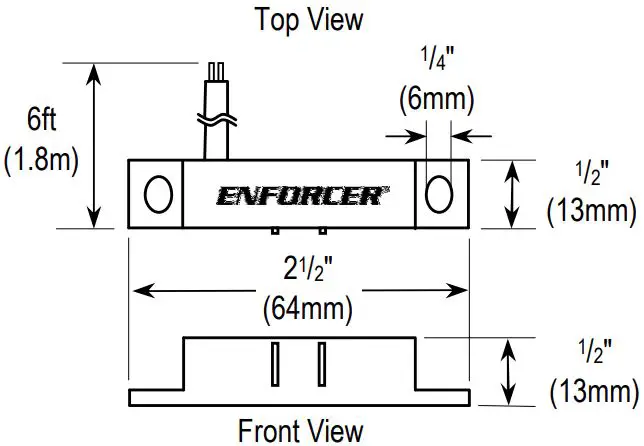

Dimensions

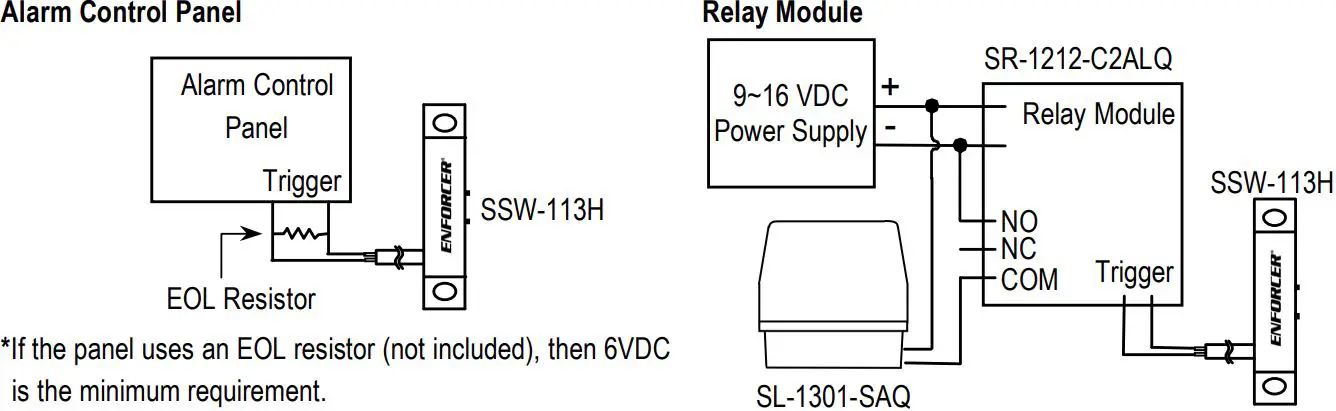

Sample Application
NOTE: Connect Water Sensor to an alarm control panel or relay module. Do not wire directly to siren, strobe, etc. After
installation, test unit with damp sponge or paper. Inspect annually and replace if there is any corrosion or damage.
WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for two (2) years from the date of sale to the original customer.
