4 CH DMX512 RJ45 DIN Rail Mountable DMX Decoder
Installation Guide
4CH DMX512 RJ45 DIN Rail Mountable DMX Decoder
Important: Read All Instructions Prior to Installation

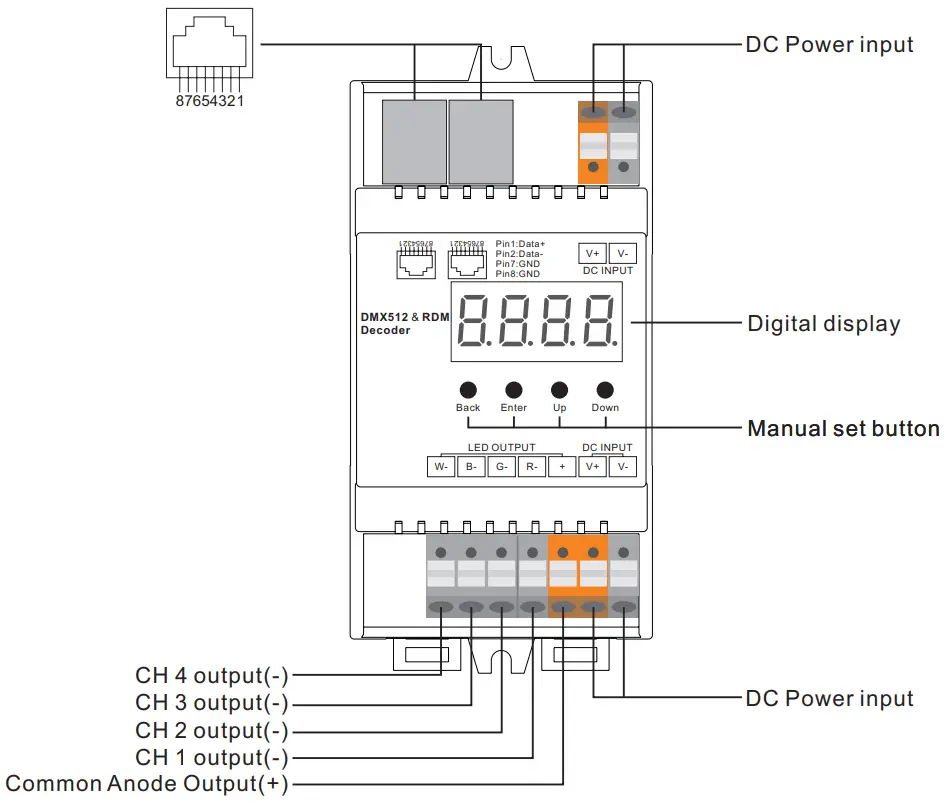

Function introduction
RJ45 terminal
DMX512 input & output
Pin1:Data+ / Pin2:Data- / Pin7:GND / Pin8:GND
Product Data
| No. | Input Voltage | Output Current | Output Power | Remarks | Size(LxWxH) |
| 1 | 12-36VDC | 4x5A | 4x(60-180)W | Constant voltage | 110x53x65mm |
- RDM function enabled DMX decoder
- Digital display to show data directly, easily to set and show DMX address and DMX channel
- PWM output resolution ratio 8bit , 16bit settable
- Output PWM frequency from 500HZ – 30K HZ settable
- Output dimming curve gamma value from 0.1 – 9.9 settable
- Decoding mode settable
- DIN rail controller
Safety & Warnings
- DO NOT install with power applied to device.
- DO NOT expose the device to moisture.

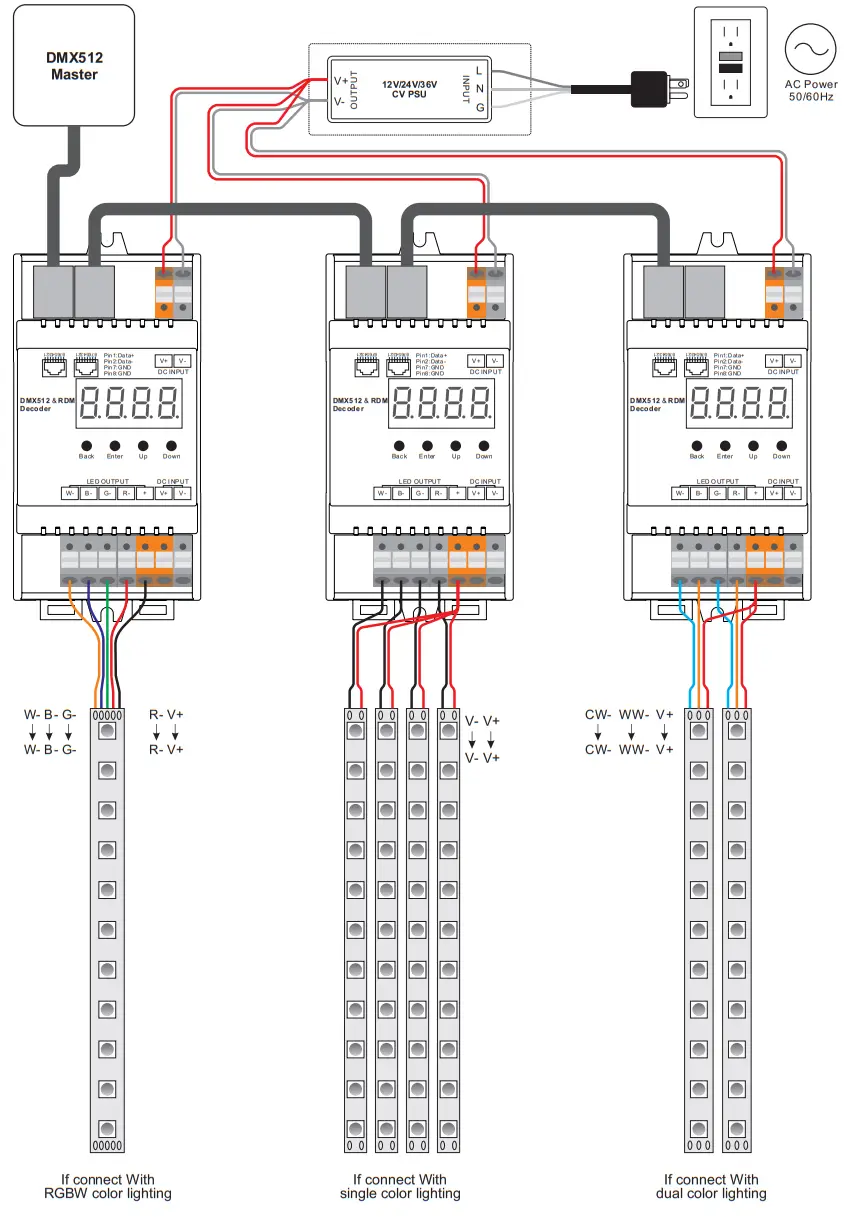

Waring Diagram

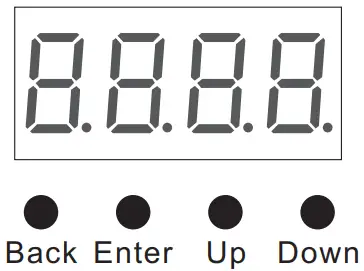

Up, Down button is for menu selection.After power on the decoder, if keep on clicking Up button, you will find below menu on display:
DMX signal indicator
When DMX signal input is detected, the indicator on the display following after
turns on red
.
 | Means DMX address. fa ctory defaults setting is 001. |
 | Means DMX channels quantity. |
 | Means Bit (8bit or 16bit). factory defaults setting is 16bit |
 | Means output PWM frequency. factory defaults setting is 1K HZ |
 | Means output dimming curve gamma value, factory defaults setting is ga 1.5 |
 | Means Decoding mode, factory defaults setting is dp1.1 |
By holding button Back + Enter together at the same time over 5 seconds until the display go off, it will restore default settings .
- DMX address setting:
select menu
, click button “Enter”, display flashes,then click or hold button “Up” I “Down” to set DMX address (click is slow, hold is fast.), then click button”Back” to confirm.
2. DMX channel quantity setting:
Select menu
, click button “Enter”, display flashes, then click button “Up” I “Down” to set DMX channel quantity , then click button”Back” to confirm.
For example the DMX address is already set 001.
CH01=1 DMX address for all the output channels, which are all address 001.
CH02=2 DMX addresses , output 1 &3 is address 001, output 2,4 is address 002
CH03=3 DMX addresses, output 1, 2 is address 001,002, output 3,4 is address 003
CH04=4 DMX addresses, output 1,2,3,4 is address 001,002,003,004
DMX address is 001, CH01
| DMX Console Slider number DMX channel | dp1.1 | dp2.1 |
| 1 | for all output dimming | for all output dimming |
| 2 | No use | for all output micro dimming |
DMX address is 001, CH02
| DMX Console Slider number DMX channel | dp1.1 | dp2.1 | dp3.2 |
| 1 | for output 1&3 dimming | for output 1&3 dimming | for output 1 &3 dimming |
| 2 | for output 2,4 dimming | for output 1 &3 micro dimming | for output 2,4 dimming |
| 3 | for output 2,4 dimming | for all output dimming | |
| 4 | for output 2,4 micro dimming |
DMX address is 001, CH03
| DMX Console Slider number DMX channel | dp1.1 | dp2.1 | dp4.3 | dp5.3 |
| 1 | for output 1 dimming | for output 1 dimming | for output 1 dimming | for output 1 dimming |
| 2 | for output 2 dimming | for output 1 micro dimming | for output 2 dimming | for output 2 dimming |
| 3 | for output 3,4 dimming | for output 2 dimming | for output 3,4 dimming | for output 3,4 dimming |
| 4 | for output 2 micro dimming | for all output master dimming | for all output master dimming | |
| 5 | for output 3,4 dimming | strobe effects | ||
| 6 | for output 3,4 micro dimming |
DMX address is 001, CH04
| DMX Console Slider number DMX channel | dp1.1 | dp2.1 | dp5.4 | dp6.4 |
| 1 | for output 1 dimming | for output 1 dimming | for output 1 dimming | for output 1 dimming |
| 2 | for output 2 dimming | for output 1 micro dimming | for output 2 dimming | for output 2 dimming |
| 3 | for output 3 dimming | for output 2 dimming | for output 3 dimming | for output 3 dimming |
| 4 | for output 4 dimming | for output 2 micro dimming | for output 4 dimming | for output 4 dimming |
| 5 | for output 3 dimming | for all output master dimming | for all output master dimming | |
| 6 | for output 3 micro dimming | strobe effects | ||
| 7 | for output 4 dimming | |||
| 8 | for output 4 micro dimming |
3. PWM output resolution Bit setting:
select menu , click button “Enter”,display flashes, then click button “Up” / “Down” to choose 08 or 16 bit, then click button”Back” to confirm.
4. output PWM frequency setting:
select menu , click button “Enter”, display flashes,then click button “Up” / “Down”to choose 00-30, then click button”Back” to confirm. 00=500HZ, 01=1kHZ, 02=2kHZ 30=30kHZ.

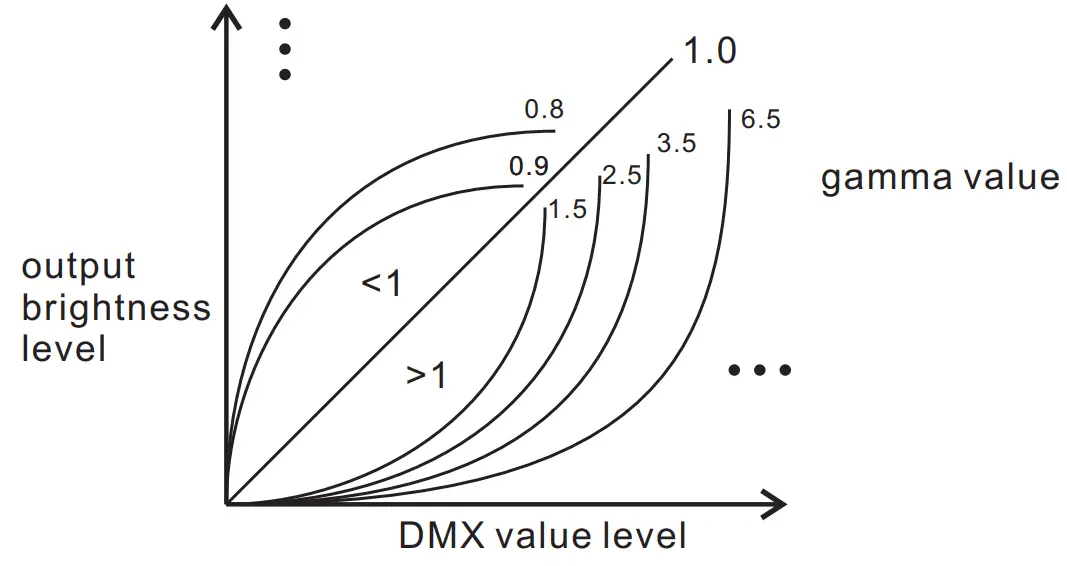

5. output dimming curve gamma value setting:
select menu , click button “Enter”, display flashes, then click or hold button “Up” / “Down” to choose 0.1-9.9, then click button”Back” to confirm.
6. DMX decoding mode setting:
Select menud , click button “Enter”, display flashes, then click or hold button “Up” /town” to choose the decoding mode, then click button”Back” to confirm. -dPxx” means the DMX address quantity used for control of corresponding PWM output channel quantity. 1st “x” is DMX address quantity, 2nd “x” is PWM channel quantity.
Micro dimming: the micro dimming effect can only be visible when the dimming curve gamma value is set lower than 1.4, and the lower the value is, the more visible the micro dimming effect will be.
The data definitions for strobe channel are as follows:
{0, 7})/undefined
{8, 65},//slow strobe–>fast strobe
{66, 71},//undefined
{72, 127},//slow push fast close
{128, 133},//undefined
{134, 189},//slow close fast push
{190, 195},//undefined
{196, 250},//random strobe
{251, 255},//undefined
The supported RDM PIDs are as follows:
DISC_UNIQUE_BRANCH
DISC_MUTE DISC_UN_MUTE
DEVICE INFO
DMX_START_ADDRESS
IDENTIFY_DEVICE
SOFTWARE_VERSION_LABEL
DMX_PERSONALITY
DMX_PERSONALITY_DESCRIPTION
SLOT _INFO SLOT_DESCRIPTION
MANUFACTURER_LABEL
SUPPORTED_PARAMETERS
Restore to Factory Default Setting
Press and hold down both “Back” and “Enter” keys until the digital display turns off, then release the keys, system will reset and the digital display will turn on again, all settings will be restored to factory default.
Default settings are as follows:
DMX Address Code: a001
DMX Address Quantity: SW1=0: ch04, SW1=1: ch03
PWM Resolution Mode: bt16
PWM Frequency: pf01
Gamma: ga1.5
Decoding Mode: dp1.1
