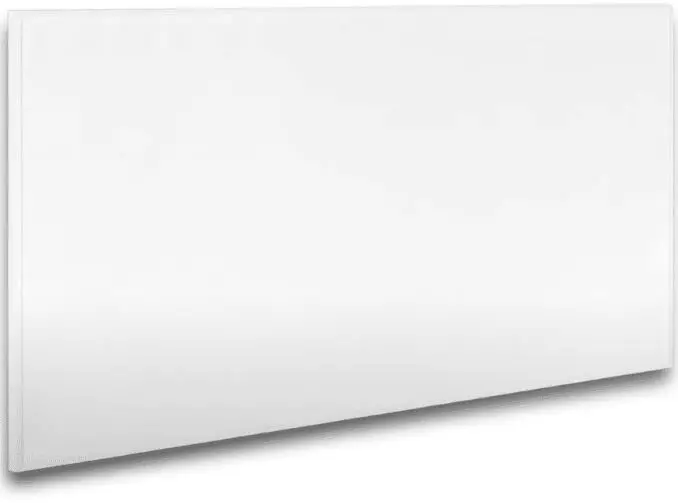

somogyi FKIR 722 Hybrid Heater
Additional table to instruction manual for the following appliance:
Information requirements for electric local space heaters
| (EN) Model identifier: (HR) Model: | FKIR 722 | |||||
|
(EN) Features | (EN) Symbol •
| (EN) Value •
| (EN) Unit •
|
(EN) Feature | (EN) Unit •
| |
|
(EN) Heat output | (EN) Type of heat output/room temperature control (select one)
| |||||
| (EN) Nominal heat output
| Pnom | 0,72 | kW | (EN) Single stage heat output and no room temperature control • |
no | |
| (EN) Minimum heat output (indicative) •
| Pmin |
0 |
kW | (EN) Two or more manual stages, no room temperature control
|
no | |
| (EN) Maximum continuous heat output •
| Pmax, c |
0,72 |
kW | (EN) With mechanic thermostat room temperature •
|
no | |
|
(EN) Auxiliary electricity consumption | (EN) With electronic room temperature control |
no | ||||
|
(EN) At nominal heat output
| elmax |
0,72 |
kW | (EN) Electronic room temperature control plus day timer |
no | |
|
(EN) At minimal heat output | elmin |
N/A |
kW | (EN) Electronic room temperature control plus week timer •
|
yes
| |
| (EN) In standby mode
| elSB | 0 | kW | (EN) Other control options (multiple selections possible) | ||
| (EN) Room temperature control, with presence detection •
|
no | |||||
| (EN) Room temperature control, with open window detection
|
yes
| |||||
| (EN) With distance control option | no | |||||
| (EN) With adaptive start control
|
no | |||||
| (EN) With working time limitation |
no | |||||
| (EN) With black bulb sensor | no | |||||
|
(EN) Contact details
